key MITSUBISHI ECLIPSE 2011 4.G Owner's Manual

Features and controls
3-9
3
Horn deactivation/reactivation The answerback function can be set in the following three
ways.
Each time the answerback function is set, a tone will sound to
tell you the condition of the answerback function.
1. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
2. Release the LOCK and UNLOCK buttons within 10 sec-
onds of pressing the UNLOCK button in step 1.Turn signal light deactivation/reactivation The answerback function from the turn signal lights indicating
when the doors and the rear hatch or trunk lid are locked or
unlocked can be turned on or off separately.
A tone will sound once when the function has been turned on,
and twice if it has been turned off.To deactivate/reactivate the answerback function for lock-
ing of the doors and rear hatch or trunk lid, take the fol-
lowing steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the LOCK button and then release the UNLOCK
button within 10 seconds of pressing the LOCK button in
step 1.
To deactivate/reactivate the answerback function for
unlocking of the doors and rear hatch or trunk lid, take the
following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the UNLOCK button and then release the LOCK
button within 10 seconds of pressing the LOCK button in
step 1.
Using the panic alarmIf you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
One chime: The horn will sound if the doors and the rear
hatch or trunk lid are locked with the keyless
entry system.
Two chimes: The horn will not sound, even if the doors and
the rear hatch or trunk lid are locked with the
keyless entry system.
Three chimes: The horn will sound if the doors and the rear
hatch or trunk lid are already locked and the
keyless entry system is used.
In this mode, the horn will only sound when the
keyless entry LOCK button is pressed again to
reconfirm that the doors and the rear hatch or
trunk lid are locked.
BK0115900US.book 9 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-10 Features and controls
3
NOTE
The indicator light (5) comes on each time a switch is
pressed.

The keyless entry system does not work if the key is in the
ignition.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed and no door or rear
hatch or trunk lid is opened within approximately 30 sec-
onds: relocking will automatically occur.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the rear hatch or trunk lid cannot be
locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 4 remote control transmitters can
be programmed for your vehicle.
NOTE
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies
with Part 15 of the FCC Rules and RSS-210 of the Indus-
try Canada Rules. Operation is subject to the following
two conditions.
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired opera-
tion.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0115900US.book 10 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-12 Features and controls
3
4. Install a new battery with the + side (A) down.
5. Close the remote control transmitter firmly.
6. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
7. Check the keyless entry system to see that it works. NOTE
You may purchase a replacement battery at an electric
appliance store.

Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
BK0115900US.book 12 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-13

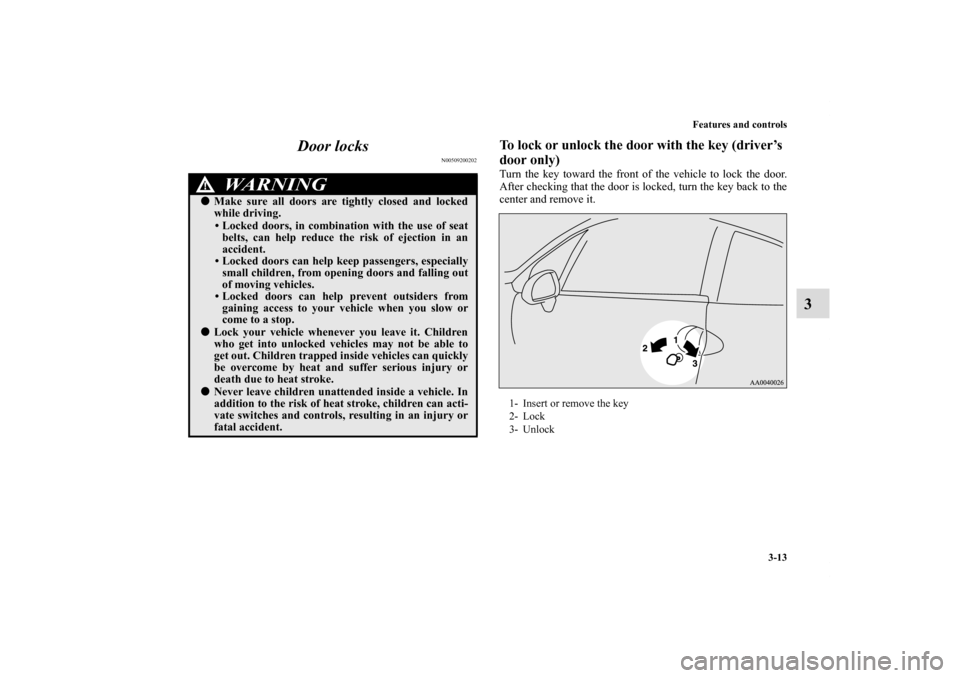

3 Door locks
N00509200202
To lock or unlock the door with the key (driver’s
door only)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave children unattended inside a vehicle. In
addition to the risk of heat stroke, children can acti-
vate switches and controls, resulting in an injury or
fatal accident.
1- Insert or remove the key
2- Lock
3- Unlock
BK0115900US.book 13 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-14 Features and controls
3
To lock or unlock the door from the inside Move the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.
To lock the door without using the key 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door. Key reminder buzzer
N00549600035
If you open the driver’s door while the ignition key is in the
“LOCK” or “ACC” position, a tone will sound, reminding you
to remove the key. Lock out protection
N00549700153
If the key is in the ignition switch when you push the lock knob
forward with the driver’s door or passenger’s door open, the
lock knob will automatically return to the unlocked position.
1- Lock
2- Unlock
BK0115900US.book 14 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-16 Features and controls
3Rear hatch (ECLIPSE)/Trunk lid
(ECLIPSE SPYDER)
N00510000037
NOTE
Locking/unlocking of the driver’s door by using the
keyless entry system also locks/unlocks the rear hatch or
trunk lid.
To open
N00554100041
1. Press the rear hatch or trunk button (A) to open the rear
hatch or trunk lid. The rear hatch or trunk lid will pop up
slightly. Lift it from this point.
WA R N I N G
!
It is dangerous to drive with the rear hatch or trunk
lid open since carbon monoxide (CO) gas can enter
the cabin. CO is an invisible, odorless gas that can
cause unconsciousness and even death.
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
ECLIPSE ECLIPSE SPYDER
BK0115900US.book 16 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-17
3

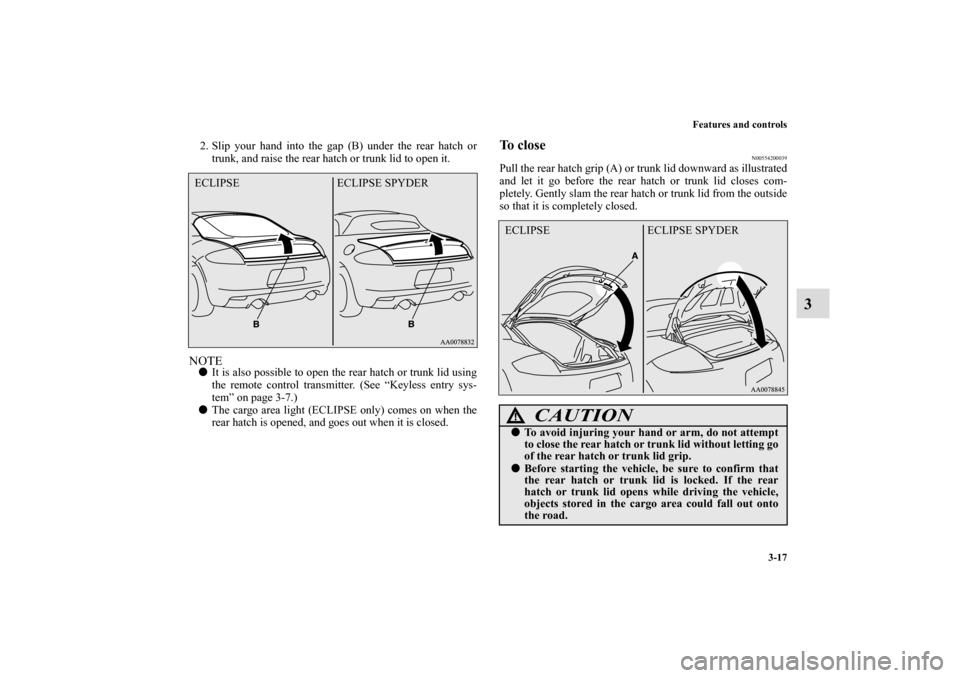

2. Slip your hand into the gap (B) under the rear hatch or
trunk, and raise the rear hatch or trunk lid to open it.NOTE
It is also possible to open the rear hatch or trunk lid using
the remote control transmitter. (See “Keyless entry sys-
tem” on page 3-7.)

The cargo area light (ECLIPSE only) comes on when the
rear hatch is opened, and goes out when it is closed.
To close
N00554200039
Pull the rear hatch grip (A) or trunk lid downward as illustrated
and let it go before the rear hatch or trunk lid closes com-
pletely. Gently slam the rear hatch or trunk lid from the outside
so that it is completely closed.
ECLIPSE ECLIPSE SPYDER
CAUTION
!
To avoid injuring your hand or arm, do not attempt
to close the rear hatch or trunk lid without letting go
of the rear hatch or trunk lid grip.
Before starting the vehicle, be sure to confirm that
the rear hatch or trunk lid is locked. If the rear
hatch or trunk lid opens while driving the vehicle,
objects stored in the cargo area could fall out onto
the road.ECLIPSE ECLIPSE SPYDER
BK0115900US.book 17 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-19
3

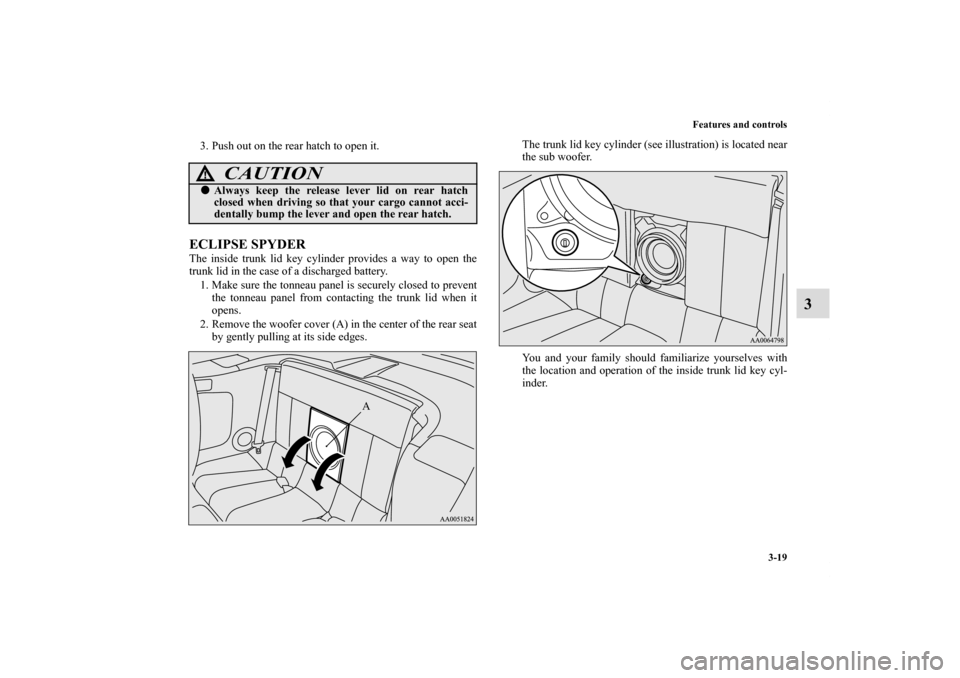

3. Push out on the rear hatch to open it.ECLIPSE SPYDERThe inside trunk lid key cylinder provides a way to open the
trunk lid in the case of a discharged battery.
1. Make sure the tonneau panel is securely closed to prevent
the tonneau panel from contacting the trunk lid when it
opens.
2. Remove the woofer cover (A) in the center of the rear seat
by gently pulling at its side edges.The trunk lid key cylinder (see illustration) is located near
the sub woofer.
You and your family should familiarize yourselves with
the location and operation of the inside trunk lid key cyl-
inder.
CAUTION
!
Always keep the release lever lid on rear hatch
closed when driving so that your cargo cannot acci-
dentally bump the lever and open the rear hatch.
A
BK0115900US.book 19 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-20 Features and controls
3

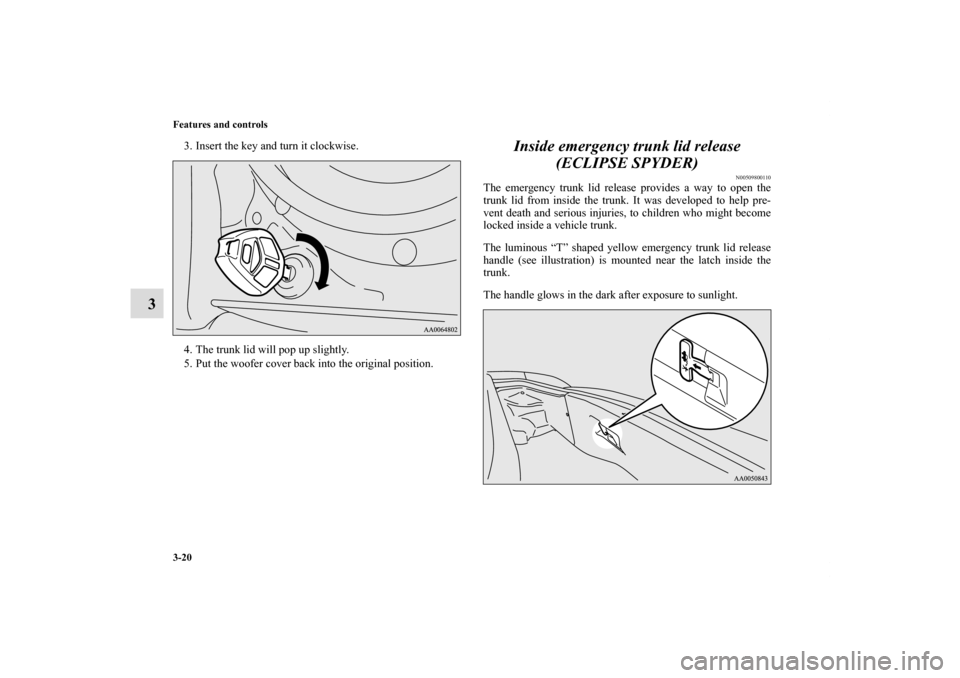

3. Insert the key and turn it clockwise.
4. The trunk lid will pop up slightly.
5. Put the woofer cover back into the original position.
Inside emergency trunk lid release
(ECLIPSE SPYDER)
N00509800110
The emergency trunk lid release provides a way to open the
trunk lid from inside the trunk. It was developed to help pre-
vent death and serious injuries, to children who might become
locked inside a vehicle trunk.

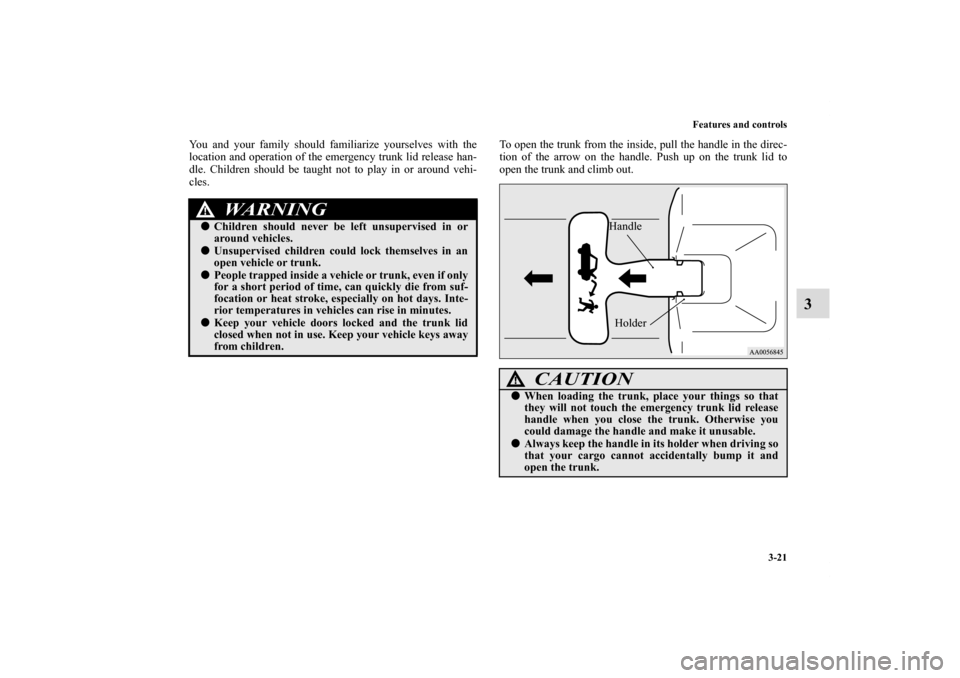

The luminous “T” shaped yellow emergency trunk lid release
handle (see illustration) is mounted near the latch inside the
trunk.
The handle glows in the dark after exposure to sunlight.
BK0115900US.book 20 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-21
3
You and your family should familiarize yourselves with the
location and operation of the emergency trunk lid release han-
dle. Children should be taught not to play in or around vehi-
cles.To open the trunk from the inside, pull the handle in the direc-
tion of the arrow on the handle. Push up on the trunk lid to
open the trunk and climb out.
WA R N I N G
!
Children should never be left unsupervised in or
around vehicles.
Unsupervised children could lock themselves in an
open vehicle or trunk.
People trapped inside a vehicle or trunk, even if only
for a short period of time, can quickly die from suf-
focation or heat stroke, especially on hot days. Inte-
rior temperatures in vehicles can rise in minutes.
Keep your vehicle doors locked and the trunk lid
closed when not in use. Keep your vehicle keys away
from children.
CAUTION
!
When loading the trunk, place your things so that
they will not touch the emergency trunk lid release
handle when you close the trunk. Otherwise you
could damage the handle and make it unusable.
Always keep the handle in its holder when driving so
that your cargo cannot accidentally bump it and
open the trunk.
Handle
Holder
BK0115900US.book 21 ページ ２００９年１０月２７日　火曜日　午後１２時１分
