3-54 Features and controls
3Parking brake
N00511400168
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
1st (on a uphill) or “R” (Reverse) (on a downhill) position, for
vehicles with a manual transaxle or set the selector lever to “P”
(PARK) position on automatic transaxle vehicles.To apply To release
When parking on a hill, apply the parking brake and turn the
front wheels toward the curb on a downhill grade, away from
the curb on an uphill grade.

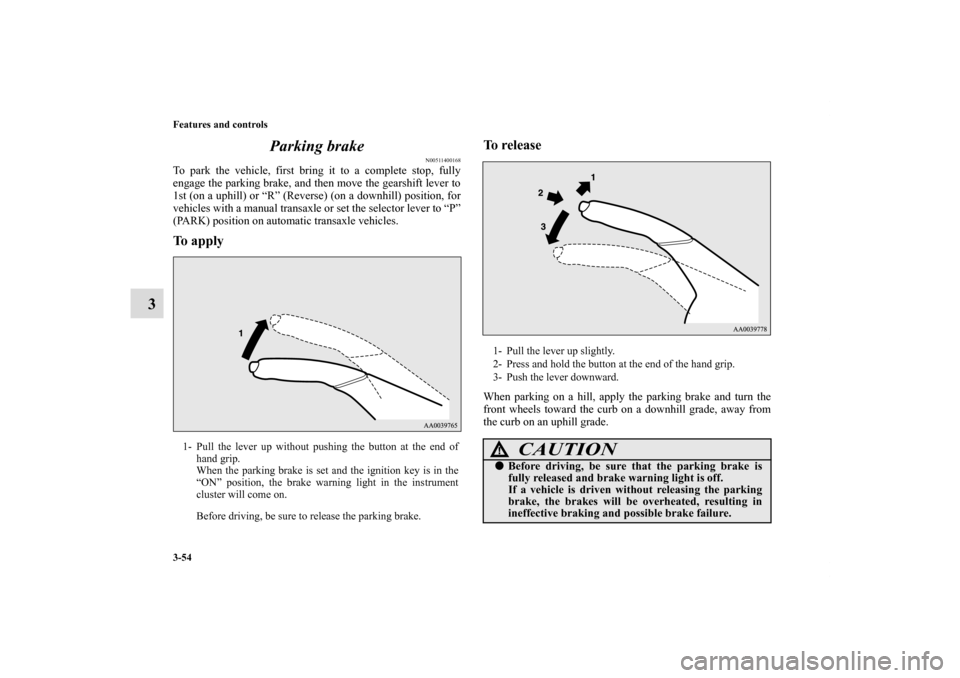

1- Pull the lever up without pushing the button at the end of
hand grip.
When the parking brake is set and the ignition key is in the
“ON” position, the brake warning light in the instrument
cluster will come on.
Before driving, be sure to release the parking brake.
1- Pull the lever up slightly.
2- Press and hold the button at the end of the hand grip.
3- Push the lever downward.
CAUTION
!
Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
BK0115900US.book 54 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-56 Features and controls
3Inside rearview mirror
N00511600232
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
NOTE
When the gearshift lever (for vehicle with manual
transaxle) or the selector lever (for vehicle with automatic
transaxle) is in “R” position with the ignition key in the
“ON” position, the rear-view camera image will be dis-
played on the left portion of a type 2 mirror.
For details, refer to “Rear-view camera” on page 3-102.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.

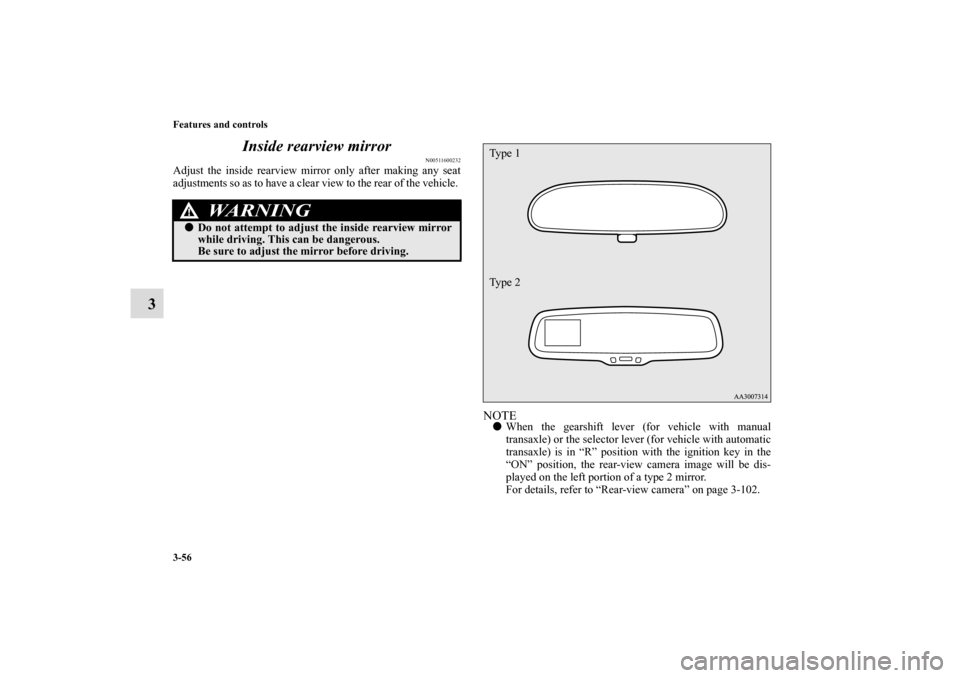

Ty p e 1
Ty p e 2
BK0115900US.book 56 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-59
3
To adjust the mirror positionThe outside rearview mirrors can be adjusted when the ignition
key is in the “ON” or “ACC” position.

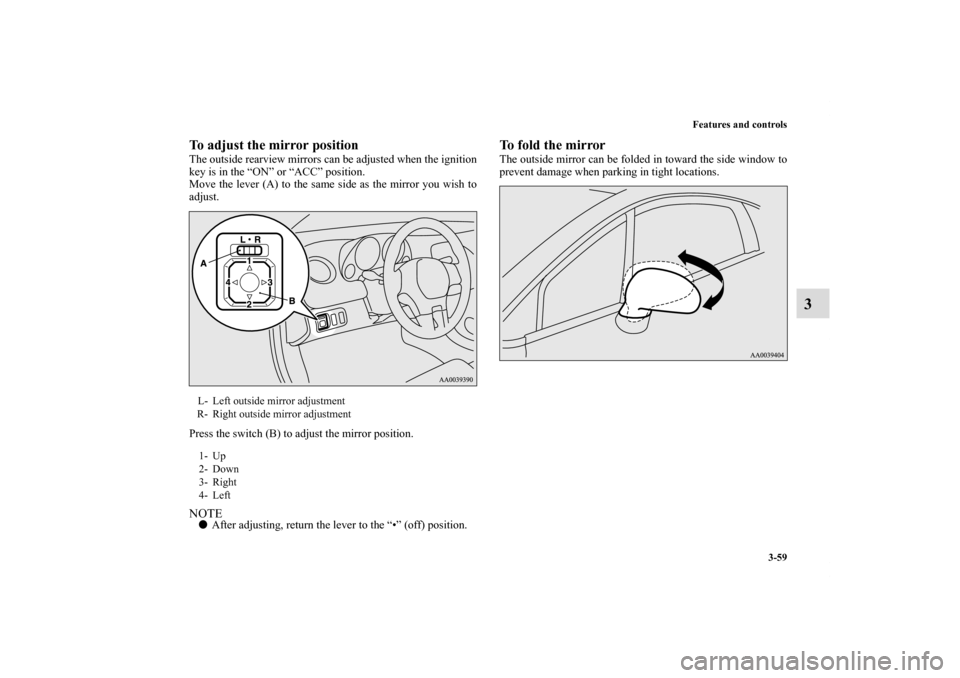

Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position. NOTE
After adjusting, return the lever to the “•” (off) position.
To fold the mirrorThe outside mirror can be folded in toward the side window to
prevent damage when parking in tight locations.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0115900US.book 59 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-60 Features and controls
3
Heated mirror
(if so equipped)
N00549300146
When the rear window defogger switch is pressed, the outside
rearview mirrors are defogged or defrosted. Current will flow
through the heater element inside the mirrors, thus clearing
away frost or condensation.

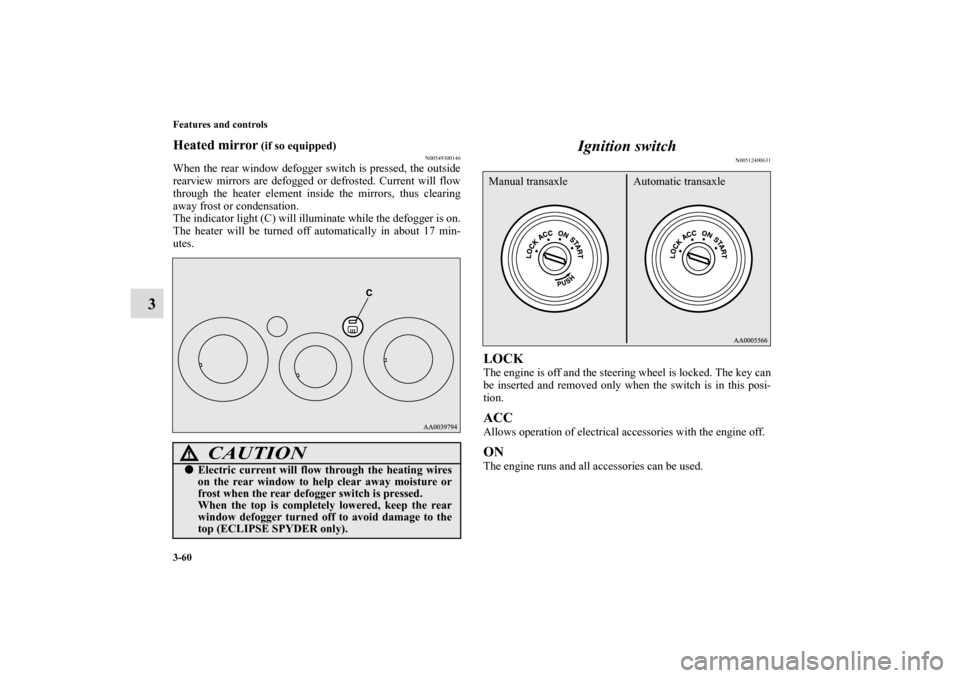

The indicator light (C) will illuminate while the defogger is on.
The heater will be turned off automatically in about 17 min-
utes.
Ignition switch
N00512400631
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. ON The engine runs and all accessories can be used.
CAUTION
!
Electric current will flow through the heating wires
on the rear window to help clear away moisture or
frost when the rear defogger switch is pressed.
When the top is completely lowered, keep the rear
window defogger turned off to avoid damage to the
top (ECLIPSE SPYDER only).
Manual transaxle Automatic transaxle
BK0115900US.book 60 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-61
3
START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTE
Your vehicle is equipped with ignition switch illumina-
tion.
• The ignition switch illumination comes on while the
driver’s door is opened and remains on for about 30 sec-
onds after the driver’s door is closed.
• When you remove the ignition key from the ignition
switch, it will be illuminated for about 30 seconds.
However, it will go off even while the illumination
comes on if the ignition switch is turned to “ON” posi-
tion.

Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to “Electronic immobilizer” on page 3-3.)
To remove the key
N00550900070

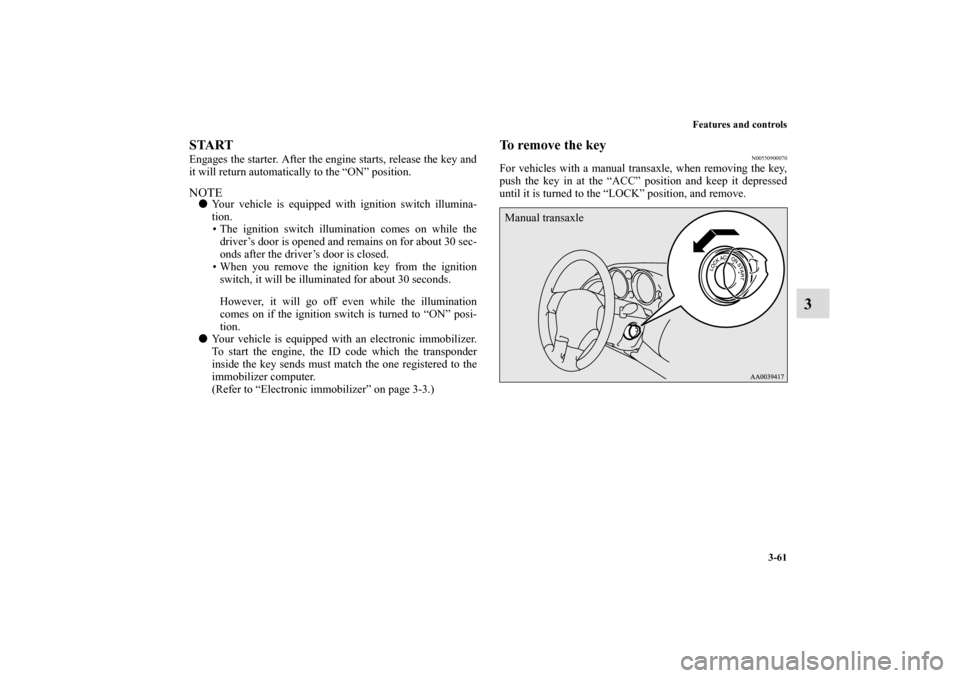

For vehicles with a manual transaxle, when removing the key,
push the key in at the “ACC” position and keep it depressed
until it is turned to the “LOCK” position, and remove.Manual transaxle
BK0115900US.book 61 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-62 Features and controls
3
For vehicles with an automatic transaxle, when removing the
key, first set the selector lever to the “P” (PARK) position, and
then turn the key to the “LOCK” position and remove it.NOTE
For vehicles with an automatic transaxle, the key cannot
be removed unless the selector lever is set in the “P”
(PARK) position.
Key reminder buzzer
N00551000049
If the driver’s door is opened while the ignition key is in the
“LOCK” or “ACC” position, a tone will sound.
Automatic transaxle

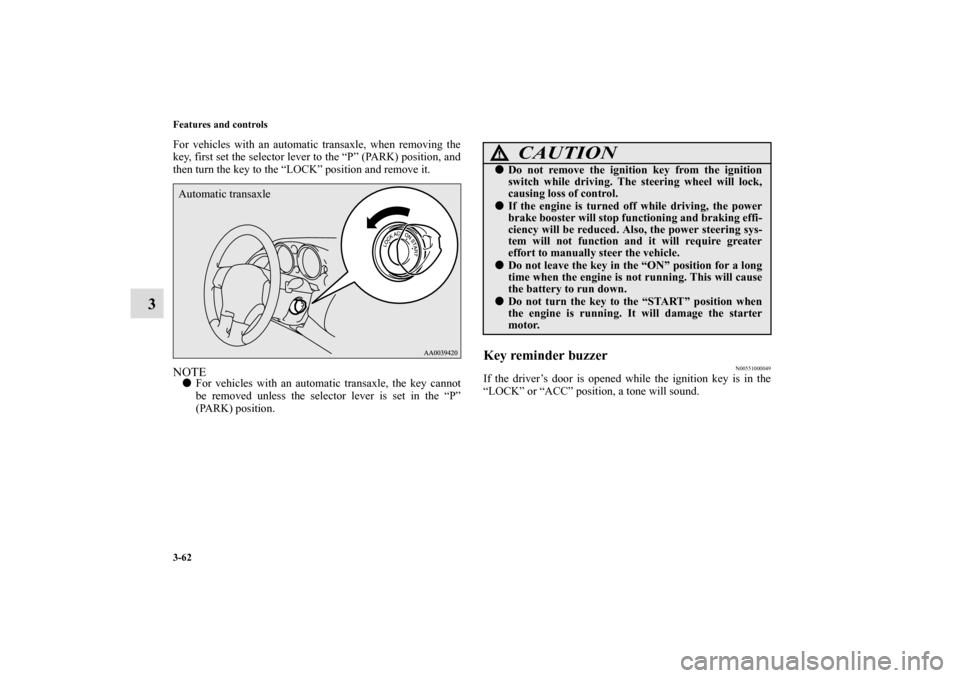

CAUTION
!
Do not remove the ignition key from the ignition
switch while driving. The steering wheel will lock,
causing loss of control.
If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.
Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.
Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0115900US.book 62 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-63
3 Steering wheel lock
N00512500108
To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To u n l o c kTurn the key to the “ACC” position while moving the steering
wheel slightly.
NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
position to “ACC” position. Firmly turn the steering
wheel to the left or to the right as you turn the key.
CAUTION
!
Remove the key when leaving the vehicle.
If your vehicle needs to be towed, turn the key to the
“ACC” position to unlock the steering wheel.
BK0115900US.book 63 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-64 Features and controls
3Starting
N00512600633
Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

The engine is warmed up enough for driving when the
coolant temperature gauge indicator starts to move. A
longer warm up period will only consume extra fuel.
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system, which automatically controls the release of
fuel. There is usually no need to depress the accelerator pedal
when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.

Release the ignition key as soon as the engine starts.
Otherwise, the starter motor will be damaged.
CAUTION
!
BK0115900US.book 64 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-65
3
Normal conditionsTo start your vehicle:
Make sure all occupants are properly seated with seat belts fas-
tened.
1. Insert the ignition key.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).NOTE
For models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.
5. On vehicles with manual transaxle, place the gearshift
lever in the “N” (Neutral) position.
On vehicles with automatic transaxle, make sure the
selector lever is in the “P” (PARK) position.
6. Turn the ignition key to the “ON” position and make cer-
tain that all warning lights are functioning properly before
starting the engine.
7. Turn the ignition key to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts. NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
At extremely cold ambient temperatureIf the engine won’t start, press the accelerator pedal about half-
way down while cranking the engine. Release the accelerator
pedal when the engine starts.
CAUTION
!
When starting the engine, make sure that you hold
the brake pedal down. During very cold weather, if
you start the engine with your foot on the accelera-
tor pedal, switch to the brake pedal as soon as the
engine has started.
BK0115900US.book 65 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-66 Features and controls
3
Startability of automatic transaxle vehicle with ambient
temperature of -31
°F (-35
°C) or lower
When the ambient temperature is -31 °F (-35 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If it occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.Flooded engineIf the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Release the ignition key (return to “ON” position) and the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition key to the “START” posi-
tion for another 5 to 6 seconds. Release the ignition key if the
engine starts. Repeat as necessary if the engine fails to start, or
contact your local Mitsubishi Motors dealer or a repair facility
of your choice for assistance.
Using the MIVEC engine The MIVEC engine automatically switches its intake-valve
control between a low-speed mode and a high-speed mode in
accordance with driving conditions for maximum engine per-
formance.NOTE
To protect the engine, the high-speed mode may not be
selected while the engine coolant temperature is low. In
such a case, the engine revolutions do not rise to over
5,000 rpm even if the accelerator pedal is depressed.
BK0115900US.book 66 ページ ２００９年１０月２７日　火曜日　午後１２時１分
