8-2 Customer assistance/Reporting Safety Defects
8Consumer information (For vehicles sold in
U.S.A.)
N01047100100
This information is provided in compliance with the require-
ments of the National Highway Traffic Safety Administration,
Department of Transportation. It provides the purchasers
and/or prospective purchasers with information on reporting
safety defects. Uniform tire quality gradingDOT quality grades - All passenger vehicle tires must conform
to Federal Safety Requirements in addition to these grades. The
specific grade rating in each grade category is shown on the
side wall of the tires on your vehicle. Treadwear The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded
150 would wear one and one-half (1
1/2) times as well on the
government course as a tire graded 100. The relative perfor-
mance of tires depends upon the actual conditions of their use,
however, and may depart significantly from the norm due to
variations in driving habits, service practices and differences in
road characteristics and climate.
Traction AA, A, B, C The traction grades, from highest to lowest, are AA, A, B and
C. Those grades represent the tire’s ability to stop on wet pave-
ment as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
Temperature A, B, CThe temperature grades are A (the highest), B and C, represent-
ing the tire’s resistance to the generation of heat and its ability
to dissipate heat when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained high tempera-
ture can cause the material of the tire to degenerate and reduce
tire life, and excessive temperature can lead to sudden tire fail-
ure. The grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal Motor Vehi-
cle Safety Standard No. 109. Grades B and A represent higher
levels of performance on the laboratory test wheel than the
minimum required by law.
WA R N I N G
!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
WA R N I N G
!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
BK0115900US.book 2 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Customer assistance/Reporting Safety Defects
8-3
8 Reporting Safety Defects
N01047200345
For vehicles sold in U.S.A.If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying
Mitsubishi Motors North America, Inc.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in a
group of vehicles, it may order a recall and remedy cam-
paign. However, NHTSA cannot become involved in
individual problems between you, your dealer, or
Mitsubishi Motors North America, Inc.
To contact NHTSA, you may call the Vehicle Safety Hot-
line toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);
go to
http://www.safercar.gov; or write to:
You can also obtain other information about motor vehi-
cle safety from http://www.safercar.gov.To contact Mitsubishi Motors North America, Inc. call 1-
888-648-7820 or write to:
For vehicles sold in CanadaIf you live in Canada, and you believe that your vehicle
has a safety defect, you should immediately notify Trans-
port Canada, in addition to notifying Mitsubishi Motor
Sales of Canada, Inc. You may write to:
To contact Mitsubishi Motor Sales of Canada, Inc. call 1-
888-576-4878 or write to:
Administrator, NHTSA, 400 Seventh Street, SW.,
Washington, DC 20590.Mitsubishi Motors North America, Inc.
Customer Relations Department
P.O. Box 6400
Cypress, CA 90630-0064
Transport Canada
330 Sparks Street
Tower C
Ottawa, Ontario K1A 0N5
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
BK0115900US.book 3 ページ ２００９年１０月２７日　火曜日　午後１２時１分

8-4 Customer assistance/Reporting Safety Defects
8Important facts to know in case of an acci-
dent
N01047300098
We hope you will never be involved in an accident, but there is
always that potential danger. So, please be sure to buckle up
and drive safely. In the event of an accident
Remain calm.

Check for injuries. Report all injuries to the police, and, if
necessary, call for an ambulance.

Record all the details of the accident. This will provide
you with accurate records of the accident for discussions
with your insurance company and other persons who may
be acting on your behalf. Key information to discuss with your insurance
company
Understand your repair estimate before approving repairs.

Choosing the repair shop and the brands of parts that they
use on your vehicle is your decision.

Ask for genuine Mitsubishi Motors parts. Many times, to
save money, your insurance company will recommend
imitation parts that do not meet the original specifications
of fit, finish, corrosion resistance or workmanship. Mitsubishi Motors built-in protection The strength and integrity built into your Mitsubishi vehicle is
the result of a specific design referred to as “Energy Manage-
ment”. Individual body parts are designed to act as one unit in
the event of an accident. Shock waves are absorbed by protec-
tive panels or are channeled around the passenger compart-ment. This important feature is possible because high tensile
steel is used in Mitsubishi panels and structural parts, some-
thing that cannot be guaranteed by the manufacturers of imita-
tion parts. All Genuine Mitsubishi body panels and support
brackets are designed and constructed as important protection
features in the event of an accident. By replacing body parts
with imitations, your vehicle may no longer meet original
equipment specifications.
Consumer rights (For vehicles sold in U.S.A.)As a consumer requesting repair on your vehicle, you have
consumer rights. Across the country, State Insurance Commis-
sioners have begun considering rules on the use of non-OEM
parts. This could mean that repair shops will have to disclose to
the consumer, when they intend to use non-OEM parts. Since
regulations are not consistent on this point, remember you have
a choice. So, if you want genuine Mitsubishi Motors parts, you
may have to specifically request them. Make certain your
insurance company understands imitations are not to be used in
the repair of your vehicle. You deserve the best genuine
Mitsubishi Motors parts. Genuine Mitsubishi Motors partsGenuine Mitsubishi Motors parts are built with the high quality
and durability standards you expect. Genuine Mitsubishi
Motors replacements parts are your guarantee that your vehicle
will have all the technological advantages and maintain the
style and protection of a brand new Mitsubishi Motors.
Remember to ask for genuine Mitsubishi Motors parts.
BK0115900US.book 4 ページ ２００９年１０月２７日　火曜日　午後１２時１分

9
Specifications
Vehicle labeling . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 2
Vehicle dimensions . . . . . . . . . . . . . . . . . . . . . . . .9- 5
Vehicle weights . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 6
Engine specifications . . . . . . . . . . . . . . . . . . . . . . .9- 7
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 8
Tires and wheels. . . . . . . . . . . . . . . . . . . . . . . . . . .9- 8
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 9
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

9-2 Specifications
9Vehicle labeling
N01147400612
Keep a record of the vehicle identification number. This infor-
mation will assist the police if your vehicle is stolen.1 - Vehicle emission control information labelThe vehicle emission control information label is affixed on the
inside panel of the engine hood.2 - Vehicle identification number plateThe vehicle identification number is stamped on the plate riv-
eted to the left front corner of the dashboard. It is visible from
outside of the vehicle through the windshield.3 - Air conditioning labelThe air conditioning label is affixed on the inside panel of the
engine compartment.
4 - Vehicle information code plateThe vehicle information code plate is located on the driver’s
side door pillar.
BK0115900US.book 2 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Specifications
9-3
9
Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustrations. *- Front of the vehicle2.4 liter engine
*- Front of the vehicle3.8 liter engine
BK0115900US.book 3 ページ ２００９年１０月２７日　火曜日　午後１２時１分

9-4 Specifications
9
Tire and loading information placard
N01148100573
The tire and loading information placard is located on the
driver’s door sill. A- All vehicles (Type A)
B- Vehicles sold in Canada (Type B)
Ty p e ATy p e B
BK0115900US.book 4 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Specifications
9-5
9
Certification label
N01148200125

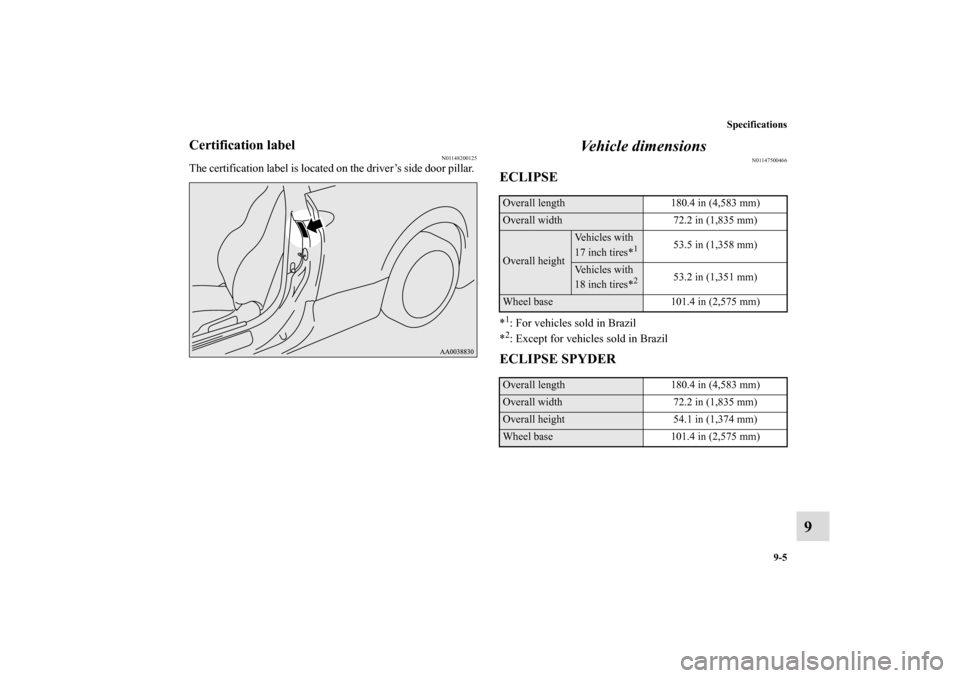

The certification label is located on the driver’s side door pillar.
Vehicle dimensions
N01147500466
ECLIPSE*1: For vehicles sold in Brazil
*2: Except for vehicles sold in BrazilECLIPSE SPYDEROverall length 180.4 in (4,583 mm) Overall width 72.2 in (1,835 mm) Overall height
Vehicles with
17 inch tires*
1
53.5 in (1,358 mm)
Vehicles with
18 inch tires*
2
53.2 in (1,351 mm)
Wheel base 101.4 in (2,575 mm) Overall length 180.4 in (4,583 mm) Overall width 72.2 in (1,835 mm) Overall height 54.1 in (1,374 mm)Wheel base 101.4 in (2,575 mm)
BK0115900US.book 5 ページ ２００９年１０月２７日　火曜日　午後１２時１分

9-6 Specifications
9Vehicle weights
N01147600757
ECLIPSE

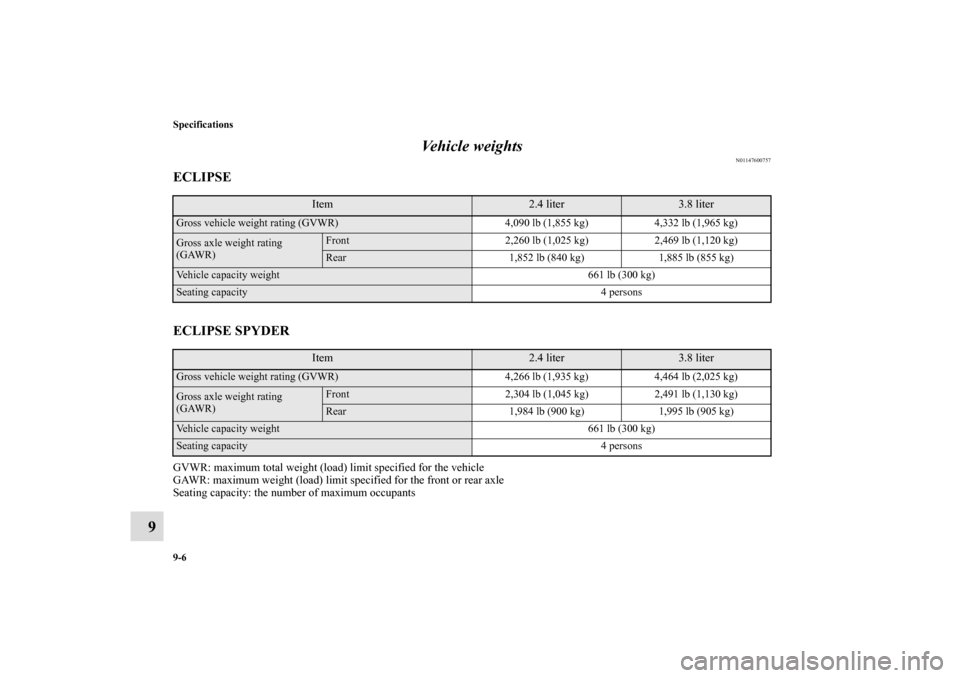

ECLIPSE SPYDERGVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
2.4 liter
3.8 liter
Gross vehicle weight rating (GVWR) 4,090 lb (1,855 kg) 4,332 lb (1,965 kg)Gross axle weight rating
(GAWR)
Front 2,260 lb (1,025 kg) 2,469 lb (1,120 kg)Rear 1,852 lb (840 kg) 1,885 lb (855 kg)
Vehicle capacity weight 661 lb (300 kg)Seating capacity4 persons
Item
2.4 liter
3.8 liter
Gross vehicle weight rating (GVWR) 4,266 lb (1,935 kg) 4,464 lb (2,025 kg)Gross axle weight rating
(GAWR)
Front 2,304 lb (1,045 kg) 2,491 lb (1,130 kg)Rear 1,984 lb (900 kg) 1,995 lb (905 kg)
Vehicle capacity weight 661 lb (300 kg)Seating capacity4 personsBK0115900US.book 6 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Specifications
9-7
9 Engine specifications
N01147700426
Item
2.4 liter
3.8 liter
Engine model 4G69 6G75Engine displacement 145.1 CID (2,378 cm³) 233.6 CID (3,828 cm³)No. of cylinders and cylinder arrangement 4 in-line 6-V60°Bore 3.43 in (87.0 mm) 3.74 in (95.0 mm)Stroke 3.93 in (100.0 mm) 3.54 in (90.0 mm)Compression ratio 9.5 10.5Thermostat valve opening temperature 188.6 °F (87.0 °C) 179.6 °F (82.0 °C)Spark plugs
NGK LZFR6AI IFR6B-K
Spark plug gap .028 to.031 in (0.7 to 0.8 mm)Firing order 1-3-4-2 1-2-3-4-5-6Ignition timing, idle speed, mixture Refer to the “Vehicle emission control information label” inside panel of the engine hood.
