MITSUBISHI ECLIPSE 2011 4.G Owners Manual

7-50 Vehicle care and maintenance
7
Inside
N00950400561
ECLIPSE

NOTE
The dome light (front)/reading lights (vehicles with
sunroof) use LEDs rather than bulbs. For repair and
replacement, contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
Vehicles with sunroof Except for vehicles with
sunroof

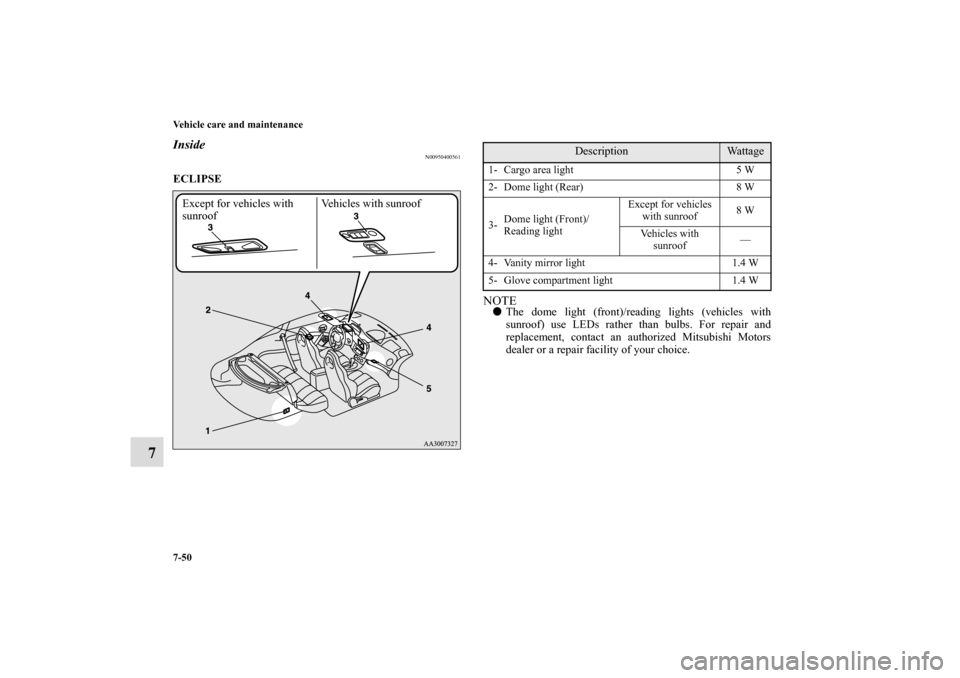

Description
Wattage
1- Cargo area light 5 W
2- Dome light (Rear) 8 W
3-Dome light (Front)/
Reading lightExcept for vehicles
with sunroof8 W
Vehicles with
sunroof—
4- Vanity mirror light 1.4 W
5- Glove compartment light 1.4 W
BK0115900US.book 50 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-51
7
ECLIPSE SPYDER
NOTE
The dome light/reading lights use LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
Headlights (vehicles with high intensity discharge
headlights)
N00943100159
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.
Description
Wattage
1- Vanity mirror light 1.4 W
2- Dome light (Front)/Reading lights —
3- Glove compartment light 1.4 W
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
Motors dealer whenever repair or replacement is
necessary.
BK0115900US.book 51 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-52 Vehicle care and maintenance
7
Headlights (except for vehicles with high inten-
sity discharge headlights)
N00943100162
1. Depress the tab (A) on the harness connector and pull the
harness connector toward you to remove it. 2. Turn the bulb (B) counterclockwise, and then remove the
headlight bulb with holder.
3. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0115900US.book 52 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-53
7
Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.Parking and side-marker lights (vehicles with
high intensity discharge headlights)
N00917300280
1. When replacing the bulb on the left side, remove the cap
(A) of the headlight by turning it counterclockwise.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the headlights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
* - Front of the vehicle
BK0115900US.book 53 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-54 Vehicle care and maintenance
7
2. Remove the socket and bulb assembly (B) together by
turning it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
BK0115900US.book 54 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-55
7
Front turn signal lights (vehicles with high inten-
sity discharge headlights)
N00943400022
1. When replacing the bulb on the left side, remove the cap
(A) of the headlight by turning it counterclockwise.2. Remove the socket and bulb assembly (B) together by
turning it counterclockwise.* - Front of the vehicle
BK0115900US.book 55 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-56 Vehicle care and maintenance
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front turn signal, parking and side-marker lights
(except for vehicles with high intensity discharge
headlights)
N00943400048
1. Remove the entire socket and bulb assembly (A) by turn-
ing it clockwise (the left side) or counterclockwise (the
right side).*- Front of the vehicle
BK0115900US.book 56 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-57
7
2. Depress the tab (B) on the harness connector and pull the
harness connector to remove it.
3. To install the bulb, perform the removal steps in reverse.
Front fog lights
N00943600675
1. Remove the three clips (A) by turning them counterclock-
wise or prying them, and remove the two screws (B) by
turning them counterclockwise, then remove the cover
(C).
BK0115900US.book 57 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-58 Vehicle care and maintenance
7
2. Remove the socket and bulb assembly (D) by turning

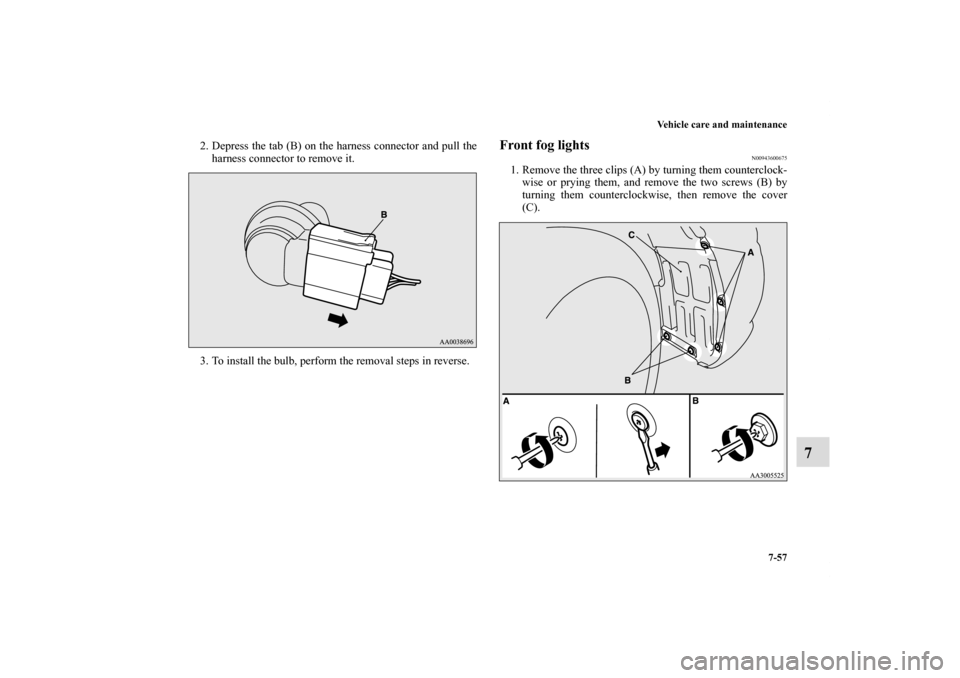

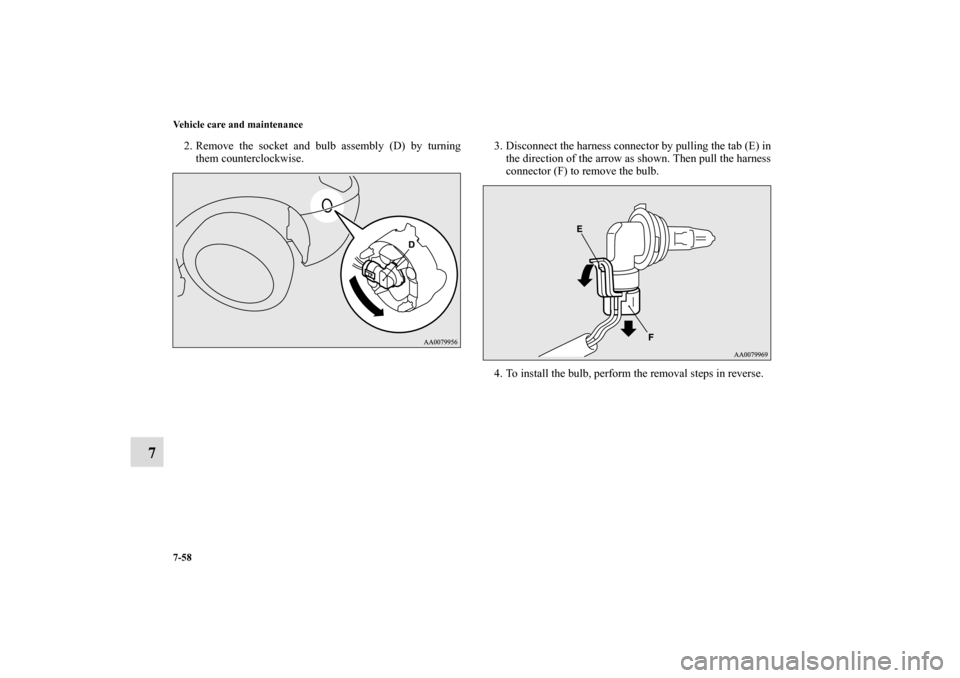

them counterclockwise.3. Disconnect the harness connector by pulling the tab (E) in
the direction of the arrow as shown. Then pull the harness
connector (F) to remove the bulb.
4. To install the bulb, perform the removal steps in reverse.
BK0115900US.book 58 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-59
7
Rear combination lights
N00943700445
ECLIPSE1. Open the rear hatch.

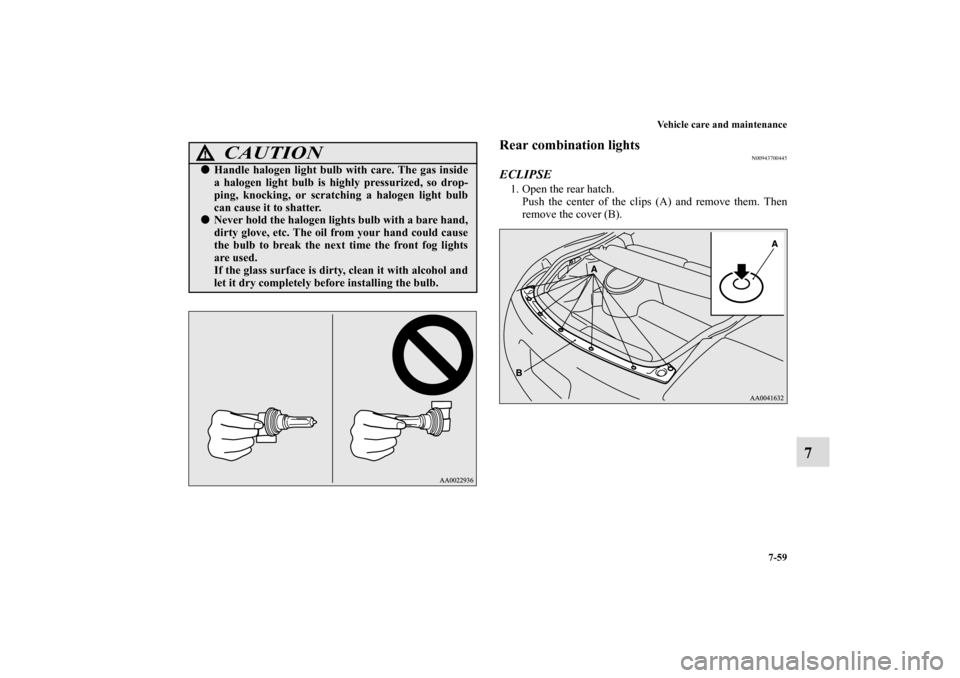

Push the center of the clips (A) and remove them. Then
remove the cover (B).
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the front fog lights
are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
