Features and controls
3-87
3
NOTE
Using the ASC OFF switch turns off both the skid control
function and the traction control function.

When moving out of mud, sand or fresh snow, pressing
the accelerator pedal may not allow the engine speed to
increase. In such situations, temporarily deactivate the
ASC, using the ASC OFF switch.

If you continue to press the ASC OFF switch after the
ASC is turned off, the “mistaken operation protection
function” will activate and the ASC will turn back on.
After the “mistaken operation protection function” is acti-
vated, it will not be possible to turn the ASC off.
To turn the system off again, return the ignition key to the
“ACC” or “LOCK” position, restart the engine and press
the ASC OFF switch.
CAUTION
!
For safety reasons, the ASC OFF switch should be
operated when your vehicle is stopped.
Be sure to keep the ASC on while driving in normal
circumstances.Vehicles with headlight leveling
Ty p e 2 Ty p e 1
BK0115900US.book 87 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-88 Features and controls
3
ASC indicator, ASC OFF indicator
N00546900011
The indicators should illuminate when the ignition key is
turned to the “ON” position, and should turn off after a few
seconds.
If the indicator stays on or does not illuminate when the igni-
tion key is turned to the “ON” position, have the vehicle
inspected by an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
indicator blinks when the ASC is operating.
indicator is illuminated when the ASC is deactivated.
NOTE
When a spare tire has been put on your vehicle, the grip-
ping ability of the tire will be lower, making it more likely
that the indicator will blink.
CAUTION
!
When indicator blinks, the ASC is operating,
which means that the road is slippery or that your
vehicle’s wheels are beginning to slip. If this hap-
pens, drive slower.
CAUTION
!
If an abnormal condition occurs in the system while
driving, the and indicators will illuminate at
the same time, or the indicator will blink.
In these cases, follow these procedures:
[If the and indicators continuously illuminate]• Park your vehicle in a safe place and stop the
engine. Restart the engine again and check
whether the and indicators go out. If these
indicators go out, there is no abnormal condition.
If the and indicators remain on even after
your vehicle is driven a short distance after re-
starting the engine, have the vehicle inspected by
an authorized Mitsubishi Motors dealer or a
repair facility of your choice as soon as possible.
BK0115900US.book 88 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-90 Features and controls
3Power steering system
N00518000206
The power steering system has mechanical steering capability
in case the power assist is lost. If the hydraulic pressure is
interrupted for some reason (such as engine stalling), you will
still be able to steer your vehicle.
If the power assist is lost, you will notice it takes much more
effort to steer and that there is much more “free play” in the
steering wheel. If this happens, take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice.
Cruise control
N00518300355
Cruise control is an automatic speed control system. It lets you
keep the same driving speed. Cruise control can be used at
speeds of about 25 mph (40 km/h) or more. It is especially use-
ful for freeway driving. Cruise control does not work at speeds
below about 25 mph (40 km/h).
WA R N I N G
!
Never turn off the engine while the vehicle is mov-
ing, or your ability to steer the vehicle may be seri-
ously reduced.
CAUTION
!
Do not leave the steering wheel turned all the way in
one direction. This can cause damage to the power
steering system.

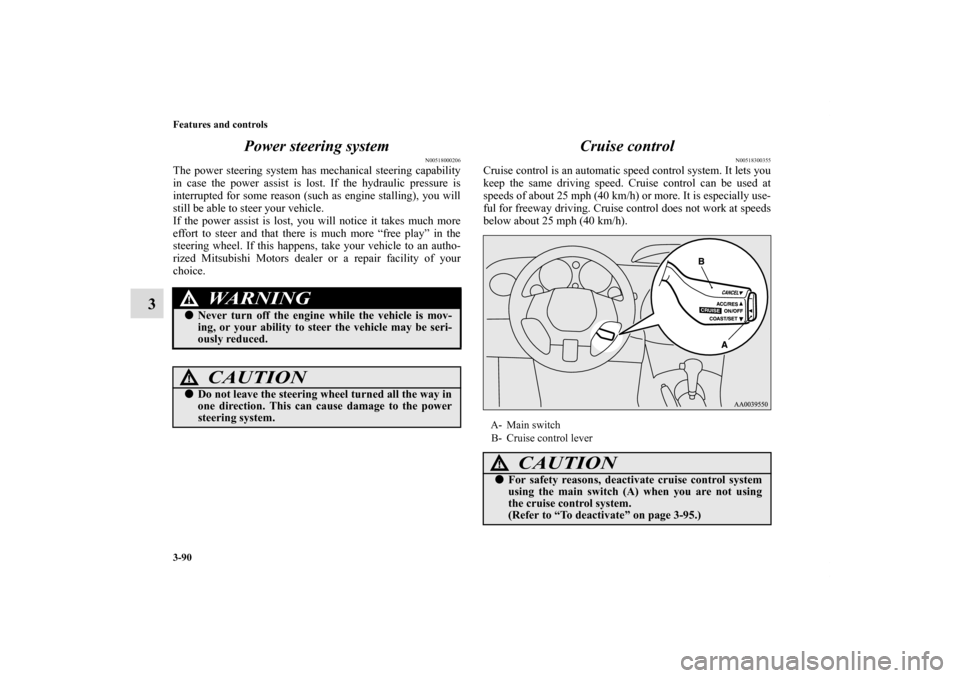

A- Main switch
B- Cruise control lever
CAUTION
!
For safety reasons, deactivate cruise control system
using the main switch (A) when you are not using
the cruise control system.
(Refer to “To deactivate” on page 3-95.)
BK0115900US.book 90 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-91
3
NOTE
Cruise control may not be able to keep your speed on
uphills or downhills.

Your speed may drop on a steep uphill. You may have to
use the accelerator pedal if you want to stay at your set
speed.

Your speed may increase to more than the set speed on a
steep downhill. You must use the brake to control your
speed. If your speed increases too much, turn off the
cruise control. (Refer to “To deactivate” on page 3-95.)

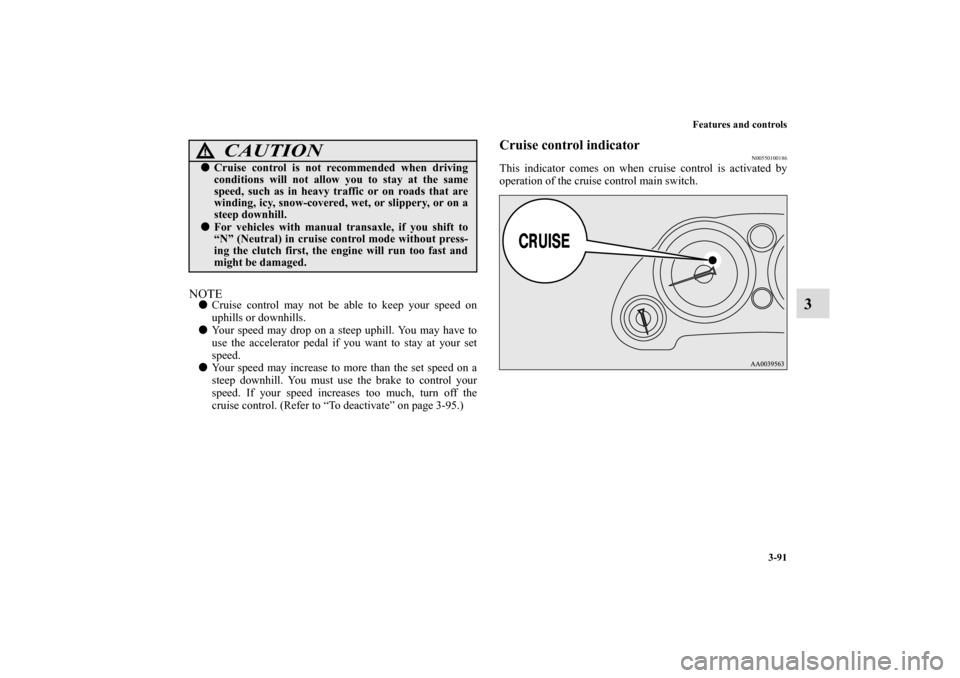

Cruise control indicator
N00550100186
This indicator comes on when cruise control is activated by
operation of the cruise control main switch.

Cruise control is not recommended when driving
conditions will not allow you to stay at the same
speed, such as in heavy traffic or on roads that are
winding, icy, snow-covered, wet, or slippery, or on a
steep downhill.
For vehicles with manual transaxle, if you shift to
“N” (Neutral) in cruise control mode without press-
ing the clutch first, the engine will run too fast and
might be damaged.
CAUTION
!
BK0115900US.book 91 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-92 Features and controls
3
To activate
N00518400170

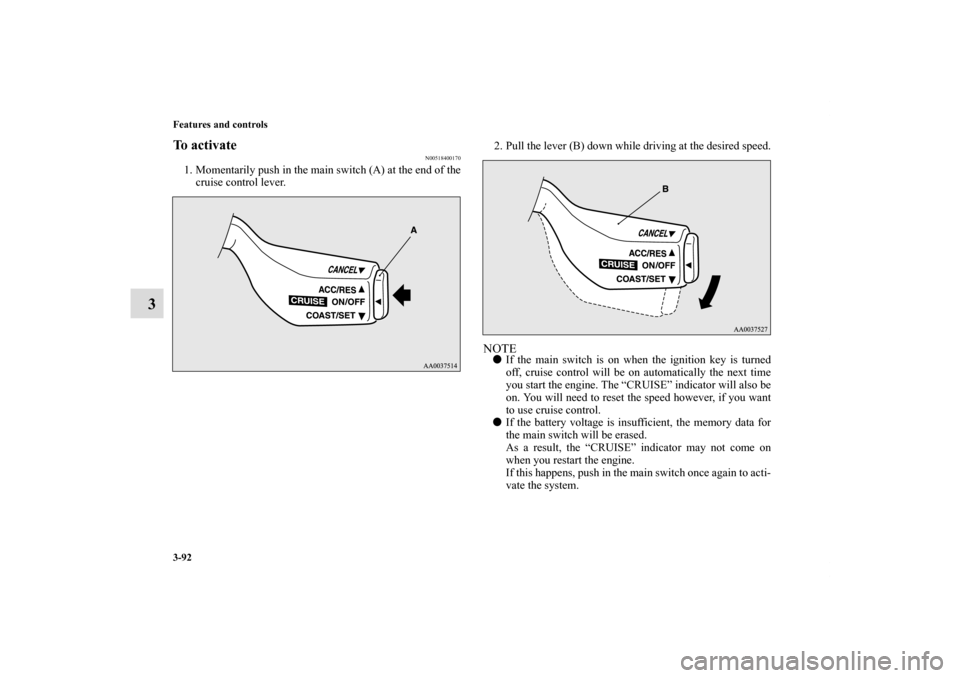

1. Momentarily push in the main switch (A) at the end of the
cruise control lever.2. Pull the lever (B) down while driving at the desired speed.
NOTE
If the main switch is on when the ignition key is turned
off, cruise control will be on automatically the next time
you start the engine. The “CRUISE” indicator will also be
on. You will need to reset the speed however, if you want
to use cruise control.

If the battery voltage is insufficient, the memory data for
the main switch will be erased.
As a result, the “CRUISE” indicator may not come on
when you restart the engine.
If this happens, push in the main switch once again to acti-
vate the system.
BK0115900US.book 92 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-96 Features and controls
3

When your speed slows to about 25 mph (40 km/h) or
less.

When the active stability control starts operating.
Refer to “Active stability control (ASC)” on page 3-85.

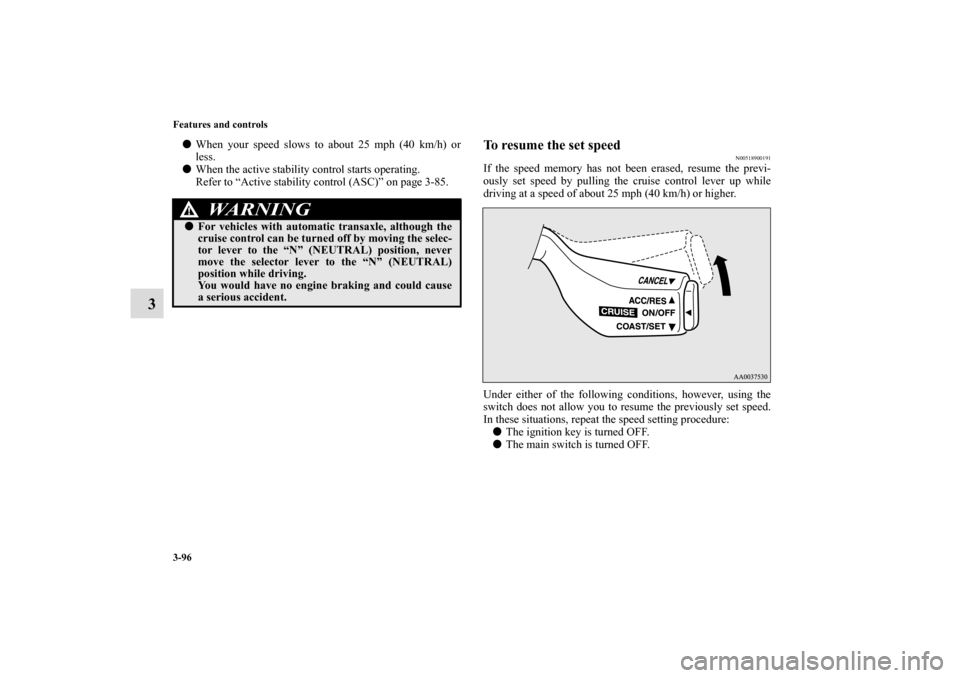

To resume the set speed
N00518900191
If the speed memory has not been erased, resume the previ-
ously set speed by pulling the cruise control lever up while
driving at a speed of about 25 mph (40 km/h) or higher.
Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The ignition key is turned OFF.

The main switch is turned OFF.
WA R N I N G
!
For vehicles with automatic transaxle, although the
cruise control can be turned off by moving the selec-
tor lever to the “N” (NEUTRAL) position, never
move the selector lever to the “N” (NEUTRAL)
position while driving.
You would have no engine braking and could cause
a serious accident.
BK0115900US.book 96 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-98 Features and controls
3
Tire pressure monitoring system warning light
N00554800093
When the ignition key is turned to the “ON” position, this light
normally illuminates and goes off a few seconds later.
If one or more of the vehicle tires (except for the compact spare
tire) is significantly under-inflated, however, this light will
remain illuminated while the key is in the “ON” position.
Refer to “If the warning light illuminates while driving” on
page 3-100 and take the necessary measures.
CAUTION
!
If the tire pressure monitoring system warning light
does not illuminate when the ignition key is turned
to the “ON” position, it means that the tire pressure
monitoring system is not working properly. Have
the system inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.

If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes of driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
CAUTION
!
BK0115900US.book 98 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-105
3 Instrument cluster
N00519000186
1- Speedometer
2- Tachometer
3- Fuel gauge
4- Light dimmer/Trip odometer control
5- Odometer/Trip odometer
6- Engine coolant temperature gauge
BK0115900US.book 105 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-107
3
Tachometer
N00519200159
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient gear range and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Odometer/Trip odometer
N00519500282
When the ignition switch is in the “ON” position, an “ODO” or
“TRIP” indicator is displayed.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct gear to control the engine speed so
that the tachometer indicator does not enter the red
zone.
1- Reset button
2- Odometer/Trip odometer
BK0115900US.book 107 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-108 Features and controls
3
Every time the reset button (1) is pressed lightly (less than one
second), the indicators are changed.
ODO-OdometerThe odometer shows the total distance the vehicle has traveled. TRIP-Trip odometerThe trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
TRIP can be used to measure the distance traveled since
the current trip began.
At the same time, TRIP can be used to measure the dis-
tance from a second location.
To reset the trip odometer
To zero the counter, press and hold the reset button for more
than one second. Only the currently displayed value will be
reset.
If TRIP is displayed, for example, only TRIP will be
reset. NOTE
Both TRIP and TRIP can measure trips up to
9999.9 miles/kilometers.

Even when the engine has been stopped, the odometer/trip
odometer indication is given for about 30 seconds if any
of the following steps is taken.
• The ignition key is turned to the “OFF” position.
• The driver’s door is opened.
• The odometer/trip odometer reset button is pressed.

If the battery is disconnected for a long time, both of these
displays will be reset to “0”.
