Features and controls
3-121
3
Compass calibration
N00553000014
This compass is self-calibrating, which means it automatically
makes corrections against magnetization of its components
when the vehicle is running. It should not be necessary to man-
ually calibrate the compass. If the indicated direction appears
to be wrong, first check the compass variance.
If the compass variance is correct, but the compass still shows
the wrong direction, calibrate the compass by the following
steps.NOTE
The compass adjustment mode will automatically shut off,
if no adjustment is made within about 10 seconds.1. When the ignition key is in the “ON” position, simulta-
neously press the “H” button and “M” button. Release the
“H” button and “M” button within 10 seconds, and the
electronic compass will switch to its compass setting
mode.
CAUTION
!
Adjust for compass calibration when the vehicle is
safely parked.
Although the compass calibration can be adjusted at
speeds of less than 2 mph (3 km/h), it should be
adjusted when the vehicle is safely parked.
BK0115900US.book 121 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-125
3
If the outside temperature drops below approximately 37 °F
(3°C), the outside temperature figure changes to “ICE” and the
“ICE”, “OUTSIDE TEMP”, and unit indications flash for
approximately 30 seconds to show there is a danger the road
might be icy.
Change of the outside temperature unit
N00553400018
When the ignition key is in the “ACC” or “ON” position,
pressing the “H” button and “M” button simultaneously for
more than 10 seconds will switch the outside temperature unit
between °F and °C.NOTE
Disconnecting the battery cable causes the outside tem-
perature unit memory to be erased. If it has been discon-
nected, readjust the unit by the above procedure.
CAUTION
!
Even when the “ICE”, “OUTSIDE TEMP”, and
unit indications do not flash, the road may be icy, so
please take care when driving.
BK0115900US.book 125 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-126 Features and controls
3Combination headlights and dimmer switch
N00522500521

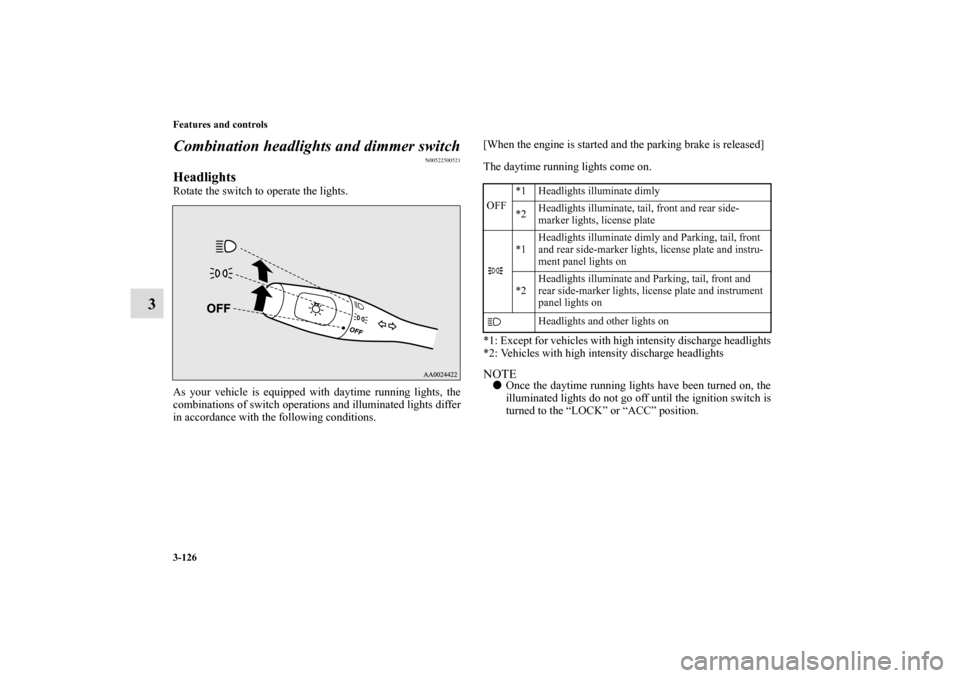

Headlights Rotate the switch to operate the lights.
As your vehicle is equipped with daytime running lights, the
combinations of switch operations and illuminated lights differ
in accordance with the following conditions.[When the engine is started and the parking brake is released]
The daytime running lights come on.
*1: Except for vehicles with high intensity discharge headlights
*2: Vehicles with high intensity discharge headlights
NOTE
Once the daytime running lights have been turned on, the
illuminated lights do not go off until the ignition switch is
turned to the “LOCK” or “ACC” position.OFF*1 Headlights illuminate dimly
*2Headlights illuminate, tail, front and rear side-
marker lights, license plate
*1Headlights illuminate dimly and Parking, tail, front
and rear side-marker lights, license plate and instru-
ment panel lights on
*2Headlights illuminate and Parking, tail, front and
rear side-marker lights, license plate and instrument
panel lights on
Headlights and other lights on
BK0115900US.book 126 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-127
3
[The engine is not running, or the engine is running but the
parking brake has not been released]
The engine can be started with the headlights off when the
vehicle is stationary.NOTE
Do not leave the headlights and other lights on for a long
period of time when the engine is not running. The battery
will run down.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes foggy. This is the
same as when window glass mists up on a humid day, and
does not indicate a problem. When the light is switched
on, the heat will dry out the fog. However, if water col-
lects inside the light, have it checked by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice. Light auto-cutout function (headlights and other
lights)
N00532600264

If the ignition key is turned to “LOCK” or “ACC” posi-
tion or removed from the ignition switch and the driver’s
door is opened with the light switch in the “ ” or “ ”
position, the lights automatically turn off.• If the driver’s door is opened after the key is removed
from the ignition switch, a high-pitched constant tone
will sound to remind you to turn off the lights.
• If the driver’s door is opened with the key in the ignition
switch, a low-pitched tone will sound to remind you to
remove the key.

If the ignition key is turned to “LOCK” or “ACC” posi-
tion or removed from the ignition switch with the driver’s
door closed and the light switch in the “ ” or “ ”
position, the lights will stay on for about 3 minutes and
then turn off automatically. OFF All lights off
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
BK0115900US.book 127 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-128 Features and controls
3
When you want to keep the lights on: If the light switch is turned to the “ ” or “ ” position again
after the engine is turned off, the 3 minute auto-cutout function
described above will not work. The lights (the parking lights,
tail lights and license plate lights) will stay on and will not turn
off automatically. NOTE
When the driver’s door is opened, a continuous high-
pitched tone will sound if the key has been removed; a
continuous low-pitched tone will sound if the key is in the
ignition switch.
The tone stops sounding when the driver’s door is closed.Headlight reminder buzzer
N00549800138
If the driver’s door is opened with the key in the “LOCK” or
“ACC” position or removed from the ignition switch while the
lights are on, the tone will sound to remind you to turn off the
lights. The lights will turn off automatically and so will the
tone. Or you can turn the light switch to the “OFF” position to
stop the tone.
Dimmer (high/low beam change)
N00549900168
To change the headlights from high beam to low beam and vice
versa, turn the light switch to the “ ” position, then pull the
turn signal lever to fully toward you (1). Switch the headlights
to low beam as a courtesy whenever there are oncoming vehi-
cles, or when there is traffic moving ahead of you. An illumi-
nated blue light in the instrument cluster indicates when the
headlights are on high beam.
BK0115900US.book 128 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-131
3
NOTE
A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out lamp bulb or malfunctioning connection.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Hazard warning flasher switch
N00522700246
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition key is removed. NOTE
If you keep the flashers on for several hours with the
engine turned off, the battery will run down.
BK0115900US.book 131 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-133
3 Wiper and washer switch
N00523000422
Windshield wipersThe windshield wipers wipe when the wiper lever is moved as
shown in the illustration and the ignition key is in the “ON” or
“ACC” position.
To adjust intermittent intervalsWith the lever in the “INT” (speed-sensitive) position, the
intermittent intervals can be adjusted by turning the knob (A).
MIST- Misting function
The wipers will wipe one time.
OFF- Off
INT- Speed sensitive intermittent operation
Interval between wiper sweeps varies in accordance with
vehicle speed.
LO- Slow
HI- Fast
1- Fast
2- SlowType 1 Type 2
BK0115900US.book 133 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-134 Features and controls
3
Misting functionMove the lever in the direction of the arrow and release, and
the wipers will operate once.
Use this function when you are driving in mist or drizzle.
If the lever is held in the upward position (MIST), the wipers
continue operating until the lever is released.
Windshield washer
N00504600096
To turn on the windshield washer, pull the lever toward you
with the ignition key in either the “ON” or “ACC” position.
The wipers will wipe automatically several times when the
washer fluid is sprayed.
To turn off the spray, release the lever.
BK0115900US.book 134 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-135
3
Rear window wiper and washer (ECLIPSE only)
N00523200264
The rear window wiper and washer can be operated when the
ignition key is in the “ON” or “ACC” position.
Turn the knob to operate the rear window wiper.
NOTE
To ensure a clear rearward view, the wiper performs a
number of continuous operations either when the switch is
moved to the “INT” position or when the gearshift lever
(manual transmission) or the selector lever (automatic
transmission) is moved to the “R” (REVERSE) position
while the switch is in the “INT” position.
Following this continuous operation, the wiper will auto-
matically switch to intermittent operation.

The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary. (See
“Washer fluid” on page 7-14.)Precautions to observe when using wipers and
washers
N00523500111
NOTE
Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.

Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield or
rear window. Using the wipers while the blades are frozen
could cause the wiper motor to burn out.
OFF- Off
INT- The wiper operates continuously for several seconds then
operates intermittently at intervals of about 8 seconds.
-Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed onto the glass might freeze, blocking
your view. In cold weather, heat the glass with the
defroster before using the washer.
BK0115900US.book 135 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-138 Features and controls
3Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so equipped)
N00506400069
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition (Bluetooth
® HFP) uses a wireless com-
munication technology known as Bluetooth
® to allow you to
make hands-free calls in your vehicle using your Bluetooth
®
compatible cellular phone with Hands-free profile.
The system is equipped with a voice recognition function,
which lets you make hands-free calls by simple switch opera-
tions and voice command operations using a defined voice tree.
The Bluetooth
® HFP can be used when the ignition switch is in
the “ON” or “ACC” position.
To use the Bluetooth
® HFP, you should first connect your
Bluetooth
® compatible cellular phone to the Bluetooth
® HFP.
Refer to “Pairing a cellular phone” on page 3-146.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTE
You cannot use the Bluetooth
® HFP if your cellular phone
has a dead battery or is turned off.

Hands-free calls will not be possible in areas outside your
cellular phone service area or locations where a signal
cannot reach your phone.
WA R N I N G
!
Although the Bluetooth
® HFP allows you to make
hands-free calls, if you choose to use the cellular
phone while driving, you must not allow that usage
to distract you in the safe operation of your vehicle.
Anything, including cellular phone usage, that dis-
tracts you from the safe operation of your vehicle
increases your risk of an accident. Refer to and fol-
low all state and local laws in your area regarding
cellular phone usage while driving.
BK0115900US.book 138 ページ ２００９年１０月２７日　火曜日　午後１２時１分
