General information
N00533000092
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS- 210 of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Rear-view camera
(if so equipped)
N00546200043
When the gearshift lever (for vehicles with manual transaxle)
or the selector lever (for vehicles with automatic transaxle) is
in the “R” position with the ignition key in the “ON” position,
the rear-view camera image will be displayed on the left por-
tion of the inside rearview mirror.
When the gearshift lever or the selector lever is shifted out of
the “R” position, the rear-view camera image will turn off.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
WA R N I N G
!
Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the rear-view camera display is limited,
and objects outside the view, such as under the
bumper or around either corner of the bumper end,
cannot be seen on the display.
BK0115900US.book 102 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-103
3

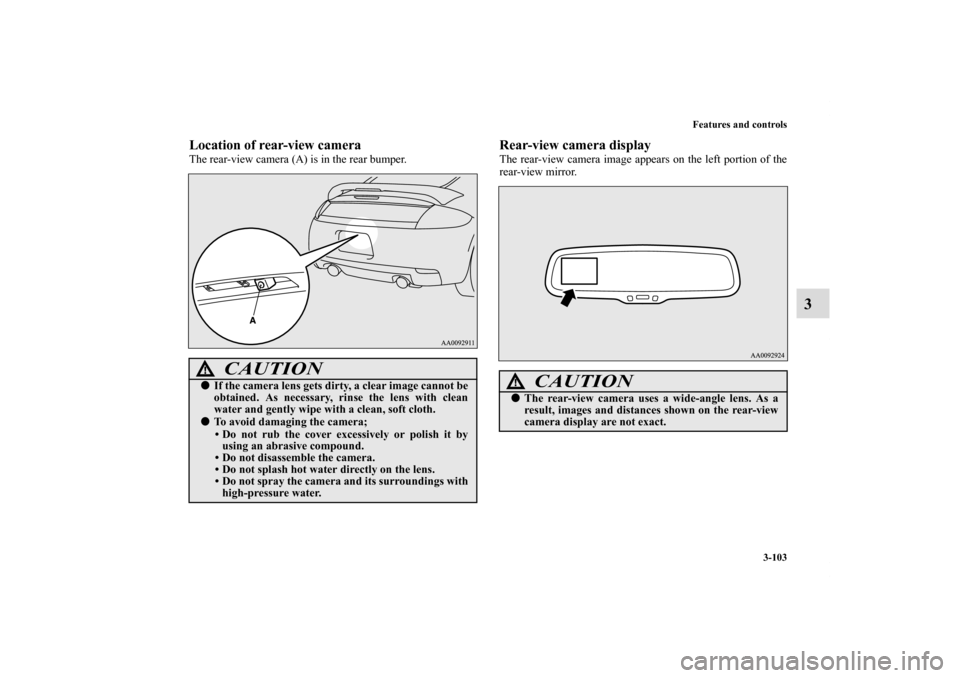

Location of rear-view cameraThe rear-view camera (A) is in the rear bumper.
Rear-view camera displayThe rear-view camera image appears on the left portion of the
rear-view mirror.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
CAUTION
!
The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the rear-view
camera display are not exact.
BK0115900US.book 103 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-104 Features and controls
3
NOTE
Mirror image is displayed on the rear-view camera dis-
play.

Monitor brightness is adjusted automatically by sensors.

In the event the monitor is continuously used for more
than 5 minutes, the monitor will automatically turn off.

Under certain circumstances, it may become difficult to
see an image on the display, even when the system is
functioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
→ When the camera picks up extremely bright light,
such as sunlight reflected off the rear bumper, a bright
vertical line may appear on the display.
BK0115900US.book 104 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-107
3

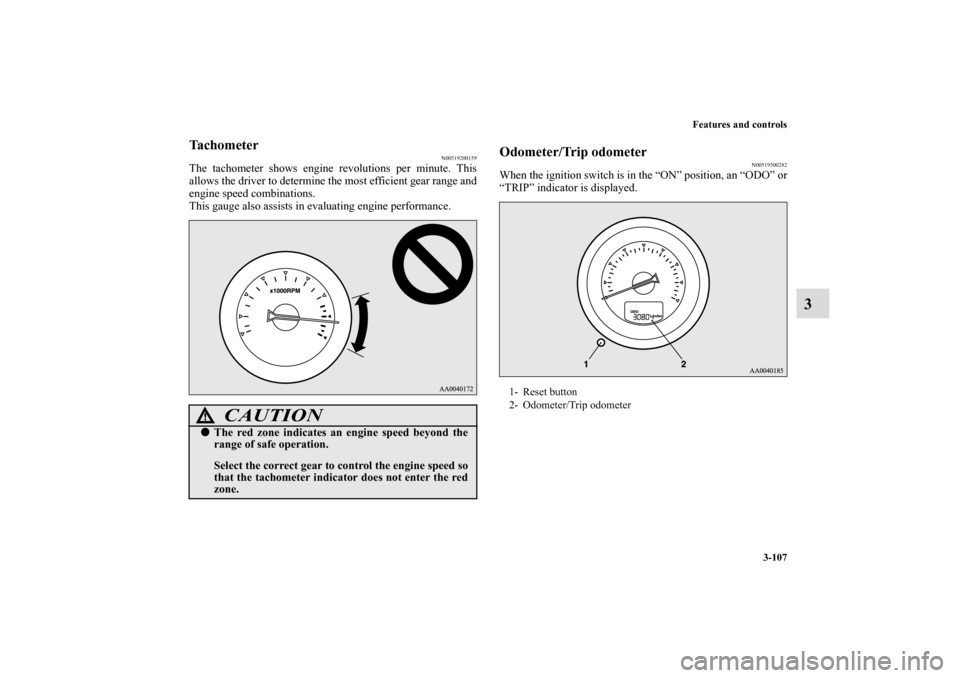

Tachometer
N00519200159
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient gear range and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Odometer/Trip odometer
N00519500282
When the ignition switch is in the “ON” position, an “ODO” or
“TRIP” indicator is displayed.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct gear to control the engine speed so
that the tachometer indicator does not enter the red
zone.
1- Reset button
2- Odometer/Trip odometer
BK0115900US.book 107 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-108 Features and controls
3

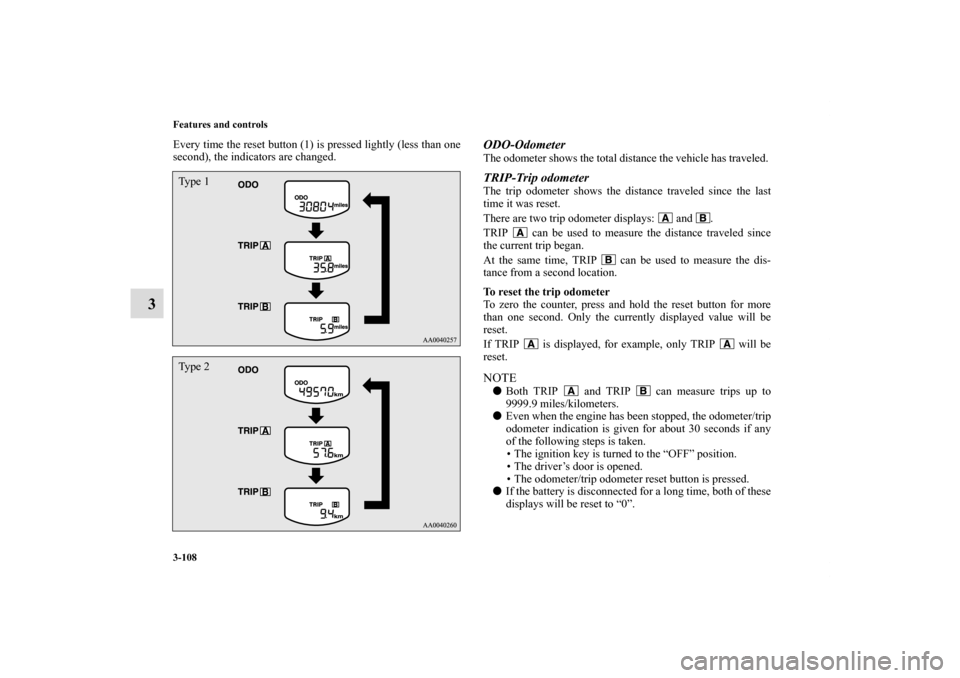

Every time the reset button (1) is pressed lightly (less than one
second), the indicators are changed.
ODO-OdometerThe odometer shows the total distance the vehicle has traveled. TRIP-Trip odometerThe trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
TRIP can be used to measure the distance traveled since
the current trip began.
At the same time, TRIP can be used to measure the dis-
tance from a second location.
To reset the trip odometer
To zero the counter, press and hold the reset button for more
than one second. Only the currently displayed value will be
reset.
If TRIP is displayed, for example, only TRIP will be
reset. NOTE
Both TRIP and TRIP can measure trips up to
9999.9 miles/kilometers.

Even when the engine has been stopped, the odometer/trip
odometer indication is given for about 30 seconds if any
of the following steps is taken.
• The ignition key is turned to the “OFF” position.
• The driver’s door is opened.
• The odometer/trip odometer reset button is pressed.

If the battery is disconnected for a long time, both of these
displays will be reset to “0”.
Ty p e 1Ty p e 2BK0115900US.book 108 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-115
3
Door-ajar warning light and buzzer
N00520900231
This light comes on when any door or rear hatch (ECLIPSE) is
open or not completely closed.
When the vehicle is moving at more than 5 mph (8 km/h) and
any door or rear hatch is open or ajar, a tone will sound 4 times
and the warning light will flash 4 times to inform the driver
that a door or rear hatch is not properly shut.NOTE
The goes out automatically after about 30 minutes to pre-
vent complete discharge of the battery.
Refer to “Interior light auto-cutout function (dome light
and other lights)” on page 3-175.
Multi center display
N00522100080

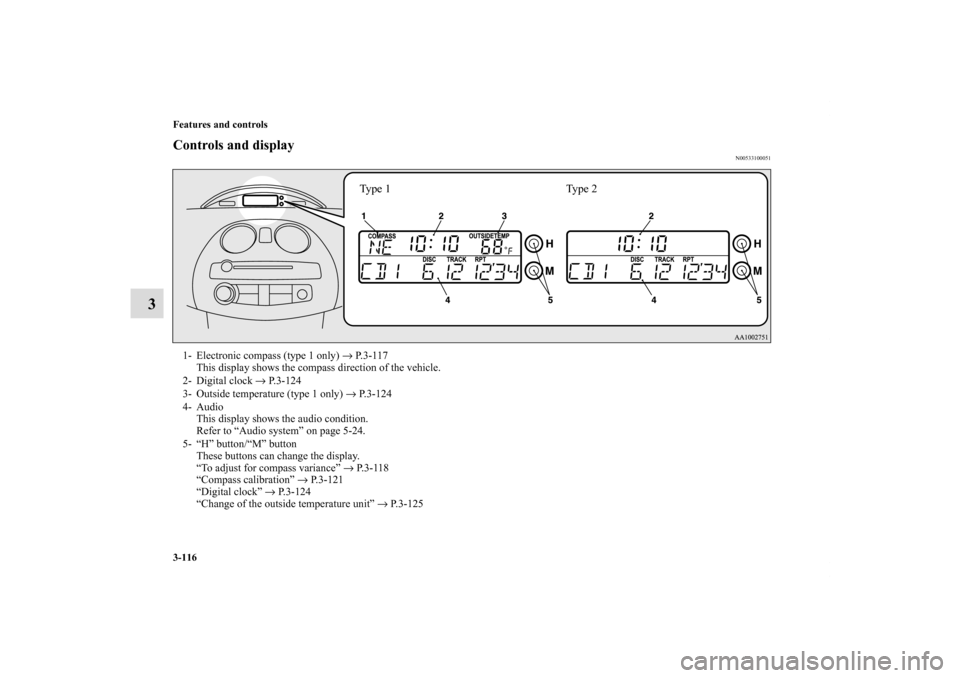

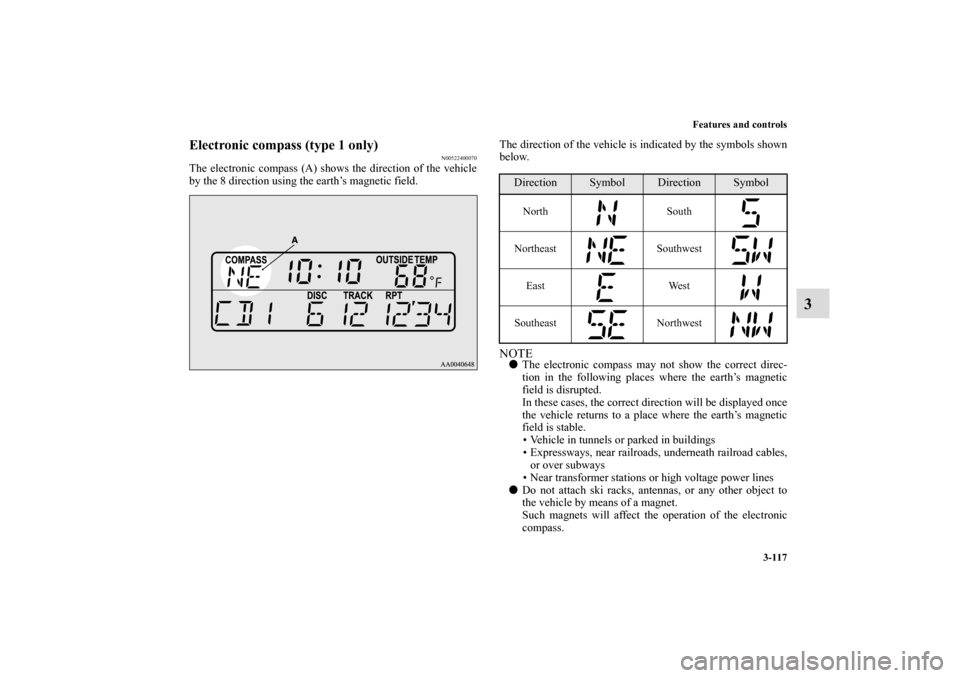

When the ignition key is in the “ACC” or “ON” position, the
digital clock, the outside temperature (if so equipped) and the
electronic compass (if so equipped) are displayed in the multi
center display. When the ignition key is in the “ACC” or “ON”
position and the audio system is activate, the audio information
is displayed in the multi center display.NOTE
Putting a cellular phone in the monitor’s small storage
compartment may weaken the phone’s reception. This is
typical and does not mean that something is wrong with
the system.

Use of wireless devices such as transceivers near the mon-
itor may make the screen go dark temporarily. This is typ-
ical and does not mean that something is wrong with the
system.

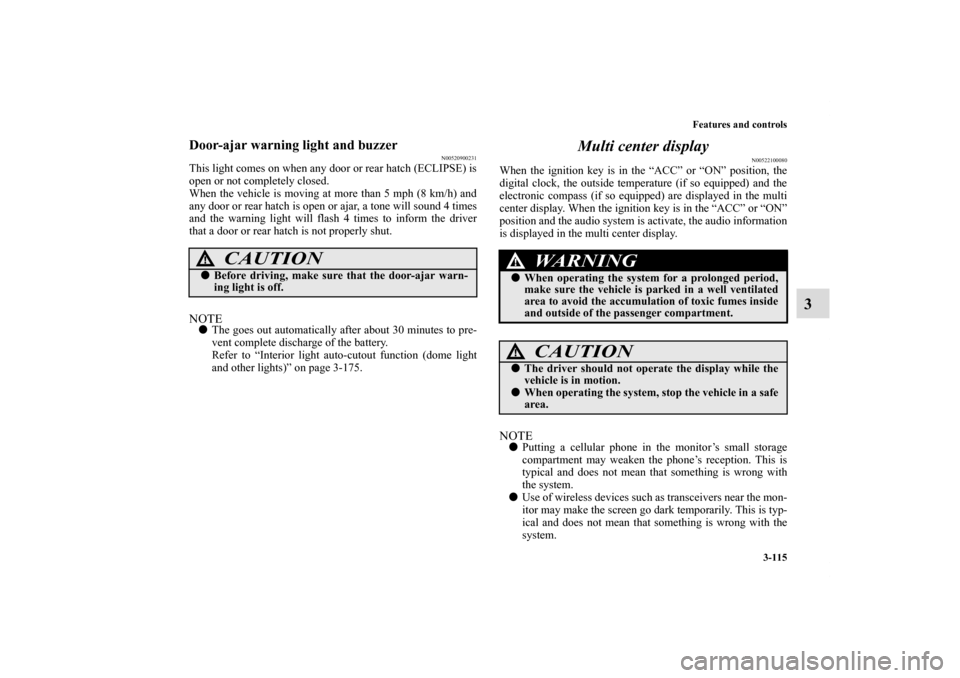

CAUTION
!
Before driving, make sure that the door-ajar warn-
ing light is off.
WA R N I N G
!
When operating the system for a prolonged period,
make sure the vehicle is parked in a well ventilated
area to avoid the accumulation of toxic fumes inside
and outside of the passenger compartment.
CAUTION
!
The driver should not operate the display while the
vehicle is in motion.
When operating the system, stop the vehicle in a safe
area.
BK0115900US.book 115 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-116 Features and controls
3
Controls and display
N00533100051
Ty p e 1 Ty p e 2
1- Electronic compass (type 1 only) → P. 3 - 1 1 7
This display shows the compass direction of the vehicle.
2- Digital clock → P.3-124
3- Outside temperature (type 1 only) → P.3-124
4- Audio
This display shows the audio condition.
Refer to “Audio system” on page 5-24.
5- “H” button/“M” button
These buttons can change the display.
“To adjust for compass variance” → P. 3 - 1 1 8
“Compass calibration” → P.3-121
“Digital clock” → P.3-124
“Change of the outside temperature unit” → P.3-125
BK0115900US.book 116 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-117
3
Electronic compass (type 1 only)
N00522400070
The electronic compass (A) shows the direction of the vehicle
by the 8 direction using the earth’s magnetic field.The direction of the vehicle is indicated by the symbols shown
below.
NOTE
The electronic compass may not show the correct direc-
tion in the following places where the earth’s magnetic
field is disrupted.
In these cases, the correct direction will be displayed once
the vehicle returns to a place where the earth’s magnetic
field is stable.
• Vehicle in tunnels or parked in buildings
• Expressways, near railroads, underneath railroad cables,
or over subways
• Near transformer stations or high voltage power lines

Do not attach ski racks, antennas, or any other object to
the vehicle by means of a magnet.
Such magnets will affect the operation of the electronic
compass.Direction
Symbol
Direction
Symbol
North South
Northeast Southwest
East West
Southeast Northwest
BK0115900US.book 117 ページ ２００９年１０月２７日　火曜日　午後１２時１分
