mirror controls MITSUBISHI ECLIPSE 2011 4.G Owners Manual

Overview
Instruments and controls (Driver’s area)
N00100201114
Combination headlights and
dimmer switch P.3-126
Turn signal lever P.3-130
Supplemental restraint system
- air bag (for driver’s seat)
P. 2 - 3 6
Horn switch P.3-137
Electric remote-controlled
outside mirror switch
P.3-58
Front fog light switch
(if so equipped)
P. 3 - 1 3 2Steering wheel audio
remote control switch
(if so equipped) P.5-65 Instrument cluster P.3-105
Cruise control lever
P. 3 - 9 0 Ignition switch P.3-60 Wiper and washer
switch P.3-133
Fuses P.7-38
ASC off switch (if so equipped) P.3-86 Engine hood release lever
P. 7 - 4Steering wheel tilt lock
lever P.3-55
Front fog light switch
(if so equipped)
P. 3 - 1 3 2 Headlights leveling switch
(if so equipped) P.3-129
ASC off switch
(if so equipped) P.3-86
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 15
Rear hatch (ECLIPSE)/
Trunk lid (ECLIPSE SPYDER) . . . . . . . . . . . . .3- 16
Inside rear hatch/trunk lid release . . . . . . . . . . . . .3- 18
Inside emergency trunk lid release
(ECLIPSE SPYDER) . . . . . . . . . . . . . . . . . . . . .3- 20
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . .3- 22
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 26
Sunroof (ECLIPSE only, if so equipped). . . . . . . .3- 28
Electric convertible top (ECLIPSE SPYDER) . . .3- 31
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 55
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 56
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 58
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 60
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . .3- 67
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 82
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 85
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 90Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 90
Tire pressure monitoring system . . . . . . . . . . . . . . 3- 97
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 102
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 105
Indicator and warning light package . . . . . . . . . . . 3- 111
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
Multi center display. . . . . . . . . . . . . . . . . . . . . . . . 3- 115
Combination headlights and dimmer switch . . . . . 3- 126
Headlight levelling switch (if so equipped) . . . . . 3- 129
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 130
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 131
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . 3- 132
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 133
Electric rear window defogger switch. . . . . . . . . . 3- 136
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . 3- 138
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 167
Vanity mirror (if so equipped) . . . . . . . . . . . . . . . . 3- 168
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 170
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 175
Floor console box . . . . . . . . . . . . . . . . . . . . . . . . . 3- 176
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 178
Rear shelf panel (ECLIPSE only) . . . . . . . . . . . . . 3- 178
Coat hooks (ECLIPSE only, if so equipped) . . . . . 3- 180
Luggage hooks (ECLIPSE only) . . . . . . . . . . . . . . 3- 180
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-56 Features and controls
3Inside rearview mirror
N00511600232
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
NOTE
When the gearshift lever (for vehicle with manual
transaxle) or the selector lever (for vehicle with automatic
transaxle) is in “R” position with the ignition key in the
“ON” position, the rear-view camera image will be dis-
played on the left portion of a type 2 mirror.
For details, refer to “Rear-view camera” on page 3-102.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.
Ty p e 1
Ty p e 2
BK0115900US.book 56 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-57
3

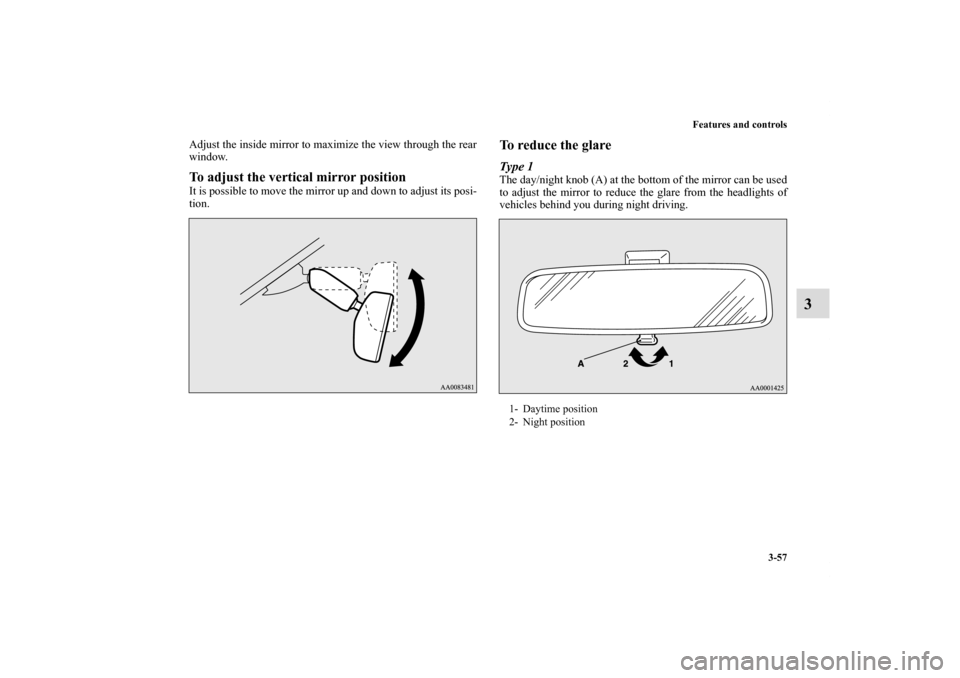

Adjust the inside mirror to maximize the view through the rear
window.To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
To reduce the glareType 1The day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.1- Daytime position
2- Night position
BK0115900US.book 57 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-58 Features and controls
3
Type 2When the headlights of the vehicles behind you are very bright,
the reflection factor of the rearview mirror is automatically
changed to reduce the glare.
Normally, use the automatic mode. When the switch (1) is
pressed, the indicator (2) illuminates and the reflection factor
of the mirror is automatically changed.NOTE
Do not hang items on, or spray glass cleaner on the sensor
(3), as reduced sensitivity could result.
Outside rearview mirrors
N00512200150
Adjust the outside rearview mirrors only after making any seat
adjustments so you have a clear view to the rear of the vehicle.
Ty p e 2
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your front passenger’s side mirror is convex. The
objects you see in the mirror will look smaller and
farther away than they appear in a regular flat mir-
ror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
BK0115900US.book 58 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-59
3
To adjust the mirror positionThe outside rearview mirrors can be adjusted when the ignition
key is in the “ON” or “ACC” position.
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position. NOTE
After adjusting, return the lever to the “•” (off) position.
To fold the mirrorThe outside mirror can be folded in toward the side window to
prevent damage when parking in tight locations.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0115900US.book 59 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-60 Features and controls
3
Heated mirror
(if so equipped)
N00549300146
When the rear window defogger switch is pressed, the outside
rearview mirrors are defogged or defrosted. Current will flow
through the heater element inside the mirrors, thus clearing
away frost or condensation.
The indicator light (C) will illuminate while the defogger is on.
The heater will be turned off automatically in about 17 min-
utes.
Ignition switch
N00512400631
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. ON The engine runs and all accessories can be used.
CAUTION
!
Electric current will flow through the heating wires
on the rear window to help clear away moisture or
frost when the rear defogger switch is pressed.
When the top is completely lowered, keep the rear
window defogger turned off to avoid damage to the
top (ECLIPSE SPYDER only).
Manual transaxle Automatic transaxle
BK0115900US.book 60 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-102 Features and controls
3
General information
N00533000092
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS- 210 of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Rear-view camera
(if so equipped)
N00546200043
When the gearshift lever (for vehicles with manual transaxle)
or the selector lever (for vehicles with automatic transaxle) is
in the “R” position with the ignition key in the “ON” position,
the rear-view camera image will be displayed on the left por-
tion of the inside rearview mirror.
When the gearshift lever or the selector lever is shifted out of
the “R” position, the rear-view camera image will turn off.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
WA R N I N G
!
Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the rear-view camera display is limited,
and objects outside the view, such as under the
bumper or around either corner of the bumper end,
cannot be seen on the display.
BK0115900US.book 102 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-103
3
Location of rear-view cameraThe rear-view camera (A) is in the rear bumper.
Rear-view camera displayThe rear-view camera image appears on the left portion of the
rear-view mirror.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
CAUTION
!
The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the rear-view
camera display are not exact.
BK0115900US.book 103 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-104 Features and controls
3
NOTE
Mirror image is displayed on the rear-view camera dis-
play.

Monitor brightness is adjusted automatically by sensors.

In the event the monitor is continuously used for more
than 5 minutes, the monitor will automatically turn off.

Under certain circumstances, it may become difficult to
see an image on the display, even when the system is
functioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
→ When the camera picks up extremely bright light,
such as sunlight reflected off the rear bumper, a bright
vertical line may appear on the display.
BK0115900US.book 104 ページ ２００９年１０月２７日　火曜日　午後１２時１分
