7-40 Vehicle care and maintenance
7

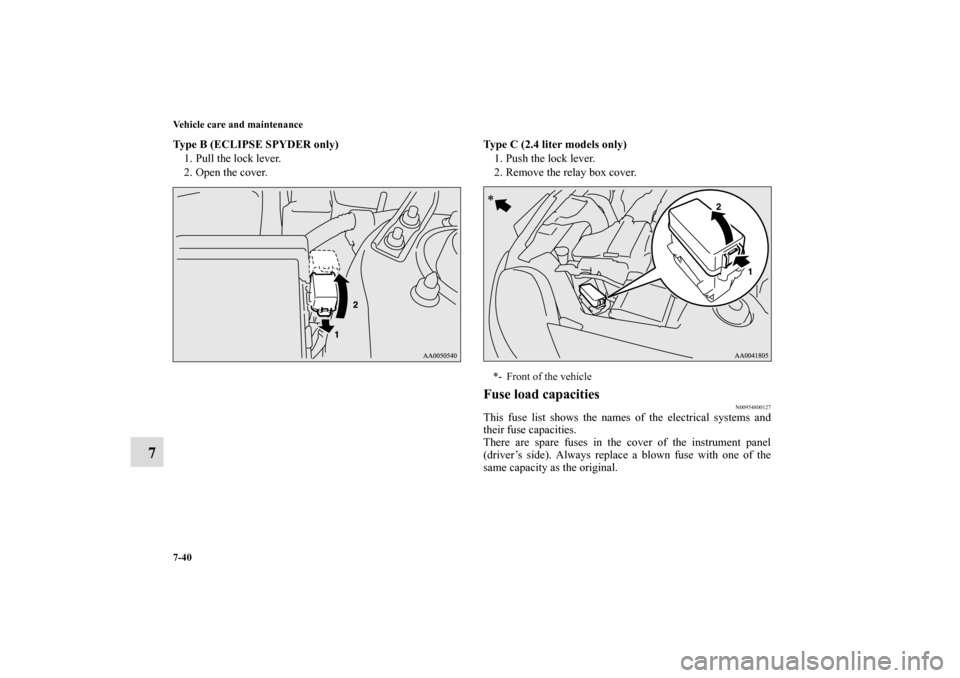

Type B (ECLIPSE SPYDER only)
1. Pull the lock lever.
2. Open the cover.Type C (2.4 liter models only)
1. Push the lock lever.
2. Remove the relay box cover.
Fuse load capacities
N00954800127
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the cover of the instrument panel
(driver’s side). Always replace a blown fuse with one of the
same capacity as the original. *- Front of the vehicle
BK0115900US.book 40 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-41
7

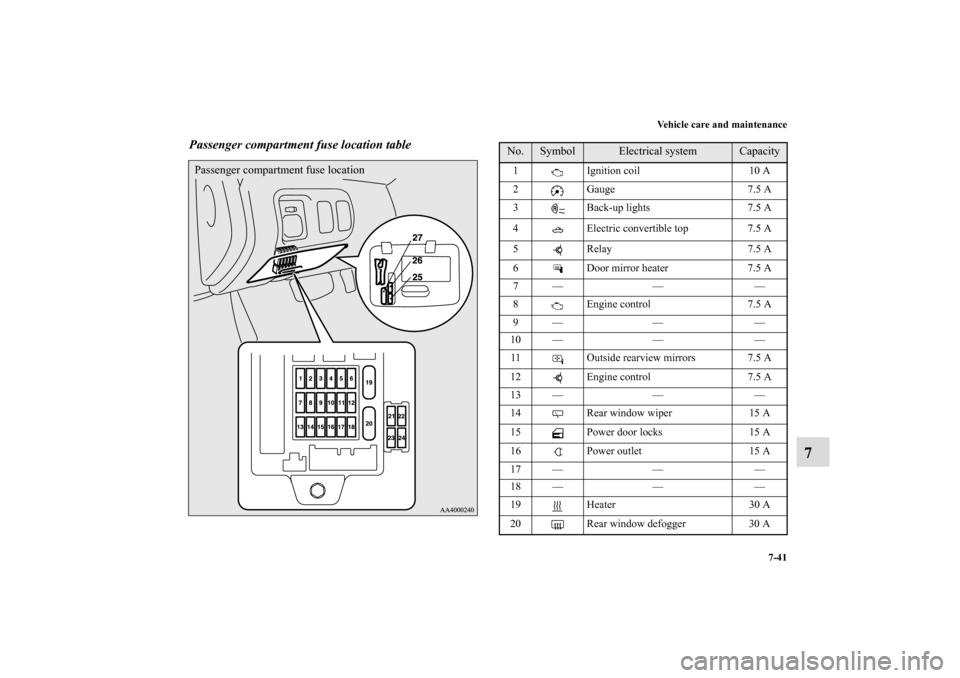

Passenger compartment fuse location tablePassenger compartment fuse location
No.
Symbol
Electrical system
Capacity
1 Ignition coil 10 A
2 Gauge 7.5 A
3 Back-up lights 7.5 A
4 Electric convertible top 7.5 A
5 Relay 7.5 A
6 Door mirror heater 7.5 A
7— — —
8 Engine control 7.5 A
9— — —
10 — — —
11 Outside rearview mirrors 7.5 A
12 Engine control 7.5 A
13 — — —
14 Rear window wiper 15 A
15 Power door locks 15 A
16 Power outlet 15 A
17 — — —
18 — — —
19 Heater 30 A
20 Rear window defogger 30 A
