ECO mode MITSUBISHI ECLIPSE 2012 4.G Owner's Guide

5-48 Comfort controls
5

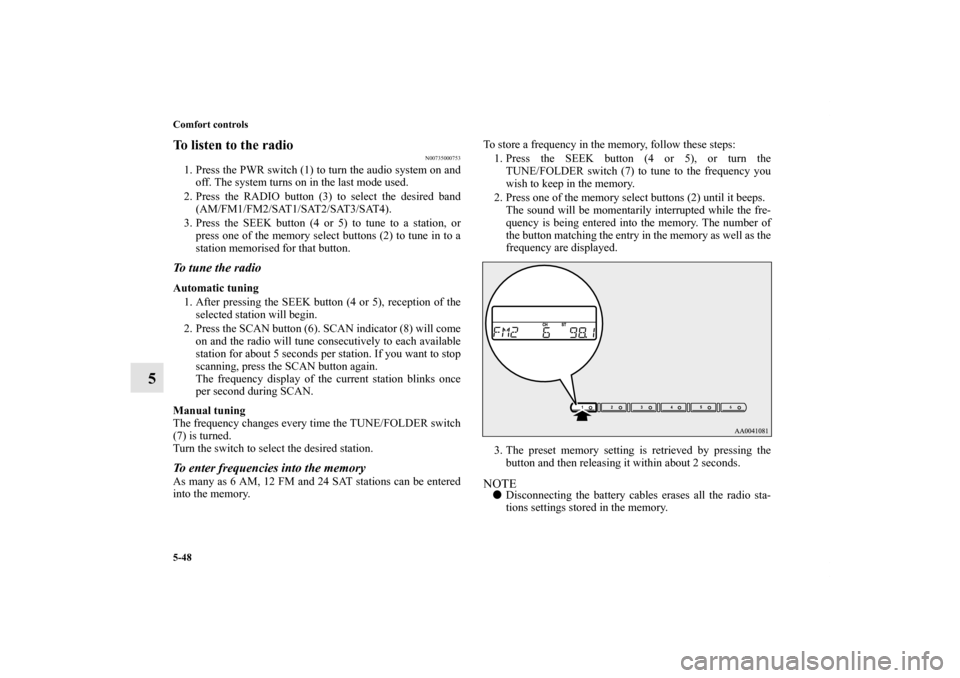

To listen to the radio
N00735000753
1. Press the PWR switch (1) to turn the audio system on and
off. The system turns on in the last mode used.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2/SAT1/SAT2/SAT3/SAT4).
3. Press the SEEK button (4 or 5) to tune to a station, or
press one of the memory select buttons (2) to tune in to a
station memorised for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM, 12 FM and 24 SAT stations can be entered
into the memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tions settings stored in the memory.
BK0132701US.book 48 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-50 Comfort controls
5

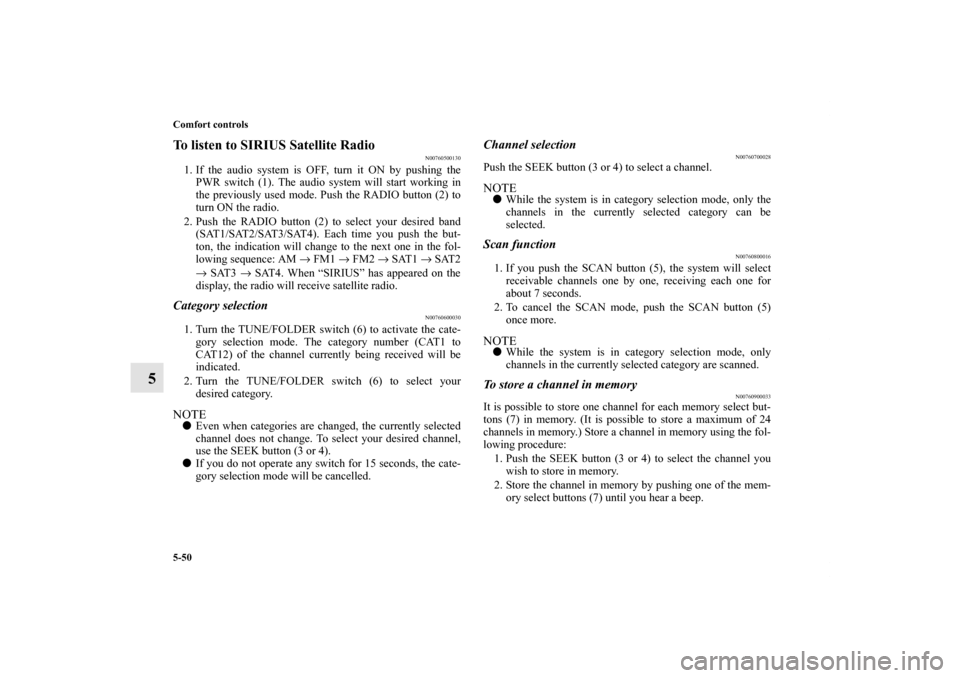

To listen to SIRIUS Satellite Radio
N00760500130
1. If the audio system is OFF, turn it ON by pushing the
PWR switch (1). The audio system will start working in
the previously used mode. Push the RADIO button (2) to
turn ON the radio.
2. Push the RADIO button (2) to select your desired band
(SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the indication will change to the next one in the fol-
lowing sequence: AM → FM1 → FM2 → SAT1 → SAT2
→ SAT3 → SAT4. When “SIRIUS” has appeared on the
display, the radio will receive satellite radio.Category selection
N00760600030
1. Turn the TUNE/FOLDER switch (6) to activate the cate-
gory selection mode. The category number (CAT1 to
CAT12) of the channel currently being received will be
indicated.
2. Turn the TUNE/FOLDER switch (6) to select your
desired category.NOTE
Even when categories are changed, the currently selected
channel does not change. To select your desired channel,
use the SEEK button (3 or 4).

If you do not operate any switch for 15 seconds, the cate-
gory selection mode will be cancelled.
Channel selection
N00760700028
Push the SEEK button (3 or 4) to select a channel.NOTE
While the system is in category selection mode, only the
channels in the currently selected category can be
selected.Scan function
N00760800016
1. If you push the SCAN button (5), the system will select
receivable channels one by one, receiving each one for
about 7 seconds.
2. To cancel the SCAN mode, push the SCAN button (5)
once more.NOTE
While the system is in category selection mode, only
channels in the currently selected category are scanned.To store a channel in memory
N00760900033
It is possible to store one channel for each memory select but-
tons (7) in memory. (It is possible to store a maximum of 24
channels in memory.) Store a channel in memory using the fol-
lowing procedure:
1. Push the SEEK button (3 or 4) to select the channel you
wish to store in memory.
2. Store the channel in memory by pushing one of the mem-
ory select buttons (7) until you hear a beep.
BK0132701US.book 50 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-52 Comfort controls
5

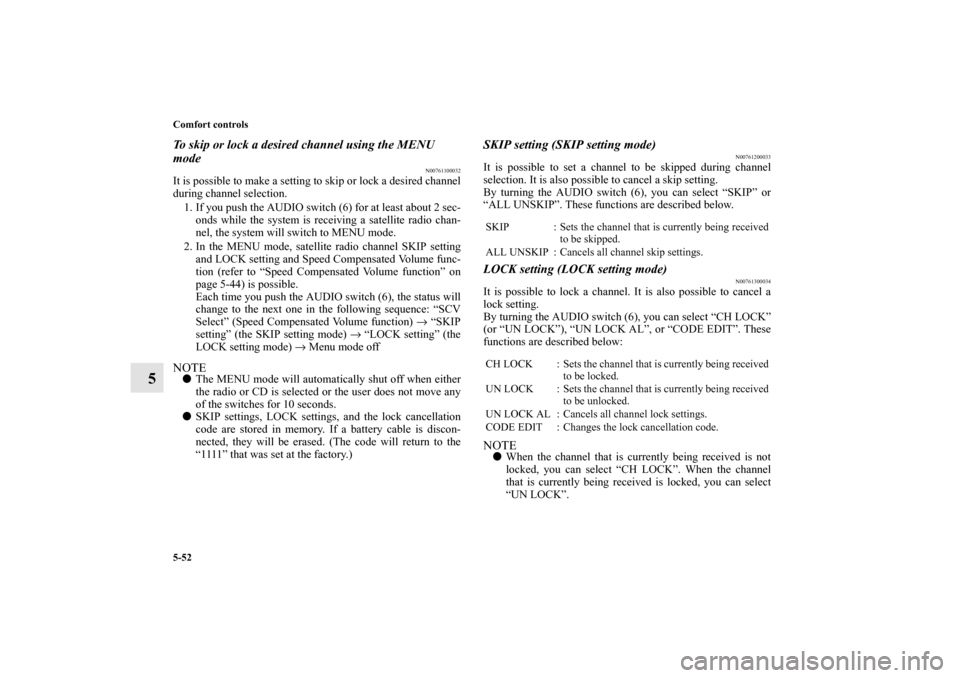

To skip or lock a desired channel using the MENU
mode
N00761100032
It is possible to make a setting to skip or lock a desired channel
during channel selection.
1. If you push the AUDIO switch (6) for at least about 2 sec-
onds while the system is receiving a satellite radio chan-
nel, the system will switch to MENU mode.
2. In the MENU mode, satellite radio channel SKIP setting
and LOCK setting and Speed Compensated Volume func-
tion (refer to “Speed Compensated Volume function” on
page 5-44) is possible.
Each time you push the AUDIO switch (6), the status will
change to the next one in the following sequence: “SCV
Select” (Speed Compensated Volume function) → “SKIP
setting” (the SKIP setting mode) → “LOCK setting” (the
LOCK setting mode) → Menu mode offNOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.

SKIP settings, LOCK settings, and the lock cancellation
code are stored in memory. If a battery cable is discon-
nected, they will be erased. (The code will return to the
“1111” that was set at the factory.)
SKIP setting (SKIP setting mode)
N00761200033
It is possible to set a channel to be skipped during channel
selection. It is also possible to cancel a skip setting.
By turning the AUDIO switch (6), you can select “SKIP” or
“ALL UNSKIP”. These functions are described below.LOCK setting (LOCK setting mode)
N00761300034
It is possible to lock a channel. It is also possible to cancel a
lock setting.
By turning the AUDIO switch (6), you can select “CH LOCK”
(or “UN LOCK”), “UN LOCK AL”, or “CODE EDIT”. These
functions are described below:NOTE
When the channel that is currently being received is not
locked, you can select “CH LOCK”. When the channel
that is currently being received is locked, you can select
“UN LOCK”.SKIP : Sets the channel that is currently being received
to be skipped.
ALL UNSKIP : Cancels all channel skip settings.
CH LOCK : Sets the channel that is currently being received
to be locked.
UN LOCK : Sets the channel that is currently being received
to be unlocked.
UN LOCK AL : Cancels all channel lock settings.
CODE EDIT : Changes the lock cancellation code.
BK0132701US.book 52 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-53
5

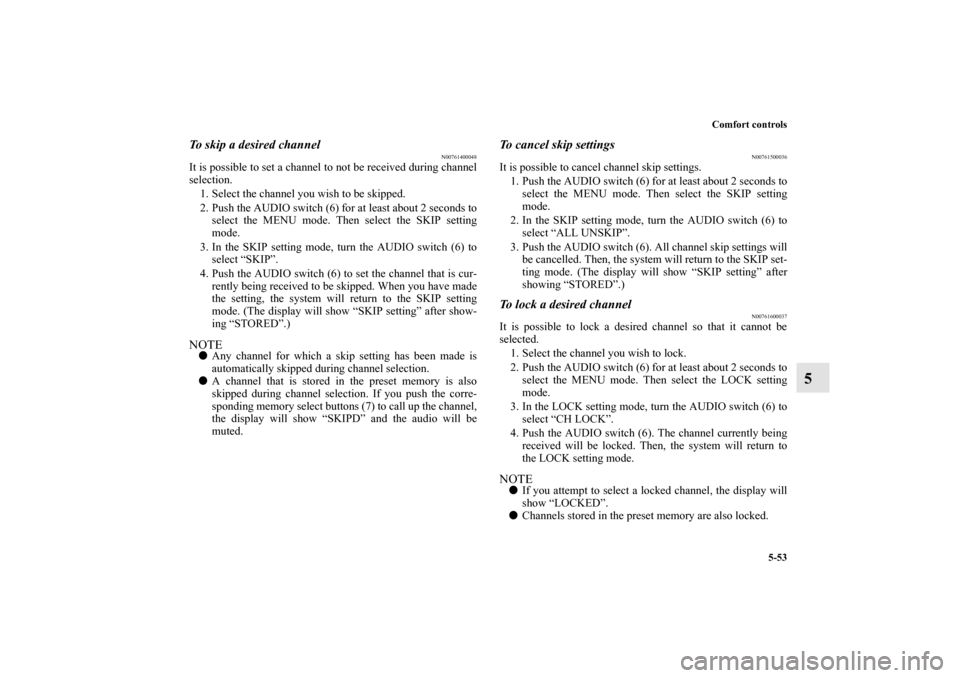

To skip a desired channel
N00761400048
It is possible to set a channel to not be received during channel
selection.
1. Select the channel you wish to be skipped.
2. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the SKIP setting
mode.
3. In the SKIP setting mode, turn the AUDIO switch (6) to
select “SKIP”.
4. Push the AUDIO switch (6) to set the channel that is cur-
rently being received to be skipped. When you have made
the setting, the system will return to the SKIP setting
mode. (The display will show “SKIP setting” after show-
ing “STORED”.)NOTE
Any channel for which a skip setting has been made is
automatically skipped during channel selection.

A channel that is stored in the preset memory is also
skipped during channel selection. If you push the corre-
sponding memory select buttons (7) to call up the channel,
the display will show “SKIPD” and the audio will be
muted.
To cancel skip settings
N00761500036
It is possible to cancel channel skip settings.
1. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the SKIP setting
mode.
2. In the SKIP setting mode, turn the AUDIO switch (6) to
select “ALL UNSKIP”.
3. Push the AUDIO switch (6). All channel skip settings will
be cancelled. Then, the system will return to the SKIP set-
ting mode. (The display will show “SKIP setting” after
showing “STORED”.)To lock a desired channel
N00761600037
It is possible to lock a desired channel so that it cannot be
selected.
1. Select the channel you wish to lock.
2. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the LOCK setting
mode.
3. In the LOCK setting mode, turn the AUDIO switch (6) to
select “CH LOCK”.
4. Push the AUDIO switch (6). The channel currently being
received will be locked. Then, the system will return to
the LOCK setting mode.NOTE
If you attempt to select a locked channel, the display will
show “LOCKED”.

Channels stored in the preset memory are also locked.
BK0132701US.book 53 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-54 Comfort controls
5

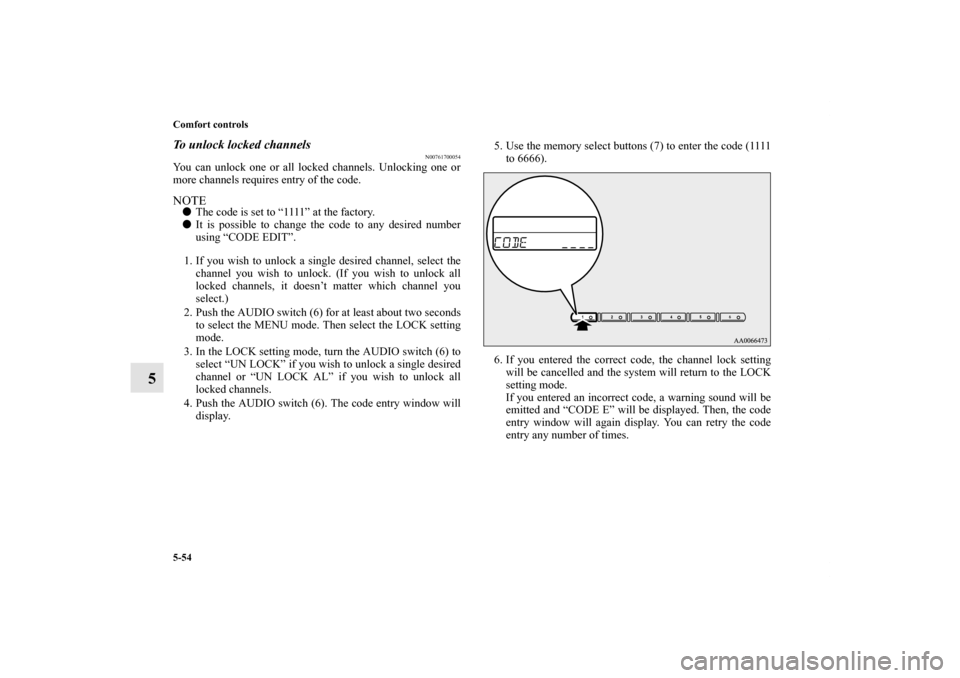

To unlock locked channels
N00761700054
You can unlock one or all locked channels. Unlocking one or
more channels requires entry of the code.NOTE
The code is set to “1111” at the factory.

It is possible to change the code to any desired number
using “CODE EDIT”.
1. If you wish to unlock a single desired channel, select the
channel you wish to unlock. (If you wish to unlock all
locked channels, it doesn’t matter which channel you
select.)
2. Push the AUDIO switch (6) for at least about two seconds
to select the MENU mode. Then select the LOCK setting
mode.
3. In the LOCK setting mode, turn the AUDIO switch (6) to
select “UN LOCK” if you wish to unlock a single desired
channel or “UN LOCK AL” if you wish to unlock all
locked channels.
4. Push the AUDIO switch (6). The code entry window will
display.5. Use the memory select buttons (7) to enter the code (1111
to 6666).
6. If you entered the correct code, the channel lock setting
will be cancelled and the system will return to the LOCK
setting mode.
If you entered an incorrect code, a warning sound will be
emitted and “CODE E” will be displayed. Then, the code
entry window will again display. You can retry the code
entry any number of times.
BK0132701US.book 54 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-55
5

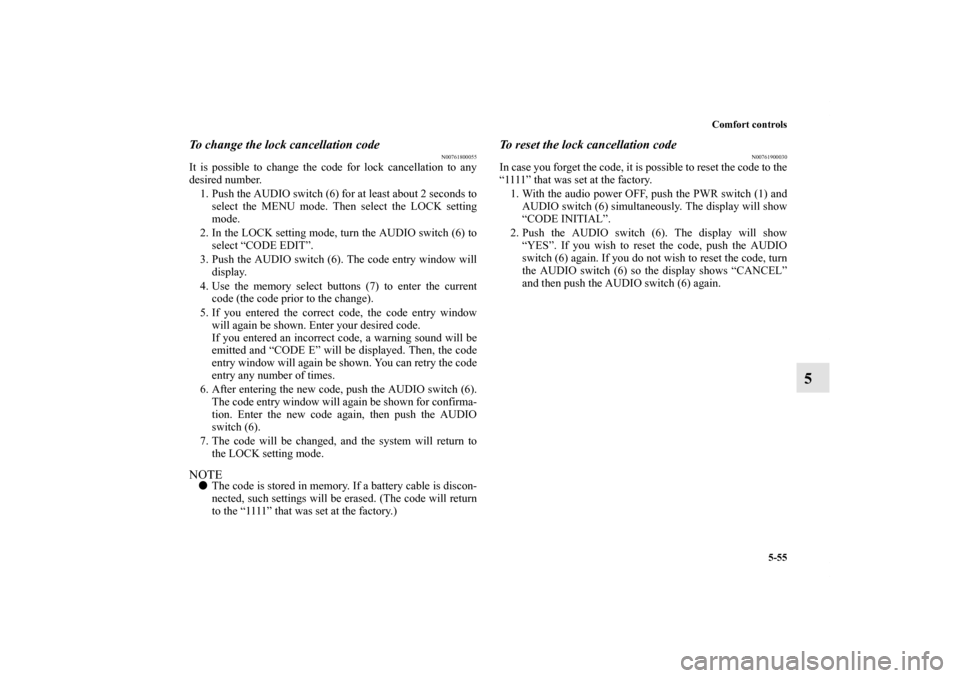

To change the lock cancellation code
N00761800055
It is possible to change the code for lock cancellation to any
desired number.
1. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the LOCK setting
mode.
2. In the LOCK setting mode, turn the AUDIO switch (6) to
select “CODE EDIT”.
3. Push the AUDIO switch (6). The code entry window will
display.
4. Use the memory select buttons (7) to enter the current
code (the code prior to the change).
5. If you entered the correct code, the code entry window
will again be shown. Enter your desired code.
If you entered an incorrect code, a warning sound will be
emitted and “CODE E” will be displayed. Then, the code
entry window will again be shown. You can retry the code
entry any number of times.
6. After entering the new code, push the AUDIO switch (6).
The code entry window will again be shown for confirma-
tion. Enter the new code again, then push the AUDIO
switch (6).
7. The code will be changed, and the system will return to
the LOCK setting mode.NOTE
The code is stored in memory. If a battery cable is discon-
nected, such settings will be erased. (The code will return
to the “1111” that was set at the factory.)
To reset the lock cancellation code
N00761900030
In case you forget the code, it is possible to reset the code to the
“1111” that was set at the factory.
1. With the audio power OFF, push the PWR switch (1) and
AUDIO switch (6) simultaneously. The display will show
“CODE INITIAL”.
2. Push the AUDIO switch (6). The display will show
“YES”. If you wish to reset the code, push the AUDIO
switch (6) again. If you do not wish to reset the code, turn
the AUDIO switch (6) so the display shows “CANCEL”
and then push the AUDIO switch (6) again.
BK0132701US.book 55 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-59
5

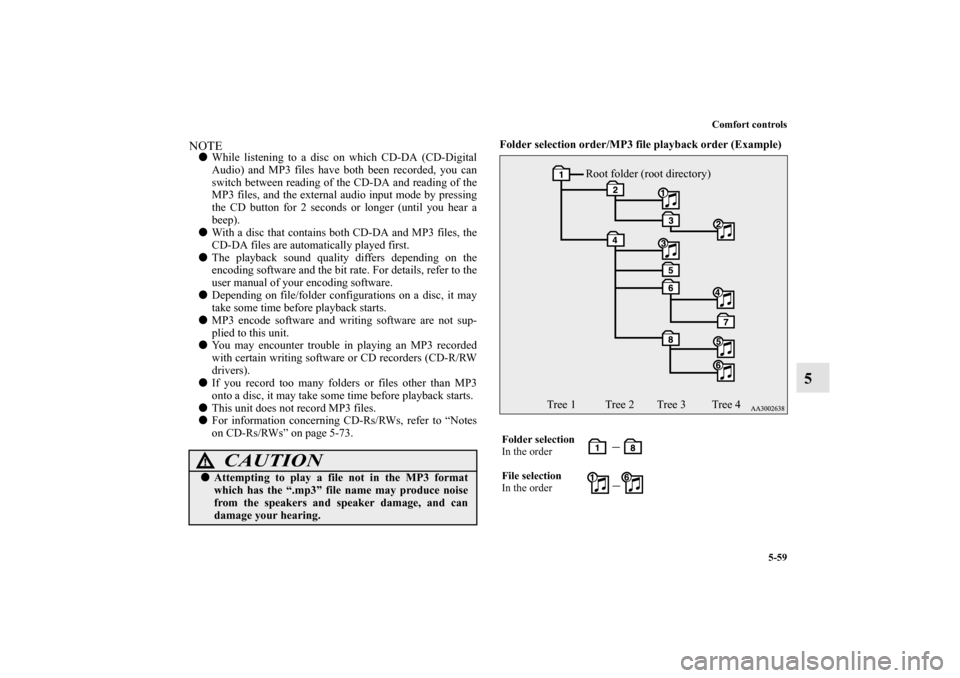

NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA and reading of the
MP3 files, and the external audio input mode by pressing
the CD button for 2 seconds or longer (until you hear a
beep).

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied to this unit.

You may encounter trouble in playing an MP3 recorded
with certain writing software or CD recorders (CD-R/RW
drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information concerning CD-Rs/RWs, refer to “Notes
on CD-Rs/RWs” on page 5-73.Folder selection order/MP3 file playback order (Example)

CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
Folder selection
In the order
File selection
In the order
Root folder (root directory)
Tree 1 Tree 2 Tree 3 Tree 4
BK0132701US.book 59 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-63
5

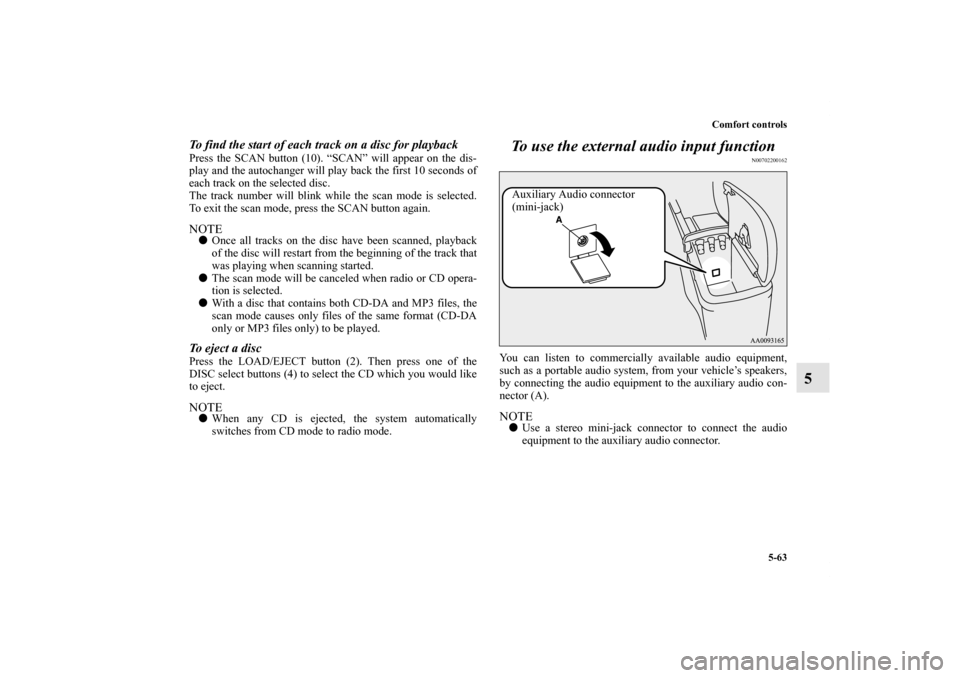

To find the start of each track on a disc for playbackPress the SCAN button (10). “SCAN” will appear on the dis-
play and the autochanger will play back the first 10 seconds of
each track on the selected disc.
The track number will blink while the scan mode is selected.
To exit the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.To eject a discPress the LOAD/EJECT button (2). Then press one of the
DISC select buttons (4) to select the CD which you would like
to eject.NOTE
When any CD is ejected, the system automatically
switches from CD mode to radio mode.
To use the external audio input function
N00702200162
You can listen to commercially available audio equipment,
such as a portable audio system, from your vehicle’s speakers,
by connecting the audio equipment to the auxiliary audio con-
nector (A).NOTE
Use a stereo mini-jack connector to connect the audio
equipment to the auxiliary audio connector.Auxiliary Audio connector
(mini-jack)
BK0132701US.book 63 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-64 Comfort controls
5

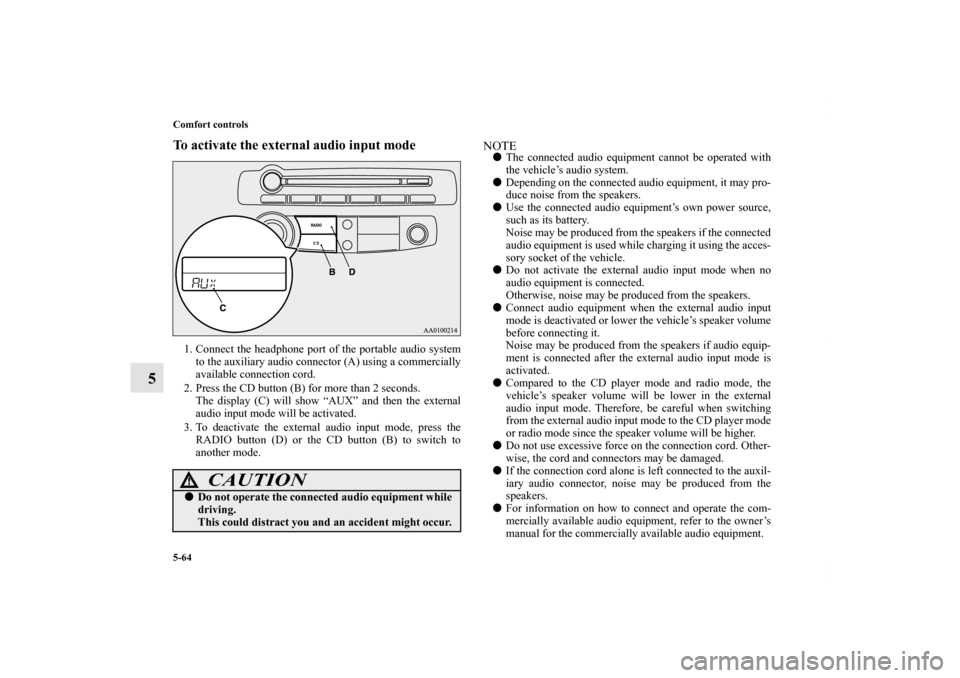

To activate the external audio input mode1. Connect the headphone port of the portable audio system
to the auxiliary audio connector (A) using a commercially
available connection cord.
2. Press the CD button (B) for more than 2 seconds.
The display (C) will show “AUX” and then the external
audio input mode will be activated.
3. To deactivate the external audio input mode, press the
RADIO button (D) or the CD button (B) to switch to
another mode.
NOTE
The connected audio equipment cannot be operated with
the vehicle’s audio system.

Depending on the connected audio equipment, it may pro-
duce noise from the speakers.

Use the connected audio equipment’s own power source,
such as its battery.
Noise may be produced from the speakers if the connected
audio equipment is used while charging it using the acces-
sory socket of the vehicle.

Do not activate the external audio input mode when no
audio equipment is connected.
Otherwise, noise may be produced from the speakers.

Connect audio equipment when the external audio input
mode is deactivated or lower the vehicle’s speaker volume
before connecting it.
Noise may be produced from the speakers if audio equip-
ment is connected after the external audio input mode is
activated.

Compared to the CD player mode and radio mode, the
vehicle’s speaker volume will be lower in the external
audio input mode. Therefore, be careful when switching
from the external audio input mode to the CD player mode
or radio mode since the speaker volume will be higher.

Do not use excessive force on the connection cord. Other-
wise, the cord and connectors may be damaged.

If the connection cord alone is left connected to the auxil-
iary audio connector, noise may be produced from the
speakers.

For information on how to connect and operate the com-
mercially available audio equipment, refer to the owner’s
manual for the commercially available audio equipment.
CAUTION
!
Do not operate the connected audio equipment while
driving.
This could distract you and an accident might occur.
BK0132701US.book 64 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-65

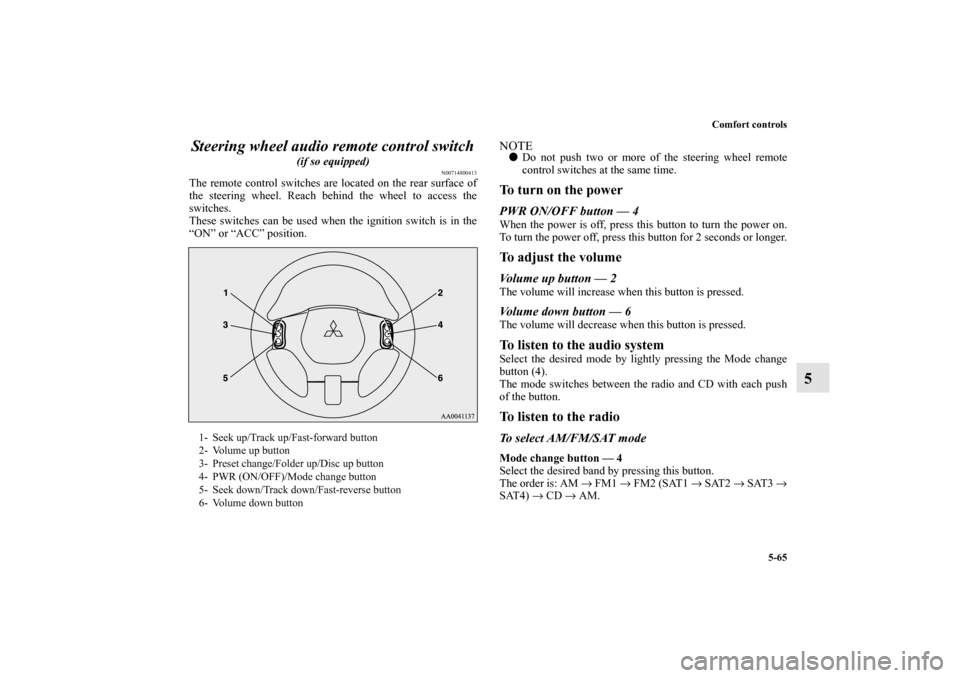

5 Steering wheel audio remote control switch

(if so equipped)
N00714800413
The remote control switches are located on the rear surface of
the steering wheel. Reach behind the wheel to access the
switches.
These switches can be used when the ignition switch is in the
“ON” or “ACC” position.
NOTE
Do not push two or more of the steering wheel remote
control switches at the same time.To turn on the powerPWR ON/OFF button — 4When the power is off, press this button to turn the power on.
To turn the power off, press this button for 2 seconds or longer.To adjust the volumeVolume up button — 2The volume will increase when this button is pressed.Volume down button — 6The volume will decrease when this button is pressed.To listen to the audio systemSelect the desired mode by lightly pressing the Mode change
button (4).
The mode switches between the radio and CD with each push
of the button.To listen to the radioTo select AM/FM/SAT modeMode change button — 4
Select the desired band by pressing this button.
The order is: AM → FM1 → FM2 (SAT1 → SAT2 → SAT3 →
SAT4) → CD → AM.
1- Seek up/Track up/Fast-forward button
2- Volume up button
3- Preset change/Folder up/Disc up button
4- PWR (ON/OFF)/Mode change button
5- Seek down/Track down/Fast-reverse button
6- Volume down button
BK0132701US.book 65 ページ ２０１０年１２月６日　月曜日　午後２時３分
