Vehicle care and maintenance
7-57
7

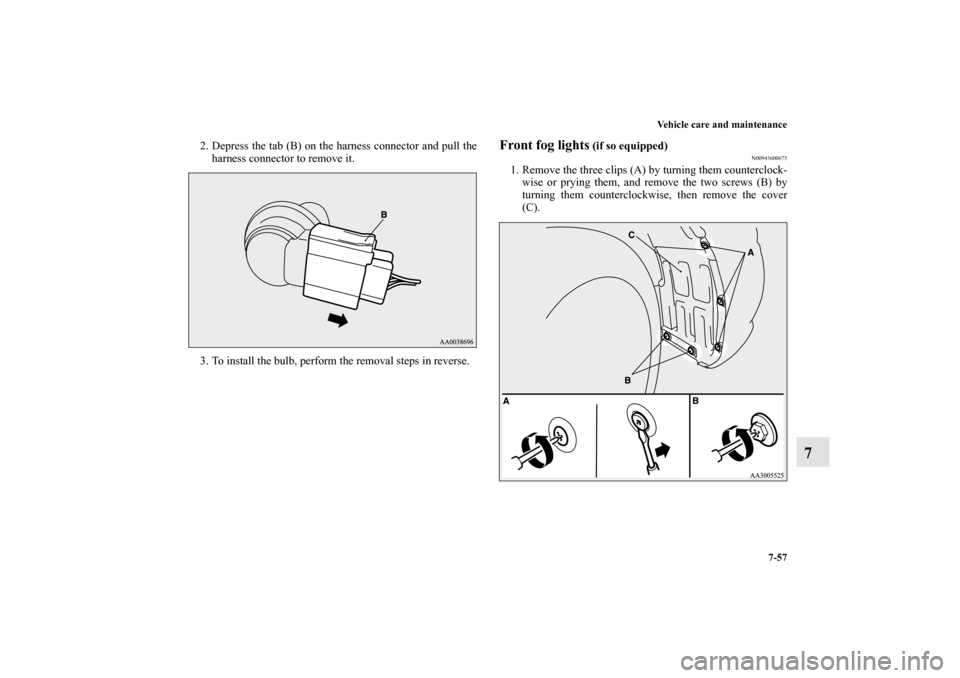

2. Depress the tab (B) on the harness connector and pull the
harness connector to remove it.
3. To install the bulb, perform the removal steps in reverse.
Front fog lights
(if so equipped)
N00943600675
1. Remove the three clips (A) by turning them counterclock-
wise or prying them, and remove the two screws (B) by
turning them counterclockwise, then remove the cover
(C).
BK0132701US.book 57 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-58 Vehicle care and maintenance
7

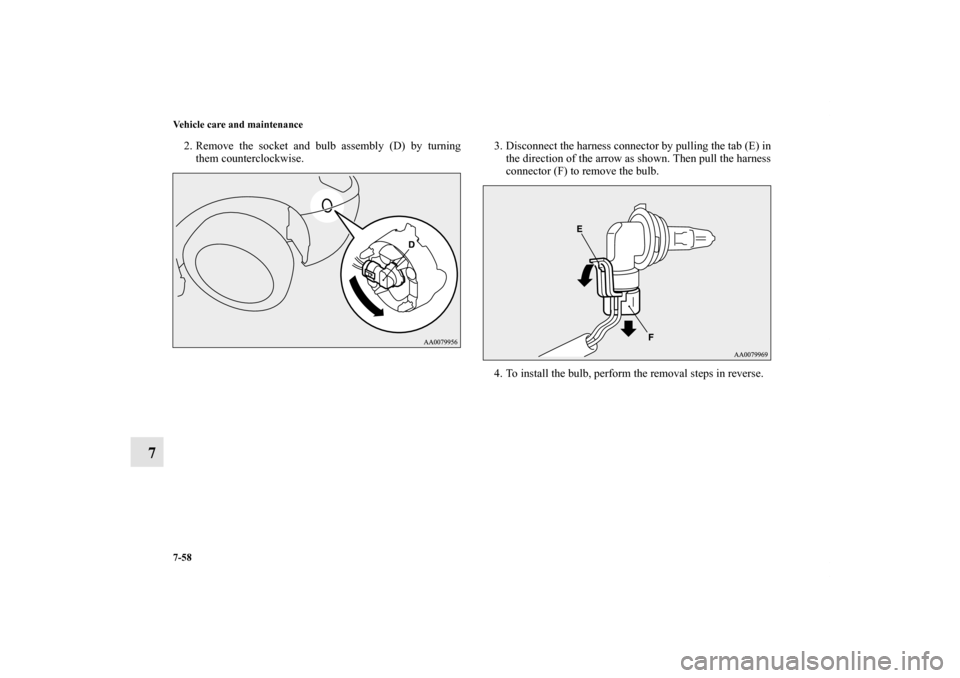

2. Remove the socket and bulb assembly (D) by turning
them counterclockwise.3. Disconnect the harness connector by pulling the tab (E) in
the direction of the arrow as shown. Then pull the harness
connector (F) to remove the bulb.
4. To install the bulb, perform the removal steps in reverse.
BK0132701US.book 58 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-61
7
4. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.5. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0132701US.book 61 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-65
7

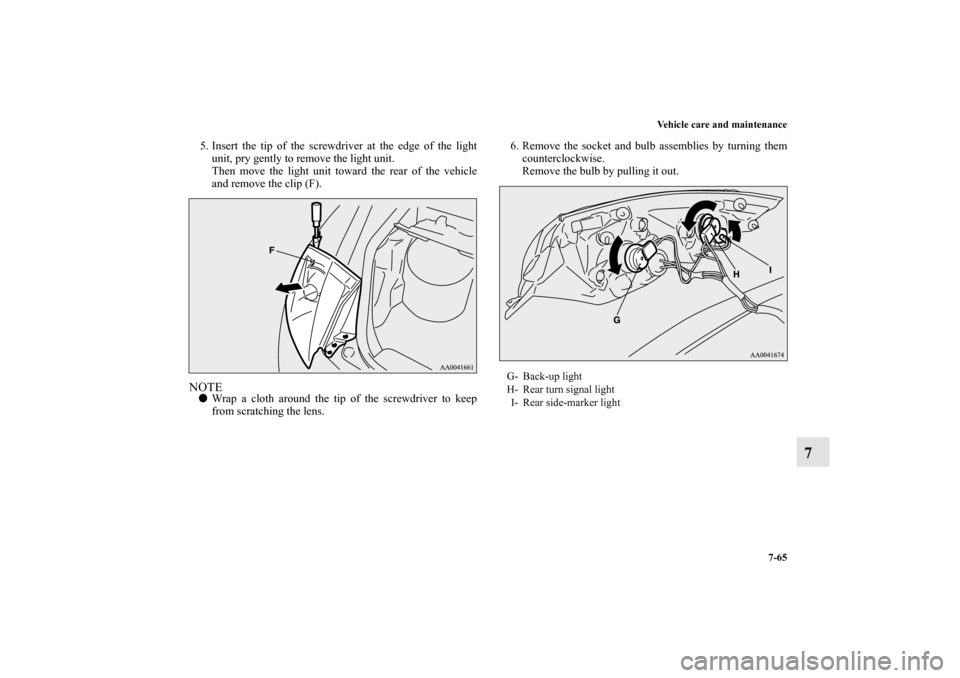

5. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.6. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0132701US.book 65 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-67
7

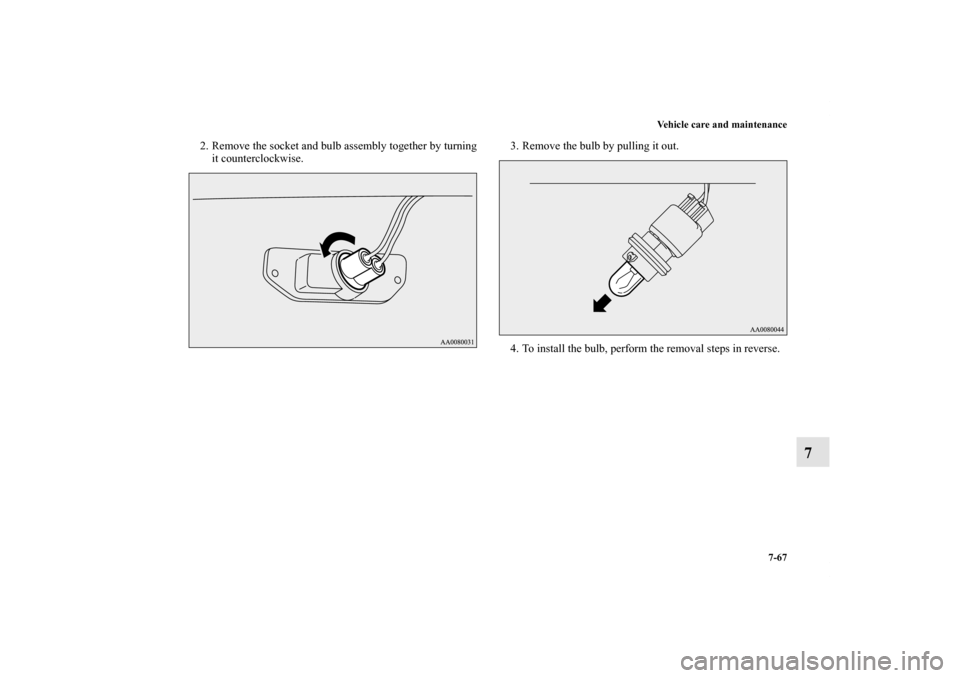

2. Remove the socket and bulb assembly together by turning
it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
