5-10 Comfort controls
5
Cooling
N00731200177
For ordinary cooling

1. Set the mode selection dial to the “ ” position.
2. Set the air selection switch (A) to the outside position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clock-
wise or counterclockwise.
5. Select the desired blower speed.
NOTE
If the outside air is dusty or contaminated in some way, set
the air selection switch (A) to the recirculation position.
Let in some outside air from time to time for good ventila-
tion.

To cool the leg areas, set the mode selection dial to the
“ ” position.
For quick cooling

1. Set the mode selection dial to the “ ” position.
2. Set the temperature control dial to the “MAX A/C” posi-
tion.
3. Set the blower speed to the highest position.
BK0132701US.book 10 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-16 Comfort controls
5
Temperature control dial
N00737000164
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.
NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.
Ty p e 1
Ty p e 2
BK0132701US.book 16 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-27
5
To adjust the volume
N00712000323
VOL (Volume control) Turn the VOL knob (2) clockwise to increase the volume;
counterclockwise to decrease the volume.
The status will be displayed in the display (4).NOTE
The volume control mode will shut off automatically if
either the radio or CD is selected, or if no adjustment is
made within about 2 seconds.
BK0132701US.book 27 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-29
5
2. Turn the AUDIO switch (3) either clockwise or counter-
clockwise to change the tone/balance setting.BASS (Bass tone control) To select the desired bass level. TRE (Treble tone control) To select the desired treble level. FADE (Front/Rear balance control) To balance the volume from the F (front) and the R (rear)
speakers. BAL (Left/Right balance control) To balance the volume from the L (left) and the R (right)
speakers.NOTE
When set to “0”, it will beep.

The audio adjust mode will automatically shut off when
either the radio or CD is selected, or if no adjustment is
made within about 7 seconds.Mode
Adjusting operation
Clockwise
Counterclockwise
BASS Increase Decrease
TRE Increase Decrease
FA D EMore sound from the
rear speakers More sound from the
front speakers
BAL More sound from the
right speakers More sound from the
left speakers
BK0132701US.book 29 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls

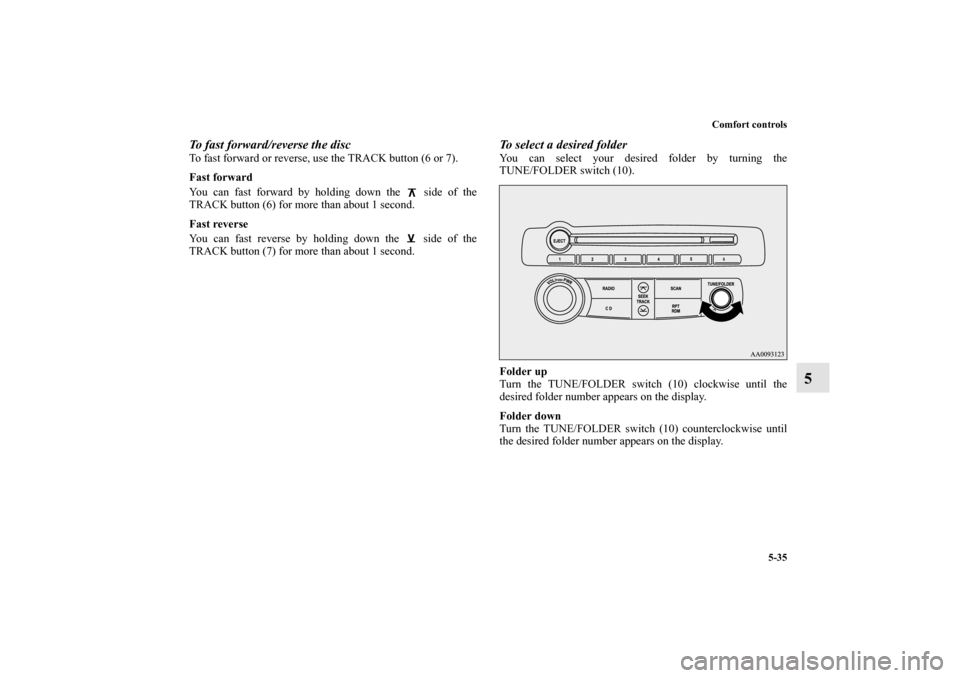

5-35
5
To fast forward/reverse the discTo fast forward or reverse, use the TRACK button (6 or 7).
Fast forward
You can fast forward by holding down the side of the
TRACK button (6) for more than about 1 second.
Fast reverse
You can fast reverse by holding down the side of the
TRACK button (7) for more than about 1 second.
To select a desired folderYou can select your desired folder by turning the
TUNE/FOLDER switch (10).
Folder up
Turn the TUNE/FOLDER switch (10) clockwise until the
desired folder number appears on the display.
Folder down
Turn the TUNE/FOLDER switch (10) counterclockwise until
the desired folder number appears on the display.
BK0132701US.book 35 ページ ２０１０年１２月６日　月曜日　午後２時３分

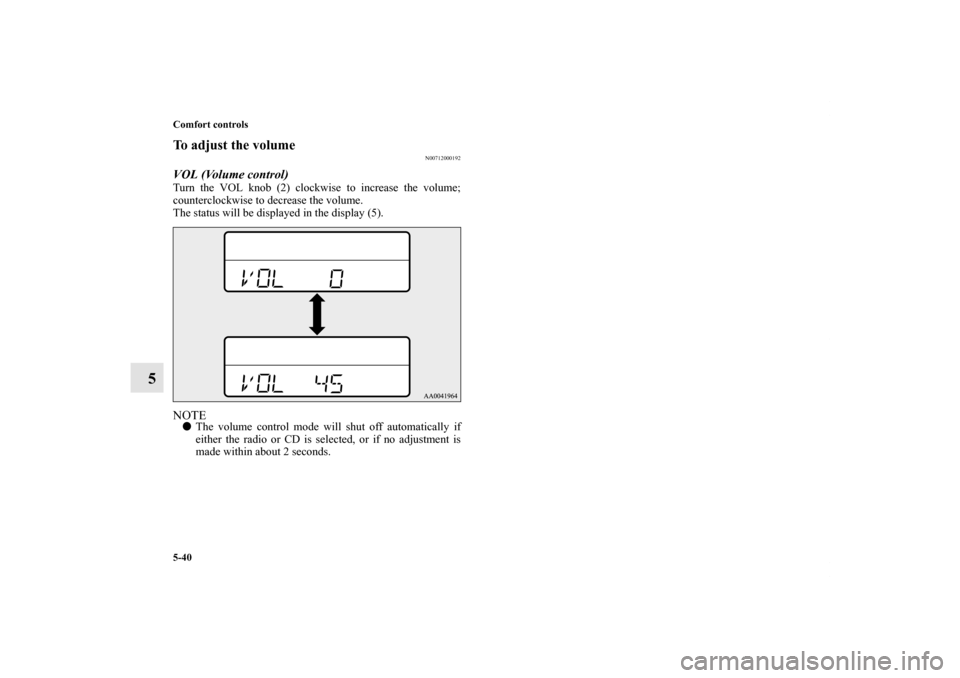

5-40 Comfort controls
5
To adjust the volume
N00712000192
VOL (Volume control) Turn the VOL knob (2) clockwise to increase the volume;
counterclockwise to decrease the volume.
The status will be displayed in the display (5).NOTE
The volume control mode will shut off automatically if
either the radio or CD is selected, or if no adjustment is
made within about 2 seconds.
BK0132701US.book 40 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-41
5
To adjust the tone
N00712100584
1. Press the AUDIO switch (4) repeatedly to select your
desired sound customization setting to change. The order
is: SUB PUNCH → BASS → MID → TRE → FADE →
BAL → FIELD → TYPE → SOUND PRESET → Sound
customization mode off.
The status will be displayed in the display (5).
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the AUDIO switch (4), then turn the switch
clockwise or counterclockwise to access your desired
sound customization setting. Release the switch to adjust
the setting.
BK0132701US.book 41 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-42 Comfort controls
5
2. Turn the AUDIO switch (4) either clockwise or counter-
clockwise to adjust the sound customization features.SUB PUNCH (Subwoofer tone control) To select the desired subwoofer PUNCH level. BASS (Bass tone control) To select the desired bass level. MID (Midrange tone control) To select the desired midrange level.
TRE (Treble tone control) To select the desired treble level. FADE (Front/Rear balance control) To balance the volume from the F (front) and the R (rear)
speakers. BAL (Left/Right balance control) To balance the volume from the L (left) and the R (right)
speakers.FIELD (Sound field type select)To select the desired sound field.
Mode
Adjusting operation
Clockwise
Counterclockwise
SUB PUNCH Increase Decrease
BASS Increase Decrease
MID Increase Decrease
TRE Increase Decrease
FA D EMore sound from
the rear speakers More sound from
the front speakers
BAL More sound from
the right speakers More sound from
the left speakers
FIELD NORMAL →
STAGE → LIVE →
HALLHALL → LIVE→
STAGE → NOR-
MAL
TYPENORMAL → POP
→ ROCK → HIP-
HOP → COUNTRYCOUNTRY→ HIP-
HOP → ROCK →
POP → NORMAL
SOUND PRESET — —
Sound field type
Description
NORMALOptimized for the Rockford Fosgate high
bass output.
STAGEPlaces the image of a sound stage in front of
the driver with the vocalist in the center (for
driver only).
LIVEFront seat occupants are surrounded by
sound from front and rear speakers.
HALLPlaces the image of a sound stage in front of
the driver with the vocalist in the center (for
driver only). Sound reflections are added to
the rear speakers to simulate the experience
of being at a concert hall. Best with classical
or vocalist music.
BK0132701US.book 42 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-44 Comfort controls
5
Speed Compensated Volume function
N00752200255
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOL, BASS, MID, and TRE settings in
accordance with the vehicle speed. It is possible to turn this
function ON-OFF using the following methods:
1. If you are presently pushing the AUDIO switch (4) and
making a tone adjustment, finish making the tone adjust-
ment.
2. Push the AUDIO switch for at least about 2 seconds. The
system will switch to MENU mode and the characters
“SCV Select” will be shown on the display.
3. Turn the AUDIO switch (4) clockwise to turn the function
ON. Turn it counterclockwise to turn the function OFF.NOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
BK0132701US.book 44 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls

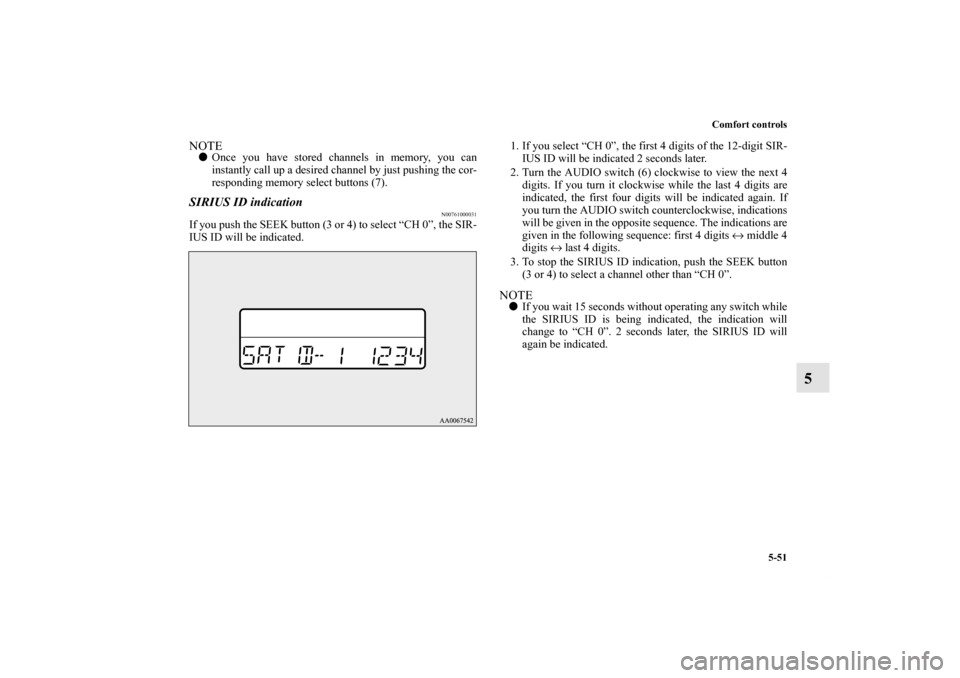

5-51
5
NOTE
Once you have stored channels in memory, you can
instantly call up a desired channel by just pushing the cor-
responding memory select buttons (7).SIRIUS ID indication
N00761000031
If you push the SEEK button (3 or 4) to select “CH 0”, the SIR-
IUS ID will be indicated.1. If you select “CH 0”, the first 4 digits of the 12-digit SIR-
IUS ID will be indicated 2 seconds later.
2. Turn the AUDIO switch (6) clockwise to view the next 4
digits. If you turn it clockwise while the last 4 digits are
indicated, the first four digits will be indicated again. If
you turn the AUDIO switch counterclockwise, indications
will be given in the opposite sequence. The indications are
given in the following sequence: first 4 digits ↔ middle 4
digits ↔ last 4 digits.
3. To stop the SIRIUS ID indication, push the SEEK button
(3 or 4) to select a channel other than “CH 0”.
NOTE
If you wait 15 seconds without operating any switch while
the SIRIUS ID is being indicated, the indication will
change to “CH 0”. 2 seconds later, the SIRIUS ID will
again be indicated.
