4-4 Driving safety
4
DefrostersCheck these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
(Refer to “Defrosting or defogging the windshield and door
windows” on page 5-12, 5-20.)TiresCheck all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressures. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.LightsHave someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaksCheck the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
Safe driving techniques
N00629200078
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
BK0132701US.book 4 ページ ２０１０年１２月６日　月曜日　午後２時３分

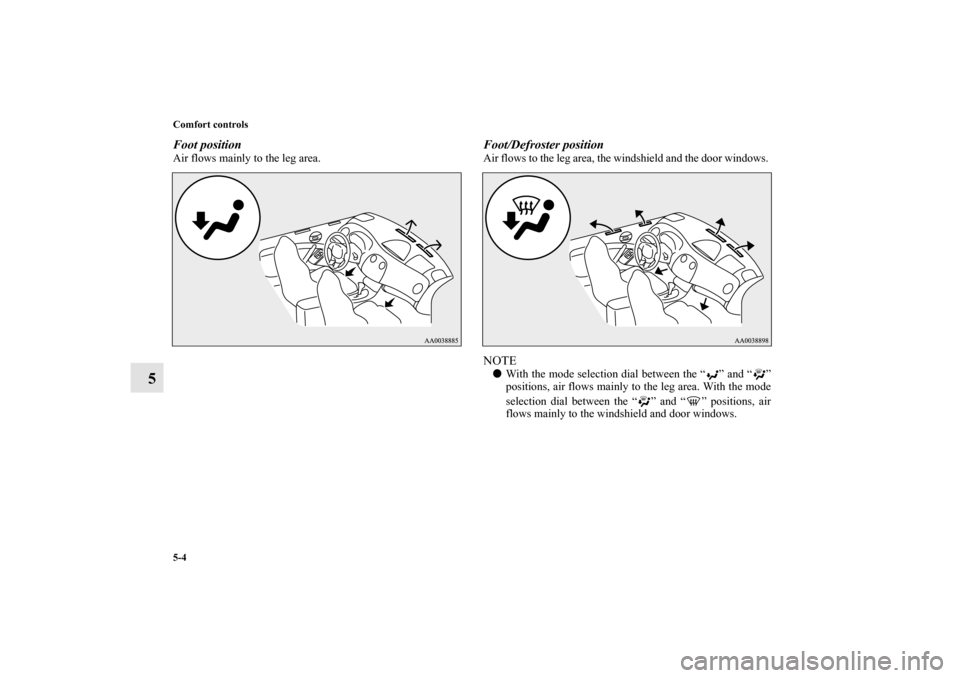

5-4 Comfort controls
5
Foot position Air flows mainly to the leg area.
Foot/Defroster position Air flows to the leg area, the windshield and the door windows. NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ” and “ ” positions, air
flows mainly to the windshield and door windows.
BK0132701US.book 4 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-5
5
Defroster position Air flows mainly to the windshield and the door windows.NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will also be selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)
Manual air conditioning
(if so equipped)
N00730300100
The air conditioning can only be used while the engine is run-
ning.Control panel
N00730500144
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Electric rear window defogger switch → P.3-135
6- Mode selection dial
BK0132701US.book 5 ページ ２０１０年１２月６日　月曜日　午後２時３分

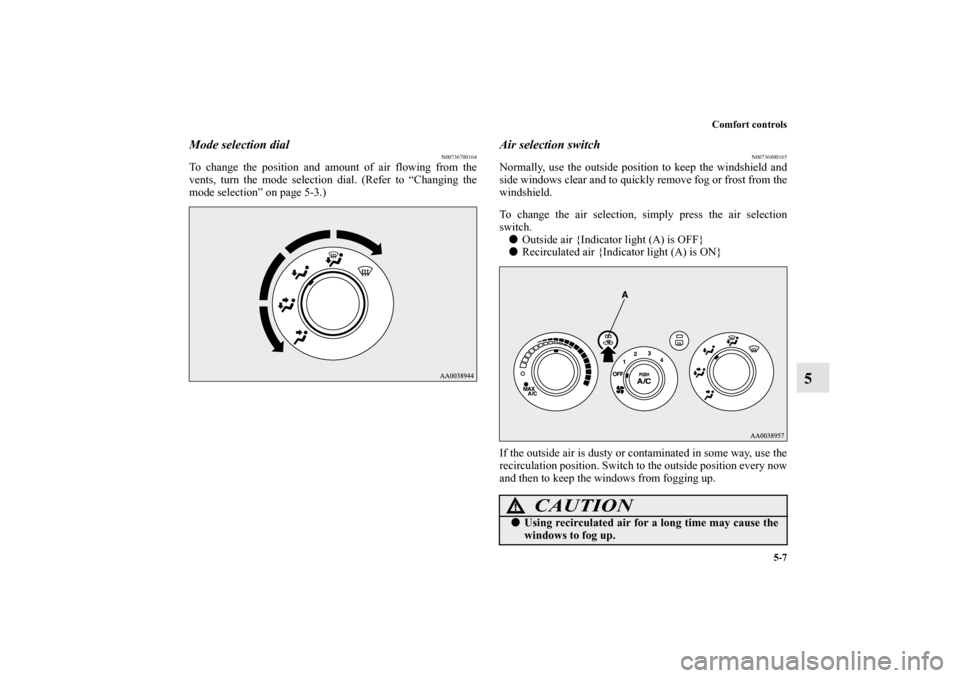

Comfort controls
5-7
5
Mode selection dial
N00736700164
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Changing the
mode selection” on page 5-3.)
Air selection switch
N00736800165
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To change the air selection, simply press the air selection
switch.

Outside air {Indicator light (A) is OFF}

Recirculated air {Indicator light (A) is ON}
If the outside air is dusty or contaminated in some way, use the
recirculation position. Switch to the outside position every now
and then to keep the windows from fogging up.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
BK0132701US.book 7 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-8 Comfort controls
5
NOTE
When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or use the recirculation posi-
tion.
This prevents the windows from fogging up.

When the mode selection dial is set to a position other
than “ ” or “ ”, the air selection will automatically
change to outside air. The air conditioning will revert to
the previous condition in which the “ ” or “ ” posi-
tion was not selected.

When the temperature control dial is set to the “MAX
A/C” position, the air selection will be automatically set
to the recirculation position.

If the temperature dial is set to any position other than
“MAX A/C”, outside air will always be used when the
ignition switch is turned on.

When the coolant temperature rises above a certain point,
the air selection is automatically switched to the
recirculation position and the indicator light (A) turns on.
When this occurs, the system will not switch to the out-
side air position until the coolant temperature goes down,
even if the selection switch is pushed.
Air conditioning switch
N00731000319
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
CAUTION
!
Using the air conditioning slightly increases the
engine idle speed. Therefore, make sure your foot is
firmly on the brake pedal when shifting the tran-
saxle into drive.
(Green)
BK0132701US.book 8 ページ ２０１０年１２月６日　月曜日　午後２時３分

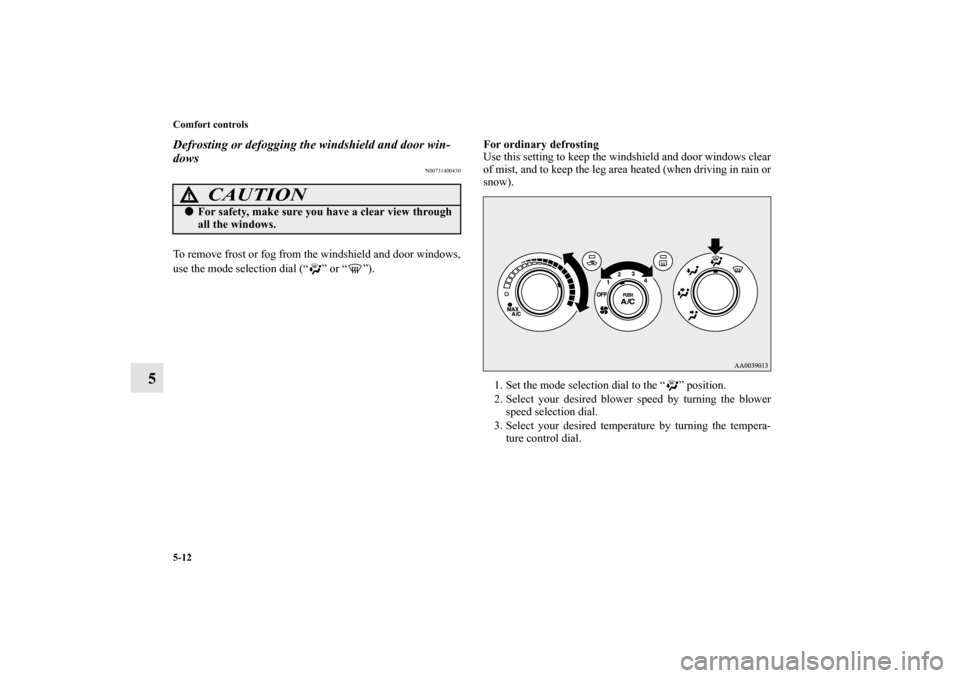

5-12 Comfort controls
5
Defrosting or defogging the windshield and door win-
dows
N00731400430
To remove frost or fog from the windshield and door windows,
use the mode selection dial (“ ” or “ ”).For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0132701US.book 12 ページ ２０１０年１２月６日　月曜日　午後２時３分

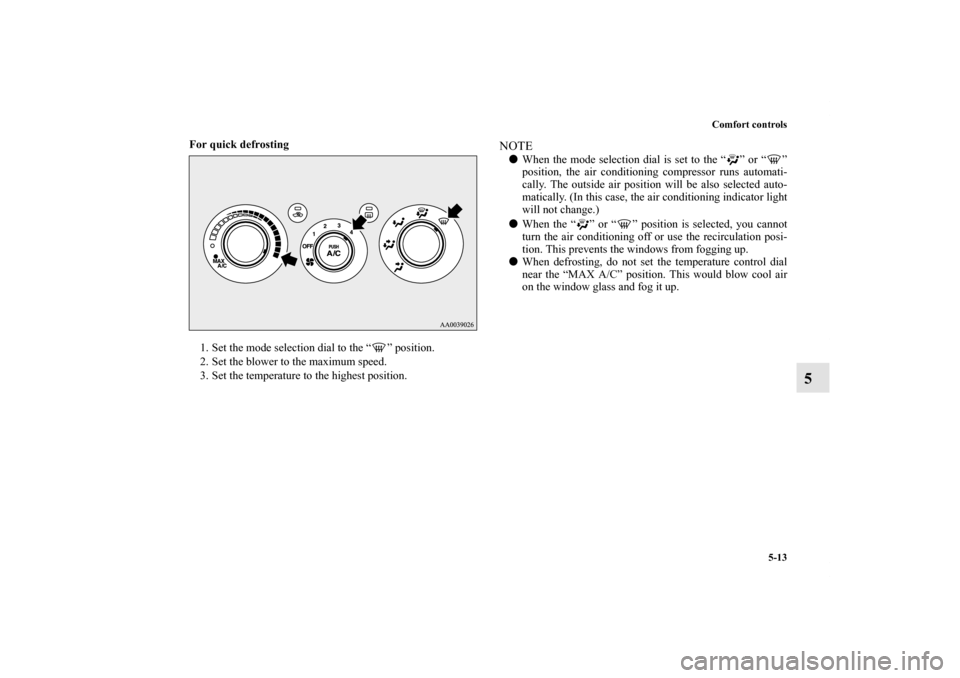

Comfort controls
5-13
5
For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set the blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will be also selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)

When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or use the recirculation posi-
tion. This prevents the windows from fogging up.

When defrosting, do not set the temperature control dial
near the “MAX A/C” position. This would blow cool air
on the window glass and fog it up.
BK0132701US.book 13 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-14 Comfort controls
5Automatic air conditioning
(if so equipped)
N00731500066
The air conditioning can only be used while the engine is run-
ning.Control panel
N00711800382
Ty p e 1
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Electric rear window defogger switch → P.3-135
6- Mode selection dialTy p e 2
BK0132701US.book 14 ページ ２０１０年１２月６日　月曜日　午後２時３分

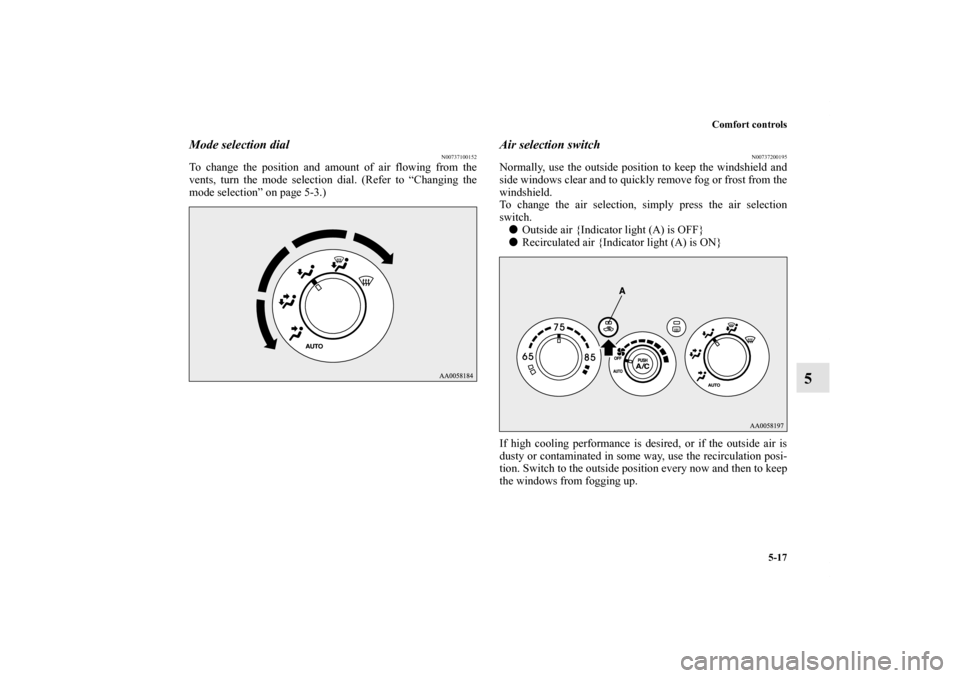

Comfort controls
5-17
5
Mode selection dial
N00737100152
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Changing the
mode selection” on page 5-3.)
Air selection switch
N00737200195
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To change the air selection, simply press the air selection
switch.

Outside air {Indicator light (A) is OFF}

Recirculated air {Indicator light (A) is ON}
If high cooling performance is desired, or if the outside air is
dusty or contaminated in some way, use the recirculation posi-
tion. Switch to the outside position every now and then to keep
the windows from fogging up.
BK0132701US.book 17 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-18 Comfort controls
5
NOTE
When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or select the recirculation
position.
This prevents the windows from fogging up.

When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position again after manual
operation, the air selection switch will also be automati-
cally controlled.

When the coolant temperature rises above a certain point,
the air selection is automatically switched to the recircula-
tion position and the indicator light (A) turns on. When
this occurs, the system will not switch to the outside air
position until the coolant temperature goes down, even if
the selection switch is pushed.
Air conditioning switch
N00737300196
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
Push the switch again and the air conditioning compressor will
stop and the air conditioning indicator light (A) goes off.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
CAUTION
!
Using the air conditioning slightly increases the
engine idle speed. Therefore, make sure your foot is
firmly on the brake pedal when shifting the tran-
saxle into drive.
(Green)
