snow chains MITSUBISHI ECLIPSE 2012 4.G Owners Manual

6-12 For emergencies
6

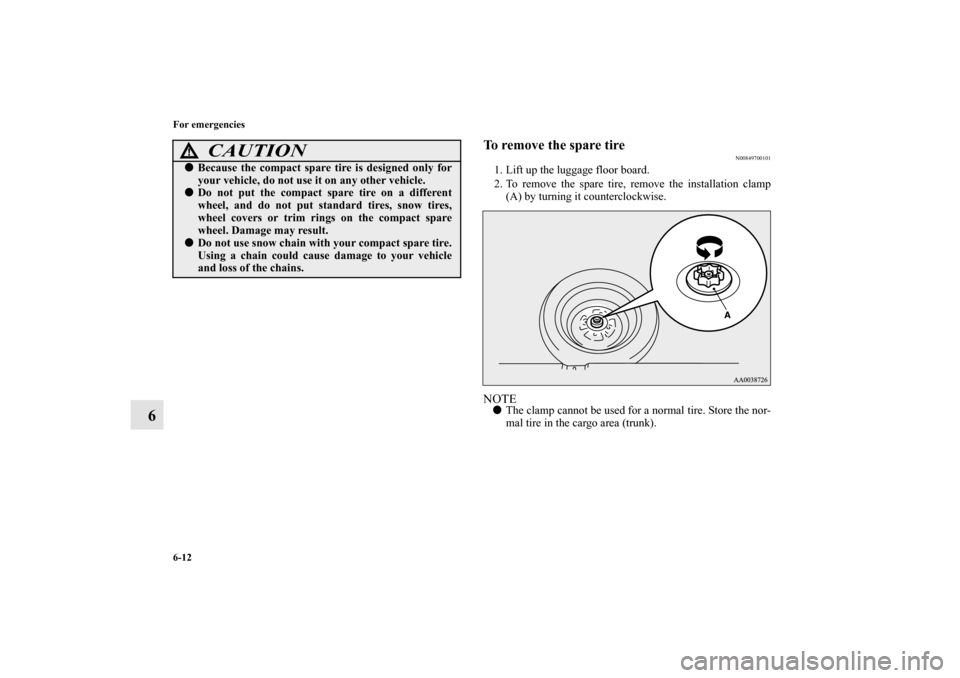

To remove the spare tire
N00849700101
1. Lift up the luggage floor board.
2. To remove the spare tire, remove the installation clamp
(A) by turning it counterclockwise.NOTE
The clamp cannot be used for a normal tire. Store the nor-
mal tire in the cargo area (trunk).

Because the compact spare tire is designed only for
your vehicle, do not use it on any other vehicle.
Do not put the compact spare tire on a different
wheel, and do not put standard tires, snow tires,
wheel covers or trim rings on the compact spare
wheel. Damage may result.
Do not use snow chain with your compact spare tire.
Using a chain could cause damage to your vehicle
and loss of the chains.
CAUTION
!
BK0132701US.book 12 ページ ２０１０年１２月６日　月曜日　午後２時３分

For emergencies
6-23
6

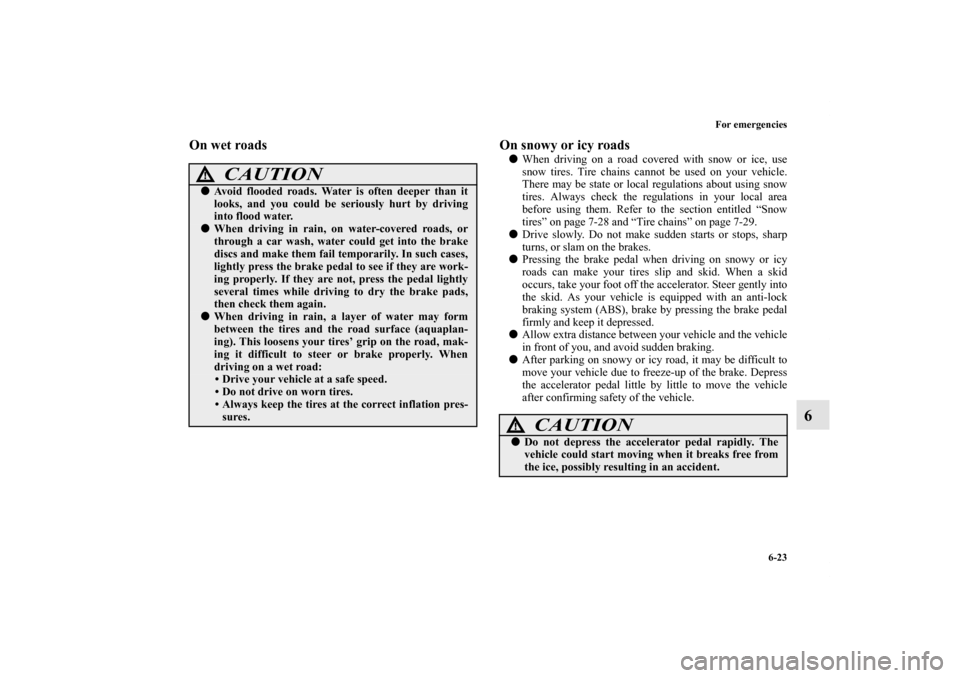

On wet roads On snowy or icy roads

When driving on a road covered with snow or ice, use
snow tires. Tire chains cannot be used on your vehicle.
There may be state or local regulations about using snow
tires. Always check the regulations in your local area
before using them. Refer to the section entitled “Snow
tires” on page 7-28 and “Tire chains” on page 7-29.

Drive slowly. Do not make sudden starts or stops, sharp
turns, or slam on the brakes.

Pressing the brake pedal when driving on snowy or icy
roads can make your tires slip and skid. When a skid
occurs, take your foot off the accelerator. Steer gently into
the skid. As your vehicle is equipped with an anti-lock
braking system (ABS), brake by pressing the brake pedal
firmly and keep it depressed.

Allow extra distance between your vehicle and the vehicle
in front of you, and avoid sudden braking.

After parking on snowy or icy road, it may be difficult to
move your vehicle due to freeze-up of the brake. Depress
the accelerator pedal little by little to move the vehicle
after confirming safety of the vehicle.
CAUTION
!
Avoid flooded roads. Water is often deeper than it
looks, and you could be seriously hurt by driving
into flood water.
When driving in rain, on water-covered roads, or
through a car wash, water could get into the brake
discs and make them fail temporarily. In such cases,
lightly press the brake pedal to see if they are work-
ing properly. If they are not, press the pedal lightly
several times while driving to dry the brake pads,
then check them again.
When driving in rain, a layer of water may form
between the tires and the road surface (aquaplan-
ing). This loosens your tires’ grip on the road, mak-
ing it difficult to steer or brake properly. When
driving on a wet road:
• Drive your vehicle at a safe speed.
• Do not drive on worn tires.
• Always keep the tires at the correct inflation pres-
sures.
CAUTION
!
Do not depress the accelerator pedal rapidly. The
vehicle could start moving when it breaks free from
the ice, possibly resulting in an accident.
BK0132701US.book 23 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
7
Sunroof 3-28
Supplemental Restraint System 2-36
How the Supplement Restraint System works 2-39
Servicing 2-57
Warning light 2-44
T
Tachometer 3-106
Tank capacity 1-5
,9-9
Theft-alarm system 3-22
Timing belt 7-36
Tire pressure monitoring system 3-96
Tires 7-20
How to change a tire 6-9
Inflation pressure 7-23
Maintenance 7-25
Quality grading 8-2
Replacing tires and wheels 7-25
Rotation 7-26
Size (tire and wheel) 9-8
Snow tires 7-28
Tire and loading information placard 4-8
,9-4
Tire chains 7-29
Tread wear indicators 7-26
Tools 6-8
Storage 6-8
Top stack 3-31
Towing 6-20
Traction control function 3-84Trailer towing 4-13
Trip odometer 3-106
Trunk lid 3-16
Turn signal lights
Bulb capacity 7-48
Indicators 3-111
Lever 3-129
Replacement 7-55
,7-56
,7-59V
Vanity mirror 3-167
Vanity mirror lights
Bulb capacity 7-50
,7-51
Replacement 7-70
Vehicle care precautions 7-71
Vehicle dimensions 9-5
Vehicle emission control information label 9-2
Vehicle identification number plate 9-2
Vehicle information code plate 9-2
Vehicle labeling 9-2
Vehicle preparation before driving 4-3
Vehicle weights 9-6
Vents 5-2
W
Warning lights 3-111
Washer
Fluid 7-14
,9-9
Rear window washer 3-134
BK0132701US.book 7 ページ ２０１０年１２月６日　月曜日　午後２時３分
