display MITSUBISHI ECLIPSE CROSS 2018 Owner's Manual (in English)

Multi-information display
Features and controls 5-157
5
2. Press the switch or switch several times to switch to the “LANGUAGE SYNC” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the setting, and then press the switch to confirm the setting.
N00557401172
You can change the operation sounds of the multi-information display switches and rheo-stat illumination button. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-152.
2. Press the switch or switch several times to switch to the “OPERATION SOUND” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the sound, and then press the switch to confirm the setting. The setting is changed to the selected con- dition.
NOTE
 If the battery is disconnected, the language cooperative control is automatically set to “ON” (language cooperation: enabled).  The language cooperation setting can be switched in the following manner.
• When “ON” (language cooperation:enabled) has been selected, the language for Multi Around Monitor (if so equipped) is automatically changed to the language selected for the multi-information display.However, this changing function may not work depending on the language selected for the multi-information display. • When “OFF” (language cooperation: dis- abled) has been selected, the language forMulti Around Monitor (if so equipped) is not automatically changed to match the lan- guage selected for the multi-informationdisplay.
 The language on the audio system’s display does not automatically change when you select “ON” (language cooperation: enabled) in the language cooperation control.
Operation sound setting
NOTE
NOTE
 If the battery is disconnected, the memory of the operation sound setting is erased and is automatically set to ON (operation sound on).
BK0252700US.book
157 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi-information display 5-158 Features and controls
5
N00557501186

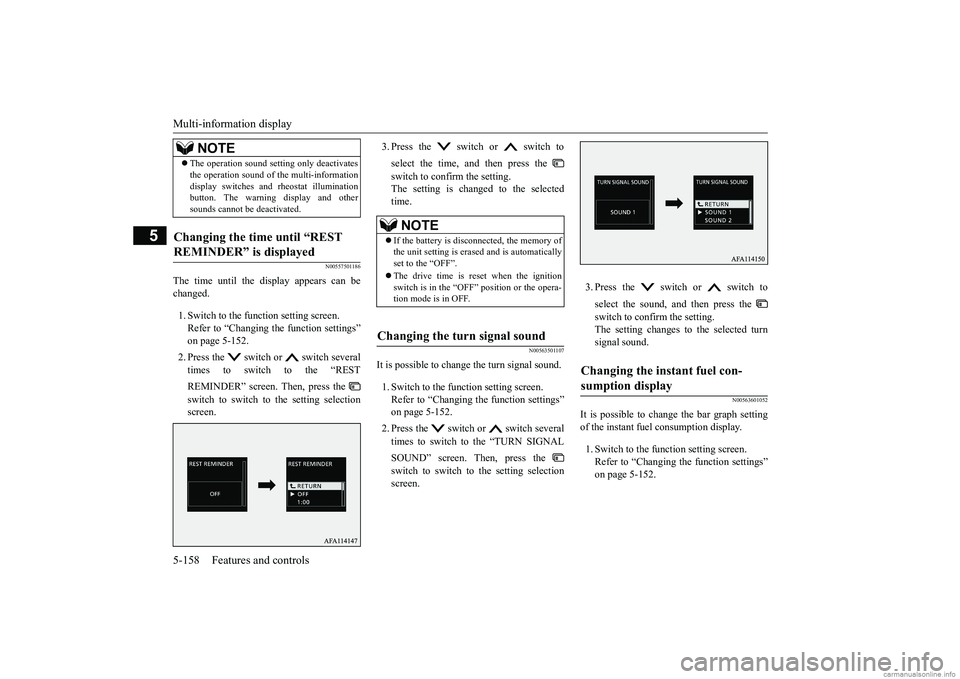

The time until the display appears can be changed. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-152. 2. Press the switch or switch several times to switch to the “REST REMINDER” screen. Then, press the switch to switch to the setting selection screen.
3. Press the switch or switch to select the time, and then press the switch to confirm the setting. The setting is changed to the selected time.
N00563501107
It is possible to change the turn signal sound. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-152. 2. Press the switch or switch several times to switch to the “TURN SIGNAL SOUND” screen. Then, press the switch to switch to the setting selection screen.
3. Press the switch or switch to select the sound, and then press the switch to confirm the setting. The setting changes to the selected turnsignal sound.
N00563601052
It is possible to change the bar graph settingof the instant fuel consumption display. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-152.
 The operation sound setting only deactivates the operation sound of the multi-information display switches and rheostat illumination button. The warning display and other sounds cannot be deactivated.
Changing the time until “REST REMINDER” is displayed
NOTE
NOTE
 If the battery is disconnected, the memory of the unit setting is erased and is automatically set to the “OFF”.  The drive time is reset when the ignition switch is in the “OFF” position or the opera- tion mode is in OFF.
Changing the turn signal sound
Changing the instant fuel con- sumption display
BK0252700US.book
158 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi-information display
Features and controls 5-159
5
2. Press the switch or switch several times to switch to the “INSTANT FUEL CONSUMPTION DISPLAY” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the setting, and then press the switch to confirm the setting. The setting changes to the selected bar graph setting.
N00557601233
Many of the function settings can be returnedto their factory settings. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-152.
2. Press the switch or switch several times to switch to the “FACTORY RESET” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select “RESET”, and then press and hold the switch for approximately 5 sec- onds or more to confirm the setting. The buzzer sounds and all of the function settings are returned to the factory set-tings.
Returning to the factory settings
NOTE
 The factory settings are as follows. • “AVERAGE FUEL CONSUMPTION RESET MODE”: AUTO • “FUEL CONSUMPTION UNIT”: mpg (US) or (L/100 km)
• “TEMPERATURE UNIT”: °F (Fahrenheit) or °C (Celsius) • “LANGUAGE”: ENGLISH • “LANGUAGE SYNC”: ON • “OPERATION SOUND”: ON• “REST REMINDER”: OFF • “TURN SIGNAL SOUND”: SOUND 1 • “INSTANT FUEL CONSUMPTION DIS- PLAY”: ON
 “BSW” and “TPMS ID” cannot be returned to their factory settings.NOTE
BK0252700US.book
159 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-160 Features and controls
5
N00557701090 N00557801352

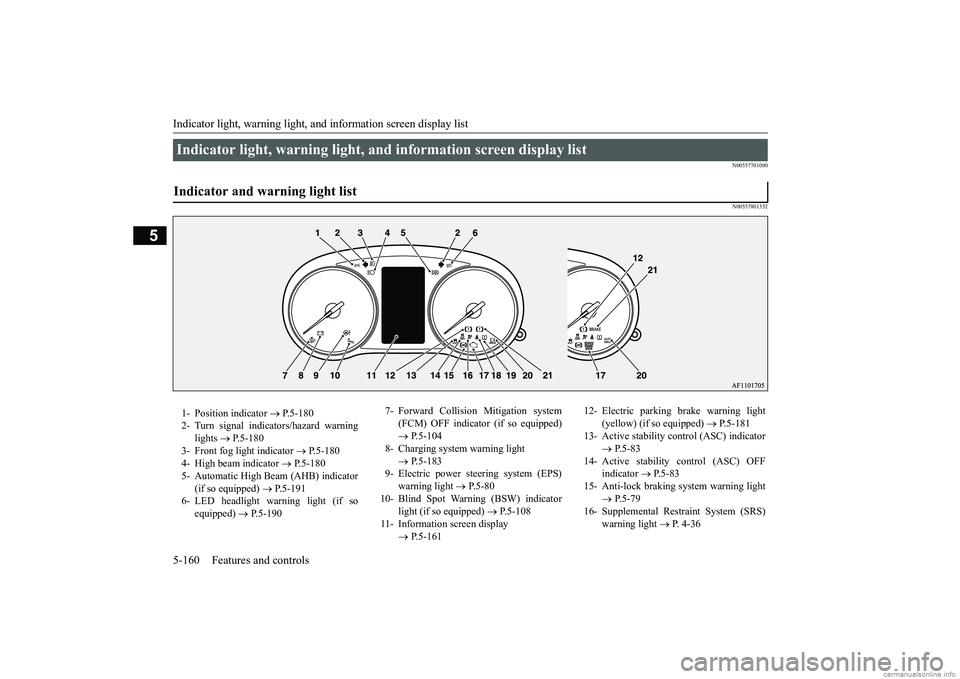

Indicator light, warning light, and information screen display list Indicator and warning light list 1- Position indicator
 P.5-180
2- Turn signal indicators/hazard warning
lights
 P.5-180
3- Front fog light indicator
 P.5-180
4- High beam indicator
 P.5-180
5- Automatic High Beam (AHB) indicator
(if so equipped)
 P.5-191
6- LED headlight warning light (if so
equipped)
 P.5-190
7- Forward Collision Mitigation system
(FCM) OFF indicator (if so equipped)  P.5-104
8- Charging system warning light
 P.5-183
9- Electric power steering system (EPS)
warning light
 P.5-80
10- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-108
11- Information screen display
 P.5-161
12- Electric parking brake warning light
(yellow) (if so equipped)
 P.5-181
13- Active stability control (ASC) indicator
 P.5-83
14- Active stability control (ASC) OFF
indicator
 P.5-83
15- Anti-lock braking system warning light
 P.5-79
16- Supplemental Restraint System (SRS)
warning light
 P. 4-36
BK0252700US.book
160 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-161
5
N00557901122
When there is information to be announced, such as light reminder,
the tone sounds and the screen switches to the displays show
n below.
Refer to the appropriate page and take the necessary measures.When the cause of the warning display is eliminated, the warning display goes out automatically. Refer to Warning display list on page 5-162. Refer to Other interrupt displays on page 5-177. 17- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Checkengine light”)
 P.5-182
18- Seat belt reminder/warning light
 P.4-18
19- Tire pressure monitoring system warn-
ing light
 P.5-119
20- Brake auto hold indicator (if so
equipped)
 P.5-74
21- Brake warning light (red)
 P.5-181
Information screen display
NOTE
In the following cases, a warning may be displayed on the informa
tion screen and the buzzer may sound for a few seconds, at tim
es.
This is caused by the system picking up interference such as stro
ng electromagnetic waves or nois
e, and is not a functional pro
blem.
• An extremely strong electromagnetic wave is received from a source
such as an illegal radio set,
a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static electricity discharge is genera
ted by the operation of your vehicle’s electronics (including afte
r-market parts).
If the warning display has occurred a number of times, take your ve
hicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and
have the system checked.
BK0252700US.book
161 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-162 Features and controls
5
N00558001306

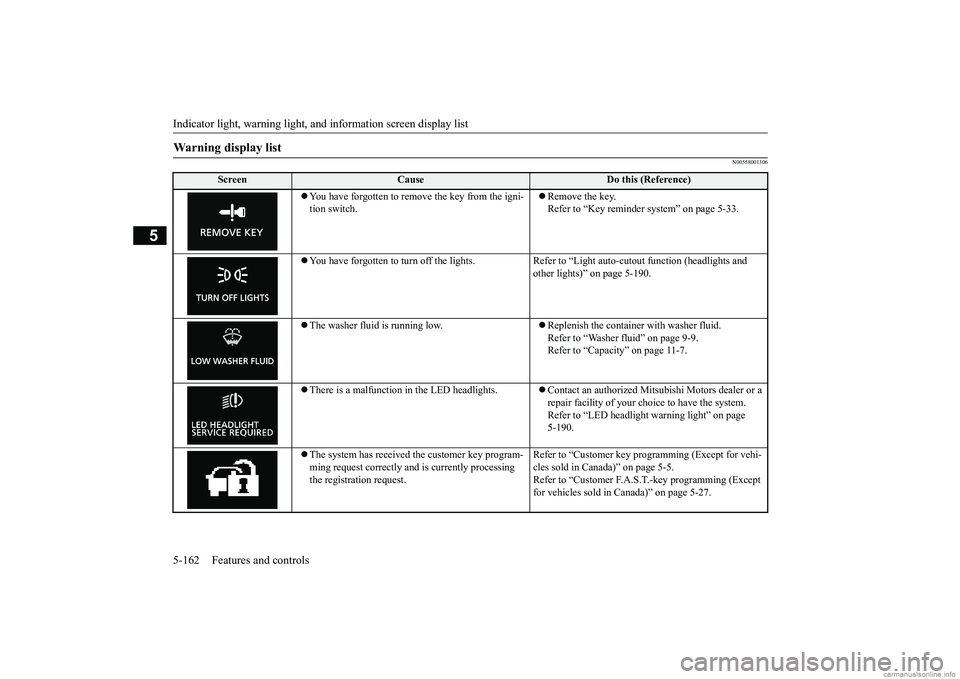

Warning display list
Screen
Cause
Do this (Reference)
 You have forgotten to remove the key from the igni- tion switch.
 Remove the key. Refer to “Key reminder system” on page 5-33.
 You have forgotten to turn off the lights. Refer
to “Light auto-cutout function (headlights and
other lights)” on page 5-190.
 The washer fluid is running low.
Replenish the container with washer fluid. Refer to “Washer fluid” on page 9-9. Refer to “Capacity” on page 11-7.
 There is a malfunction in the LED headlights.
Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system. Refer to “LED headlight warning light” on page 5-190.
 The system has received the customer key program- ming request correctly and is currently processing the registration request.
Refer to “Customer key programming (Except for vehi- cles sold in Canada)” on page 5-5.Refer to “Customer F.A.S.T.-key programming (Except for vehicles sold in Canada)” on page 5-27.
BK0252700US.book
162 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-163
5

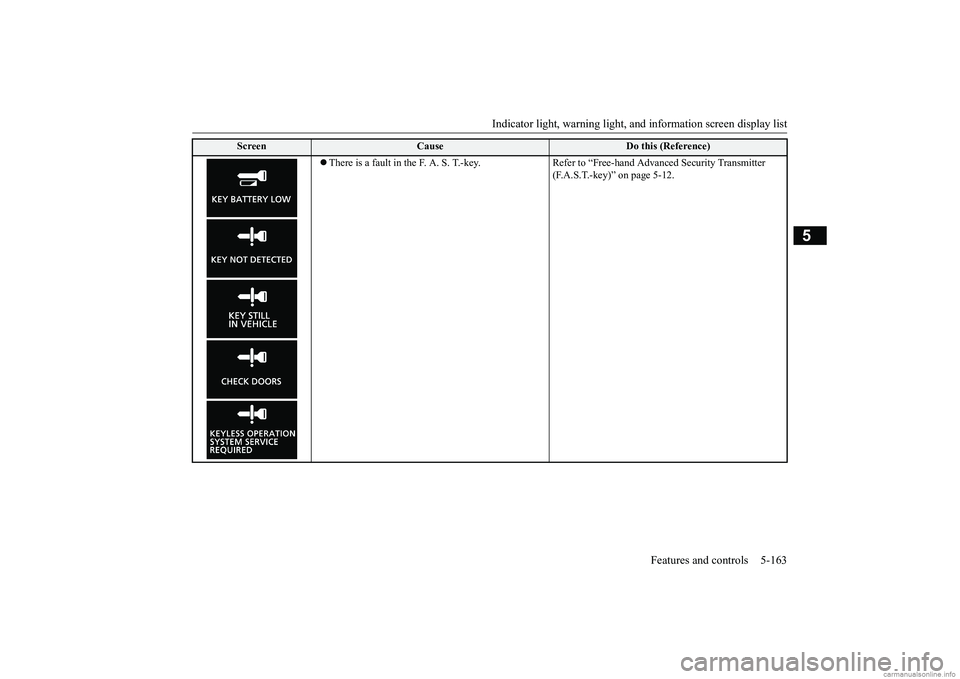

 There is a fault in the F. A. S. T.-key. Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)” on page 5-12.
Screen
Cause
Do this (Reference)
BK0252700US.book
163 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-164 Features and controls
5

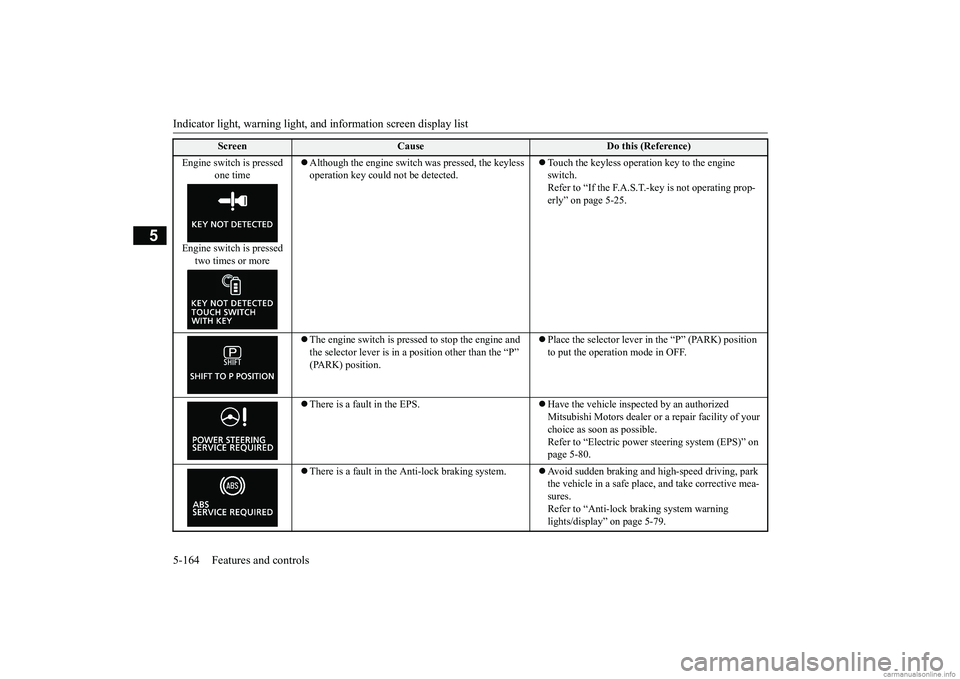

Engine switch is pressed
one time
Engine switch is pressed
two times or more
 Although the engine switch was pressed, the keyless operation key could not be detected.
 Touch the keyless operation key to the engine switch. Refer to “If the F.A.S.T.-key is not operating prop-erly” on page 5-25.
 The engine switch is pressed to stop the engine and the selector lever is in a position other than the “P” (PARK) position.
 Place the selector lever in the “P” (PARK) position to put the operation mode in OFF.
 There is a fault in the EPS.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power
steering system (EPS)” on
page 5-80.
 There is a fault in the Anti-lock braking system.
Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective mea- sures. Refer to “Anti-lock braking system warning lights/display” on page 5-79.
Screen
Cause
Do this (Reference)
BK0252700US.book
164 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-165
5

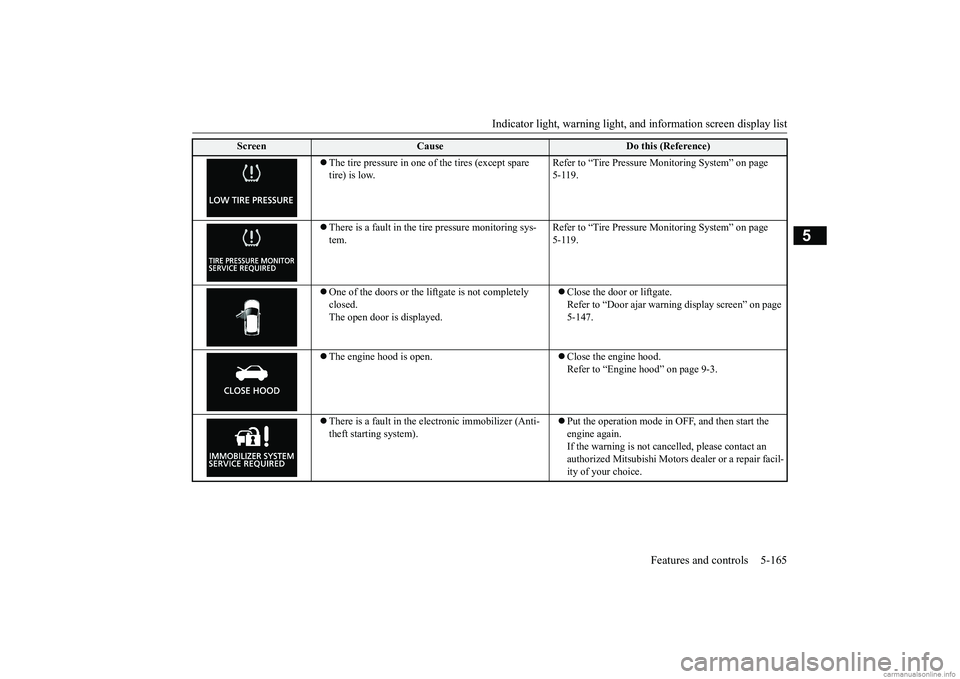

 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire Pressure Monitoring System” on page 5-119.
 There is a fault in the tire pressure monitoring sys- tem.
Refer to “Tire Pressure Monitoring System” on page 5-119.
 One of the doors or the liftgate is not completely closed. The open door is displayed.
 Close the door or liftgate. Refer to “Door ajar warning display screen” on page 5-147.
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 There is a fault in the electronic immobilizer (Anti- theft starting system).
 Put the operation mode in OFF, and then start the engine again. If the warning is not cancelled, please contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice.
Screen
Cause
Do this (Reference)
BK0252700US.book
165 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-166 Features and controls
5
 The driver’s door is open when the operation mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Operation mode ON reminder system” on page 5-34.
 An attempt was made to lock all the doors and the liftgate when the operation mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Operation mode OFF reminder system” on page 5-20.
 There is a fault in the electrical system.
Park your vehicle in a safe
place as soon as possible
and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 8-4.
 The automatic transaxle or CVT fluid temperature is increased.
 Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable transmission (CVT)” on page 5-60.
 The seat belt is not fastened when the ignition switch or operation mode is in ON.
 Wear your seat belt properly. Refer to “Driver’s seat belt reminder/warning light and display” on page 4-18.
Screen
Cause
Do this (Reference)
