display MITSUBISHI ECLIPSE CROSS 2018 Owner's Manual (in English)

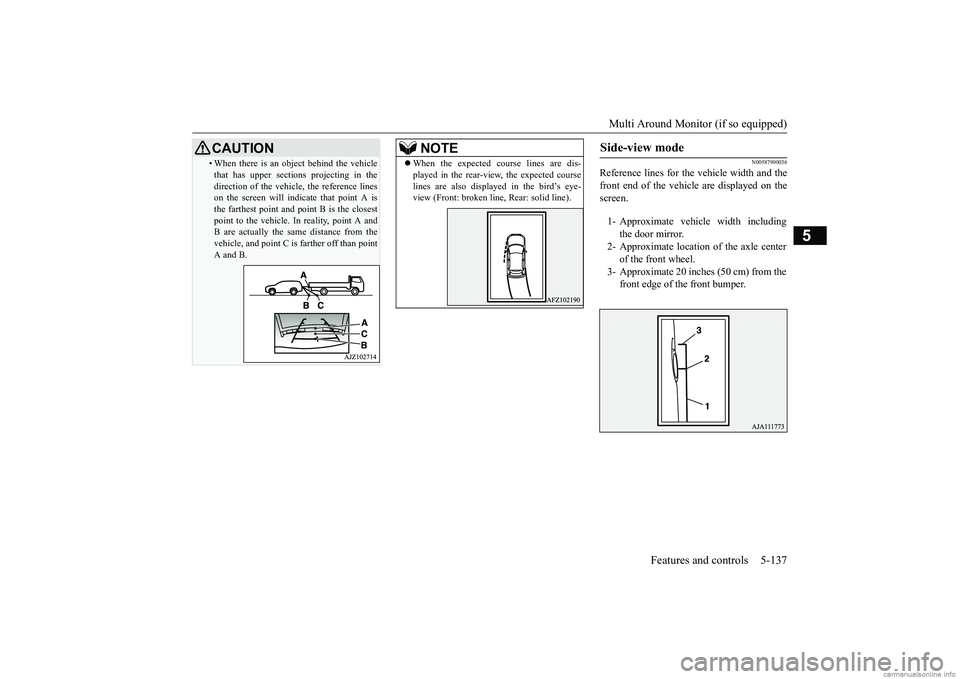

Multi Around Monitor (if so equipped)
Features and controls 5-137
5
N00587900036
Reference lines for the vehicle width and the front end of the vehicle are displayed on thescreen.
• When there is an object behind the vehicle that has upper sections projecting in the direction of the vehicle, the reference lines on the screen will indicate that point A is the farthest point and point B is the closestpoint to the vehicle. In reality, point A and B are actually the same distance from the vehicle, and point C is farther off than pointA and B.CAUTION
NOTE
 When the expected course lines are dis- played in the rear-view, the expected course lines are also displayed in the bird’s eye- view (Front: broken line, Rear: solid line).
Side-view mode

1- Approximate vehicle width including
the door mirror.
2- Approximate location of the axle center
of the front wheel.
3- Approximate 20 inches (50 cm) from the
front edge of the front bumper.
BK0252700US.book
137 ページ ２０１７年１０月４日　水曜日　午後４時５４分

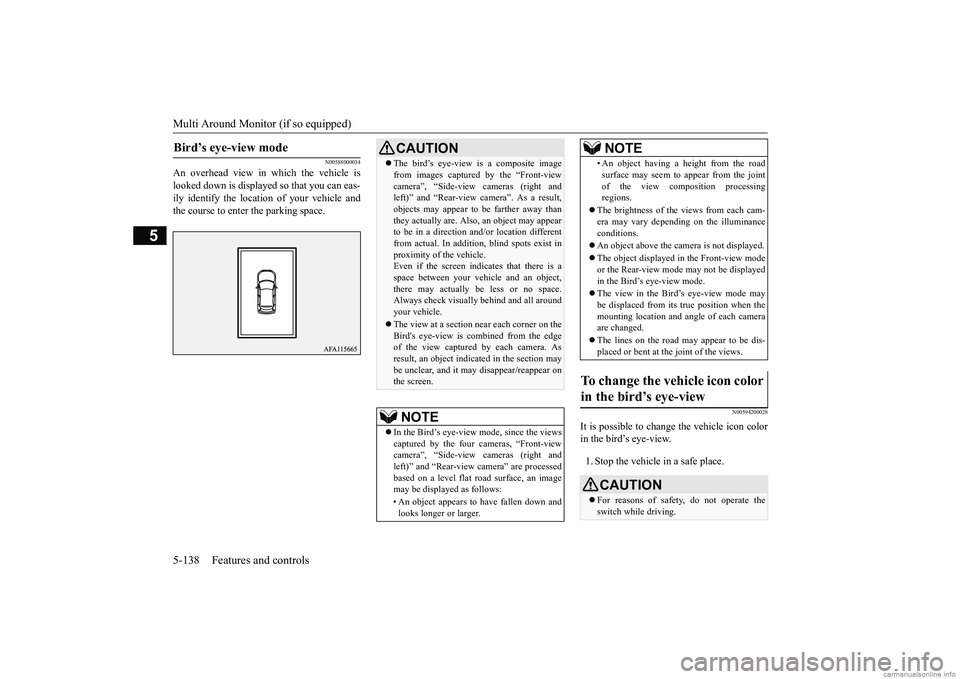

Multi Around Monitor (if so equipped) 5-138 Features and controls
5
N00588000034
An overhead view in which the vehicle is looked down is displayed so that you can eas-ily identify the location of your vehicle and the course to enter the parking space.
N00594200028
It is possible to change the vehicle icon colorin the bird’s eye-view. 1. Stop the vehicle in a safe place.
Bird’s eye-view mode

CAUTION The bird’s eye-view is a composite image from images captured by the “Front-view camera”, “Side-view cameras (right and left)” and “Rear-view camera”. As a result, objects may appear to be farther away thanthey actually are. Also, an object may appear to be in a direction a
nd/or location different
from actual. In addition, blind spots exist inproximity of the vehicle. Even if the screen indicates that there is a space between your vehicle and an object,there may actually be less or no space. Always check visually behind and all around your vehicle. The view at a section near each corner on the Bird's eye-view is combined from the edgeof the view captured by each camera. As result, an object indicated in the section may be unclear, and it may disappear/reappear onthe screen.NOTE
 In the Bird’s eye-view mode, since the views captured by the four cameras, “Front-view camera”, “Side-view cameras (right and left)” and “Rear-view camera” are processedbased on a level flat road surface, an image may be displayed as follows: • An object appears to have fallen down and looks longer or larger.
• An object having a height from the roadsurface may seem to appear from the joint of the view composition processing regions.
 The brightness of the views from each cam- era may vary depending on the illuminance conditions.  An object above the camera is not displayed.  The object displayed in the Front-view mode or the Rear-view mode may not be displayed in the Bird’s eye-view mode.  The view in the Bird’s eye-view mode may be displaced from its
true position when the
mounting location and angle of each camera are changed.  The lines on the road may appear to be dis- placed or bent at the joint of the views.
To change the vehicle icon color in the bird’s eye-view

CAUTION For reasons of safety, do not operate the switch while driving.NOTE
BK0252700US.book
138 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Instrument cluster
Features and controls 5-139
5
2. Press the switch (A) to display the bird’s eye-view/front-view. 3. Press and hold down the switch (A) until the vehicle icon blinks to enter the selec- tion mode of the vehicle icon color in the bird’s eye-view.4. Press the switch until the desired color appears on the display. Each time you press the switch, the vehi-cle icon color in the bird’s eye-view willchange to the next one. 5. When it is changed to your desired color, press and hold the switch (A) for a fewseconds. This completes the setting.
N00519001444
N00519101272
The speedometer shows the vehicle speed in miles per hour (mph) or kilometers per hour(km/h).
NOTE
 When the selection mode is in the following situations, the vehicle icon color does not change.
• When you place the gearshift lever or theselector lever in the “R” (REVERSE) posi- tion. • When you do not operate anything for 30 seconds. • The operation mode is put in OFF.
Instrument cluster 1- Tachometer
 P.5-140
2- Multi-information display
 P.5-140 Information screen display list

P.5-161
3- Speedometer
P.5-139
4- Rheostat illumination button

P.5-140NOTE
Speedometer Type AType B
BK0252700US.book
139 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi-information display 5-140 Features and controls
5
N00519201303
The tachometer shows engine revolutions per minute. This allows the driver to determinethe most efficient selector position and engine speed combinations. This gauge also assist
s in evaluating engine
performance.
N00554901293
Each time you press this button, there is asound and the brightness of the instrumentschanges.
N00555001419
The multi-information display displays warn- ings, the odometer, trip odometer, service reminder, engine coolant temperature, fuelremaining, outside temperature, selector lever position, average and instant fuel consump- tion, driving range, average speed, etc. It is also possible to change elements such as the language and units used on the multi- information display.
Tachometer
CAUTION The red zone indicates an engine speed beyond the range of safe operation. Select the correct selector position to control the engine speed so that the tachometer indi- cator does not enter the red zone.
Meter illumination control 1- Brightness level 2- Rheostat illumination button
NOTE
 You can adjust to 8 different levels for when the front side-marker lights are illuminatedand when they are not.  If the vehicle is equipped with the automatic light control, the light switch is in a position other than the “OFF” position and it is suffi- ciently dark outside the vehicle, the meterillumination switches automatically to the adjusted brightness.
 The brightness level of the instruments is stored when the ignition switch is turned to the “OFF” position or the operation mode is put in OFF.  If you press and hold the button for longer than approximately 2 second when the front side-marker lights are illuminated, thebrightness level changes to the maximum level. Pressing and holding the button for longer than approximately 2 second againreturns the brightness level to the previous level. On vehicles equipped with Smartphone LinkDisplay Audio, the map screen color may not be switched to nighttime setting when the meter illumination brightness level is at themaximum.
Multi-information display
NOTE
BK0252700US.book
140 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi-information display
Features and controls 5-141
5

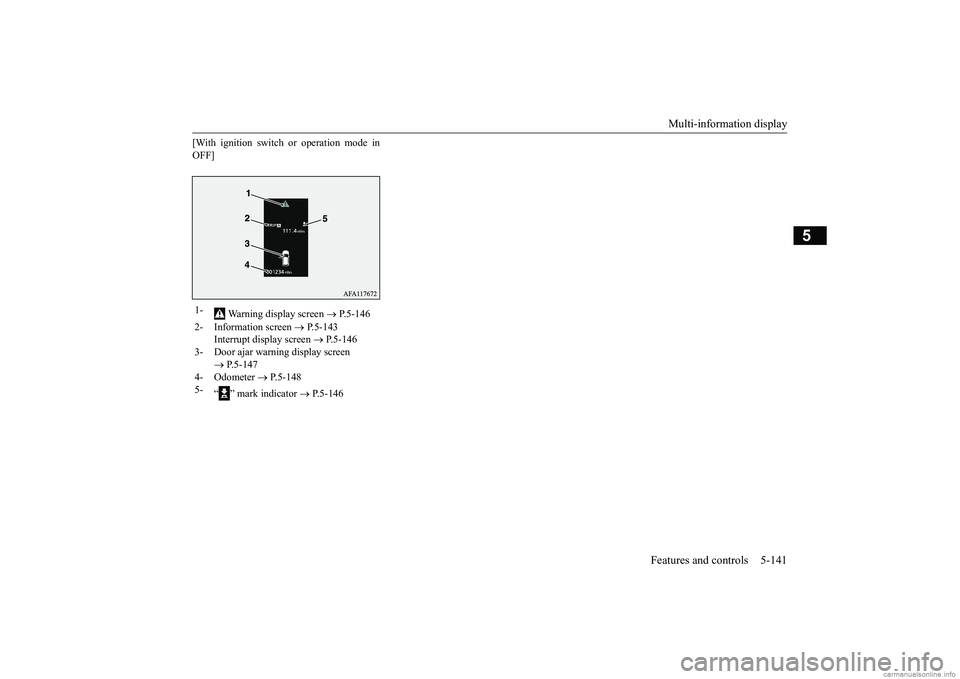

[With ignition switch or operation mode in OFF] 1-
Warning display screen
 P.5-146
2- Information screen
 P.5-143
Interrupt display screen
 P.5-146
3- Door ajar warning display screen
 P.5-147
4- Odometer
 P.5-148
5-
“ ” mark indicator
 P.5-146
BK0252700US.book
141 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi-information display 5-142 Features and controls
5
[With ignition switch or operation mode in ON]
N00555101234
Each time the multi-information display switches are operated, the buzzer sounds andthe multi-information display changes
1- S-AWC drive mode display screen (if
so equipped)
 P.5-69
2-
Warning display screen
 P.5-146
3- Lane Departure Warning (LDW) dis-
play screen (if so equipped)
P.5-115
4- ECO mode indicator display screen
 P.5-198
5- Information screen
 P.5-143
6- Selector lever position display
 P.5-63
7- Engine coolant temperature display
 P.5-147
8- Odometer
 P.5-148
9- Cruise control display screen
 P.5-84
10- Adaptive Cruise Control System (ACC)
display screen (if so equipped)  P.5-88
11- ECO indicator
 P.5-151
12-
“ ” mark indicator
 P.5-146
13- Fuel remaining display screen
 P.5-147
14- Outside temperature display screen
 P.5-148
NOTE
The fuel units, outside temperature units, display language, and other settings can be changed. Refer to “Changing the function settings” on page 5-152.
Multi-information display switches
BK0252700US.book
142 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi-information display
Features and controls 5-143
5
between information such as warnings, trip odometer, average and instant fuel consump- tion, distance range. It is also possible to
change elements such as
the language and units used on the multi- information display by operating the multi- information display switches.
N00555301207
Press the switch to display the information screen. Then, press the switch or switch to switch the display screen in the fol
lowing order.
Information screen (With the ignition switch in “OFF” position or the operation mode in OFF) *: When there is a warning display 1-
Trip odometer
 P.5-148
BK0252700US.book
143 ページ ２０１７年１０月４日　水曜日　午後４時５４分

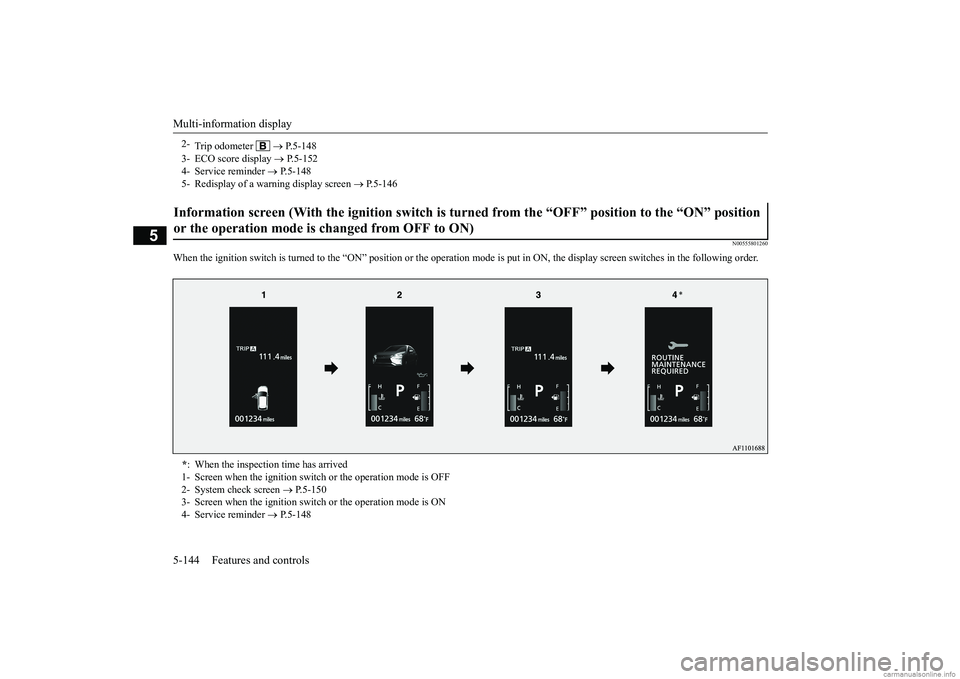

Multi-information display 5-144 Features and controls
5
N00555801260
When the ignition switch is turned to the
“ON” position or the operation mode is put
in ON, the display screen switches in the
following order.
2-
Trip odometer
 P.5-148
3- ECO score display
 P.5-152
4- Service reminder
 P.5-148
5- Redisplay of a warning display screen
 P.5-146
Information screen (With the ignition switch is turned from the “OFF” position to the “ON” position or the operation mode is changed from OFF to ON) * : When the inspection time has arrived 1- Screen when the ignition switch or the operation mode is OFF 2- System check screen
 P.5-150
3- Screen when the ignition switch or the operation mode is ON4- Service reminder
 P.5-148
BK0252700US.book
144 ページ ２０１７年１０月４日　水曜日　午後４時５４分

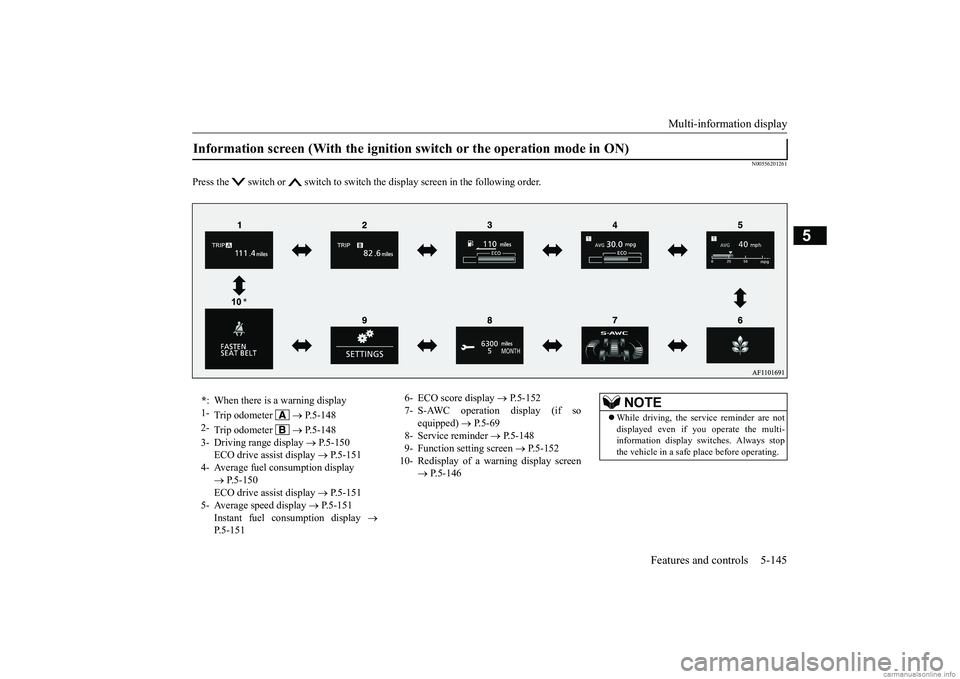

Multi-information display
Features and controls 5-145
5
N00556201261
Press the switch or switch to switch the display screen in the following order.Information screen (With the ignition switch or the operation mode in ON) * : When there is a warning display 1-
Trip odometer
 P.5-148
2-
Trip odometer
 P.5-148
3- Driving range display
 P.5-150
ECO drive assist display
 P.5-151
4- Average fuel consumption display
 P.5-150 ECO drive assist display
 P.5-151
5- Average speed display
 P.5-151
Instant fuel consumption display

P.5-151
6- ECO score display
 P.5-152
7- S-AWC operation display (if so
equipped)
 P.5-69
8- Service reminder
 P.5-148
9- Function setting screen
 P.5-152
10- Redisplay of a warning display screen
 P.5-146
NOTE
While driving, the service reminder are not displayed even if you operate the multi-information display switches. Always stop the vehicle in a safe place before operating.
BK0252700US.book
145 ページ ２０１７年１０月４日　水曜日　午後４時５４分

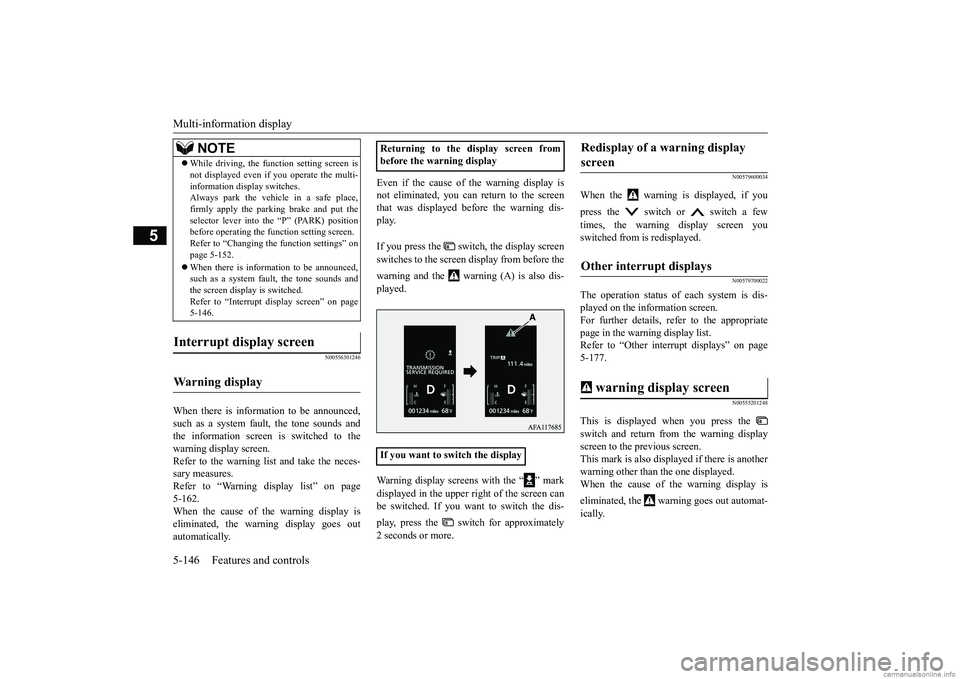

Multi-information display 5-146 Features and controls
5
N00556301246
When there is information to be announced, such as a system fault, the tone sounds and the information screen is switched to thewarning display screen. Refer to the warning list and take the neces- sary measures. Refer to “Warning display list” on page 5-162. When the cause of the warning display iseliminated, the warning display goes out automatically.
Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning dis-play. If you press the switch, the display screen switches to the screen display from before the warning and the warning (A) is also dis- played. Warning display screens with the “ ” mark displayed in the upper right of the screen can be switched. If you want to switch the dis- play, press the switch for approximately 2 seconds or more.
N00579600034
When the warning is displayed, if you press the switch or switch a few times, the warning display screen you switched from is redisplayed.
N00579700022
The operation status of each system is dis- played on the information screen. For further details, refer to the appropriatepage in the warning display list. Refer to “Other interrupt displays” on page 5-177.
N00555201248
This is displayed when you press the switch and return from the warning display screen to the previous screen.This mark is also displayed if there is another warning other than the one displayed. When the cause of the warning display is eliminated, the warning goes out automat- ically.
 While driving, the function setting screen is not displayed even if you operate the multi- information display switches. Always park the vehicle in a safe place, firmly apply the parking brake and put theselector lever into the “P” (PARK) position before operating the function setting screen. Refer to “Changing the function settings” onpage 5-152.  When there is information to be announced, such as a system fault, the tone sounds and the screen display is switched. Refer to “Interrupt display screen” on page5-146.
Interrupt display screen Warning display
NOTE
Returning to the display screen from before the warning display If you want to switch the display
Redisplay of a warning display screen Other interrupt displays warning display screen
