Outside rearview mirrors
Features and controls 5-55
5
[For vehicles equipped with the keyless entry system]The mirrors automatically retract or extend when the doors are locked or unlocked using the key of the keyless entry system.Refer to “Keyless entry system” on page 5-6.[For vehicles equipped with the F.A.S.T.-key] The mirrors automatically retract or extend when the doors are locked or unlocked usingthe key or the F.A.S.T.-key. Refer to “Keyless entry system” on page 5-28 or “To operate using the F.A.S.T.-key” onpage 5-14.
CAUTION It is possible to retract and extend the mirrors by hand. After retracting a mirror using the mirror retractor switch, however, you should extend it by using the switch again, not by hand. If you extended the mirror by handafter retracting it using the switch, it would not properly lock in position. As a result, it could move because of the wind or vibrationwhile you are driving, taking away your rear- ward visibility.NOTE
 Be careful not to get your hands trapped while a mirror is moving.  If you move a mirror by hand or it moves after hitting a person or object, you may not be able to return it to its original position using the mirror retractor
switch. If this hap-
pens, push the mirror retractor switch to place the mirror in its retracted position and then push the switch again to return the mir-ror to its original position.  When freezing has occurred and mirrors fail to operate as intended, please refrain from repeated pushing of the retractor switch as this action can result in burn-out of the mir- ror motor circuits.
Retracting and extending the mir- rors without using the mirror retractor switch (automatic exten- sion function)
NOTE
 Functions can be modified as stated below. Please consult an authorized Mitsubishi Motors dealer. On vehicles equipped with the Smartphone Link Display Audio, screen operations can be used to make the adjustment. Refer to theseparate owner’s manual for details.
• Automatically extend when the ignition switch is turned to the “ON” position or the operation mode is put in ON with the driver’s door closed, and automatically retract when the ignition switch is turned tothe “OFF” position or the operation mode is put in OFF with the driver’s door opened. • Automatically extend when the vehicle speed reaches approximately 19 mph (30 km/h). • Deactivate the automatic extension func- tion.
 The outside rearview mirrors can be retracted or extended by the following opera-tions, even if changing to the any of above. After pressing the LOCK button on the key to lock the doors and liftgate, if the LOCKbutton is pressed again
twice in a row within
approximately 30 seconds, the outside rear- view mirrors will retract.After pressing the UN
LOCK button on the
key to unlock the doors and liftgate, if the UNLOCK button is pressed again twice in arow within approximately 30 seconds, the outside rearview mirrors will extend again.NOTE
BK0252700US.bo
ok 55 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Outside rearview mirrors 5-56 Features and controls
5
N00595900022

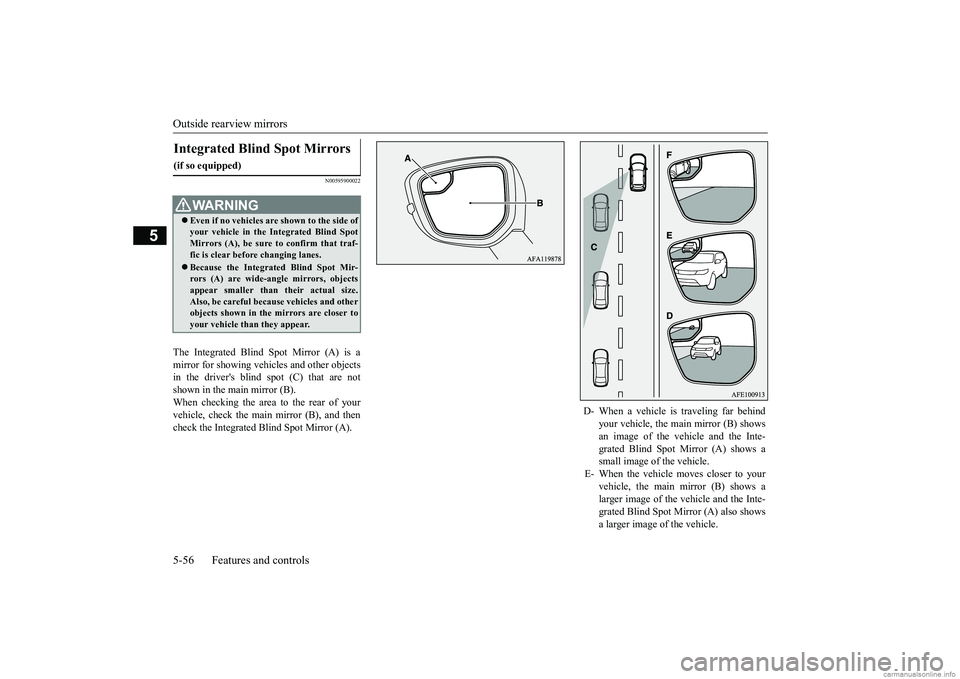

The Integrated Blind Spot Mirror (A) is a mirror for showing vehicles and other objects in the driver's blind spot (C) that are not shown in the main mirror (B).When checking the area to the rear of your vehicle, check the main mirror (B), and then check the Integrated Blind Spot Mirror (A).Integrated Blind Spot Mirrors

(if so equipped)
WA R N I N G Even if no vehicles are shown to the side of your vehicle in the Integrated Blind Spot Mirrors (A), be sure to confirm that traf-fic is clear before changing lanes. Because the Integrated Blind Spot Mir- rors (A) are wide-angle mirrors, objects appear smaller than their actual size. Also, be careful because vehicles and otherobjects shown in the mirrors are closer to your vehicle than they appear.
D- When a vehicle is traveling far behind
your vehicle, the main mirror (B) shows an image of the vehicle and the Inte-grated Blind Spot Mirror (A) shows a small image of the vehicle.
E- When the vehicle moves closer to your
vehicle, the main mirror (B) shows a larger image of the vehicle and the Inte- grated Blind Spot Mirror (A) also showsa larger image of the vehicle.
BK0252700US.bo
ok 56 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Ignition switch
Features and controls 5-57
5
N00549301303
When the rear window defogger switch is pressed with the engine running, the outsiderearview mirrors are defogged or defrosted.Current will flow through the heater element inside the mirrors, thus clearing away frost or condensation.The indicator light (A) will illuminate while the defogger is on. The heater will be turned off automatically inapproximately 15 to 20 minutes depending on the outside temperature.
N00512401755
[For vehicles equipped with the F.A.S.T.- key]For information on operations for vehicles equipped with the F.A.S.T.-key, refer to “Free-hand Advanced Security Transmitter(F.A.S.T.-key): Engine switch” on page 5-18. [Except for vehicles equipped with the F. A . S . T. - k e y ]
The engine is off. The key can be inserted and removed only when the switch is in this posi- tion. Allows operation of electrical accessories with the engine off. All accessories can be used.
F- When the vehicle moves even closer to
your vehicle and is lo
cated in the driver's
blind spot (C), the main mirror (B) does not show an image of the vehicle and only the Integrated Blind Spot Mirror(A) shows an image of the vehicle.
Door mirror heater
(if so equipped)
NOTE
 The door mirror heater can be turned on automatically. For further information, please contact your authorized Mitsubishi Motors dealer. On vehicles equipped with the SmartphoneLink Display Audio, screen operations can be used to make the adjustment. Refer to the separate owner’s manual fordetails.
Ignition switch
OFF ACC ON
BK0252700US.bo
ok 57 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped)
5-108 Features and controls
5
N00592200053
The Blind Spot Warning (BSW) is a driving aid system that alerts
the driver when another
vehicle which may not be visible through theoutside rearview mirror is traveling in the next lane behind your vehicle. When a vehicle in the next lane is traveling atsame speed or faster in the detection areas, the Blind Spot Warning light in the corre- sponding outside rearview mirror will illumi-nate. If the turn signal lever is operated to the
side where the Blind Spot Warning light is illuminated, the Blind Spot Warning light will blink and the system will beep three times to alert the driver.Depending on the relative speed between your vehicle and a vehicle in the next lane, the BSW will detect up to approximately230 feet (70 m) from your vehicle (Lane Change Assist).
N00592300054
The BSW uses two sensors (A) located inside the rear bumper.The detection areas are shown as illustrated.
Wavelength 905 nmDivergent angle (horizon x vertical)
28° x 12°
Laser classification labelBlind Spot Warning (BSW) (with Lane Change Assist)
(if
so equipped)
WA R N I N G Before using the BSW, read this entire sec- tion to fully understa
nd the limitations of
this system. Failure to follow instructionscould result in an accident.
 Never rely solely on the BSW system when changing lanes. BSW is an aid only. It is not a substitute for your safe and careful driving. Always check visually behind and all around your vehicle for other vehicles.The performance of the BSW may vary depending on driving, traffic and/or road conditions.
Detection areas

WA R N I N G
BK0252700US.book
108 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped)
5-110 Features and controls
5
ON and “ON” is selected in the “BSW” set- ting screen, the BSW indicator light in the instrument cluster comes on and the BSW enters the standby state.When “OFF” is selected in the “BSW” set- ting screen, the BSW indicator light in the instrument cluster goes off and the BSWturns off. To turn the BSW ON/OFF, follow the proce- dure below. 1. Switch to the function setting screen. Refer to “Multi-information displayswitches” on page 5-142. Refer to “Changing the function settings” on page 5-152. 2. Press the switch or switch several times to switch to the “BSW” screen. Then, press the switch to the setting selection screen. 3. Press the switch or switch to select “ON” or “OFF”, and then press the
switch to confirm the setting.
Indicator light
If you turn the BSW ON/
OFF, the Rear Cross
Traffic Alert (RCTA) also turns ON/OFF at the same time.
When the BSW indicator light in the instru- ment cluster is on, if a vehicle is approaching your vehicle in the detection area, the Blind Spot Warning light in the outside rearviewmirror illuminates. If the turn signal lever is operated to the side where the Blind Spot Warning light is illumi-nated, the Blind Spot Warning light will blinkand the system will beep three times to alert the driver.
NOTE
 When the operation mode is set to OFF, the selected condition just before setting to OFFis retained.  The BSW operates when all of the following conditions are met. • The ignition switch is turned to the “ON” position or the operation mode is put in ON. • The selector lever is in positions other than “P” (PARK) and “R” (REVERSE). • The speed of your vehicle is approximately 6 mph (10 km/h) or higher.
When the sensor detects an approaching vehicle

NOTE
 The Blind Spot Warning light in the outside rearview mirror may come on or blink in the following conditions. • When driving very near the guardrail or the concrete wall.
BK0252700US.book
110 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped) Features and controls 5-111
5
N00592400042
If a problem occurs with the system, a visual warning specific to the type of the problem is given together with an audible alarm. The warnings are combined with the RearCross Traffic Alert (RCTA) system.
N00592700045
When the warning display appears, the BSW does not operate normally because there are some malfunctions in the system or the sen-sor. Have the vehicle inspected at an autho-rized Mitsubishi Motors
dealer as soon as
possible.
N00592800046
When the warning display appears, the sensor is temporarily not available for some reasonsuch as the environmental condition orincrease of the sensor temperature. When the warning display does not disappear after waiting for a while, contact an authorizedMitsubishi Motors dealer.
• When driving on the entrance and outlet of the tunnel or very near the wall or near the evacuation area inside the tunnel. • When turning a intersection in a town area.• Under adverse weather conditions (rain, snow, sand storm etc.). • When the your vehicle drives with blowing up the water, snow or sand etc. on the road. • When driving near a curb, pot hole and tramline.
 Set the BSW to OFF when towing.  The Blind Spot Warning light in the outside rearview mirror may not look due to strong direct sunlight or the glare from the head-lights of vehicles behind you during night driving.
System problem warning

NOTE
When there is a malfunction in the system or the sensor

NOTE
 When the warning display appears, the BSW will be deactivated.
When the sensor is temporarily not available

BK0252700US.book
111 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Rear Cross Traffic Alert (RCTA) (if so equipped) 5-112 Features and controls
5
N00592900050
When the warning display appears, the radar sensor cannot detect a vehicle traveling sideby side or an approaching vehicle, because foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sen-sor. Remove a dirt, freezing or foreign material on the bumper surface around the sensor.When the warning display does not disappear after having cleaned the bumper surface around the sensor, contact an authorizedMitsubishi Motors dealer.
N00593900057
For vehicles sold in U.S.A
.
FCC ID: OAYSRR3A This device complies with Part 15 of FCC Rules. Operation is subject to the following two con- ditions:
For vehicles sold in Canada Applicable law: Canada 310 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two con-ditions: Frequency bands: 24.05 - 24.25 GHz Output power: less than 20 milliwatts
N00593000058
The Rear Cross Traffic Alert (RCTA) is anaid system for backing up. When the RCTA system detects vehicles approaching from sides while your vehicle is reversing, theBlind Spot Warning lights in outside rearview mirrors on both sides will blink and a buzzer will sound to alert th
e driver. A warning mes-
sage will also appear on the informationscreen of the multi-information display.
When there is a foreign objects on the sensor

General information

(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may cause undesired operation.CAUTION FCC WarningChanges or modifications not expressly approved by the party responsible for com-pliance could void the user’s authority to operate the equipment.
(1) This device may not cause interference,
and
(2) This device must accept any interference,
including interference that may causeundesired operation of the device.
Rear Cross Traffic Alert (RCTA)
(if so equipped)
BK0252700US.book
112 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Rear Cross Traffic Alert (RCTA) (if so equipped)
Features and controls 5-113
5
The detection area is shown as illustrated.
WA R N I N G Before using the RCTA, read this entire section to fully understand the limitationsof this system. Failure to follow instruc- tions could result in an accident.
 Never rely solely on the RCTA when back- ing up. The RCTA is an aid system. It is not a substitute for your safe and careful driving. Always check visually behind and all around your vehicle for other vehicles,persons, animals or obstructions. The performance of the RCTA may vary depending on driving, traffic and/or sur-rounding conditions.NOTE
 The Blind Spot Warning lights in the outside rearview mirrors on bot
h sides will blink,
even when only one vehicle is approachingfrom one side.WA R N I N G
Detection areas

CAUTION In certain situations, the RCTA may not detect a vehicle in the detection areas. Some of these situations include;• When the reversing speed of your vehicle is approximately 11 mph (18 km/h) or higher.
BK0252700US.book
113 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Rear Cross Traffic Alert (RCTA) (if so equipped)
5-114 Features and controls
5
1. Press the BSW switch while the operationmode is put in ON.
(Refer to “Blind Spot Warning (BSW): To
operate” on page 5-109.)
2. When the selector lever is moved to the
“R” (REVERSE) position, the RCTA will
operate.
If the system detects a problem, a warning is
displayed on the information screen in the
multi-information display.
Refer to “Blind Spot Warning (BSW): Sys-
tem problem warning” on page 5-111.
N00594000055
For vehicles sold in U.S.A.
FCC ID: OAYSRR3A
This device complies with Part 15 of FCC
Rules.
Operation is subject to the following two con-
ditions:
For vehicles sold in Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two con-
ditions:
• When an approaching vehicle speed is approximately 4 mph (7 km/h) or less.• If the sensor detection area is blocked by anearby object, such as wall or parked vehi-
cle.• When a vehicle is approaching fromstraight behind your vehicle.• When your vehicle is exiting from anangled parking spot.• Immediately after the RCTA has beenturned on.• Immediately after the operation mode hasbeen put in ON.• When the bumper surface around the sensoris covered with dirt, snow and ice, etc.• When the sensor becomes extremely hot orcold, such as after the vehicle has been
parked for a prolonged time under the blaz-
ing sun or in cold weather. If the bumper has experienced an impact, the
sensor may have been damaged and the
RCTA may not function properly. Have the
vehicle inspected at an authorized Mitsubishi
Motors dealer.CAUTION
To operate

NOTE
Set the RCTA to OFF when towing.
 The Blind Spot Warning light in the outside
rearview mirror may not look due to strong
direct sunlight or the glare from the head-
lights of vehicles behind you during night
driving.When a problem is detected in
the system

General information

(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTIONFCC WarningChanges or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
BK0252700US.book 114 ページ ２０１７年１０月１２日　木曜日　午後１時２分

Multi Around Monitor (if so equipped)
Features and controls 5-129
5
N00587200068
The Multi Around Monitor system uses four cameras, “Front-view camera”, “Side-view cameras (right and left)” and “Rear-view camera”, and displays composite views fromthose cameras on the Smartphone Link Dis- play Audio. The Multi Around Monitor system will assistthe driver to park the vehicle in a narrow orparallel parking space.
CAUTION The reference lines for distance and vehicle width are intended to indicate the distance to a flat object such as a level, flat road surface.They may not indicate correct distance depending on the shape of an obstacle. For example, when there is an object behindthe vehicle that has upper sections projecting in the direction of the vehicle, the reference lines on the screen will indicate that point Ais the farthest point a
nd point B is the closest
point to the vehicle. In reality, point A and B are actually the same distance from the vehi-cle, and point C is farther off than point A and B.Case 2 A- Actual objects B- Objects shown on the screen
NOTE
 Mirror image is displayed on the screen.  On vehicles equipped with Smartphone Link Display Audio, it is possible to change the display language of the screen. For details, please refer to the separatedowner’s manual.  Under certain circumstances, it may become difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night. • When water drops or condensation are on the lens. • When sun light or headlights shine directly into the lens.
Multi Around Monitor
(if so
equipped)
WA R N I N G Before using the Multi Around Monitor system, read this entire section to fully understand the limitations of this system. Failure to follow instructions could resultin an accident. The Multi Around Monitor system is an aid system to help observe around the vehicle. It is not a substitute for your visual confirmation. Never rely solely on the Multi Around Monitor system. The view on the screen is limited, and objects outside the view can- not be seen on the screen.
