Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-33
4
N00407801617
The SRS includes the following components:
The airbag control unit monitors the readiness of the electronic parts of the system whenever the ignition switch or the operation mode isunder the following conditions. These includeall of the items listed above and all related wiring. [Except for vehicles equipped with theF. A . S . T. - k e y ] The ignition switch is in the “ON” or “START” position.[Vehicles equipped with the F.A.S.T.-key] The operation mode is in ON. The airbags will operate under the same con- ditions as the airbag control unit.
When the impact sensors detect a sufficient front or side impact to deploy the airbag(s), the appropriate airbag(s) will be deployed. When the airbag control unit detects rollover of the vehicle, curtain airbags will bedeployed. When airbags deploy, some smoke is released accompanied by a loud noise. The smoke is not harmful, but do not intentionally inhalethe smoke as it may cause temporary irrita-tion to people with respiratory problems. An inflated airbag will deflate quickly, so you may not even notice that the airbag was inflated.Airbag inflation does not prevent the driver from seeing or being able to steer the vehicle, and does not prevent people from leaving thevehicle.
N00418601266
This vehicle is equipped with an event datarecorder (EDR).
How the Supplemental Restraint System works 1- Airbag module (Driver) 2- SRS warning light 3- Passenger’s airbag off indicator 4- Front impact sensors5- Airbag module (Passenger)6- Airbag module (Driver’s knee) 7- Driver’s seat position sensor 8- Passenger’s seat occupant classifica-
tion sensor system
9- Airbag control unit
10- Side airbag modules 11- Curtain airbag modules 12- Side impact sensors
CAUTION Airbags inflate very quickly and with great force. In certain situations, contact with an inflating airbag may cause small cuts, abra- sions, and bruises.
Event Data Recording
BK0252700US.bo
ok 33 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Supplemental Restraint System (SRS) - airbag 4-34 Seat and restraint systems
4
The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle, data that will assist in under-standing how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for ashort period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:  How various systems in your vehicle were operating; Whether or not the driver and front pas- senger safety belts were buckled/fastened;  How far (if at all) the driver was depress- ing the accelerator and/or brake pedal; and,  How fast the vehicle was traveling.
These data can help provide a better under- standing of the circumstances in which crashes and injuries occur.
To read data recorded by an EDR, special equipment is required, and access to the vehi-cle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equip-ment, can read the information if they have access to the vehicle or the EDR.
N00417901233
The driver’s seat position sensor is attachedto the seat rail and provides the airbag control unit with information on the seat’s fore-aftposition. The airbag control unit controls deployment of the driver’s front airbag in accordance with the information it receivesfrom this sensor. If there is a problem involving the driver’s seat position sensor, the SRS warning light in
the instrument panel will come on. Refer to “SRS warning light/display” on page 4-36.
N00418001374
The passenger’s seat occupant classificationsensor system is attached to the front passen-ger seat cushion and provides the airbag con- trol unit with information regarding the occupant on the front passenger seat. The air-
NOTE
 EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driv- ing conditions and no personal data (e.g., name, gender, age, and crash location) arerecorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifyingdata routinely acquired during a crash inves- tigation.
Driver’s seat position sensor
WA R N I N G If the SRS warning light or warning dis- play comes on, have the vehicle inspected by an authorized Mitsubishi Motorsdealer as soon as possible. Please observe the following instructions to ensure that the driver’s seat position sensor can operate correctly.• Adjust the seat to the correct position,and sit well back against the seatback. Refer to “Front seats” on page 4-3.• Do not recline the seatback more thannecessary when driving.• Do not place metallic objects or luggageunder the front seat.
 If the vehicle is involved in a severe impact, have the SRS sensors inspected byan authorized Mitsubishi Motors dealer as soon as possible.
Passenger’s seat occupant clas- sification sensor system
BK0252700US.bo
ok 34 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-35
4
bag control unit controls deployment of the passenger’s front airbag in accordance with the information it receives from this system. The passenger’s front airbag will not deployin an impact when the
system senses no occu-
pant on the front passenger’s seat or a child in a child restraint system. In this case, the pas-senger airbag off indicator will come on. Refer to “Passenger’s airbag off indicator” on page 4-35.If there is a problem involving the passen-ger’s seat occupant classification sensor sys- tem, the SRS warning light in the instrument panel will come on. Refer to “SRS warninglight/display” on page 4-36.
N00418101375
The passenger’s airbag off indicator islocated in the instrument panel. The indicator normally comes on when the ignition switch is turned to the “ON” position or the operation mode is put in ON, and goes out a few seconds later. In the following situ-ations, the indicator will stay on to show that the passenger front airbag is not operational.  The front passenger’s seat is not occupied.
WA R N I N GIf any of the following conditions occur, you should immediately have your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:• The SRS warning light does not initiallycome on when the ignition switch or theoperation mode is under the following conditions. [Except for vehicles equipped with the F. A . S . T. - k e y ] The ignition switch is in the “ON” or“START” position. [Vehicles equipped with the F.A.S.T.-key] The operation mode is in ON.• The SRS warning light does not go outafter several seconds.
• The SRS warning light comes on while you are driving.
 To ensure that the passenger’s seat occu- pant classification sensor system can sensecorrectly, observe the following instruc- tions. Failure to follow these instructions can adversely affect the performance ofthe passenger’s airbag system.• Adjust the seat to the correct position,and sit well back against the seatback. Refer to “Front seats” on page 4-3.• Do not recline the seatback more thannecessary.• Never have more than one person (adultor child) sitting on the seat.• Do not place anything between the seatand the floor console.• When attaching a child restraint system,secure it firmly.• Do not place luggage or other objects onthe seat.• Do not use a seat cover or a cushion.• Do not modify or replace the seat and seat belt.• Do not place luggage or other objectsunder the seat.• Do not place and use an electronic device such as a computer on the seat.• Do not place heavy objects on the seat orstick pins, needles, or other objects into it.• Do not remove the seat cushion skin.WA R N I N G
• If any liquid is spilled on the seat, wipe it and dry the seat immediately.
 If the vehicle is involved in a severe impact, have the SRS sensors inspected byan authorized Mitsubishi Motors dealer as soon as possible.
Passenger’s airbag off indicator
WA R N I N G
BK0252700US.bo
ok 35 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Supplemental Restraint System (SRS) - airbag 4-36 Seat and restraint systems
4
 The system senses that a child is using a child restraint system on the front passen- ger’s seat.
When the passenger’s seat occupant classifi- cation sensor system sense there is a personseated in the front pass
enger’s seat, the indi-
cator goes out to show that the passenger’s front airbag is operational.
N00408301651
There is a Supplemental Restraint System (SRS) warning light on the instrument panel. The system checks itself every time the igni- tion switch is turned to the “ON” position or the operation mode is put in ON. The SRSwarning light will come on for several sec- onds and then go out. This is normal and means the system is working properly.If there is a problem involving one or more of the SRS components, the warning light will
come on and stay on. At the same time, the warning display will appear on the informa- tion screen in the multi-information display. The SRS warning light/display is shared bythe SRS airbag and the seat belt pre-tensioner system.
WA R N I N G If any of the following conditions occur, you should immediately have the airbagsystem in your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:• The passenger’s airbag off indicatorcomes on when an adult is sitting on thefront passenger seat.• The passenger’s airbag off indicator doesnot come on when the front passenger seat is not occupied.• The passenger’s airbag off indicator doesnot come on when the ignition switch is turned to the “ON” position or the oper-ation mode is put in ON.• The passenger’s airbag off indicator does not come on when a child is in a child restraint system on the front passenger’sseat.• The passenger’s airbag off indicatorcomes on and goes out repeatedly.
 Do not attach any accessory to your vehi- cle that makes the passenger’s airbag off indicator difficult or impossible to see. You must be able to see the passenger’s airbag off indicator and verify the statusof the passenger’s airbag system.
SRS warning light/display
WA R N I N G
WA R N I N G  If any of the following conditions occur, there may be a problem with the SRS air- bags and/or seat belt pre-tensioners, and they may not function properly in a colli-sion or may suddenly activate without a collision:• Even when the ignition switch or theoperation mode is in ON, the SRS warn- ing light does not come on or it remainson.• The SRS warning light and/or the warn-ing display comes on while driving.The SRS airbags and seat belt pre-ten-sioners are designed to help reduce the risk of serious injury or death in certain collisions. If either of the above conditionsoccurs, immediately have your vehicle checked by an authorized Mitsubishi Motors dealer.
BK0252700US.bo
ok 36 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-37
4
N00407901357

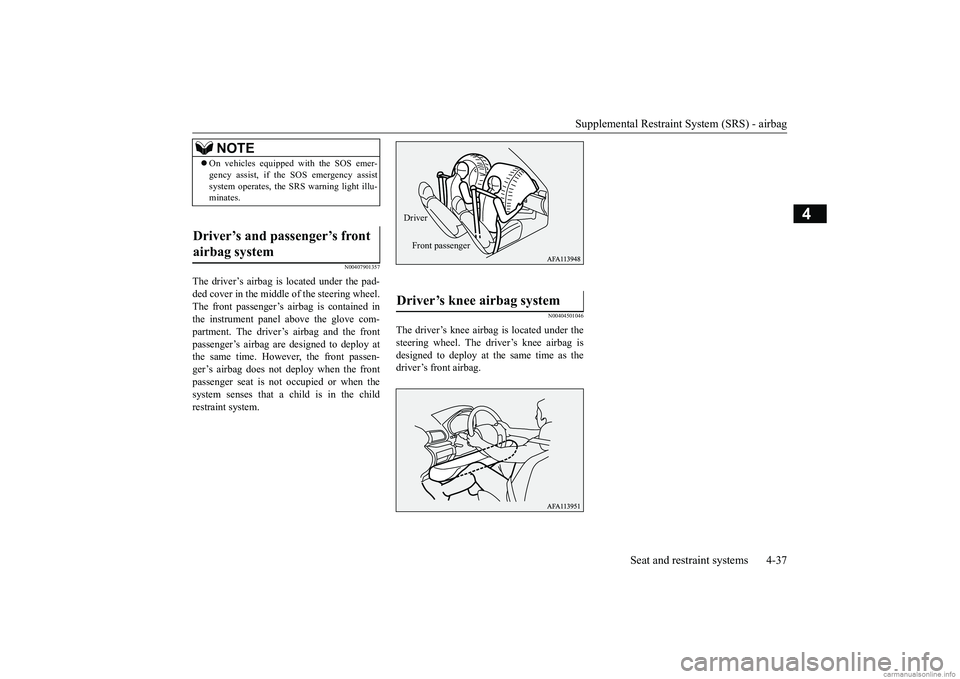

The driver’s airbag is located under the pad- ded cover in the middle of the steering wheel.The front passenger’s airbag is contained in the instrument panel above the glove com- partment. The driver’s airbag and the frontpassenger’s airbag are designed to deploy at the same time. However, the front passen- ger’s airbag does not deploy when the frontpassenger seat is not occupied or when the system senses that a child is in the child restraint system.
N00404501046
The driver’s knee airbag is located under thesteering wheel. The driver’s knee airbag is designed to deploy at the same time as the driver’s front airbag.
NOTE
 On vehicles equipped with the SOS emer- gency assist, if the SOS emergency assist system operates, the SRS warning light illu- minates.
Driver’s and passenger’s front airbag system
Driver’s knee airbag system Driver Front passenger
BK0252700US.bo
ok 37 ページ ２０１７年１０月４日　水曜日　午後４時５４分

5

Features and controlsKeys ..........................................
.......................................................5-3
Electronic immobilizer (Anti-thef
t starting system) ........................5-4
Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) .
.................................................
........................5-12
Door locks .......................
...............................................................5-32
Power door locks ............
...............................................................5-34
Child safety locks for r
ear door .....................................................5-35
Liftgate ......................................
.....................................................5-36
Theft-alarm system
................................................
........................5-38
Power window control
...........................................
........................5-40
Power panoramic sunroof (if
so equipped).....................................5-43
Parking brake ..................
...............................................................5-46
Steering wheel height and reach adjustment ..................................5-50 Inside rearview mirro
r ...........................................
........................5-51
Outside rearview mirr
ors ...............................................................5-53
Ignition switch ......
.................................................
........................5-57
Starting the engine
.................................................
........................5-58
Turbocharger operation
..........................................
........................5-60
Continuously variable trans
mission (CVT) ...................................5-60
S-AWC (Super-All Wheel Control) (if so equipped) .....................5-67 4-wheel drive operation
.........................................
........................5-70
Inspection and maintenance following rough road operation ........5-72Cautions on the handling of 4-wheel drive vehicles ......................5-72 Service brake ..................
...............................................................5-73
Brake auto hold (if so
equipped) ....................................................5-74
Hill start assist .......
.................................................
........................5-77
Brake assist system
................................................
........................5-78
Anti-lock braking syst
em .....................................
......................... 5-78
Electric power steering syst
em (EPS) ........................................... 5-80
Active stability control
(ASC) ....................
................................... 5-81
Cruise control ................
.................................................
............... 5-84
Adaptive Cruise Control System (ACC) (if so equipped) .............. 5-88 Forward Collision Mitigation system (FCM) (if so equipped) .... 5-100 Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped) ..........
.................................................
............. 5-108
Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-112 Lane Departure Warning (LDW) (if so equipped) ....................... 5-115Tire pressure monitoring system (TPMS) ................................... 5-118 Parking sensors (Front/Rear)
(if so equipped).............................. 5-123
Rear-view camera ..........
.................................................
............. 5-127
Multi Around Monitor (if so
equipped)........................................ 5-129
Instrument cluster
.................................................
....................... 5-139
Multi-information disp
lay ....................................
....................... 5-140
Indicator light, warning light, and information screen display list
..............................................
....................... 5-160
Indicators .................................
.................................................... 5-180
Warning lights ................
.................................................
............. 5-181
Information screen disp
lay ........................
................................. 5-183
Head Up Display (HUD) (if
so equipped).................................... 5-184
Combination headlights and dimmer switch ............................... 5-188Headlight leveling switch (if
so equipped)................................... 5-196
Turn signal lever ..
.................................................
....................... 5-196
Hazard warning flasher
switch .................................................... 5-197
ECO mode switch ..........
.................................................
............. 5-198
Front fog light switch
...........................................
....................... 5-198
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equippe\
d)
5-18 Features and controls
5
N00513501131
To prevent vehicle theft, no F.A.S.T.-keys
other than those registered in advance can be
used to start the engine. (Electronic immobi-
lizer function)
While carrying the F.A.S.T.-key, the engine
switch can be used to start the engine.The indicator light on the engine switch turns
off.
The operation mode cannot be put in OFF
when the selector lever is in any position
other than the “P” (PARK) position.
Allows operation of electrical accessories.
The indicator light on the engine switch illu-
minates in orange.
All electrical accessories can be used.
The indicator light on the engine switch illu-
minates in green.
The indicator light goes off when the engine
is running.Engine switch

CAUTION
The indicator light (A) will flash orange
when there is a problem or malfunction in
F.A.S.T.-key. Never drive if the indicator
light on the engine switch is flashing orange.
Immediately contact your authorized
Mitsubishi Motors dealer.If the engine switch operation is not smooth
and feels like it is sticking, do not operate the
switch.
Immediately contact an authorized
Mitsubishi Motors dealer.
NOTE
When operating the engine switch, press the
switch all the way in. If the switch is not
fully pressed, the engine may not start or the
operation mode may not change. If the
engine switch is pressed correctly, there is no
need to hold the engine switch down.
 When the battery in the F.A.S.T.-key has
worn out, or the F.A.S.T.-key is out of the
vehicle, a warning display will appear.
Warning display (when the engine switch is
pressed one time)
Warning display (when the engine switch is
pressed two times or more)
Operation mode of the engine
switch and its function

OFF
ACC
ON
NOTE
Your vehicle is equipped with an electronic
immobilizer. To start the engine, the ID code
which the F.A.S.T.-key sends must match the
one registered to the immobilizer computer.
Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 5-17.
BK0252700US.bo ok 18 ページ ２０１７年１０月５日　木曜日　午後６時４９分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-24 Features and controls
5
 A longer warm up period will only con- sume extra fuel. The engine is warmed up enough for driv- ing when the bar graph of engine coolanttemperature display starts to move. Refer to “Engine coolant temperature display” on page 5-147.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This system automatically controls fuel injection. There is usually no need to depress the accel-erator pedal when starting the engine.
To prevent battery drain, wait a few seconds between attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened. 2. Make sure the parking brake is applied.3. Press and hold the brake pedal down firmly with your right foot. 4. Make sure the selector lever is in the “P” (PARK) position. 5. Press the engine switch. 6. Confirm that all warning lights and warn- ing displays are functioning properly.
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rearwindow defogger, are turned off. 2. While depressing the brake pedal, press the accelerator pedal halfway and hold itthere, then crank the engine. Release the accelerator pedal, immediately after the engine starts.
WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is neededto move your vehicle out of the area. Car- bon monoxide gas, which is odorless and extremely poisonous, could build up andcause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine
at high rpms or drive
at high speeds until the engine has had a chance to warm up.
Starting the engine

NOTE
 After the engine has not started for a while, the brake pedal effort needed to start the engine may become greater. If this occurs,depress the brake pedal more firmly than usual.NOTE
 The engine can only be started when the selector lever is in the “P” (PARK) or “N” (NEUTRAL) position.For safety reasons, the engine should be started when the selector lever is in the “P” (PARK) position in which the driving wheels lock.
NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warms up.
When the engine is hard to start
BK0252700US.bo
ok 24 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking brake 5-46 Features and controls
5
Press the switch in direction (7) to fully open the rear shade automatically.To stop the shade before
it is fully open, press
the switch in direction (7) or (8). Press the switch in direction (8) to fully close the rear shade automatically. To stop the shade before it is fully closed,press the switch in direction (7) or (8).
If a person’s hand, neck, etc., is trapped in the rear shade, the shade will automatically opena maximum of 8 inches (20 cm) as a safety function. After the rear shade opens, you can use the switch to close it.If the safety mechanism operates five times or more consecutively, you will not be able to close the rear shade normally.If this occurs, perform the following proce-dure to reset the safety mechanism. 1. Press and hold the switch in direction (8). 2. The rear shade will move to the fully closed position in small increments.3. When the rear shade has stopped in the fully closed position, release the switch. (The resetting procedure is finished.)
If the rear shade does not move correctly to the fully closed positions after you perform the resetting procedure, contact an authorized Mitsubishi Motors dealer.
N00511401484
To park the vehicle, first bring it to a com-plete stop, firmly apply the parking brake, and then move the selector lever to the “P” (PARK) position.Make sure the brake warning light (red) is illuminated.
7- Open (rear shade) 8- Close (rear shade)Opening the rear shade

Closing the rear shade

Safety mechanism

CAUTION The safety mechanism is cancelled just before the rear shade is fully closed. Thisallows the rear shade to close completely. Therefore be especially careful that no fin- gers are trapped in the rear shade.
NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the rear shade to be subjected to a physical shock similar to that caused by a trapped hand or head.  Do not release the switch until the resetting procedure is finished. If you release theswitch, the resetting mode will be cancelled. To perform the resetting procedure again, repeat the procedure from step 1.
Parking brake
BK0252700US.bo
ok 46 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking brake
Features and controls 5-47
5
N00593100033
When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from the curb on an uphill.
Before driving, be sure to release the parking brake.
N00593200047
The Electric parking brake is the system thatapplies the parking brake by the electric motor.
Lever type parking brake
(if so
equipped)To apply

1- Pull the lever up without pressing the
button at the end of hand grip.When the parking brake is set and the ignition switch is in the “ON” position, or the operation mode is in ON thebrake warning light in the instrument cluster will come on.
To release

1- Pull the lever up slightly. 2- Press and hold the button at the end of
the hand grip.
3- Pressing the lever downward.
CAUTION Before driving, be sure that the parking brake is fully released and brake warning light is off. If you drive without the parking brake fully released, the warning display will appear onthe information screen in the multi-informa- tion display. If a vehicle is driven without releasing theparking brake, the brakes will be overheated, resulting in ineffective braking and possible brake failure. Warning light (red)
or
Warning display
Electric parking brake
(if so
equipped)
BK0252700US.bo
ok 47 ページ ２０１７年１０月４日　水曜日　午後４時５４分
