turn signal MITSUBISHI ECLIPSE CROSS 2018 (in English) Owner's Guide

Replacement of light bulbs
9-28 Vehicle care and maintenance
9
N00950302102
Outside
Item
Wa t t -age
ANSI
Tr a d e
No. or
Bulb type
1 - Headlight Halogen bulb55 W HIR2
LED — —
2 - Parking light/ Daytime running
light ——
3 - Front side-marker light ——
Front
4 - Front turn signal light 21 W PY21W
5 - Front fog light 35 W H8
6 - Side turn signal light — —
NOTE

The following lights use an LED type bulb
instead of a light bulb.
Check with an authorized Mitsubishi Motors
dealer or a repair facility of your choice
when either light needs to be repaired or
replaced.
• Headlight (LED type)
• Parking light
• Daytime running light
• Front side-marker light
• Side turn signal light
Item
Wa t t - age
ANSI
Tr a d e
No. or Bulb type
Item
Wattage
ANSI
trade No. or Bulb
type
1 - High-mounted stop light ——
2 - Tail light — —
3 - Back-up light 16 W W16W
4 - License plate light 5 W W5W
5 - Rear turn sig- nal light 21 W WY21W
6 - Stop light — —
7 - Rear side- marker light ——
Rear
BK0252700US.bo
ok 28 ページ ２０１７年１０月５日　木曜日　午後６時４９分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00943401494
1. To create enough work space, turn the steering wheel all the way in the directionopposite to the side you wish to replace. 2. Remove the screw (A), and then pull the wheel cut moulding (B) to release thethree clips (C). 3. Remove the three clips (D), and then pull back the splash shield (E).
4. Turn the socket (F) counterclockwise to remove it, then remove the bulb from thesocket by turning it counterclockwise while pressing in.
5. To install the bulb, perform the removal steps in reverse.
N00943501192
Front turn signal lights * : Front of the vehicleCAUTIONDo not pull the wheel cut moulding (B) more than is necessary to release the three clips(C). Otherwise, the wheel cut moulding could break.
* : Front of the vehicle * : Front of the vehicle
NOTE
When refitting each of the clip (D), first insert part (G) of the clip into the hole andthen press part (H) into it.
Side turn signal lights
NOTE
 The side turn signal lights use an LED type bulb instead of a light bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when the light needs to be repaired or replaced.
BK0252700US.bo
ok 31 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9

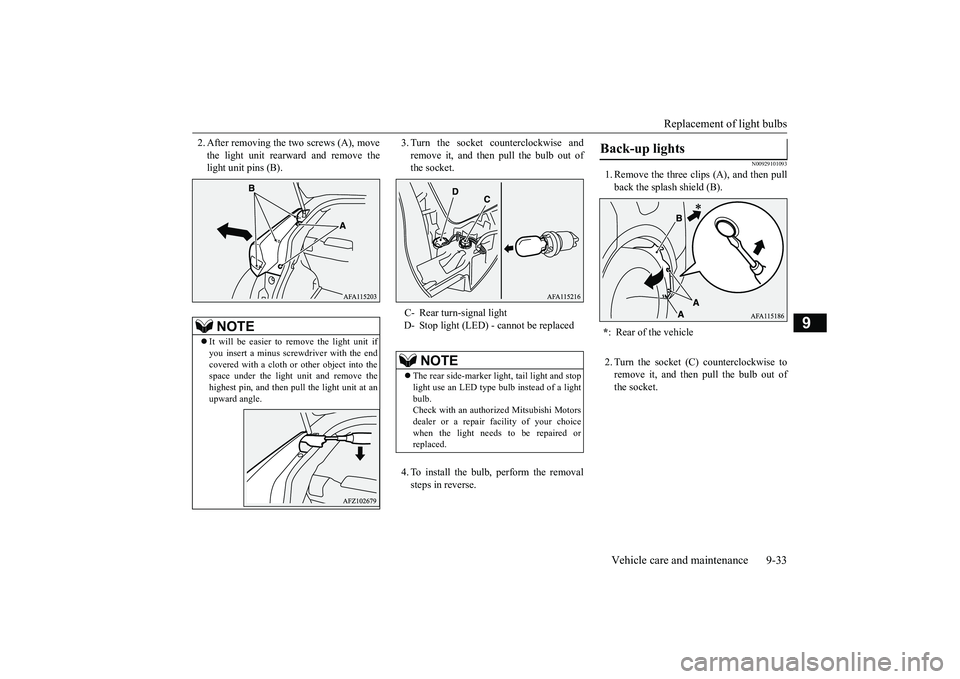

2. After removing the two screws (A), move the light unit rearward and remove the light unit pins (B).
3. Turn the socket counterclockwise and remove it, and then pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
N00929101093
1. Remove the three clips (A), and then pullback the splash shield (B). 2. Turn the socket (C) counterclockwise to remove it, and then pull the bulb out ofthe socket.
NOTE
 It will be easier to remove the light unit if you insert a minus screwdriver with the end covered with a cloth or
other object into the
space under the light unit and remove thehighest pin, and then pull the light unit at an upward angle.
C- Rear turn-signal light D- Stop light (LED) - cannot be replaced
NOTE
 The rear side-marker light, tail light and stop light use an LED type bulb instead of a light bulb. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced.
Back-up lights * : Rear of the vehicle
BK0252700US.bo
ok 33 ページ ２０１７年１０月４日　水曜日　午後４時５４分
