MITSUBISHI ECLIPSE CROSS 2018 Owner's Manual (in English)

Important facts to know in case of an accident 10-4 Customer assistance/Reporting Safety Defects
10
call (671)649-3673 or write to: To contact Triple J Motors call (670)234-7133 or write to: To contact Pacific Marketing Inc. call 684(699)9140 or write to:
N01047301242
We hope you will never be involved in an accident, but there is always that potentialdanger. So, please be sure to buckle up and drive safely.  Remain calm.  Check for injuries. Report all injuries to the police, and, if necessary, call for an ambulance.  Record all the details of the accident. This will provide you with accurate records of the accident for discussions with your insurance company and other personswho may be acting on your behalf.  Understand your repair estimate before approving repairs.  Choosing the repair
shop and the brands
of parts that they use on your vehicle isyour decision.
 Ask for genuine Mitsubishi Motors parts. Many times, to save money, your insur- ance company will recommend imitation parts that do not meet the original specifi-cations of fit, finish, corrosion resistance or workmanship.
The strength and integrity built into your vehicle is the result of a specific design referred to as “Energy Management”. Indi-vidual body parts are designed to act as one unit in the event of an accident. Shock waves are absorbed by protective panels or are chan-neled around the passenger compartment. This important feature is possible because high tensile steel is used in Mitsubishi panelsand structural parts, something that cannot be guaranteed by the manufacturers of imitation parts. All Genuine Mitsubishi body panelsand support brackets are designed and con- structed as important
protection features in
the event of an accident. By replacing bodyparts with imitations, your vehicle may no longer meet original equipment specifica- tions.
Triple J Enterprises, Inc. P.O. Box 6066 TAMUNING GUAM 96931For vehicles sold in Saipan Triple J Motors P.O. Box 500487 SAIPAN, MP96950-0487For vehicles sold in American Samoa Pacific Marketing, Inc. P.O. Box 698 PAGO PAGO, AMERICAN SAMOA AS, 96799
Important facts to know in case of an accident In the event of an accident Key information to discuss with your insurance company
Mitsubishi Motors built-in pro- tection
BK0252700US.bo
ok 4 ページ ２０１７年１０月４日　水曜日　午後４時５４分

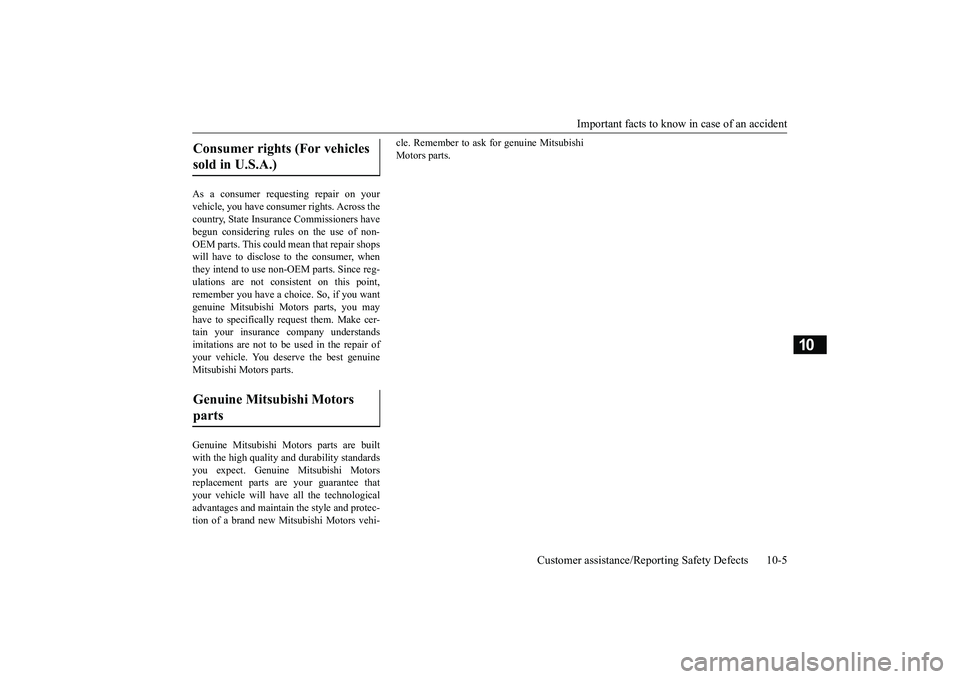

Important facts to know in case of an accident
Customer assistance/Reporting Safety Defects 10-5
10
As a consumer requesting repair on your vehicle, you have consumer rights. Across the country, State Insurance Commissioners have begun considering rules on the use of non-OEM parts. This could mean that repair shops will have to disclose to the consumer, when they intend to use non-OEM parts. Since reg-ulations are not consistent on this point,remember you have a choice. So, if you want genuine Mitsubishi Motors parts, you may have to specifically request them. Make cer-tain your insurance company understands imitations are not to be used in the repair of your vehicle. You deserve the best genuineMitsubishi Motors parts. Genuine Mitsubishi Motors parts are built with the high quality and durability standards you expect. Genuine Mitsubishi Motorsreplacement parts are your guarantee that your vehicle will have all the technological advantages and maintain the style and protec-tion of a brand new Mitsubishi Motors vehi-
cle. Remember to ask for genuine Mitsubishi Motors parts.
Consumer rights (For vehicles sold in U.S.A.) Genuine Mitsubishi Motors parts
BK0252700US.bo
ok 5 ページ ２０１７年１０月４日　水曜日　午後４時５４分

BK0252700US.book 6 ページ ２０１７年１０月４日　水曜日　午後４時５４分

11
SpecificationsVehicle labeling ....
.................................................
........................ 11-2
Vehicle dimensions
................................................
........................ 11-4
Vehicle weights ...............
............................................................... 11-5
Engine specifications
.............................................
........................ 11-6
Battery .......................................
..................................................... 11-6
Tires and wheels .............
............................................................... 11-7
Capacity ....................................
..................................................... 11-7
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Vehicle labeling 11-2 Specifications
11
N01147401909
Keep a record of the chassis number and vehicle identification number. Such informa-tion will assist police if your vehicle is stolen. 1 - Vehicle emission control information labelThe vehicle emission control informationlabel is affixed on the underside of the engine hood. 2 - Vehicle identification number plate The vehicle identification number is stampedon the plate riveted to the left front corner of the dashboard. It is visible from outside of the vehicle through the windshield.
3 - Air conditioning label The air conditioning label is affixed on the inside panel of the engine hood. 4 - Vehicle information code plate The vehicle information code plate is locatedon the front passenger door sill.
The chassis number is stamped on the bulk- head as shown in the illustration.
Vehicle labeling
Chassis number
BK0252700US.bo
ok 2 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Vehicle labeling
Specifications 11-3
11
The engine model and serial number are stamped on the cylinder block as shown in the illustration.
N01148101642
The tire and loading information placard is located on the driver’s door sill.
Ty p e 1
Ty p e 2
N01148201252
The certification label is located on the driver’s door sill.
Engine model/serial number * : Front of the vehicleTire and loading information placard
Certification label
BK0252700US.bo
ok 3 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Vehicle dimensions 11-4 Specifications
11
N01147501681
Vehicle dimensions Overall length
173.4 in (4,405 mm)
Overall width
71.1 in (1,805 mm)
Overall height
2WD 66.3 in (1,685 mm)4WD 66.5 in (1,690 mm)
Wheel base
105.1 in (2,670 mm)
BK0252700US.bo
ok 4 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Vehicle weights
Specifications 11-5
11
N01147602025
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the maximum number of occupantsVehicle weights Gross vehicle weight rating (GVWR) 4,630 lb (2,100 kg)Gross axle weight rating (GAWR)
Front 2,646 lb (1,200 kg)Rear 2,557 lb (1,160 kg)
Maximum trailer weight
1 or 2 persons seated
With brake 2,000 lb (907 kg)Without brake 1,250 lb (567 kg)
3–5 persons seated
With brake 1,499 lb (680 kg)Without brake 1,250 lb (567 kg)
Vehicle capacity weight
827 lb (375 kg)
Maximum roof load
110 lb (50 kg)
Seating capacity
5 persons
NOTE
Vehicle usage condition should neve
r exceed above “Maximum” values.
 Roof load is important because it affects the vehicle capac
ity weight. Refer to “Loading
cargo on the roof” on page 6-10.
BK0252700US.bo
ok 5 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Engine specifications 11-6 Specifications
11
N01147701609 N01147801365
Battery is a 12 volt type.Engine specifications Engine model
4B40
Engine displacement 91.5 CID (1,500 cm³)No. of cylinders and cylinder arrangement Inline-4Bore
2.95 in (75.0 mm)
Stroke
3.34 in (84.8 mm)
Compression ratio 10.0Thermostat valve opening temperature 179.6 °F (82.0 °C)Spark plugs
NGK SILKR7H8
Spark plug gap .028 to .031 in (0.7 to 0.8 mm)Firing order
1-3-4-2
Battery
75D23L
BK0252700US.bo
ok 6 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Tires and wheels
Specifications 11-7
11
N01147901874
PCD: Pitch Circle Diameter (installation holes)
N01148002260
Tires and wheels Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Offset (Inset) 1.5 in (38 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer
for details on the combination used on your vehicle.
 These tires satisfy vehicle loading cond
itions described in this owner’s manual.
Capacity
Item
Capacity
Lubricants
Fuel (approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“star- burst” symbol) on the container.
Oil filter .21 qt (0.2 L)Oil cooler .11 qt (0.1 L)
Continuously variable transmission (CVT) 8.2 qt (7.8 L)
Refer to “Continuously variable transmission (CVT) fluid” on page 9-8.
Transfer oil .50 qt (0.47 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API GL-5 SAE 80
