Rear-view camera 5-128 Features and controls
5
Reference lines and upper surface of the rear bumper (A) are displayed on the screen.  Red line (B) indicates approximately 20 inches (50 cm) behind the rear bumper. Two Green lines (C) indicate approxi- mately 8 inches (20 cm) outside of the vehicle body. Short transverse lines (1 to 3) indicate dis- tance from the rear bumper.
CAUTION If the camera lens gets dirty, a clear image cannot be obtained. As necessary, rinse the lens with clean water and gently wipe with a clean, soft cloth. To avoid damaging the camera;• Do not rub the cover excessively or polish it by using an abrasive compound. • Do not disassemble the camera.• Do not splash hot water directly on the lens. • Do not spray the camera and its surround- ings with high-pressure water.• Make sure that the liftgate is securelyclosed when backing up.
Reference lines on the screen 1- Approximately at the rear edge of the
rear bumper (if so equipped)
2- Approximately 39 inches (100 cm) 3- Approximately 79 inches (200 cm)
CAUTION  The rear-view camera uses a wide-angle lens. As a result, images and distances shown on the screen are not exact. Actual distance may be different from dis- tance indicated by the lines on the screen, depending on the loading condition of the vehicle and road surface condition.The reference lines for distance and vehicle width are based on a level, flat road surface. In the following cases, objects shown on thescreen will appear to be farther off than they actually are.• When the rear of the vehicle is weigheddown with the weight of passengers and luggage in the vehicle. (Case 1)• When there is an upward slope at the back.(Case 2)
Case 1 A- Actual objects B- Objects shown on the screen
BK0252700US.book
128 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped)
Features and controls 5-129
5
N00587200068
The Multi Around Monitor system uses four cameras, “Front-view camera”, “Side-view cameras (right and left)” and “Rear-view camera”, and displays composite views fromthose cameras on the Smartphone Link Dis- play Audio. The Multi Around Monitor system will assistthe driver to park the vehicle in a narrow orparallel parking space.
CAUTION The reference lines for distance and vehicle width are intended to indicate the distance to a flat object such as a level, flat road surface.They may not indicate correct distance depending on the shape of an obstacle. For example, when there is an object behindthe vehicle that has upper sections projecting in the direction of the vehicle, the reference lines on the screen will indicate that point Ais the farthest point a
nd point B is the closest
point to the vehicle. In reality, point A and B are actually the same distance from the vehi-cle, and point C is farther off than point A and B.Case 2 A- Actual objects B- Objects shown on the screen
NOTE
 Mirror image is displayed on the screen.  On vehicles equipped with Smartphone Link Display Audio, it is possible to change the display language of the screen. For details, please refer to the separatedowner’s manual.  Under certain circumstances, it may become difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night. • When water drops or condensation are on the lens. • When sun light or headlights shine directly into the lens.
Multi Around Monitor
(if so
equipped)
WA R N I N G Before using the Multi Around Monitor system, read this entire section to fully understand the limitations of this system. Failure to follow instructions could resultin an accident. The Multi Around Monitor system is an aid system to help observe around the vehicle. It is not a substitute for your visual confirmation. Never rely solely on the Multi Around Monitor system. The view on the screen is limited, and objects outside the view can- not be seen on the screen.
BK0252700US.book
129 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped) 5-134 Features and controls
5
Wide-rear-view mode
 Bird’s eye-
view/Rear-view mode
 Side-view/Rear-
view mode If the camera switch is pressed, the mode of Multi Around Monitor is switched, Wide-rear-view mode
 Bird’s eye-view/Front-
view mode
 Side-view/Front-view mode

OFF
N00587600046
In any mode other than the Bird’s eye-view mode, the lines in the screen give the follow-ing information. Use them only as a guide. Reference lines for the distance and the vehi- cle width and upper surface of the rear bum-per (A) are displayed on the screen.  The Red line (B) indicates approximately 20 inches (50 cm) behind the rear edge of the rear bumper. The Two Green lines (C) indicate the approximately vehicle width.  The Orange line (D) indicates an expected course when the vehicle is reserved with the steering wheel turned. It disappears when the steering wheel is in the neutralposition.  The approximate distance from the vehi- cle body is as follows:
Reference lines for the distance and the vehi- cle width and upper surface of the front bum- per (A) are displayed on the screen.
Switching of the screen (Selector lever is other than “R” (REVERSE))

NOTE
 When you move the selector lever to the “R” (REVERSE) position with the front-viewmode displayed on the driver’s side screen, the driver’s side screen switches to the rear- view mode. When you shift the selector leverto any other position, the driver’s side screen switches to the front-view mode.  When the camera switch is pressed at the vehicle speed of approximately 6 mph (10 km/h) or higher, only the side-view can be displayed on the passenger’s side screen.  The front-view will not be displayed when the vehicle speed exceeds approximately 6 mph (10 km/h).  The display of the view may be delayed dur- ing switching of the screen.
How to read the screen

Wide-rear-view mode

1- Approximately 39 inches (100 cm) from
the rear edge of the rear bumper
2- Approximately 79 inches (200 cm) from
the rear edge of the rear bumperCAUTION If the camera and/or its surrounding area have experienced an impact, the MultiAround Monitor system may not function correctly. Have the vehicle inspected by an authorized Mitsubishi Motors dealer.
Front-view mode

BK0252700US.book
134 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped)
Features and controls 5-135
5
 The Red line (B) indicates approximately 20 inches (50 cm) from the front edge of the front bumper.  The Two Green lines (C) indicate the approximate vehicle width.  The Orange lines (D) indicates an expected course when the vehicle movesforward with the steering wheel turned. It disappears when the steering wheel is in the neutral position. The approximate distance from the vehi- cle body is as follows:
N00587700034
Reference lines for the distance and the vehi-cle width and upper surface of the rear bum-per (A) are displayed on the screen.  The Red line (B) indicates approximately 20 inches (50 cm) behind the rear edge of the rear bumper. The Two Green lines (C) indicate the approximately vehicle width.  The Orange line (D) indicates an expected course when the vehicle is reserved with the steering wheel turned. It disappears when the steering wheel is in the neutralposition.  The approximate distance from the vehi- cle body is as follows:
1- Approximately 39 inches (100 cm) from
the front edge of the front bumperNOTE
 When the expected course lines are dis- played in the front-view, the expected courselines are also displayed in the bird’s eye- view (Front: solid line, Rear: broken line).
Rear-view mode

NOTE
1- Approximately 39 inches (100 cm)
from the rear edge of the rear bumper
2- Approximately 79 inches (200 cm)
from the rear edge of the rear bumperCAUTION The rear-view camera uses a wide-angle lens. As a result, images and distances shownon the screen are not exact. Never rely solely on the reference lines. The reference lines indicating distance and vehi- cle width are based on a level, flat road sur- face.Actual distance may be different from dis- tance indicated by the lines on the screen, depending on the loading condition of thevehicle and road surface condition. Also, your vehicle widt
h indicated by the
reference lines may be different from theactual vehicle width.
BK0252700US.book
135 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped)
Features and controls 5-137
5
N00587900036
Reference lines for the vehicle width and the front end of the vehicle are displayed on thescreen.
• When there is an object behind the vehicle that has upper sections projecting in the direction of the vehicle, the reference lines on the screen will indicate that point A is the farthest point and point B is the closestpoint to the vehicle. In reality, point A and B are actually the same distance from the vehicle, and point C is farther off than pointA and B.CAUTION
NOTE
 When the expected course lines are dis- played in the rear-view, the expected course lines are also displayed in the bird’s eye- view (Front: broken line, Rear: solid line).
Side-view mode

1- Approximate vehicle width including
the door mirror.
2- Approximate location of the axle center
of the front wheel.
3- Approximate 20 inches (50 cm) from the
front edge of the front bumper.
BK0252700US.book
137 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Tires
Vehicle care and maintenance 9-13
9
 Sidewall: portion of a tire between the tread and bead.  Section width: the li
near distance between
the exteriors of the sidewalls of aninflated tire, excluding elevations due to labeling, decoration, or protective bands.  Bead: the part of the tire that is made of steel wires, wrapped or reinforced by ply cords and that is shaped to fit the rim.  Ply: a layer of rubber-coated parallel cords. Cord: the strands forming the plies in the tire.  Rim: a metal support for a tire or a tire and tube assembly upon which the tire beads are seated.  Rim diameter: nominal diameter of the bead seat.  Groove: the space between two adjacent tread ribs.

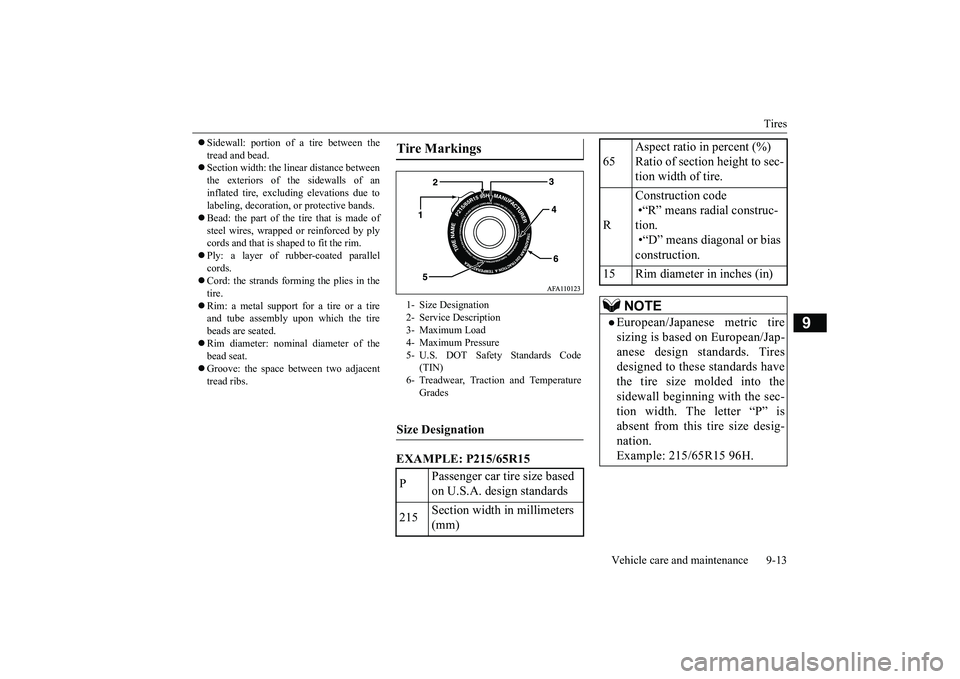

EXAMPLE: P215/65R15Tire Markings 1- Size Designation 2- Service Description 3- Maximum Load4- Maximum Pressure 5- U.S. DOT Safety Standards Code
(TIN)
6- Treadwear, Traction and Temperature
Grades
Size Designation P
Passenger car tire size based on U.S.A. design standards
215
Section width in millimeters (mm)
65
Aspect ratio in percent (%) Ratio of section height to sec- tion width of tire.
R
Construction code •“R” means radial construc- tion. •“D” means diagonal or bias construction.
15 Rim diameter in inches (in)
NOTE
