Indicator light, warning light, an
d information screen display list Features and controls 5-173
5

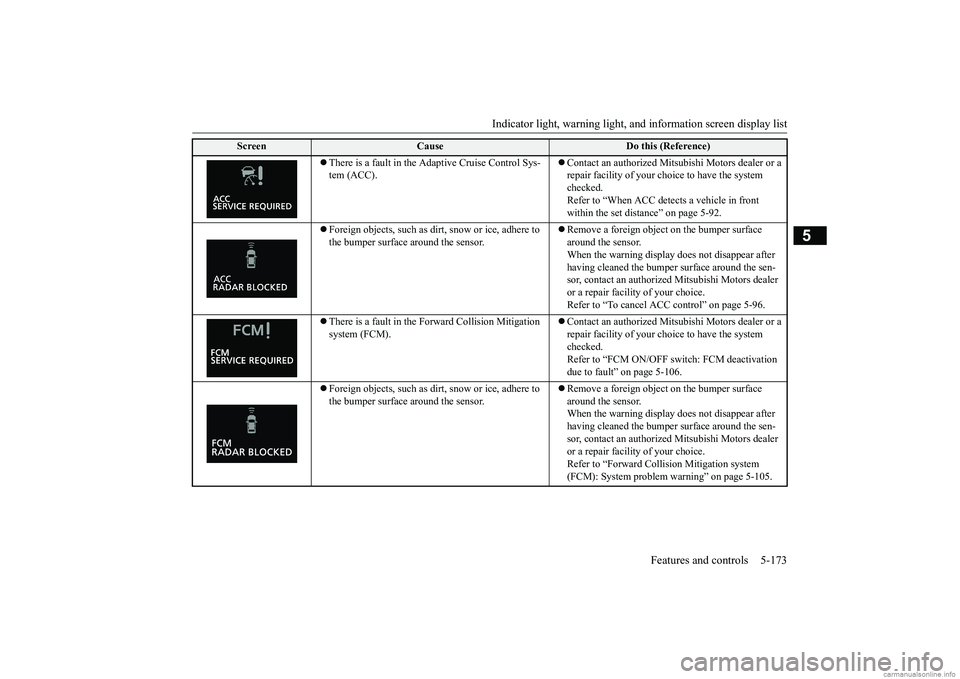

 There is a fault in the Adaptive Cruise Control Sys- tem (ACC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “When ACC detects a vehicle in front within the set distance” on page 5-92.
 Foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sensor.
 Remove a foreign object on the bumper surface around the sensor.When the warning display does not disappear after having cleaned the bumper surface around the sen- sor, contact an authorized
Mitsubishi Motors dealer
or a repair facility of your choice. Refer to “To cancel ACC control” on page 5-96.
 There is a fault in the Forward Collision Mitigation system (FCM).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “FCM ON/OFF switch: FCM deactivation due to fault” on page 5-106.
 Foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sensor.
 Remove a foreign object on the bumper surface around the sensor. When the warning display does not disappear after having cleaned the bumper surface around the sen-sor, contact an authorized
Mitsubishi Motors dealer
or a repair facility of your choice. Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105.
Screen
Cause
Do this (Reference)
BK0252700US.book
173 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-174 Features and controls
5

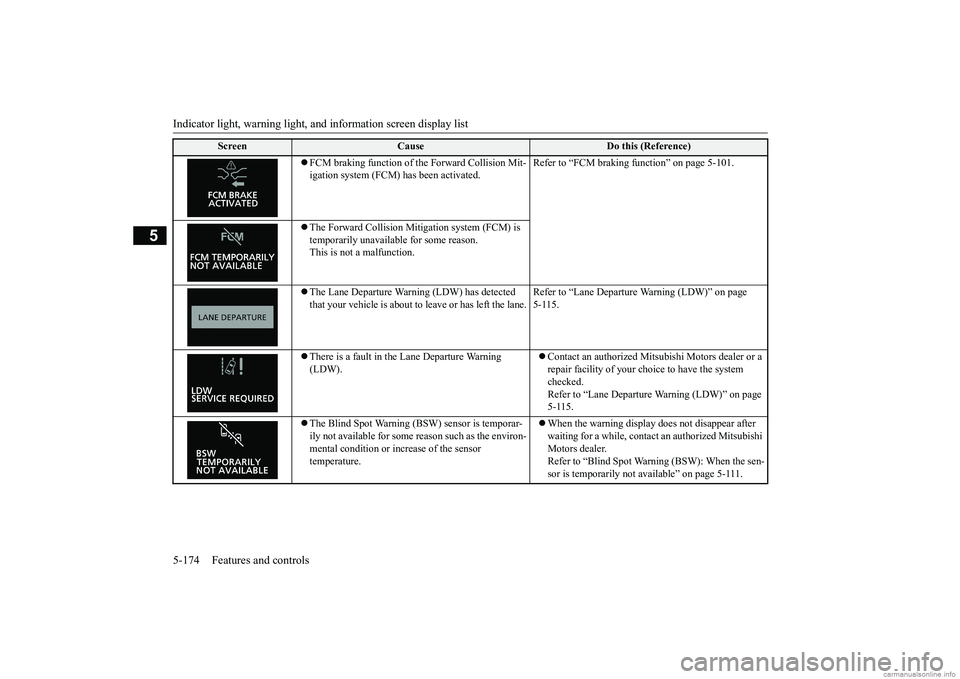

 FCM braking function of the Forward Collision Mit- igation system (FCM) has been activated.
Refer to “FCM braking function” on page 5-101.
 The Forward Collision Mitig
ation system (FCM) is
temporarily unavailable for some reason. This is not a malfunction.  The Lane Departure Warning (LDW) has detected that your vehicle is about to leave or has left the lane.
Refer to “Lane Departure Warning (LDW)” on page 5-115.
 There is a fault in the Lane Departure Warning (LDW).
 Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system checked.Refer to “Lane Departure Warning (LDW)” on page 5-115.
 The Blind Spot Warning (BSW) sensor is temporar- ily not available for some reason such as the environ-mental condition or increase of the sensor temperature.
 When the warning display does not disappear after waiting for a while, contact an authorized Mitsubishi Motors dealer. Refer to “Blind Spot Warning (BSW): When the sen- sor is temporarily not available” on page 5-111.
Screen
Cause
Do this (Reference)
BK0252700US.book
174 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-175
5

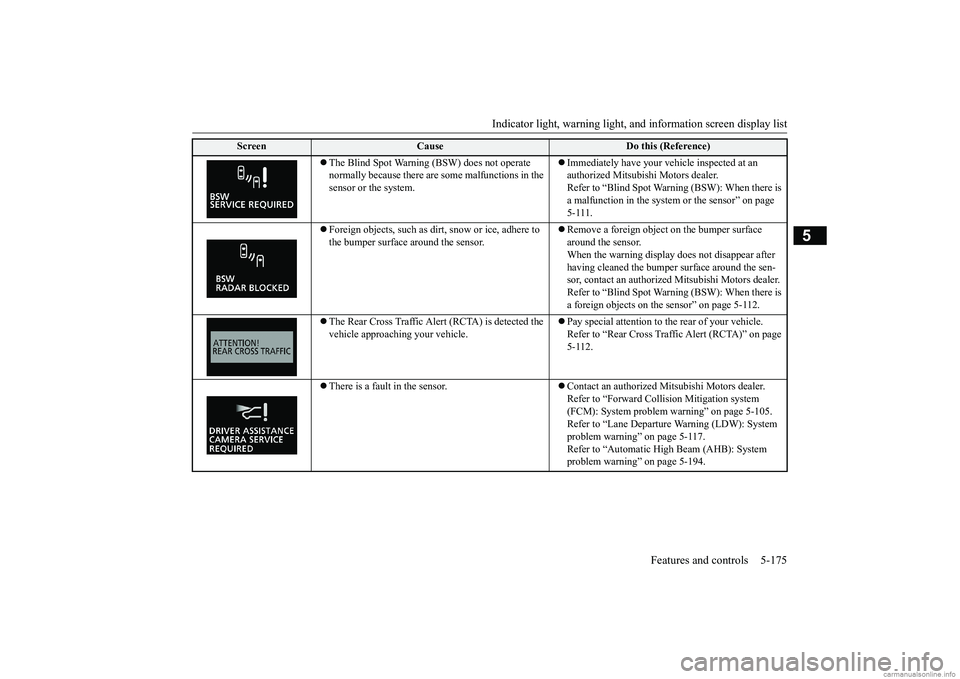

 The Blind Spot Warning (BSW) does not operate normally because there are some malfunctions in the sensor or the system.
 Immediately have your vehicle inspected at an authorized Mitsubishi Motors dealer. Refer to “Blind Spot Warning (BSW): When there is a malfunction in the system or the sensor” on page 5-111.
 Foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sensor.
 Remove a foreign object on the bumper surface around the sensor.When the warning display does not disappear after having cleaned the bumper surface around the sen- sor, contact an authorized
Mitsubishi Motors dealer.
Refer to “Blind Spot Warning (BSW): When there is a foreign objects on the sensor” on page 5-112.
 The Rear Cross Traffic Alert (RCTA) is detected the vehicle approaching your vehicle.
 Pay special attention to the rear of your vehicle. Refer to “Rear Cross Traffic Alert (RCTA)” on page 5-112.
 There is a fault in the sensor.
Contact an authorized Mitsubishi Motors dealer. Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105. Refer to “Lane Departure Warning (LDW): System problem warning” on page 5-117.Refer to “Automatic High Beam (AHB): System problem warning” on page 5-194.
Screen
Cause
Do this (Reference)
BK0252700US.book
175 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-176 Features and controls
5
 The Forward Collision M
itigation system (FCM),
Lane Departure Warning (LDW) and Automatic High Beam (AHB) is temporarily unavailable due to the high or low temperature of the sensor.
 After the temperature of the sensor has been in range, the system will automatically return to opera- tion.Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105. Refer to “Lane Departure Warning (LDW): System problem warning” on page 5-117. Refer to “Automatic High Beam (AHB): System problem warning” on page 5-194.
 The sensor is temporarily unavailable due to condi- tions such as the adhesion of contaminants to the sensor or windshield. This is not a malfunction.
Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105. Refer to “Lane Departure Warning (LDW): System problem warning” on page 5-117.Refer to “Automatic High Beam (AHB): System prob- lem warning” on page 5-194.
 There is a fault in the system of automatic high beam.
 Contact an authorized M
itsubishi Motors dealer.
Refer to “Automatic High Beam (AHB): System problem warning” on page 5-194.
Screen
Cause
Do this (Reference)
BK0252700US.book
176 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-178 Features and controls
5
Screen
System operation status
Reference
 When “AUTO” mode of S-AWC is selected.
Refer to “S-AWC (Super-All Wheel Con- trol)” on page 5-67.
 When “SNOW” mode of S-AWC is selected.  When “GRAVEL” mode of S-AWC is selected.  When the ECO mode is activated. Refer to “ECO mode switch” on page 5-198.  When the parking sensor detects an obstacle.
Refer to “Parking sensors (Front/Rear)” on page 5-123.
BK0252700US.book
178 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Head Up Display (HUD) (if so equipped)
Features and controls 5-185
5

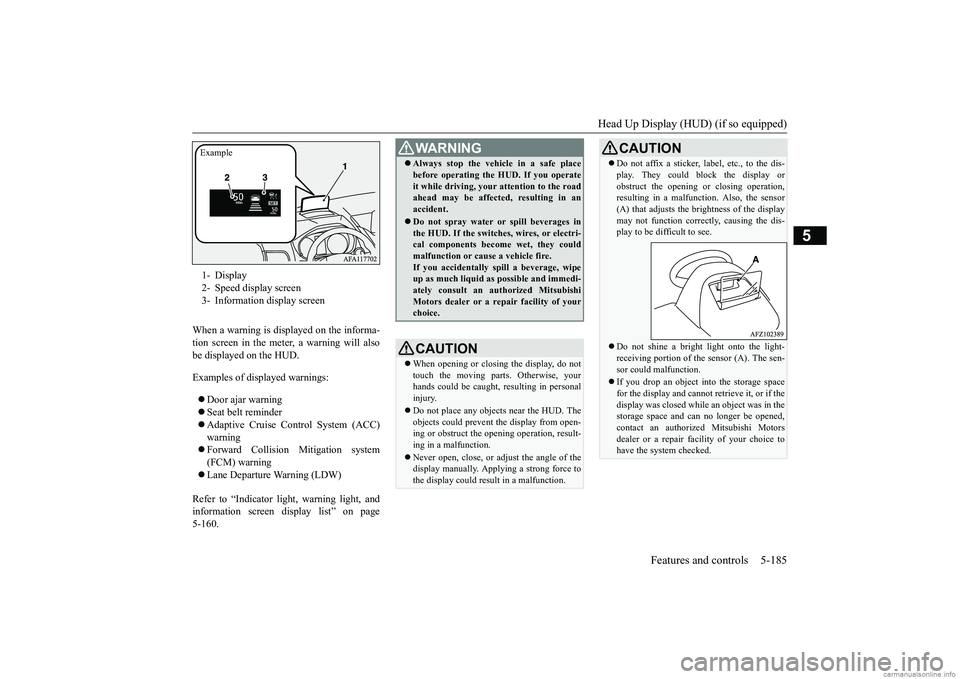

When a warning is displayed on the informa- tion screen in the meter, a warning will also be displayed on the HUD. Examples of displayed warnings:  Door ajar warning  Seat belt reminder  Adaptive Cruise Control System (ACC) warning  Forward Collision Mitigation system (FCM) warning Lane Departure Warning (LDW)
Refer to “Indicator light, warning light, and information screen display list” on page 5-160. 1- Display 2- Speed display screen 3- Information display screen Example
WA R N I N G  Always stop the vehicle in a safe place before operating the HUD. If you operate it while driving, your attention to the road ahead may be affected, resulting in an accident. Do not spray water or spill beverages in the HUD. If the switches, wires, or electri-cal components become wet, they could malfunction or cause a vehicle fire. If you accidentally spill a beverage, wipeup as much liquid as possible and immedi- ately consult an authorized Mitsubishi Motors dealer or a repair facility of yourchoice.CAUTION When opening or closing the display, do not touch the moving parts. Otherwise, yourhands could be caught, resulting in personal injury. Do not place any objects near the HUD. The objects could prevent the display from open- ing or obstruct the opening operation, result-ing in a malfunction. Never open, close, or adjust the angle of the display manually. Applying a strong force to the display could result in a malfunction.
 Do not affix a sticker, label, etc., to the dis- play. They could block the display or obstruct the opening or closing operation, resulting in a malfunction. Also, the sensor (A) that adjusts the brightness of the displaymay not function correctly, causing the dis- play to be difficult to see. Do not shine a bright light onto the light- receiving portion of the sensor (A). The sen- sor could malfunction. If you drop an object
into the storage space
for the display and cannot retrieve it, or if the display was closed while an object was in thestorage space and can no longer be opened, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice tohave the system checked.CAUTION
BK0252700US.book
185 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch
Features and controls 5-189
5

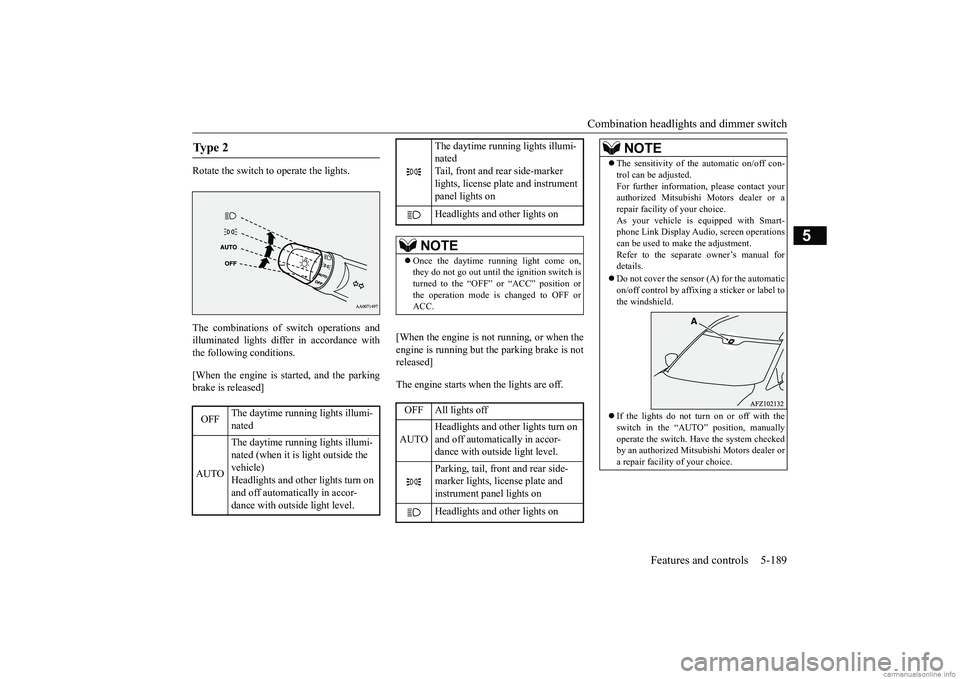

Rotate the switch to operate the lights. The combinations of switch operations and illuminated lights differ in accordance with the following conditions. [When the engine is started, and the parking brake is released]
[When the engine is not running, or when the engine is running but the parking brake is not released] The engine starts when the lights are off.
Ty p e 2 OFF
The daytime running lights illumi- nated
AUTO
The daytime running lights illumi- nated (when it is light outside the vehicle) Headlights and other lights turn on and off automatically in accor- dance with outside light level.
The daytime running lights illumi-nated Tail, front and rear side-marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 Once the daytime running light come on, they do not go out until the ignition switch is turned to the “OFF” or “ACC” position or the operation mode is changed to OFF orACC.OFF All lights off AUTO
Headlights and other lights turn on and off automatically in accor- dance with outside light level. Parking, tail, front and rear side- marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 The sensitivity of the automatic on/off con- trol can be adjusted. For further information, please contact your authorized Mitsubishi Motors dealer or a repair facility of your choice.As your vehicle is equipped with Smart- phone Link Display Audio, screen operations can be used to make the adjustment.Refer to the separate owner’s manual for details.  Do not cover the sensor (A) for the automatic on/off control by affixing a sticker or label to the windshield.  If the lights do not turn on or off with the switch in the “AUTO” position, manually operate the switch. Have the system checkedby an authorized Mitsubishi Motors dealer or a repair facility of your choice.
BK0252700US.book
189 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch
Features and controls 5-191
5
from the ignition switch while the lights are on, the tone will sound to remind you to turn off the lights. [When using the F.A.S.T.-key to start the engine]If the driver’s door is opened with the opera- tion mode is put in OFF or ACC, or if the operation mode is changed to OFF while thelights are on, the tone will sound to remind you to turn off the lights. In either case, the lights will turn off automat- ically and so will the tone. Or you can turn the light switch to the
“OFF” position to stop
the tone.
N00549901178
To change the headlights from high beam to low beam and vice versa, pull the turn signal lever to (1). Switch the headlights to lowbeam as a courtesy whenever there are oncoming vehicles, or when there is traffic moving ahead of you. An illuminated bluelight in the instrument cluster indicates when the headlights are on high beam.
N00550001225
You can flash the high beams by pulling the lever gently toward you (2). The lights willgo back to normal when you let go. While the high beam is on, you will see a blue light on the instrument panel.
N00591300060
The Automatic High Beam (AHB) turns the high beam light on or off automatically according to surrounding light conditions.The sensor (A) detects lights, such as the lights of an oncoming vehicle, a vehicle ahead or street lights.
Dimmer (high/low beam change)
Headlight flasher
NOTE
 You can flash the high beams by pulling the lever toward you, even if the light switch isoff.  If you turn the lights off with the head lights set to high beam illumination, the headlights are automatically returned to their low beam setting.
Automatic High Beam (AHB)
(if
so equipped)
WA R N I N G Do not rely solely on the AHB. Always observe surrounding traffic and light con- ditions. If necessary, manually turn the high beams on or off.Refer to “Dimmer (high/low beam change)” on page 5-191.
BK0252700US.book
191 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch
Features and controls 5-193
5

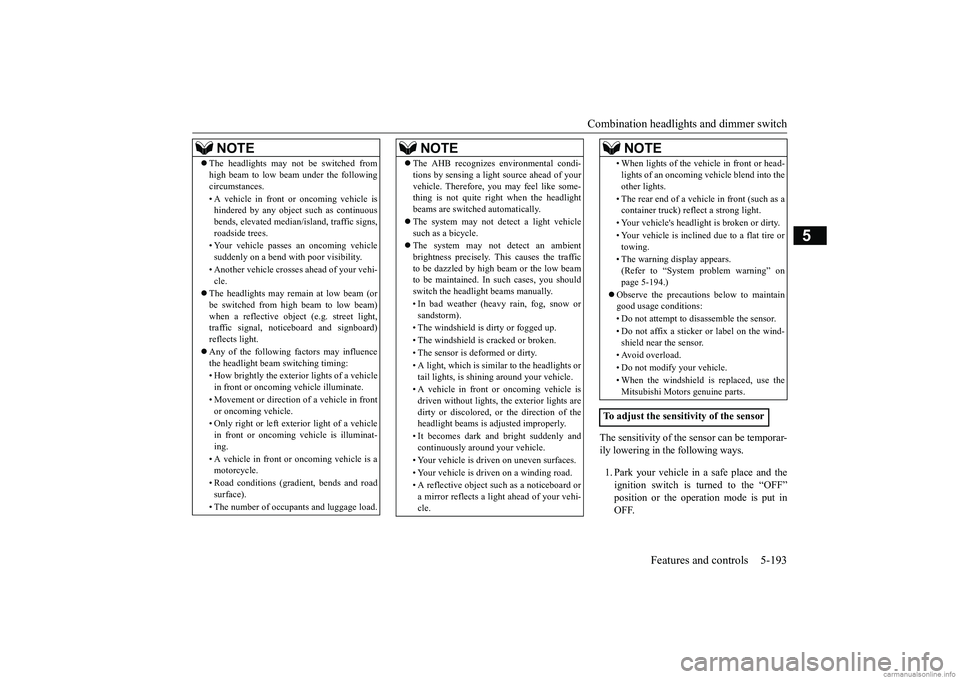

The sensitivity of the sensor can be temporar- ily lowering in the following ways. 1. Park your vehicle in a safe place and the ignition switch is turned to the “OFF” position or the operation mode is put inOFF.
NOTE
 The headlights may not be switched from high beam to low beam under the following circumstances. • A vehicle in front or oncoming vehicle is hindered by any object such as continuous bends, elevated median/island, traffic signs, roadside trees. • Your vehicle passes an oncoming vehicle suddenly on a bend with poor visibility. • Another vehicle crosses ahead of your vehi- cle.
 The headlights may remain at low beam (or be switched from high beam to low beam)when a reflective object
(e.g. street light,
traffic signal, noticeboard and signboard) reflects light.  Any of the following factors may influence the headlight beam switching timing: • How brightly the exteri
or lights of a vehicle
in front or oncoming vehicle illuminate. • Movement or direction of a vehicle in front or oncoming vehicle. • Only right or left exterior light of a vehicle in front or oncoming vehicle is illuminat-ing. • A vehicle in front or oncoming vehicle is a motorcycle. • Road conditions (gradient, bends and road surface). • The number of occupants and luggage load.
 The AHB recognizes environmental condi- tions by sensing a light source ahead of your vehicle. Therefore, you may feel like some- thing is not quite right when the headlight beams are switched automatically.  The system may not detect a light vehicle such as a bicycle.  The system may not detect an ambient brightness precisely. This causes the trafficto be dazzled by high beam or the low beam to be maintained. In such cases, you should switch the headlight beams manually. • In bad weather (heavy rain, fog, snow or sandstorm). • The windshield is dirty or fogged up. • The windshield is cracked or broken. • The sensor is deformed or dirty.• A light, which is similar to the headlights or tail lights, is shining around your vehicle. • A vehicle in front or oncoming vehicle is driven without lights, the exterior lights aredirty or discolored, or the direction of the headlight beams is adjusted improperly. • It becomes dark and bright suddenly and continuously around your vehicle. • Your vehicle is driven on uneven surfaces. • Your vehicle is driven on a winding road.• A reflective object such as a noticeboard or a mirror reflects a light ahead of your vehi- cle.NOTE
• When lights of the vehicle in front or head-lights of an oncoming vehicle blend into the other lights. • The rear end of a vehicle in front (such as a container truck) reflect a strong light. • Your vehicle's headlight
is broken or dirty.
• Your vehicle is inclined due to a flat tire or towing. • The warning display appears. (Refer to “System problem warning” onpage 5-194.)
 Observe the precautions below to maintain good usage conditions: • Do not attempt to disassemble the sensor.• Do not affix a sticker or label on the wind- shield near the sensor. • Avoid overload. • Do not modify your vehicle. • When the windshield is replaced, use the Mitsubishi Motors genuine parts.
To adjust the sensitivity of the sensor
NOTE
BK0252700US.book
193 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch 5-194 Features and controls
5
2. Press the AHB switch more than 15 times within 5 seconds after operation mode is turned on.
N00593800056

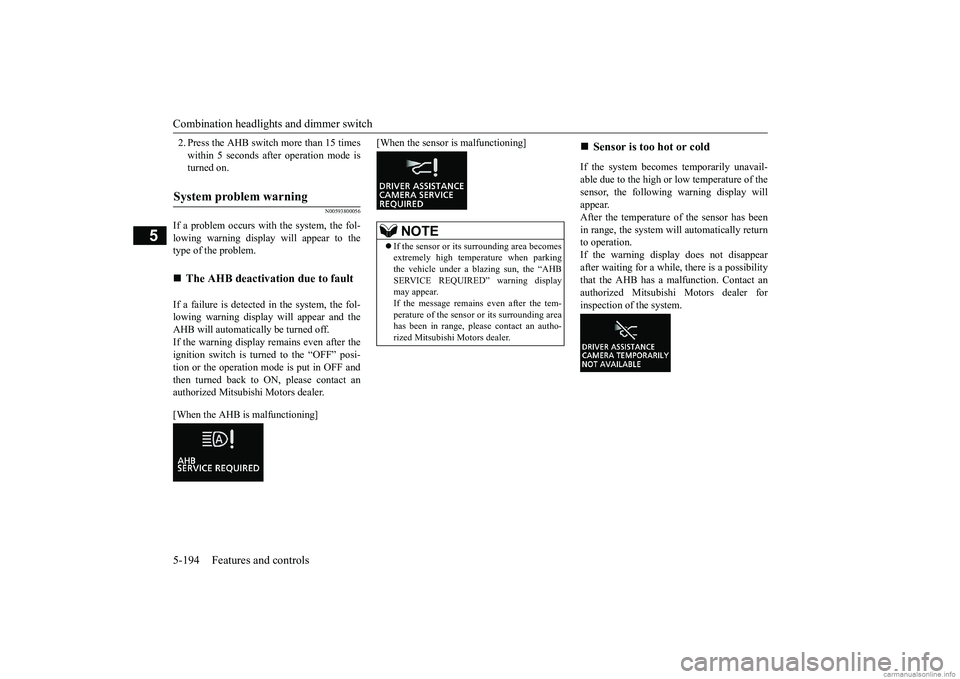

If a problem occurs with the system, the fol-lowing warning display will appear to the type of the problem. If a failure is detected in the system, the fol- lowing warning display will appear and the AHB will automatically be turned off. If the warning display remains even after theignition switch is turned to the “OFF” posi- tion or the operation mode is put in OFF and then turned back to ON, please contact anauthorized Mitsubishi Motors dealer. [When the AHB is malfunctioning]
[When the sensor is malfunctioning]
If the system becomes temporarily unavail- able due to the high or
low temperature of the
sensor, the following warning display will appear.After the temperature of the sensor has been in range, the system will automatically return to operation.If the warning display does not disappear after waiting for a while, there is a possibility that the AHB has a malfunction. Contact anauthorized Mitsubishi Motors dealer forinspection of the system.
System problem warning


The AHB deactivation due to fault

NOTE
If the sensor or its surrounding area becomes extremely high temperature when parking the vehicle under a blazing sun, the “AHBSERVICE REQUIRED” warning display may appear. If the message remains even after the tem- perature of the sensor or its surrounding area has been in range, please contact an autho-rized Mitsubishi Motors dealer.

Sensor is too hot or cold

BK0252700US.book
