sensor MITSUBISHI ECLIPSE CROSS 2018 (in English) Owner's Guide

Forward Collision Mitigation sy
stem (FCM) (if so equipped)
5-106 Features and controls
5
N00595200025
If the system becomes temporarily unavail- able due to the high or
low temperature of the
sensor, the following message will appear on the information screen of the multi-informa- tion display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. After the temperature of the sensor has been in range, the system will automatically returnto operation. If the message continues showing, there is a possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motorsdealer for inspection of the sensor.
N00595300026
If the FCM detects a malfunction in the sys-tem, either of the following messages willappear on the information screen of the multi- information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message remains even after the ignition switch is turned to the “OFF” position and then turned back to “ON” position or the operation mode is put in OFF, and then turnedback to “ON”, please contact your authorized Mitsubishi Motors dealer. If the display keeps showing the message, there is a possibility that the FCM has a mal-function. Contact an authorized Mitsubishi Motors dealer.
N00593400052
The sensor (A) is located inside the wind- shield and front bumper
as shown in the illus-
tration.The sensor is shared in the following sys- tems:  Forward Collision Mitigation system (FCM)
*
 Lane Departure Warning (LDW)
*
 Automatic High Beam (AHB)
*
 Adaptive Cruise Control System (ACC)
*
* : if so equipped
Sensor is too hot or cold

FCM deactivation due to fault

NOTE
If the sensor or its surrounding area becomes extremely hot (after prolonged exposure to direct sunlight, for example), the “FCM SERVICE REQUIRED” message may appear.After the temperature of the sensor or its sur- rounding area has been in range, if the mes- sage remains even after restarting the engine,please contact an authorized Mitsubishi Motors dealer.
Handling of the sensor

BK0252700US.book
106 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Forward Collision Mitigation sy
stem (FCM) (if so equipped) Features and controls 5-107
5

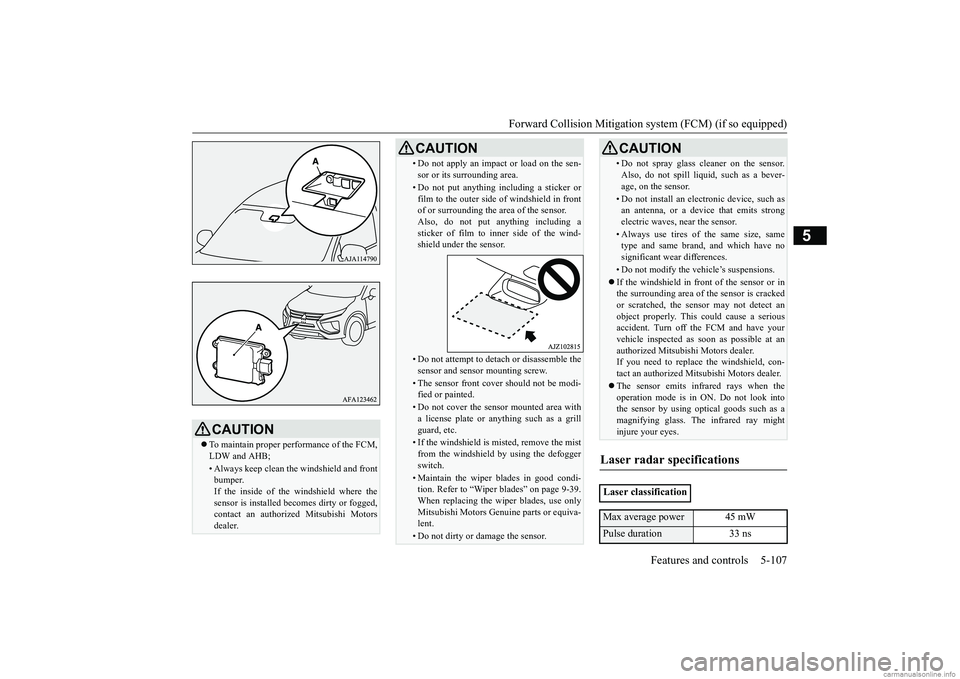

CAUTION To maintain proper performance of the FCM, LDW and AHB;• Always keep clean the windshield and frontbumper.If the inside of the windshield where the sensor is installed becomes dirty or fogged, contact an authorized Mitsubishi Motorsdealer.
• Do not apply an impact or load on the sen- sor or its surrounding area.• Do not put anything including a sticker or film to the outer side of windshield in frontof or surrounding the area of the sensor. Also, do not put anything including a sticker of film to inner side of the wind-shield under the sensor.• Do not attempt to detach or disassemble thesensor and sensor mounting screw.• The sensor front cover should not be modi-fied or painted.• Do not cover the sensor mounted area witha license plate or anything such as a grill guard, etc.• If the windshield is misted, remove the mistfrom the windshield by using the defogger switch.• Maintain the wiper blades in good condi-tion. Refer to “Wiper blades” on page 9-39. When replacing the wiper blades, use only Mitsubishi Motors Genuine parts or equiva-lent.• Do not dirty or damage the sensor.CAUTION
• Do not spray glass cleaner on the sensor. Also, do not spill liquid, such as a bever- age, on the sensor.• Do not install an electronic device, such asan antenna, or a device that emits strong electric waves, near the sensor.• Always use tires of the same size, sametype and same brand, and which have no significant wear differences.• Do not modify the vehicle’s suspensions. If the windshield in front of the sensor or in the surrounding area of the sensor is cracked or scratched, the sensor may not detect anobject properly. This could cause a serious accident. Turn off the FCM and have your vehicle inspected as soon as possible at anauthorized Mitsubishi Motors dealer. If you need to replace the windshield, con- tact an authorized Mitsubishi Motors dealer. The sensor emits infrared rays when the operation mode is in ON. Do not look intothe sensor by using opt
ical goods such as a
magnifying glass. The infrared ray might injure your eyes.
Laser radar specifications

Laser classificationMax average power 45 mWPulse duration 33 ns
CAUTION
BK0252700US.book
107 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped)
5-108 Features and controls
5
N00592200053
The Blind Spot Warning (BSW) is a driving aid system that alerts
the driver when another
vehicle which may not be visible through theoutside rearview mirror is traveling in the next lane behind your vehicle. When a vehicle in the next lane is traveling atsame speed or faster in the detection areas, the Blind Spot Warning light in the corre- sponding outside rearview mirror will illumi-nate. If the turn signal lever is operated to the
side where the Blind Spot Warning light is illuminated, the Blind Spot Warning light will blink and the system will beep three times to alert the driver.Depending on the relative speed between your vehicle and a vehicle in the next lane, the BSW will detect up to approximately230 feet (70 m) from your vehicle (Lane Change Assist).
N00592300054
The BSW uses two sensors (A) located inside the rear bumper.The detection areas are shown as illustrated.
Wavelength 905 nmDivergent angle (horizon x vertical)
28° x 12°
Laser classification labelBlind Spot Warning (BSW) (with Lane Change Assist)
(if
so equipped)
WA R N I N G Before using the BSW, read this entire sec- tion to fully understa
nd the limitations of
this system. Failure to follow instructionscould result in an accident.
 Never rely solely on the BSW system when changing lanes. BSW is an aid only. It is not a substitute for your safe and careful driving. Always check visually behind and all around your vehicle for other vehicles.The performance of the BSW may vary depending on driving, traffic and/or road conditions.
Detection areas

WA R N I N G
BK0252700US.book
108 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped) Features and controls 5-109
5
N00593500053
When the ignition switch is turned to the “ON” position or the operation mode is put in

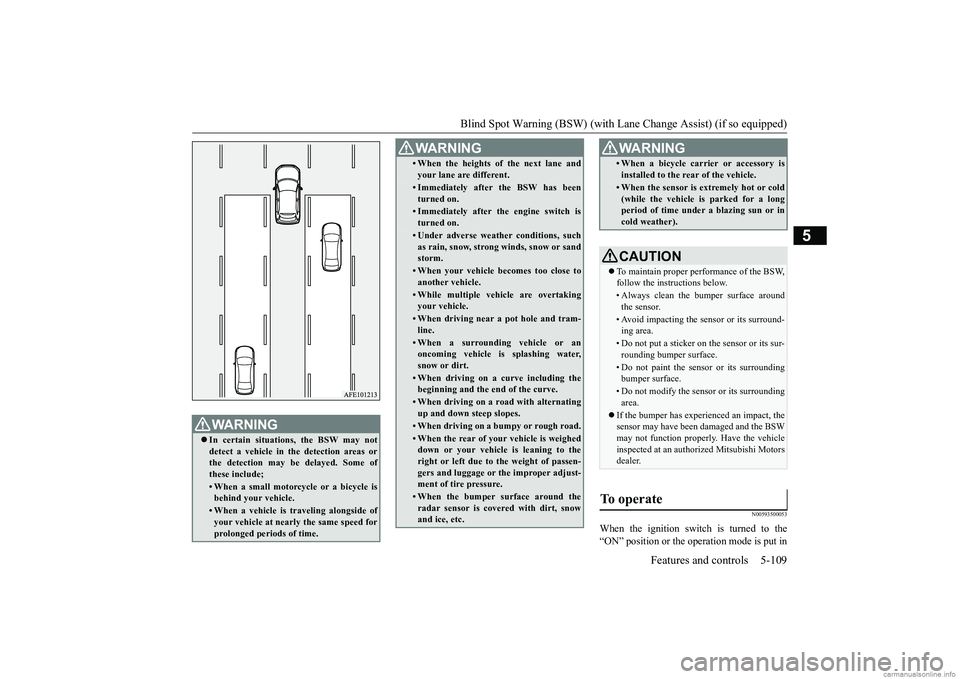

WA R N I N G In certain situations, the BSW may not detect a vehicle in the detection areas orthe detection may be delayed. Some of these include;• When a small motorcycle or a bicycle isbehind your vehicle.• When a vehicle is traveling alongside ofyour vehicle at nearly the same speed for prolonged periods of time.
• When the heights of the next lane and your lane are different.• Immediately after the BSW has been turned on.• Immediately after the engine switch isturned on.• Under adverse weather conditions, suchas rain, snow, strong winds, snow or sandstorm.• When your vehicle becomes too close toanother vehicle.• While multiple vehicle are overtakingyour vehicle.• When driving near a pot hole and tram-line.• When a surrounding vehicle or anoncoming vehicle is splashing water, snow or dirt.• When driving on a curve including thebeginning and the end of the curve.• When driving on a road with alternatingup and down steep slopes.• When driving on a bumpy or rough road.• When the rear of your vehicle is weighed down or your vehicle is leaning to the right or left due to the weight of passen- gers and luggage or the improper adjust- ment of tire pressure. • When the bumper surface around theradar sensor is covered with dirt, snow and ice, etc.WA R N I N G
• When a bicycle carrier or accessory is installed to the rear of the vehicle.• When the sensor is extremely hot or cold (while the vehicle is parked for a longperiod of time under a blazing sun or in cold weather).CAUTION To maintain proper performance of the BSW, follow the instructions below.• Always clean the bumper surface aroundthe sensor.• Avoid impacting the sensor or its surround-ing area.• Do not put a sticker on the sensor or its sur-rounding bumper surface.• Do not paint the sensor or its surroundingbumper surface.• Do not modify the sensor or its surroundingarea.
 If the bumper has experienced an impact, the sensor may have been damaged and the BSWmay not function properly. Have the vehicle inspected at an authorized Mitsubishi Motors dealer.
To operate

WA R N I N G
BK0252700US.book
109 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped)
5-110 Features and controls
5
ON and “ON” is selected in the “BSW” set- ting screen, the BSW indicator light in the instrument cluster comes on and the BSW enters the standby state.When “OFF” is selected in the “BSW” set- ting screen, the BSW indicator light in the instrument cluster goes off and the BSWturns off. To turn the BSW ON/OFF, follow the proce- dure below. 1. Switch to the function setting screen. Refer to “Multi-information displayswitches” on page 5-142. Refer to “Changing the function settings” on page 5-152. 2. Press the switch or switch several times to switch to the “BSW” screen. Then, press the switch to the setting selection screen. 3. Press the switch or switch to select “ON” or “OFF”, and then press the
switch to confirm the setting.
Indicator light
If you turn the BSW ON/
OFF, the Rear Cross
Traffic Alert (RCTA) also turns ON/OFF at the same time.
When the BSW indicator light in the instru- ment cluster is on, if a vehicle is approaching your vehicle in the detection area, the Blind Spot Warning light in the outside rearviewmirror illuminates. If the turn signal lever is operated to the side where the Blind Spot Warning light is illumi-nated, the Blind Spot Warning light will blinkand the system will beep three times to alert the driver.
NOTE
 When the operation mode is set to OFF, the selected condition just before setting to OFFis retained.  The BSW operates when all of the following conditions are met. • The ignition switch is turned to the “ON” position or the operation mode is put in ON. • The selector lever is in positions other than “P” (PARK) and “R” (REVERSE). • The speed of your vehicle is approximately 6 mph (10 km/h) or higher.
When the sensor detects an approaching vehicle

NOTE
 The Blind Spot Warning light in the outside rearview mirror may come on or blink in the following conditions. • When driving very near the guardrail or the concrete wall.
BK0252700US.book
110 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped) Features and controls 5-111
5
N00592400042
If a problem occurs with the system, a visual warning specific to the type of the problem is given together with an audible alarm. The warnings are combined with the RearCross Traffic Alert (RCTA) system.
N00592700045
When the warning display appears, the BSW does not operate normally because there are some malfunctions in the system or the sen-sor. Have the vehicle inspected at an autho-rized Mitsubishi Motors
dealer as soon as
possible.
N00592800046
When the warning display appears, the sensor is temporarily not available for some reasonsuch as the environmental condition orincrease of the sensor temperature. When the warning display does not disappear after waiting for a while, contact an authorizedMitsubishi Motors dealer.
• When driving on the entrance and outlet of the tunnel or very near the wall or near the evacuation area inside the tunnel. • When turning a intersection in a town area.• Under adverse weather conditions (rain, snow, sand storm etc.). • When the your vehicle drives with blowing up the water, snow or sand etc. on the road. • When driving near a curb, pot hole and tramline.
 Set the BSW to OFF when towing.  The Blind Spot Warning light in the outside rearview mirror may not look due to strong direct sunlight or the glare from the head-lights of vehicles behind you during night driving.
System problem warning

NOTE
When there is a malfunction in the system or the sensor

NOTE
 When the warning display appears, the BSW will be deactivated.
When the sensor is temporarily not available

BK0252700US.book
111 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Rear Cross Traffic Alert (RCTA) (if so equipped) 5-112 Features and controls
5
N00592900050
When the warning display appears, the radar sensor cannot detect a vehicle traveling sideby side or an approaching vehicle, because foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sen-sor. Remove a dirt, freezing or foreign material on the bumper surface around the sensor.When the warning display does not disappear after having cleaned the bumper surface around the sensor, contact an authorizedMitsubishi Motors dealer.
N00593900057
For vehicles sold in U.S.A
.
FCC ID: OAYSRR3A This device complies with Part 15 of FCC Rules. Operation is subject to the following two con- ditions:
For vehicles sold in Canada Applicable law: Canada 310 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two con-ditions: Frequency bands: 24.05 - 24.25 GHz Output power: less than 20 milliwatts
N00593000058
The Rear Cross Traffic Alert (RCTA) is anaid system for backing up. When the RCTA system detects vehicles approaching from sides while your vehicle is reversing, theBlind Spot Warning lights in outside rearview mirrors on both sides will blink and a buzzer will sound to alert th
e driver. A warning mes-
sage will also appear on the informationscreen of the multi-information display.
When there is a foreign objects on the sensor

General information

(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may cause undesired operation.CAUTION FCC WarningChanges or modifications not expressly approved by the party responsible for com-pliance could void the user’s authority to operate the equipment.
(1) This device may not cause interference,
and
(2) This device must accept any interference,
including interference that may causeundesired operation of the device.
Rear Cross Traffic Alert (RCTA)
(if so equipped)
BK0252700US.book
112 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Rear Cross Traffic Alert (RCTA) (if so equipped)
5-114 Features and controls
5
1. Press the BSW switch while the operationmode is put in ON.
(Refer to “Blind Spot Warning (BSW): To
operate” on page 5-109.)
2. When the selector lever is moved to the
“R” (REVERSE) position, the RCTA will
operate.
If the system detects a problem, a warning is
displayed on the information screen in the
multi-information display.
Refer to “Blind Spot Warning (BSW): Sys-
tem problem warning” on page 5-111.
N00594000055
For vehicles sold in U.S.A.
FCC ID: OAYSRR3A
This device complies with Part 15 of FCC
Rules.
Operation is subject to the following two con-
ditions:
For vehicles sold in Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two con-
ditions:

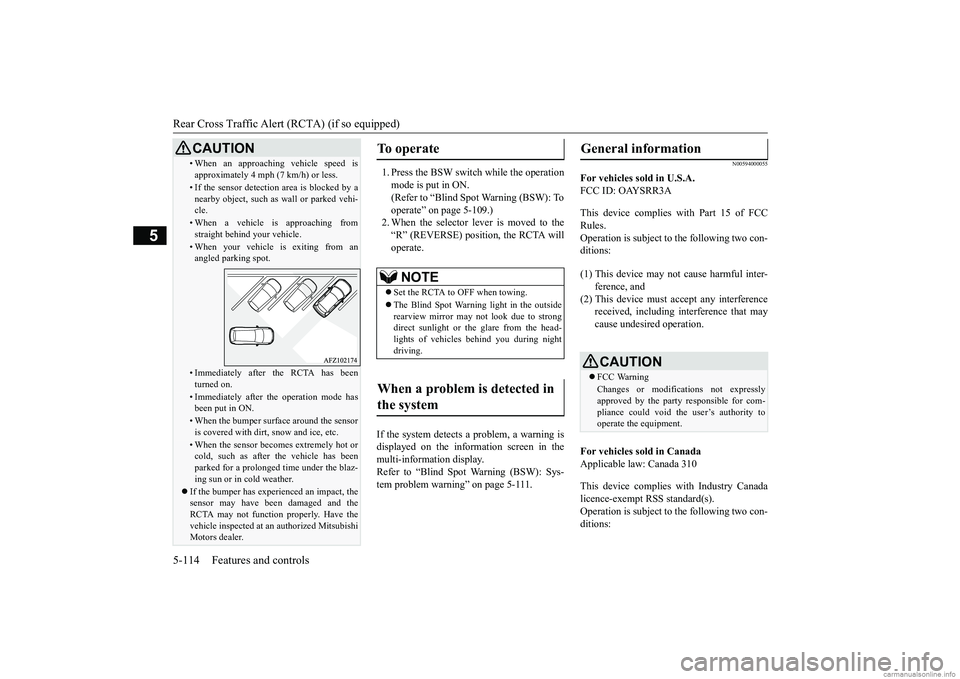

• When an approaching vehicle speed is approximately 4 mph (7 km/h) or less.• If the sensor detection area is blocked by anearby object, such as wall or parked vehi-
cle.• When a vehicle is approaching fromstraight behind your vehicle.• When your vehicle is exiting from anangled parking spot.• Immediately after the RCTA has beenturned on.• Immediately after the operation mode hasbeen put in ON.• When the bumper surface around the sensoris covered with dirt, snow and ice, etc.• When the sensor becomes extremely hot orcold, such as after the vehicle has been
parked for a prolonged time under the blaz-
ing sun or in cold weather. If the bumper has experienced an impact, the
sensor may have been damaged and the
RCTA may not function properly. Have the
vehicle inspected at an authorized Mitsubishi
Motors dealer.CAUTION
To operate

NOTE
Set the RCTA to OFF when towing.
 The Blind Spot Warning light in the outside
rearview mirror may not look due to strong
direct sunlight or the glare from the head-
lights of vehicles behind you during night
driving.When a problem is detected in
the system

General information

(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTIONFCC WarningChanges or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
BK0252700US.book 114 ページ ２０１７年１０月１２日　木曜日　午後１時２分

Lane Departure Warning (LDW) (if so equipped)Features and controls 5-115
5
Frequency bands: 24.05 - 24.25 GHz
Output power: less than 20 milliwatts
N00577900062

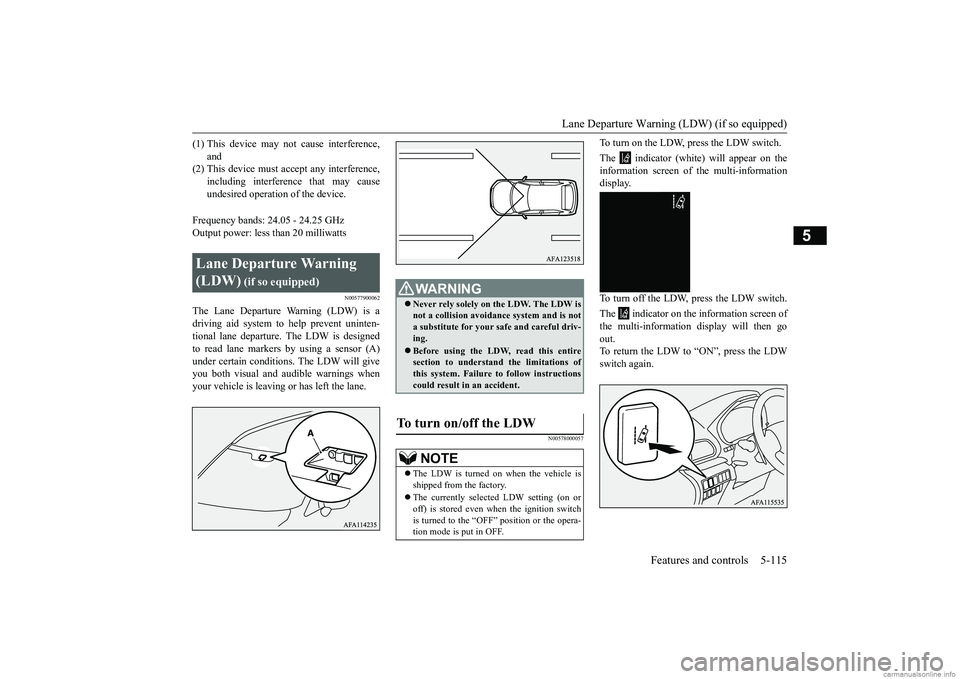

The Lane Departure Warning (LDW) is a
driving aid system to help prevent uninten-
tional lane departure. The LDW is designed
to read lane markers by using a sensor (A)
under certain conditions. The LDW will give
you both visual and audible warnings when
your vehicle is leaving or has left the lane.
N00578000057
To turn on the LDW, press the LDW switch.
The indicator (white) will appear on the
information screen of the multi-information
display.
To turn off the LDW, press the LDW switch.
The indicator on the information screen of
the multi-information display will then go
out.
To return the LDW to “ON”, press the LDW
switch again.
(1) This device may not cause interference,
and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Lane Departure Warning
(LDW)
(if so equipped)
WA R N I N GNever rely solely on the LDW. The LDW is
not a collision avoidance system and is not
a substitute for your safe and careful driv-
ing.Before using the LDW, read this entire
section to understand the limitations of
this system. Failure to follow instructions
could result in an accident.To turn on/off the LDW

NOTE
The LDW is turned on when the vehicle is
shipped from the factory.
 The currently selected LDW setting (on or
off) is stored even when the ignition switch
is turned to the “OFF” position or the opera-
tion mode is put in OFF.
BK0252700US.book 115 ページ ２０１７年１０月１２日　木曜日　午後１時２分

Lane Departure Warning (LDW) (if so equipped)
Features and controls 5-117
5
N00578100058

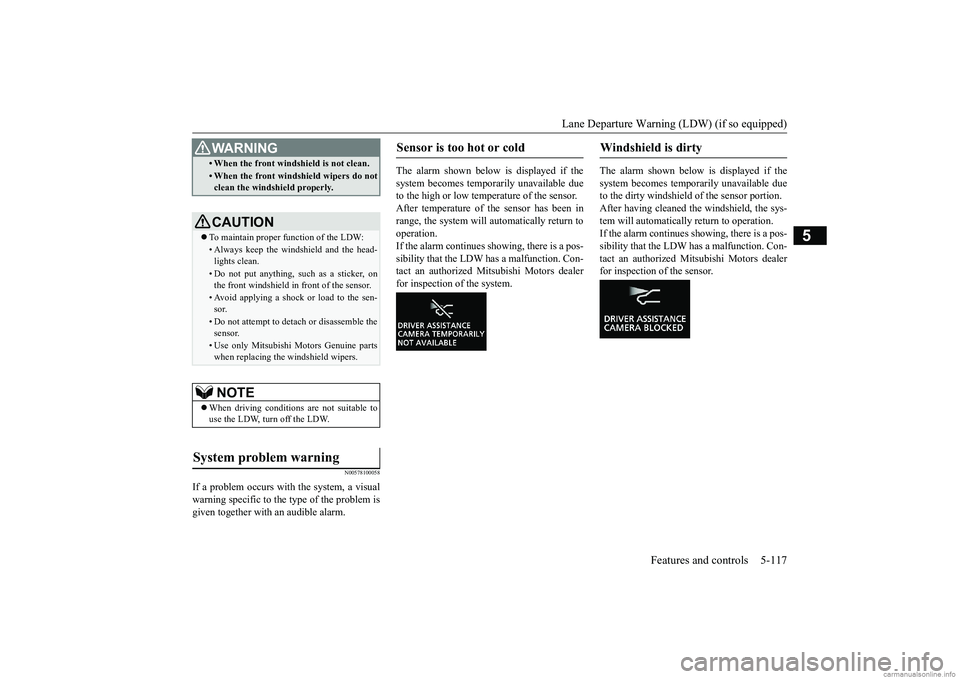

If a problem occurs with the system, a visual warning specific to the type of the problem isgiven together with an audible alarm.
The alarm shown below is displayed if the system becomes temporarily unavailable due to the high or low temperature of the sensor.After temperature of the sensor has been in range, the system will automatically return to operation.If the alarm continues showing, there is a pos- sibility that the LDW has a malfunction. Con- tact an authorized Mitsubishi Motors dealerfor inspection of the system.
The alarm shown below is displayed if the system becomes temporarily unavailable due to the dirty windshield of the sensor portion.After having cleaned the windshield, the sys- tem will automatically return to operation. If the alarm continues showing, there is a pos-sibility that the LDW has a malfunction. Con- tact an authorized Mitsubishi Motors dealer for inspection of the sensor.
• When the front windshield is not clean.• When the front windshield wipers do not clean the windshield properly.CAUTION To maintain proper function of the LDW:• Always keep the windshield and the head- lights clean.• Do not put anything, such as a sticker, onthe front windshield in front of the sensor.• Avoid applying a shock or load to the sen-sor.• Do not attempt to detach or disassemble thesensor.• Use only Mitsubishi Motors Genuine partswhen replacing the windshield wipers.NOTE
 When driving conditions are not suitable to use the LDW, turn off the LDW.
System problem warning

WA R N I N G
Sensor is too hot or cold

Windshield is dirty

BK0252700US.book
