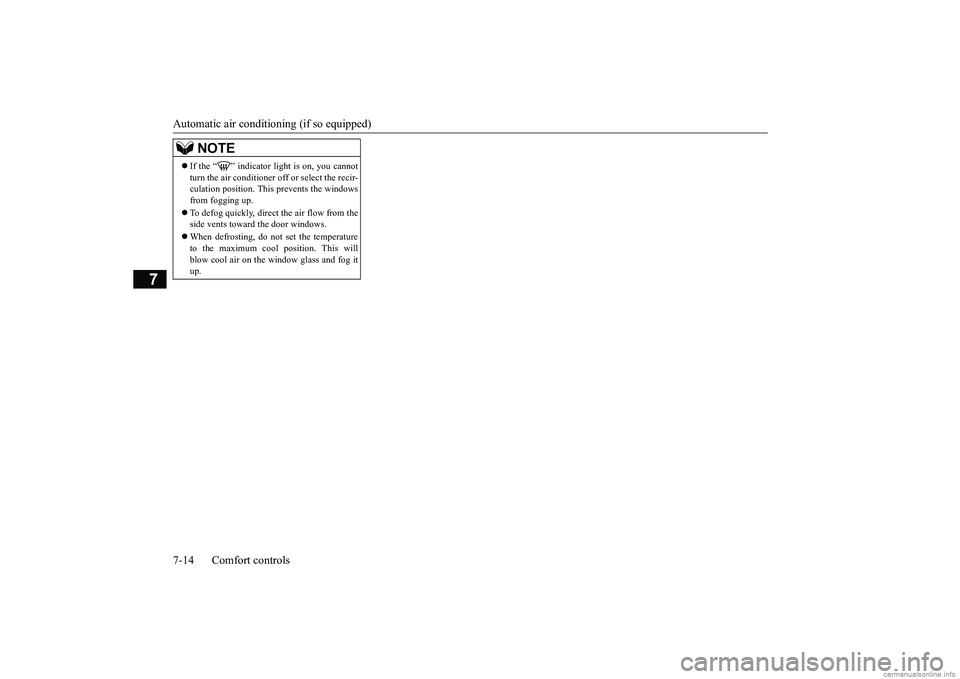

Automatic air conditioning (if so equipped) 7-14 Comfort controls
7
 If the “ ” indicator light is on, you cannot turn the air conditioner off or select the recir- culation position. This
prevents the windows
from fogging up.  To defog quickly, direct
the air flow from the
side vents toward the door windows.  When defrosting, do not set the temperature to the maximum cool position. This willblow cool air on the window glass and fog it up.NOTE
BK0252700US.bo
ok 14 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Dual-zone automatic climate control
air conditioning (if so equipped)
Comfort controls 7-15
7
N00731501454
The air conditioner can only be used while the engine is running.
N00711801712
Dual-zone automatic climate control air conditioning
(if so equipped)
Control panel

1- Driver’s side temperature control
switch
 P.7-17
2- MODE switch
 P.7-18
3- Blower speed selection switch

P.7-16
4- Air conditioning switch
 P.7-20
5- Passenger’s side temperature control
switch
 P.7-17
6- Air selection switch
 P.7-19
7- Defogger switch
 P.7-18
8- AUTO switch
 P.7-21
9- SYNC switch
 P.7-17
10- Electric rear window defogger switch
 P.5-204
11- OFF switch
 P.7-21
12- Driver’s side temperature display
 P.7-17
13- Mode selection display
 P.7-18
14- Air conditioning indicator
 P.7-20
15- Blower speed display
 P.7-16
16- Passenger’s side temperature display
 P.7-17
BK0252700US.bo
ok 15 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Dual-zone automatic climate control
air conditioning (if so equipped)
Comfort controls 7-17
7
N00737001464
Press of the temperature control switch to increase the temperature. Press of the temperature control switch to decrease the temperature.The selected temperature (A) will be shown in the display.
The above indicates the factory settings. You can personalize the air selection switch and
air conditioning switch to match your per- sonal preferences. Contact your authorized Mitsubishi Motors dealer or a repair facility of your choice forassistance. Refer to “Personalizing the air conditioning switch (Changing the function setting)” onpage 7-20. Refer to “Personalizing the air selection (Changing the function setting)” on page7-19. When the indicator light (A) goes off by pressing the passenger’s side temperature control switch (B) or the SYNC switch, thedriver’s side and the passenger’s side temper- ature can be controlled independently of each other.
Temperature control switch

NOTE
 The temperature value of air conditioner is switched in conjunction with outside temper- ature display unit of the multi-informationdisplay. Refer to “Changing the
temperature unit” on
page 5-155.
 When the engine coolant temperature is low, the air temperature from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the switch. To prevent the windshield and windows fromfogging up, the vent mode will be changed to “ ” and the blower speed will be reduced while the system is operating in the AUTOmode.  When you feel that it is hotter or colder than the set temperature, you may adjust it to your preference. For further information, we recommend youconsult an authorized Mitsubishi Motors dealer or a repair facility of your choice.  When the temperature is set to the highest or the lowest setting, the air selection and the air conditioner will be automatically changedas follows. Also, if the air selection is operated manually after an automatic changeover, manual oper-ation will be selected. • Quick Heating (When the temperature is set to the highest setting) Outside air will be introduced and the air conditioner will stop. • Quick Cooling (When the temperature is set to the lowest setting) Inside air will be recirculated and the air conditioner will operate.NOTE

To control the driver’s side and the passenger’s side temperature inde-pendently
BK0252700US.bo
ok 17 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Dual-zone automatic climate control
air conditioning (if so equipped)
Comfort controls 7-19
7
N00737201437
Normally, use the outside air position to keep the windshield and side windows clear and toquickly remove fog or frost from the wind- shield. To change the air selection, simply press the air selection switch.  Outside air {Indicator light (A) OFF} Outside air is introduced into the passen- ger compartment.  Recirculated air {Indicator light (A) ON} Air is recirculated inside the passenger compartment.
When the air conditioning turns on, the air selection is controll
ed automatically. When
the air conditioning turns off, the air selection automatically goes back to the outside posi- tion.If high cooling performance is desired, or if the outside air is dusty or contaminated in some way, use the recirculation position.Switch to the outside position every now andthen to keep the windows from fogging up.
N00712300065
You can change the following functions tomatch your preference.  Enable automatic air selection control: When the AUTO switch is pressed, the air selection switch will also be automatically controlled.  Disable automatic air selection control: Even when the AUTO switch is pressed, the air selection switch will not be auto- matically controlled.  Changing the settings: Press the air selection switch for approxi- mately 10 seconds or longer. When the setting has changed, the systemwill beep and the indicator light will flash.
NOTE
 When the defogger switch is pressed, the air conditioning system automatically operates and outside air (as opposed to recirculated air) is selected. This automatic switching control is carried out to prevent misting ofthe windows even if “Disable automatic air conditioning control” or “Disable automatic air selection control” is set. Refer to “Person-alizing the air conditioning switch (Changing the function setting)” on
page 7-20, “Person-
alizing the air selection (Changing the func-tion setting)” on page 7-19.  The indicator light (A) will go off when adjusting the blower speed.
Air selection switch

CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 If the mode selection is set to the “ ” posi- tion, you cannot turn the air conditioner offor select the recirculation position. This prevents the windows from fogging up.
 When the engine coolant temperature rises to a certain level, the air
selection is automati-
cally switched to the recirculation position and the indicator light (A) comes on. At this time, the system will not switch to the out-side position even if the air selection switch is pushed.

Personalizing the air selection (Changing the function setting) NOTE
BK0252700US.bo
ok 19 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Dual-zone automatic climate contro
l air conditioning (if so equipped)
7-20 Comfort controls
7
• When the setting has changed from enabled to disabled, the system will beep three times and the indicator light will flash three times.• When the setting has changed from dis- abled to enabled, the system will beep two times and the indicator light willflash three times. On vehicles equipped with the Smart- phone Link Display Audio, screen oper-ations can also be used to change thesetting. Refer to the separate owner’s manual for details.
N00737301483
Push the switch, and the air conditioning compressor will turn on. The “ ” indicator (A) will be shown in the display.
Push the switch again and the air condition- ing compressor will stop and the indicatorgoes off.
N00712200064
You can change the following functions to match your preference.  Enable automatic air conditioning control: When the AUTO switch is pressed, orwhen the temperature control switch has been set to the minimum temperature, the air conditioning switch is automaticallycontrolled.  Disable automatic air conditioning con- trol: The air conditioning switch is not auto- matically controlled, unless the air condi-tioning switch is used.  Changing the settings: Press the air conditioning switch for approximately 10 seconds or longer.When the setting has changed, the system will beep and the indicator light will flash. • When the setting has changed fromenabled to disabled, the system will beep three times and the indicator light will flash three times.• When the setting has changed from dis- abled to enabled, the system will beep two times and the indicator light willflash three times.
NOTE
 The factory setting is “Enable automatic air selection control”.  When the defogger switch is pressed, the air selection will automatically change to theoutside air position, even if the system is set to “Disable automatic air selection control”, in order to prevent windows from foggingup.
Air conditioning switch

NOTE
 If a problem is detected in the air condition- ing compressor, the “ ” indicator blinks. Press the air conditioning switch once to turn it off, then once more to turn it back on. If the“ ” indicator does not blink, there is no problem. If it does blink, have it checkedat an authorized Mitsubishi Motors dealer or a repair facility of your choice.  For example, sometimes after using a high- pressure car wash, the condenser can get wet, and the “ ” indicator blinks temporarily. Wait for a while, press the air conditioning switch once to turn the system off, then once more to turn it back on. Once the water evap- orates, the blinking will stop.

Personalizing the air conditioning switch (Changing the function set-ting)
BK0252700US.bo
ok 20 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Dual-zone automatic climate control
air conditioning (if so equipped)
Comfort controls 7-21
7
On vehicles equipped with the Smart- phone Link Display Audio, screen oper- ations can also be used to change the setting. Refer to the separate owner’smanual for details.
N00703501068
When the AUTO switch is pressed, the indi- cator light (A) comes on and the mode selec- tion, blower speed adjustment, recirculated/outside air selection, temperature adjustment, and air conditioner ON/OFF status are all controlled automatically. The selected modeand the blower speed are not shown in the display.
N00703601056
Push the switch to turn off the air condition- ing system.
NOTE
 The factory setting is “Enable automatic air conditioning control”.  When the defogger switch is pressed, the air conditioner will run automatically, even if the system is set to “Disable automatic airconditioning control”, in order to prevent windows from fogging up.
AUTO switch

OFF switch

BK0252700US.bo
ok 21 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Dual-zone automatic climate contro
l air conditioning (if so equipped)
7-22 Comfort controls
7
N00731701560
In normal conditions, use the system in the AUTO mode and follow these procedures: 1. Push the AUTO switch. 2. Set the temperature control switch to thedesired temperature. The temperature can be set within a range of around 61 (LO) to 89 (HI) (when the outside temperatureunit of the multi-information display shows °F) or 17 (LO) to 31 (HI) (when the outside temperature unit of the multi-information display shows °C).
The vents, recirculated/outside air, blower speed, temperature adjustment, and ON/OFF of the air conditioner w
ill be controlled auto-
matically.
N00731801125
Blower speed and vent mode may be con-trolled manually by setting the blower speed selection switch and the MODE switch to the desired positions. To return to automaticoperation, press the AUTO switch.
N00732401580
To remove frost or mist from the windshield and door windows, use the MODE switch or defogger switch (“ ” or “ ”). Use this setting to keep the windshield and door windows clear of mist, and to keep the leg area heated (when driving in rain orsnow).
Operating the air conditioning system (automatic mode)

NOTE
 Set the temperature at approximately 75 (when the outside temperature unit of the multi-information display shows °F) or 24 (when the outside temperature unit of the multi-information display shows °C) undernormal conditions.  When the engine coolant temperature is low, the air temperature from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the temper-ature switch. To prevent the windshield and windows from fogging up, the vent mode will be changed to “ ” and the blower speed will be reduced.
Operating the air conditioning system (manual mode)

Defrosting or defogging (wind- shield, door windows)

CAUTION For safety, make sure you have a clear view through all the windows.

For ordinary defrosting
BK0252700US.bo
ok 22 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Air purifier
Comfort controls 7-23
7
1. Set the air selection switch to the outside position. 2. Set the MODE switch to the “ ” posi- tion.3. Select your desired blower speed by pressing the blower speed selection switch.4. Select your desired temperature by press- ing the temperature control switch. 5. Push the air conditioning switch. 1. Push the defogger switch. 2. Set the temperature to the highest posi-tion.
N00733801217
The air conditioning system is equipped withan air filter to remove pollen and dust.The air filter’s ability to collect pollen and dirt is reduced as it becomes dirty, so replace it periodically. For the maintenance interval,refer to the “WARRANTY AND MAINTE- NANCE MANUAL”.

For quick defrosting
NOTE
While the “ ” indicator light is on, the air conditioning compressor will run automati- cally. The outside air position will also be selected and the blower speed will be set atthe maximum automatically.  If the “ ” indicator light is on, you cannot turn the air conditioner of
f or select the recir-
culation position. This prevents the windows from fogging up.  To defog quickly, direct
the air flow from the
side vents toward the door windows.  When defrosting, do not set the temperature to the maximum cool position. This will blow cool air on the window glass and fog itup.
Air purifier
NOTE
 Operation in certain conditions such as driv- ing on a dusty road and frequent use of the air conditioner can lead to reduction of ser- vice life of the filter.
When you feel that the
air flow is lower than normal or when thewindshield or windows start to fog up easily, replace the air filter. Contact your authorized Mitsubishi Motorsdealer or a repair facility of your choice for assistance.
BK0252700US.bo
ok 23 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Transfer oil (All-wheel drive models) Vehicle care and maintenance 9-9
9
Use only “Mitsubishi Motors Genuine CVTF-J4” transmission fluid to ensure opti-mum transmission performance. Do not use any fluid additives to the trans- mission.
N00938401308
Whenever the transfer oil level is checked,add oil as necessary to maintain the proper level. Fill with the oil according to the fol-lowing table.
N00915201295
Whenever the oil level is checked, add oil asnecessary to maintain the proper level.Fill with the oil according to the table below.
N00938601401
The windshield and rear window washer fluid reservoir is in the engine compartment.
Check the washer fluid level at regular inter- vals and add washer fluid to reservoir if nec- essary. Open the reservoir cap and check the fluidlevel with the dipstick. When freezing weather is anticipated, flush out the water in the reservoir by operating thepump. Fill the reservoir with windshield anti-freeze (not radiator antifreeze), and operate the system for a few seconds to flush out the residual water.
N00938701301
Check the fluid level in the reservoir.The fluid level must be between the “MAX”and “MIN” marks on the reservoir.
Fluid type
CAUTION Using the improper transaxle fluid may dam- age the transaxle.
Special additives Transfer oil (All-wheel drive models)
Fluid type Lubricant
Mitsubishi Motors Genuine Super Hypoid Gear Oil API
GL-5
Viscosity range
SAE 80
Rear axle oil (All-wheel drive models) Fluid type Lubricant
Mitsubishi Motors Genuine Super Hypoid Gear Oil API
GL-5
Viscosity range
SAE 80
Washer fluid
Brake fluid To check the fluid level
FULL
EMPTY
