ESP inoperative MITSUBISHI ECLIPSE CROSS 2018 Owner's Manual (in English)

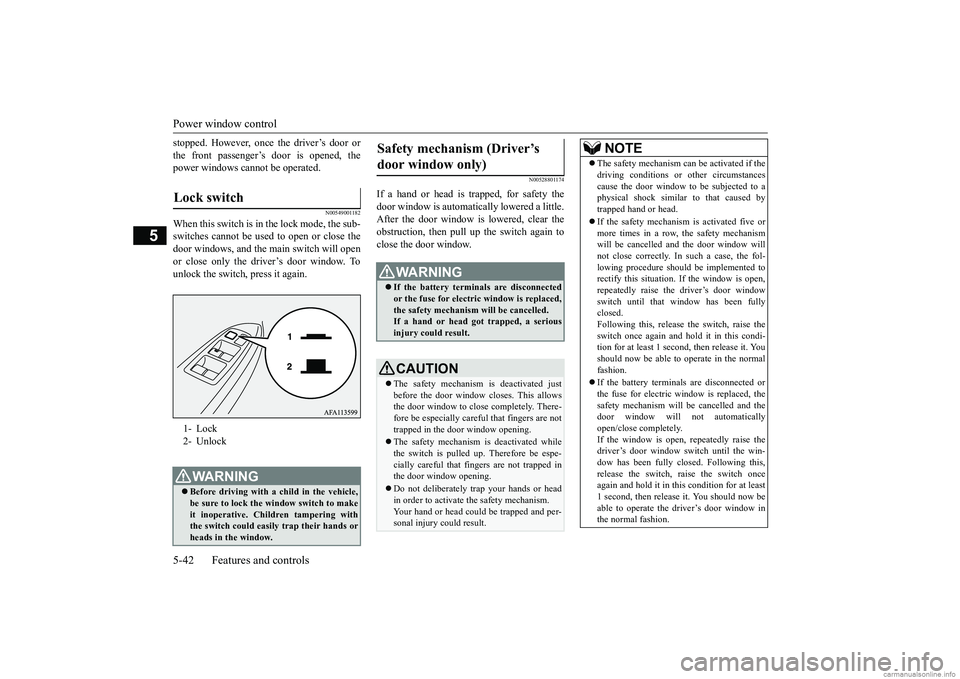

Power window control 5-42 Features and controls
5
stopped. However, once the driver’s door or the front passenger’s door is opened, the power windows cannot be operated.
N00549001182
When this switch is in the lock mode, the sub-switches cannot be used to open or close the door windows, and the main switch will openor close only the driver’s door window. Tounlock the switch, press it again.
N00528801174
If a hand or head is trapped, for safety thedoor window is automatically lowered a little. After the door window is lowered, clear the obstruction, then pull up the switch again toclose the door window.
Lock switch 1- Lock 2- UnlockWA R N I N G Before driving with a child in the vehicle, be sure to lock the window switch to make it inoperative. Children tampering withthe switch could easily trap their hands or heads in the window.
Safety mechanism (Driver’s door window only)
WA R N I N G If the battery terminals are disconnected or the fuse for electric window is replaced, the safety mechanism will be cancelled.If a hand or head got trapped, a serious injury could result.CAUTION The safety mechanism is deactivated just before the door window closes. This allows the door window to close completely. There- fore be especially careful that fingers are nottrapped in the door window opening. The safety mechanism is deactivated while the switch is pulled up. Therefore be espe- cially careful that fingers are not trapped inthe door window opening. Do not deliberately trap your hands or head in order to activate the safety mechanism. Your hand or head could be trapped and per- sonal injury could result.
NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the door window to be subjected to a physical shock similar to that caused by trapped hand or head.  If the safety mechanism is activated five or more times in a row, the safety mechanismwill be cancelled and the door window will not close correctly. In such a case, the fol- lowing procedure should be implemented torectify this situation. If the window is open, repeatedly raise the driver’s door window switch until that window has been fullyclosed. Following this, release the switch, raise the switch once again and hol
d it in this condi-
tion for at least 1 second, then release it. You should now be able to operate in the normal fashion.  If the battery terminals are disconnected or the fuse for electric window is replaced, thesafety mechanism will be cancelled and the door window will not automatically open/close completely.If the window is open, repeatedly raise the driver’s door window switch until the win- dow has been fully closed. Following this, release the switch, raise the switch once again and hold it in this
condition for at least
1 second, then release it. You should now be able to operate the driver’s door window in the normal fashion.
BK0252700US.bo
ok 42 ページ ２０１７年１０月４日　水曜日　午後４時５４分

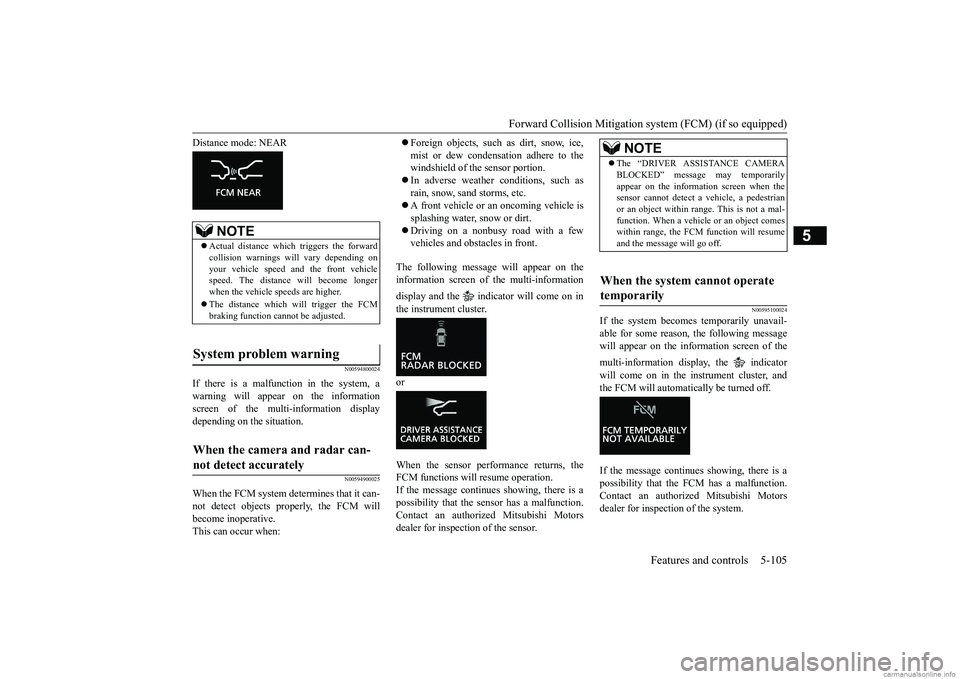

Forward Collision Mitigation sy
stem (FCM) (if so equipped) Features and controls 5-105
5
Distance mode: NEAR
N00594800024
If there is a malfunction in the system, a warning will appear on the information screen of the multi-information displaydepending on the situation.
N00594900025
When the FCM system determines that it can-not detect objects properly, the FCM willbecome inoperative. This can occur when:
 Foreign objects, such as dirt, snow, ice, mist or dew condensation adhere to the windshield of the sensor portion.  In adverse weather
conditions, such as
rain, snow, sand storms, etc.  A front vehicle or an oncoming vehicle is splashing water, snow or dirt. Driving on a nonbusy road with a few vehicles and obstacles in front.
The following message will appear on the information screen of the multi-information display and the indicator will come on in the instrument cluster. or When the sensor performance returns, the FCM functions will resume operation. If the message continues showing, there is a possibility that the sensor has a malfunction.Contact an authorized Mitsubishi Motorsdealer for inspection of the sensor.
N00595100024
If the system becomes temporarily unavail-able for some reason, the following messagewill appear on the information screen of the multi-information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message continues showing, there is a possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motorsdealer for inspection of the system.
NOTE
 Actual distance which triggers the forward collision warnings will vary depending on your vehicle speed and the front vehiclespeed. The distance will become longer when the vehicle speeds are higher.  The distance which will trigger the FCM braking function cannot be adjusted.
System problem warning

When the camera and radar can- not detect accurately

NOTE
 The “DRIVER ASSISTANCE CAMERA BLOCKED” message may temporarily appear on the information screen when the sensor cannot detect a vehicle, a pedestrian or an object within range. This is not a mal-function. When a vehicle or an object comes within range, the FCM function will resume and the message will go off.
When the system cannot operate temporarily

BK0252700US.book
105 ページ ２０１７年１０月４日　水曜日　午後４時５４分
