Automatic air conditioning (if so equipped)
Comfort controls 7-9
7
N00737101289
To change the amount of air flowing from the vents, press the MODE switch. Each time theMODE switch is pressed, the mode changes to the next one in the following sequence: “”
 “”
 “”
 “”
 “”

“ ”. The selected mode is shown in the dis- play (A). Refer to “Changing the mode selec- tion” on page 7-3.
N00703401096
When this switch is pressed, the mode changes to the “ ” mode and the blower speed will be set at the maximum automati- cally. The indicator light (A) will come on and the “ ” mode is shown in the display (B).
N00737201479
Normally, use the outside air position to keepthe windshield and side windows clear and toquickly remove fog or frost from the wind- shield. To change the air selection, simply press the air selection switch.  Outside air {Indicator light (A) OFF} Outside air is introduced into the passen- ger compartment.  Recirculated air {Indicator light (A) ON} Air is recirculated inside the passenger compartment.
MODE switch

Defogger switch

NOTE
 When the defogger switch is pressed, the air conditioning system automatically operates and outside air (as opposed to recirculated air) is selected. This automatic switching control is carried out to prevent misting ofthe windows even if “Disable automatic air conditioning control” or “Disable automatic air selection control” is set. Refer to “Person-alizing the air conditioning switch (Changing the function setting)” on page 7-11, “Person- alizing the air selection (Changing the func-tion setting)” on page 7-10.  The indicator light (A) will go off when adjusting the blower speed.
Air selection switch

BK0266800US.bo
ok 9 ページ ２０１８年６月２７日　水曜日　午後５時６分

Automatic air conditioning (if so equipped) 7-10 Comfort controls
7
When the air conditioning turns on, the air selection is controlled automatically. Whenthe air conditioning turns off, the air selection automatically goes back to the outside posi- tion.If high cooling performance is desired, or if the outside air is dusty or contaminated in some way, use the recirculation position.Switch to the outside po
sition every now and
then to keep the windows from fogging up.
N00712300052
You can change the following functions tomatch your preference.  Enable automatic air selection control: When the AUTO switch is pressed, the air selection switch will also be automatically controlled.  Disable automatic air selection control: Even when the AUTO switch is pressed, the air selection switch will not be auto- matically controlled.  Changing the settings: Press the air selection switch for approxi- mately 10 seconds or longer. When the setting has changed, the systemwill beep and the indicator light will flash.
• When the setting has changed from enabled to disabled, the system will beep three times and the indicator light will flash three times.• When the setting has changed from dis- abled to enabled, the system will beep two times and the indicator light willflash three times. On vehicles equipped with the Smart- phone Link Display Audio, screen oper-ations can also be used to change thesetting. Refer to the separate owner’s manual for details.
N00737301470
Push the switch, and the air conditioning compressor will turn on. The “ ” indicator (A) will be shown in the display.
CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 If the mode selection is set “ ” position, you cannot turn the air conditioning off orselect the recirculation position. This prevents the windows from fogging up.
 When the engine coolant temperature rises to a certain level, the air selection is automati- cally switched to the recirculation position and the indicator light (A) comes on. At this time, the system will not switch to the out-side position even if the air selection switch is pushed.

Personalizing the air selection (Changing the function setting) NOTE
NOTE
 The factory setting is “Enable automatic air selection control”.  When the defogger switch is pressed, the air selection will automatically change to theoutside air position, even if the system is set to “Disable automatic air selection control”, in order to prevent windows from foggingup.
Air conditioning switch

BK0266800US.bo
ok 10 ページ ２０１８年６月２７日　水曜日　午後５時６分

Automatic air conditioning (if so equipped)
Comfort controls 7-11
7
Push the switch again and the air condition- ing compressor will stop and the indicatorgoes off.
N00712200080
You can change the following functions to match your preference.  Enable automatic air conditioning control: When the AUTO switch is pressed, orwhen the temperature control switch has been set to the minimum temperature, the air conditioning switch is automaticallycontrolled.  Disable automatic air conditioning con- trol: The air conditioning switch is not auto- matically controlled, unless the air condi-tioning switch is used.  Changing the settings: Press the air conditioning switch for approximately 10 seconds or longer.When the setting has changed, the system will beep and the indicator light will flash. • When the setting has changed fromenabled to disabled, the system will beep three times and the indicator light will flash three times.• When the setting has changed from dis- abled to enabled, the system will beep two times and the indicator light willflash three times.
On vehicles equipped with the Smart- phone Link Display Audio, screen oper- ations can also be used to change the setting. Refer to the separate owner’smanual for details.
NOTE
 If a problem is detected in the air condition- ing compressor, the “ ” indicator blinks. Press the air conditioning switch once to turn it off, then once more to turn it back on. If the“ ” indicator does not blink, there is no problem. If it does blink, have it checkedat an authorized Mitsubishi Motors dealer or a repair facility of your choice.  For example, sometimes after using a high- pressure car wash, the condenser can get wet, and the “ ” indicator blinks temporarily. Wait for a while, press the air conditioning switch once to turn the system off, then once more to turn it back on. Once the water evap- orates, the blinking will stop.

Personalizing the air conditioning switch (Changing the function set-ting)
NOTE
 The factory setting is “Enable automatic air conditioning control”.  When the defogger switch is pressed, the air conditioning will run automatically, even if the system is set to “Disable automatic airconditioning control”, in order to prevent windows from fogging up.
BK0266800US.bo
ok 11 ページ ２０１８年６月２７日　水曜日　午後５時６分

Automatic air conditioning (if so equipped) 7-12 Comfort controls
7
N00703501071
When the AUTO switch is pressed, the indi- cator light (A) comes on and the mode selec-tion, blower speed adjustment, recirculated/ outside air selection, temperature adjustment, and air conditioning ON/OFF status are allcontrolled automatically. The selected mode and the blower speed are not shown in the display.
N00703601043
Push the switch to turn off the air condition-ing system.
N00731701603
In normal conditions, use the system in theAUTO mode and follow these procedures: 1. Push the AUTO switch. 2. Set the temperature control switch to thedesired temperature. The temperature can be set within a range of around 61 (LO) to 89 (HI) (when the outside temperatureunit of the multi-information display shows °F) or 17 (LO) to 31 (HI) (when the outside temperature unit of the multi-information display shows °C).
The vents, recirculated/outside air, blower speed, temperature adjustment, and ON/OFF of air conditioning will be controlled auto-matically.
AUTO switch

OFF switch

Operating the air conditioning system (automatic mode)

BK0266800US.bo
ok 12 ページ ２０１８年６月２７日　水曜日　午後５時６分

Automatic air conditioning (if so equipped)
Comfort controls 7-13
7
N00731801170
Blower speed and vent mode may be con- trolled manually by setting the blower speed selection switch and the MODE switch to the desired positions. To return to automaticoperation, press the AUTO switch.
N00732401623
To remove frost or mist from the windshield and door windows, use the MODE switch or defogger switch (“ ” or “ ”). Use this setting to keep the windshield and door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the air selection switch to the outside position.
2. Set the MODE switch to the “ ” posi- tion. 3. Select your desired blower speed by pressing the blower speed selectionswitch. 4. Select your desired temperature by press- ing the temperature control switch.5. Push the air conditioning switch. 1. Push the defogger switch. 2. Set the temperature to the highest posi- tion.
NOTE
 Set the temperature at approximately 75 (when the outside temperature unit of the multi-information display shows °F) or 24 (when the outside temperature unit of the multi-information display shows °C) undernormal conditions.  When the engine coolant temperature is low, the air temperature from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the temper-ature switch. To prevent the windshield and windows from fogging up, the vent mode will be changed to “ ” and the blower speed will be reduced.
Operating the air conditioning system (manual mode)

Defrosting or defogging (wind- shield, door windows)

CAUTION For safety, make sure you have a clear view through all the windows.

For ordinary defrosting

For quick defrosting NOTE
While the “ ” indicator light is on, the air conditioning compressor will run automati- cally. The outside air position will also beselected and the blower speed will be set at the maximum automatically.
BK0266800US.bo
ok 13 ページ ２０１８年６月２７日　水曜日　午後５時６分

Dual-zone automatic climate control
air conditioning (if so equipped)
Comfort controls 7-15
7
N00731501483
The air conditioning can only be used while the engine is running.
N00711801770
Dual-zone automatic climate control air conditioning
(if so equipped)

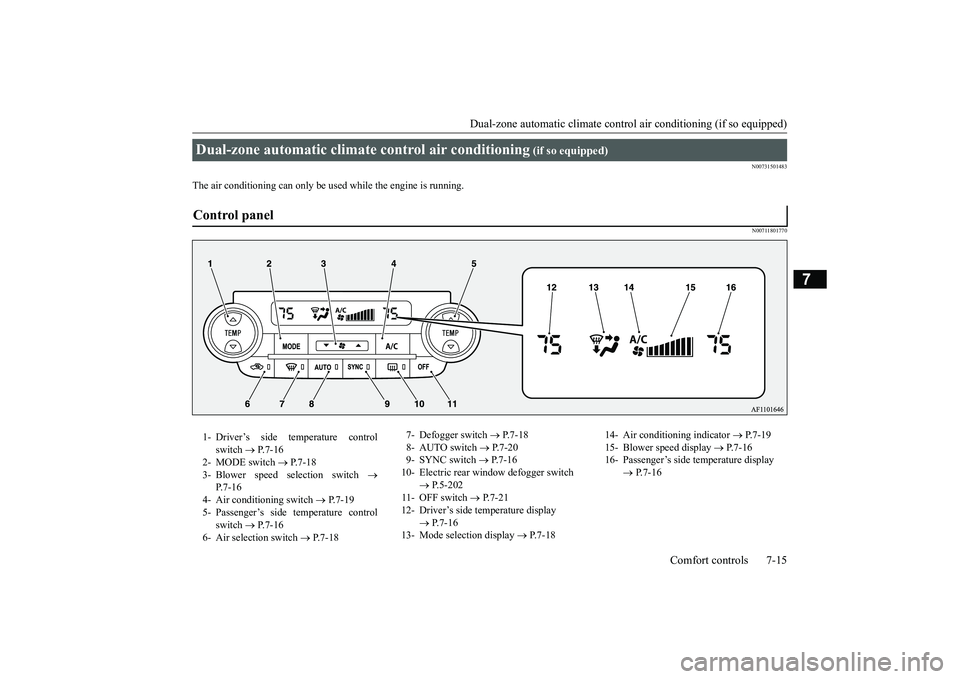

Control panel

1- Driver’s side temperature control
switch
 P.7-16
2- MODE switch
 P.7-18
3- Blower speed selection switch

P.7-16
4- Air conditioning switch
 P.7-19
5- Passenger’s side temperature control
switch
 P.7-16
6- Air selection switch
 P.7-18
7- Defogger switch
 P.7-18
8- AUTO switch
 P.7-20
9- SYNC switch
 P.7-16
10- Electric rear window defogger switch
 P.5-202
11- OFF switch
 P.7-21
12- Driver’s side temperature display
 P.7-16
13- Mode selection display
 P.7-18
14- Air conditioning indicator
 P.7-19
15- Blower speed display
 P.7-16
16- Passenger’s side temperature display
 P.7-16
BK0266800US.bo
ok 15 ページ ２０１８年６月２７日　水曜日　午後５時６分

Dual-zone automatic climate contro
l air conditioning (if so equipped)
7-16 Comfort controls
7
N00736901222
Press of the blower speed selection switch to increase the blower speed. Press of the blower speed selection switch to decrease the blower speed.The selected blower speed (A) will be shown in the display.
N00737001523
Press of the temperature control switch toincrease the temperature. Press of the temperature control switch to decrease the temperature.The selected temperature (A) will be shown in the display.
NOTE
 There is an interior air temperature sensor (A) in the illustrated position. Never place anything over the sensor, since doing so will prevent it from functioning properly.  Since the air conditioning operation is con- trolled while the ECO mode is operating, you may feel that effectiveness of the airconditioning is insufficient. Refer to “ECO mode switch” on page P.5-196.  Even during ECO mode operation, you can select normal operation of the air condition-ing. On vehicles equipped with the Smartphone Link Display Audio, screen operations canbe used to change the setting. Refer to the separate owner’s manual for details.  In extreme cold, the air conditioning control panel screen may operate sluggishly. This does not indicate a problem. It will disappear when the vehicle interior temperature rises to a normal temperature.
Blower speed selection switch

1- Increase 2- Decrease
Temperature control switch

NOTE
 The temperature value of air conditioning is switched in conjunction with outside temper- ature display unit of the multi-informationdisplay. Refer to “Changing the temperature unit” on page 5-153.
BK0266800US.bo
ok 16 ページ ２０１８年６月２７日　水曜日　午後５時６分

Dual-zone automatic climate contro
l air conditioning (if so equipped)
7-18 Comfort controls
7
N00737101292
To change the amount of air flowing from the vents, press the MODE switch. Each time theMODE switch is pressed, the mode changes to the next one in the following sequence: “”
 “”
 “”
 “”
 “”

“ ”. The selected mode is shown in the dis- play (A). Refer to “Changing the mode selec- tion” on page 7-3.
N00703401100
When this switch is pressed, the mode changes to the “ ” mode and the blower speed will be set at the maximum automati- cally. The indicator light (A) will come on and the “ ” mode is shown in the display (B).
N00737201482
Normally, use the outside air position to keepthe windshield and side windows clear and toquickly remove fog or frost from the wind- shield. To change the air selection, simply press the air selection switch.  Outside air {Indicator light (A) OFF} Outside air is introduced into the passen- ger compartment.  Recirculated air {Indicator light (A) ON} Air is recirculated inside the passenger compartment.
MODE switch

Defogger switch

NOTE
 When the defogger switch is pressed, the air conditioning system automatically operates and outside air (as opposed to recirculated air) is selected. This automatic switching control is carried out to prevent misting ofthe windows even if “Disable automatic air conditioning control” or “Disable automatic air selection control” is set. Refer to “Person-alizing the air conditioning switch (Changing the function setting)” on
page 7-20, “Person-
alizing the air selection (Changing the func-tion setting)” on page 7-19.  The indicator light (A) will go off when adjusting the blower speed.
Air selection switch

BK0266800US.bo
ok 18 ページ ２０１８年６月２７日　水曜日　午後５時６分

Dual-zone automatic climate control
air conditioning (if so equipped)
Comfort controls 7-19
7
When the air conditioning turns on, the air selection is controll
ed automatically. When
the air conditioning turns off, the air selection automatically goes back to the outside posi- tion.If high cooling performance is desired, or if the outside air is dusty or contaminated in some way, use the recirculation position.Switch to the outside position every now andthen to keep the windows from fogging up.
N00712300065
You can change the following functions tomatch your preference.  Enable automatic air selection control: When the AUTO switch is pressed, the air selection switch will also be automatically controlled.  Disable automatic air selection control: Even when the AUTO switch is pressed, the air selection switch will not be auto- matically controlled.  Changing the settings: Press the air selection switch for approxi- mately 10 seconds or longer. When the setting has changed, the systemwill beep and the indicator light will flash.
• When the setting has changed from enabled to disabled, the system will beep three times and the indicator light will flash three times.• When the setting has changed from dis- abled to enabled, the system will beep two times and the indicator light willflash three times. On vehicles equipped with the Smart- phone Link Display Audio, screen oper-ations can also be used to change thesetting. Refer to the separate owner’s manual for details.
N00737301483
Push the switch, and the air conditioning compressor will turn on. The “ ” indicator (A) will be shown in the display.
CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 If the mode selection is set to the “ ” posi- tion, you cannot turn the air conditioning offor select the recirculation position. This prevents the windows from fogging up.
 When the engine coolant temperature rises to a certain level, the air
selection is automati-
cally switched to the recirculation position and the indicator light (A) comes on. At this time, the system will not switch to the out-side position even if the air selection switch is pushed.

Personalizing the air selection (Changing the function setting) NOTE
NOTE
 The factory setting is “Enable automatic air selection control”.  When the defogger switch is pressed, the air selection will automatically change to theoutside air position, even if the system is set to “Disable automatic air selection control”, in order to prevent windows from foggingup.
Air conditioning switch

BK0266800US.bo
ok 19 ページ ２０１８年６月２７日　水曜日　午後５時６分

Dual-zone automatic climate contro
l air conditioning (if so equipped)
7-20 Comfort controls
7
Push the switch again and the air condition- ing compressor will stop and the indicatorgoes off.
N00712200093
You can change the following functions to match your preference.  Enable automatic air conditioning control: When the AUTO switch is pressed, orwhen the temperature control switch has been set to the minimum temperature, the air conditioning switch is automaticallycontrolled.  Disable automatic air conditioning con- trol: The air conditioning switch is not auto- matically controlled, unless the air condi-tioning switch is used.  Changing the settings: Press the air conditioning switch for approximately 10 seconds or longer.When the setting has changed, the system will beep and the indicator light will flash. • When the setting has changed fromenabled to disabled, the system will beep three times and the indicator light will flash three times.• When the setting has changed from dis- abled to enabled, the system will beep two times and the indicator light willflash three times.
On vehicles equipped with the Smart- phone Link Display Audio, screen oper- ations can also be used to change the setting. Refer to the separate owner’smanual for details.
N00703501084
When the AUTO switch is pressed, the indi- cator light (A) comes on and the mode selec- tion, blower speed adjustment, recirculated/outside air selection, temperature adjustment, and air conditioning ON/OFF status are all controlled automatically. The selected modeand the blower speed are not shown in the display.
NOTE
 If a problem is detected in the air condition- ing compressor, the “ ” indicator blinks. Press the air conditioning switch once to turn it off, then once more to turn it back on. If the“ ” indicator does not blink, there is no problem. If it does blink, have it checkedat an authorized Mitsubishi Motors dealer or a repair facility of your choice.  For example, sometimes after using a high- pressure car wash, the condenser can get wet, and the “ ” indicator blinks temporarily. Wait for a while, press the air conditioning switch once to turn the system off, then once more to turn it back on. Once the water evap- orates, the blinking will stop.

Personalizing the air conditioning switch (Changing the function set-ting)
NOTE
 The factory setting is “Enable automatic air conditioning control”.  When the defogger switch is pressed, the air conditioning will run automatically, even if the system is set to “Disable automatic airconditioning control”, in order to prevent windows from fogging up.
AUTO switch
