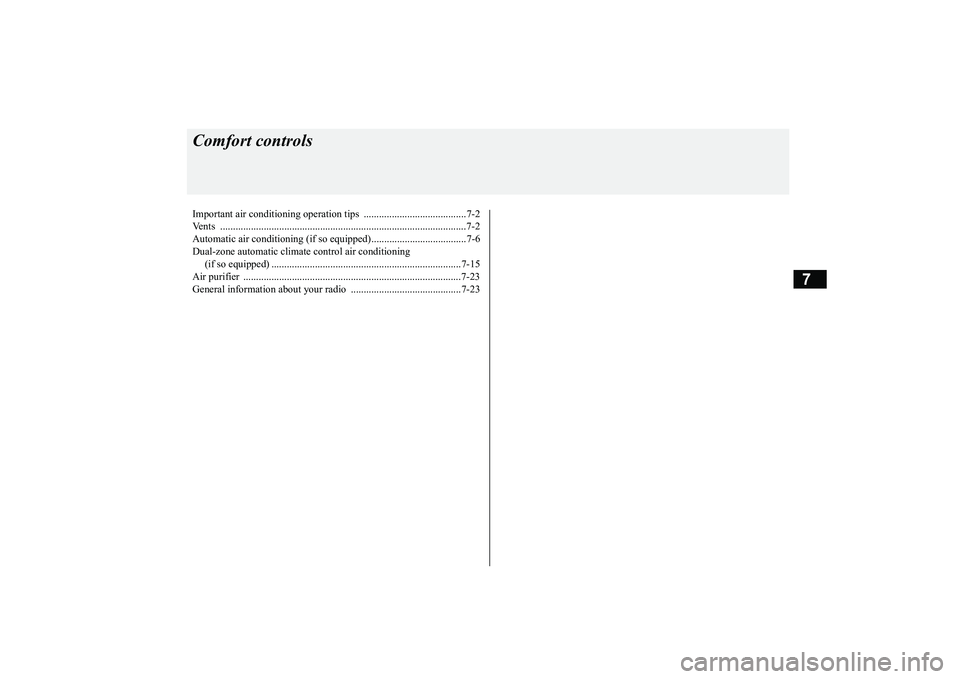

Comfort controlsImportant air conditioning op
eration tips ........................................7-2
Vents .........................................
.......................................................7-2
Automatic air conditioning (if so equipped).....................................7-6 Dual-zone automatic climate control air conditioning (if so equipped) .
.................................................
........................7-15
Air purifier ......................
...............................................................7-23
General information about
your radio ...........................................7-23
BK0266800US.bo
ok 1 ページ ２０１８年６月２７日　水曜日　午後５時６分

Important air conditioning operation tips 7-2 Comfort controls
7
N00733701405
1. Park the vehicle in the shade whenever possible. Parking in the hot sun makes thevehicle interior extremely hot which then requires more time to cool. If it is neces- sary to park in the sun, open the windowsfor the first few minutes of air condition- ing to expel the hot air. 2. Afterwards, keep the windows closedwhen the air conditioning is in use. The entry of outside air through open windows will reduce cooling efficiency.3. When running the air conditioning, make sure the air intake, which is located in front of the windshield, is free of obstruc-tions such as leaves. Leaves collected in the air-intake chamber may reduce air flow and plug the water drains.
If the air conditioning seems less effective than usual, the cause might be a refrigerant leak.Have the system inspected by your authorized Mitsubishi Motors dealer or a repair facility of your choice.
The air conditioning should be operated for at least five minutes each week, even in coldweather. This includes the quick defrosting mode. Operating the air conditioning system weekly maintains lubrication of the compres-sor internal parts to keep the air conditioning in the best operating condition.
N00729901318
Important air conditioning operation tips
CAUTION The engine speed may increase when the air conditioning is operating. With increased engine speed, a CVT equipped vehicle will creep to a greaterdegree than with a lower engine speed. Fully depress the brake pedal to prevent the vehi- cle from creeping.
Air conditioning system refrig- erant and lubricant recommen- dations
CAUTION The air conditioning system in your vehicle must be charged with the refrigerant HFO-1234yf and the lubricant PAG46A. Use of any other refrigerant or lubricant will cause severe damage and may require replac-ing your vehicle’s entire air conditioning system. The release of refrigerant into the atmo-sphere is not recommended. The new refrigerant HFO-1234yf in your vehicle is designed not to harm the earth’sozone layer. However, it may contribute slightly to global warming. It is recommended that the old refrigerant be saved and recycled for future use.
During a long period of disuse Ve n t s 1- Center vents 2- Side vents
BK0266800US.bo
ok 2 ページ ２０１８年６月２７日　水曜日　午後５時６分

Vents
Comfort controls 7-3
7
N00730201379
Move the knob (A) to make adjustments. To close the vent, move the knob (A) to the inside as far as possible.
Move the knob (A) to make adjustments. To close the vent, move the knob (A) to theoutside as far as possible.
N00736401764
To change the position and amount of airflowing from the vents, press the MODEswitch or defogger switch. Refer to “MODE switch” on page 7-9, 7-18, “Defogger switch” on page 7-9, 7-18.These symbols are used in the next several illustrations to demonstrate the quantity of air coming from the vents. : Small amount of air from the vents : Medium amount of air from the vents : Large amount of air from the vents Air flows only to the upper part of the passen- ger compartment.

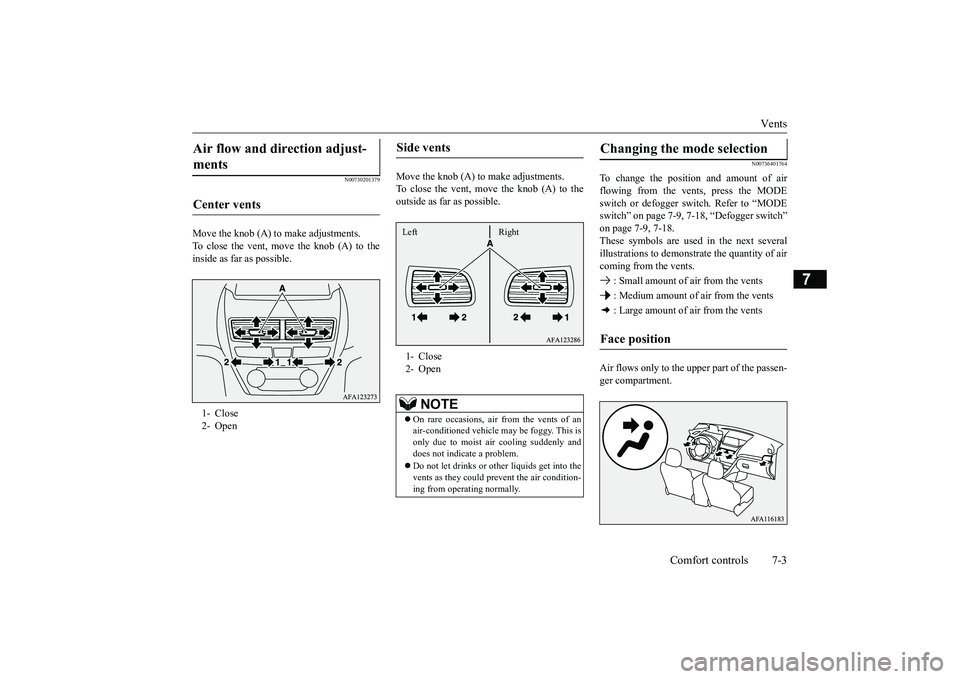

Air flow and direction adjust- ments Center vents 1- Close 2- Open
Side vents 1- Close2- Open
NOTE
 On rare occasions, air from the vents of an air-conditioned vehicle may be foggy. This isonly due to moist air cooling suddenly and does not indicate a problem.  Do not let drinks or ot
her liquids get into the
vents as they could prevent the air condition- ing from operating normally.Left Right
Changing the mode selection Face position
BK0266800US.bo
ok 3 ページ ２０１８年６月２７日　水曜日　午後５時６分

Vents 7-4 Comfort controls
7
Air flows to the upper part of the passenger compartment, and flows to the leg area.
Air flows mainly to the leg area. Air flows to the leg area, the windshield and
the door windows.

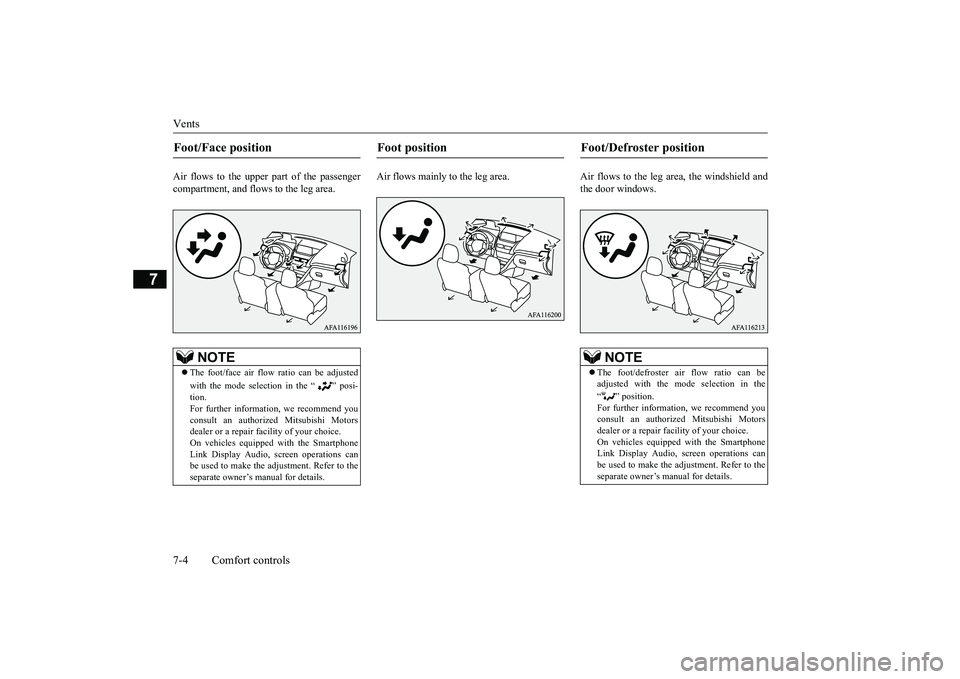

Foot/Face position
NOTE
 The foot/face air flow ratio can be adjusted with the mode selection in the “ ” posi- tion. For further information, we recommend you consult an authorized Mitsubishi Motors dealer or a repair facility of your choice.On vehicles equipped with the Smartphone Link Display Audio, screen operations can be used to make the adjustment. Refer to theseparate owner’s manual for details.
Foot position
Foot/Defroster position
NOTE
 The foot/defroster air flow ratio can be adjusted with the mode selection in the “ ” position. For further information, we recommend youconsult an authorized Mitsubishi Motors dealer or a repair facility of your choice. On vehicles equipped with the SmartphoneLink Display Audio, screen operations can be used to make the adjustment. Refer to the separate owner’s manual for details.
BK0266800US.bo
ok 4 ページ ２０１８年６月２７日　水曜日　午後５時６分

Vents
Comfort controls 7-5
7

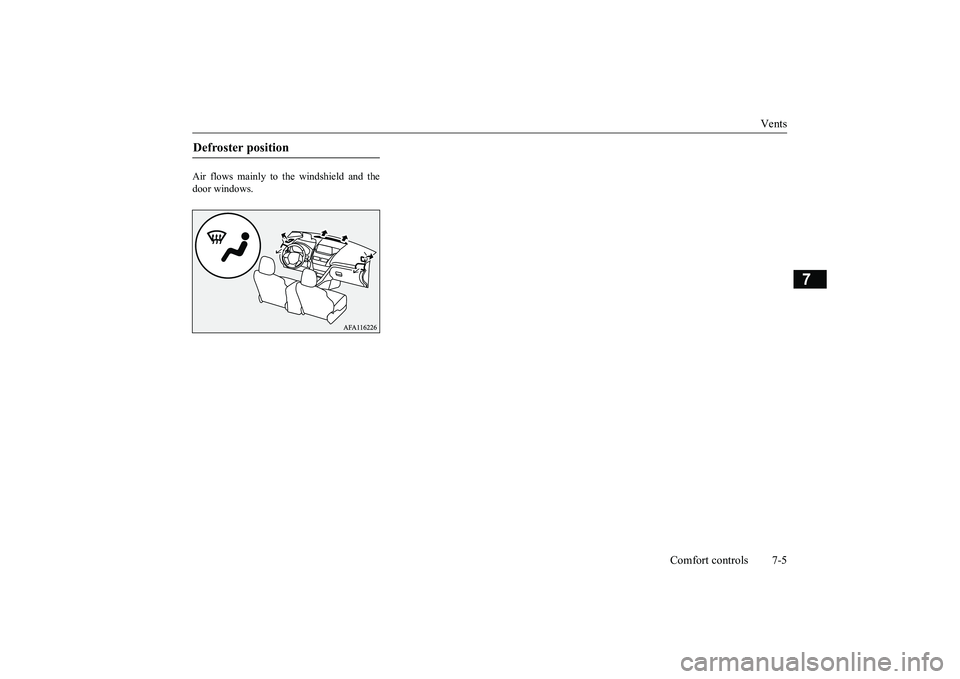

Air flows mainly to the windshield and the door windows.Defroster position
BK0266800US.bo
ok 5 ページ ２０１８年６月２７日　水曜日　午後５時６分

Automatic air conditioning (if so equipped) 7-6 Comfort controls
7
N00731501470
The air conditioning can only be us
ed while the engine is running.
N00711801767
Automatic air conditioning
(if so equipped)

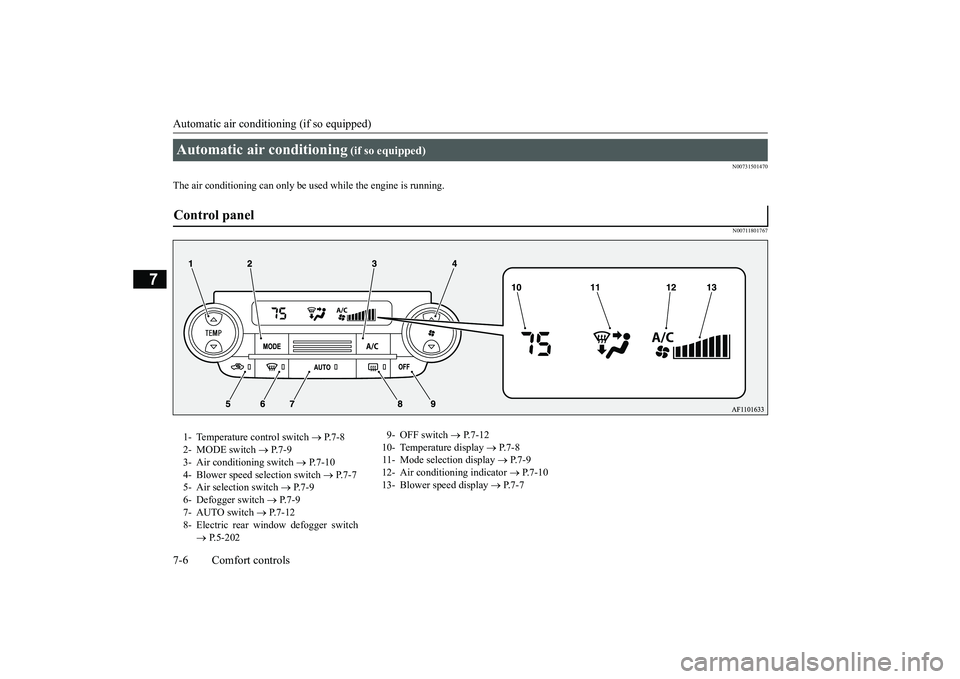

Control panel

1- Temperature control switch
 P.7-8
2- MODE switch
 P.7-9
3- Air conditioning switch
 P.7-10
4- Blower speed selection switch
 P.7-7
5- Air selection switch
 P.7-9
6- Defogger switch
 P.7-9
7- AUTO switch
 P.7-12
8- Electric rear window defogger switch
 P.5-202
9- OFF switch
 P.7-12
10- Temperature display
 P.7-8
11- Mode selection display
 P.7-9
12- Air conditioning indicator
 P.7-10
13- Blower speed display
 P.7-7
BK0266800US.bo
ok 6 ページ ２０１８年６月２７日　水曜日　午後５時６分

Automatic air conditioning (if so equipped)
Comfort controls 7-7
7
N00736901219
Press of the blower speed selection switch to increase the blower speed. Press of the blower speed selection switch to decrease the blower speed.The selected blower speed (A) will be shown in the display.
NOTE
 There is an interior air temperature sensor (A) in the illustrated position. Never place anything over the sensor, since doing so will prevent it from functioning properly.NOTE
 Since the air conditioning operation is con- trolled while the ECO mode is operating, you may feel that effectiveness of the air conditioning is insufficient.Refer to “ECO mode switch” on page P.5-196.  Even during ECO mode operation, you can select normal operation of the air condition- ing.On vehicles equipped with the Smartphone Link Display Audio, screen operations can be used to change the setting. Refer to the separate owner’s manual for details.
 In extreme cold, the air conditioning control panel screen may operate sluggishly. This does not indicate a problem. It will disappear when the vehicle interior temperature rises to a normal temperature.NOTE
Blower speed selection switch

1- Increase 2- Decrease
1 2
BK0266800US.bo
ok 7 ページ ２０１８年６月２７日　水曜日　午後５時６分

Automatic air conditioning (if so equipped) 7-8 Comfort controls
7
N00737001510
Press of the temperature control switch to increase the temperature. Press of the temperature control switch to decrease the temperature.The selected temperature (A) will be shown in the display.
The above indicates the factory settings. You can personalize the air selection switch and
air conditioning switch to match your per- sonal preferences. Contact your authorized Mitsubishi Motors dealer or a repair facility of your choice forassistance. Refer to “Personalizing the air conditioning switch (Changing the function setting)” onpage 7-11. Refer to “Personalizing the air selection (Changing the function setting)” on page7-10.
Temperature control switch

NOTE
 The temperature value of the air conditioning is switched in conjunction with the outside temperature display unit of the multi-infor-mation display. Refer to “Changing the temperature unit” on page 5-153.
 When the engine coolant temperature is low, the air temperature from the heater will be cool/cold until the engine warms up, even if you have selected warm
air with the switch.
To prevent the windshield and windows fromfogging up, the vent mode will be changed to “ ” and the blower speed will be reduced while the system is operating in the AUTOmode.  When you feel that it is hotter or colder than the set temperature, you may adjust it to your preference. For further information, we recommend youconsult an authorized Mitsubishi Motors dealer or a repair facility of your choice.  When the temperature is set to the highest or the lowest setting, the air selection and the air conditioning will be automaticallychanged as follows. Also, if the air selection is operated manually after an automatic changeover, manual oper-ation will be selected. • Quick Heating (When the temperature is set to the highest setting) Outside air will be introduced and the air conditioning will stop. • Quick Cooling (When the temperature is set to the lowest setting) Inside air will be recirculated and the air conditioning will operate.NOTE
BK0266800US.bo
ok 8 ページ ２０１８年６月２７日　水曜日　午後５時６分

Automatic air conditioning (if so equipped)
Comfort controls 7-9
7
N00737101289
To change the amount of air flowing from the vents, press the MODE switch. Each time theMODE switch is pressed, the mode changes to the next one in the following sequence: “”
 “”
 “”
 “”
 “”

“ ”. The selected mode is shown in the dis- play (A). Refer to “Changing the mode selec- tion” on page 7-3.
N00703401096
When this switch is pressed, the mode changes to the “ ” mode and the blower speed will be set at the maximum automati- cally. The indicator light (A) will come on and the “ ” mode is shown in the display (B).
N00737201479
Normally, use the outside air position to keepthe windshield and side windows clear and toquickly remove fog or frost from the wind- shield. To change the air selection, simply press the air selection switch.  Outside air {Indicator light (A) OFF} Outside air is introduced into the passen- ger compartment.  Recirculated air {Indicator light (A) ON} Air is recirculated inside the passenger compartment.
MODE switch

Defogger switch

NOTE
 When the defogger switch is pressed, the air conditioning system automatically operates and outside air (as opposed to recirculated air) is selected. This automatic switching control is carried out to prevent misting ofthe windows even if “Disable automatic air conditioning control” or “Disable automatic air selection control” is set. Refer to “Person-alizing the air conditioning switch (Changing the function setting)” on page 7-11, “Person- alizing the air selection (Changing the func-tion setting)” on page 7-10.  The indicator light (A) will go off when adjusting the blower speed.
Air selection switch
