System control MITSUBISHI ECLIPSE CROSS 2019 (in English) Workshop Manual

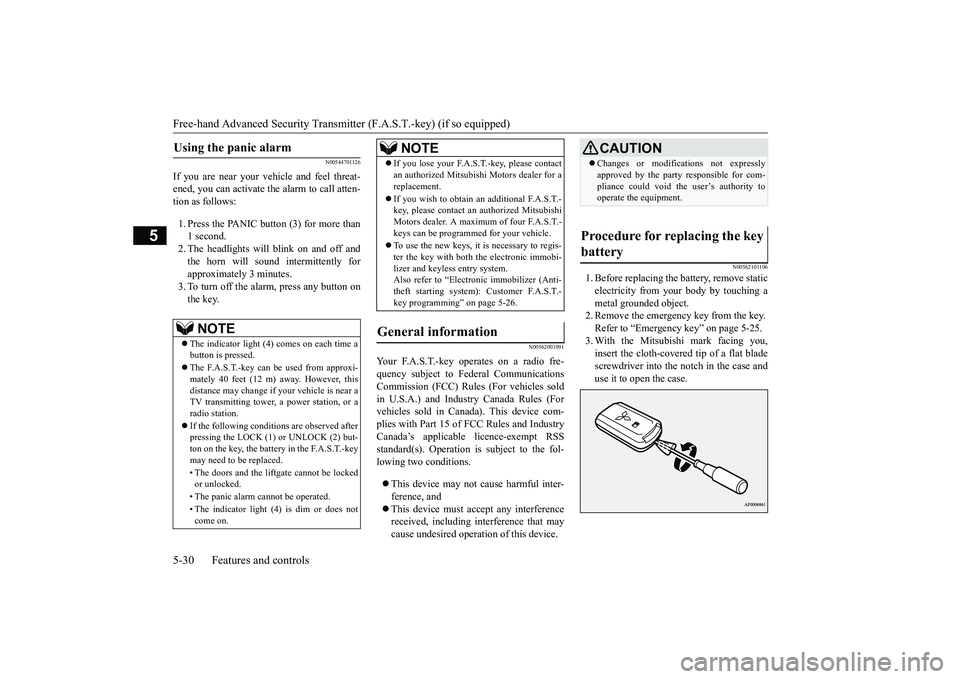

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-30 Features and controls
5
N00544701126
If you are near your vehicle and feel threat- ened, you can activate the alarm to call atten-tion as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off andthe horn will sound intermittently for approximately 3 minutes. 3. To turn off the alarm, press any button onthe key.
N00562001091
Your F.A.S.T.-key operates on a radio fre- quency subject to Federal Communications Commission (FCC) Rules (For vehicles soldin U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device com- plies with Part 15 of FCC Rules and IndustryCanada’s applicable licence-exempt RSS standard(s). Operation is subject to the fol- lowing two conditions.  This device may not cause harmful inter- ference, and  This device must accept any interference received, including interference that maycause undesired operation of this device.
N00562101106
1. Before replacing the battery, remove staticelectricity from your body by touching ametal grounded object. 2. Remove the emergency key from the key. Refer to “Emergency key” on page 5-25.3. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the case anduse it to open the case.
Using the panic alarm

NOTE
 The indicator light (4) comes on each time a button is pressed.  The F.A.S.T.-key can be used from approxi- mately 40 feet (12 m) away. However, this distance may change if your vehicle is near aTV transmitting tower, a power station, or a radio station.  If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but- ton on the key, the battery in the F.A.S.T.-key may need to be replaced. • The doors and the liftgate cannot be locked or unlocked. • The panic alarm cannot be operated. • The indicator light (4) is dim or does not come on.
 If you lose your F.A.S.T.-key, please contact an authorized Mitsubish
i Motors dealer for a
replacement.  If you wish to obtain an
additional F.A.S.T.-
key, please contact an authorized Mitsubishi Motors dealer. A maximum of four F.A.S.T.- keys can be programmed for your vehicle.  To use the new keys, it is necessary to regis- ter the key with both the electronic immobi-lizer and keyless entry system. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer F.A.S.T.-key programming” on page 5-26.
General information

NOTE
CAUTION Changes or modifications not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment.
Procedure for replacing the key battery

BK0266800US.bo
ok 30 ページ ２０１８年６月２７日　水曜日　午後５時６分

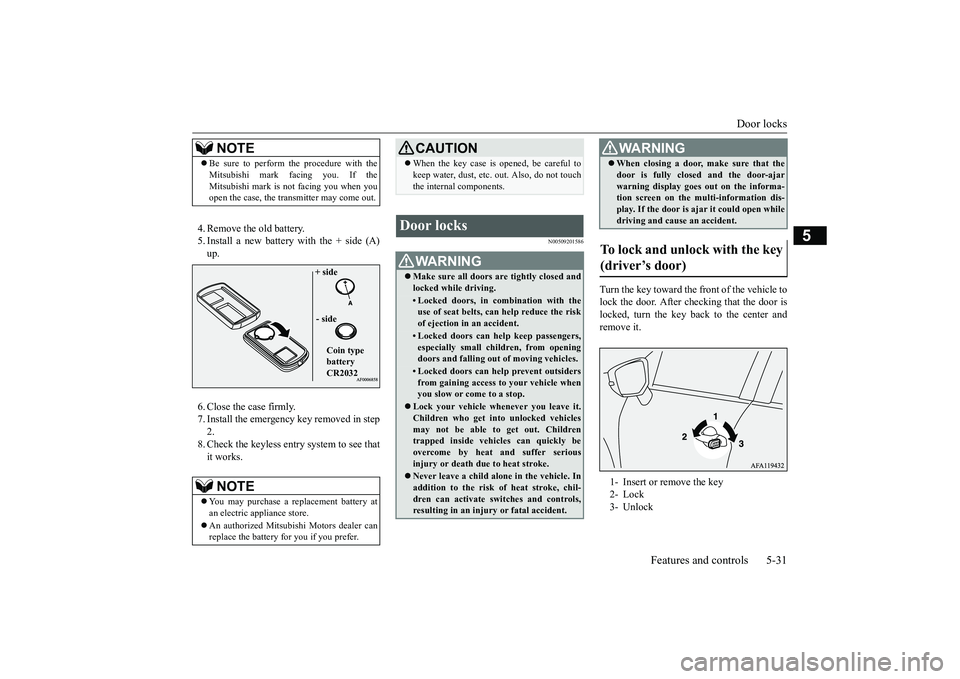

Door locks
Features and controls 5-31
5
4. Remove the old battery. 5. Install a new battery with the + side (A) up. 6. Close the case firmly. 7. Install the emergency key removed in step 2.8. Check the keyless entry system to see that it works.
N00509201586
Turn the key toward the front of the vehicle tolock the door. After ch
ecking that the door is
locked, turn the key back to the center andremove it.
NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubishi mark is not facing you when you open the case, the transmitter may come out.NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.
+ side - side Coin type battery CR2032
CAUTION When the key case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal components.
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in combination with theuse of seat belts, can help reduce the riskof ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out of moving vehicles.• Locked doors can help prevent outsidersfrom gaining access to your vehicle when you slow or come to a stop.
 Lock your vehicle whenever you leave it. Children who get into unlocked vehiclesmay not be able to get out. Children trapped inside vehicles can quickly be overcome by heat and suffer serious injury or death due to heat stroke. Never leave a child alone in the vehicle. In addition to the risk of heat stroke, chil- dren can activate switches and controls,resulting in an injury or fatal accident.
 When closing a door, make sure that the door is fully closed and the door-ajar warning display goes out on the informa- tion screen on the multi-information dis- play. If the door is ajar it could open whiledriving and cause an accident.
To lock and unlock with the key (driver’s door) 1- Insert or remove the key 2- Lock 3- UnlockWA R N I N G
BK0266800US.bo
ok 31 ページ ２０１８年６月２７日　水曜日　午後５時６分

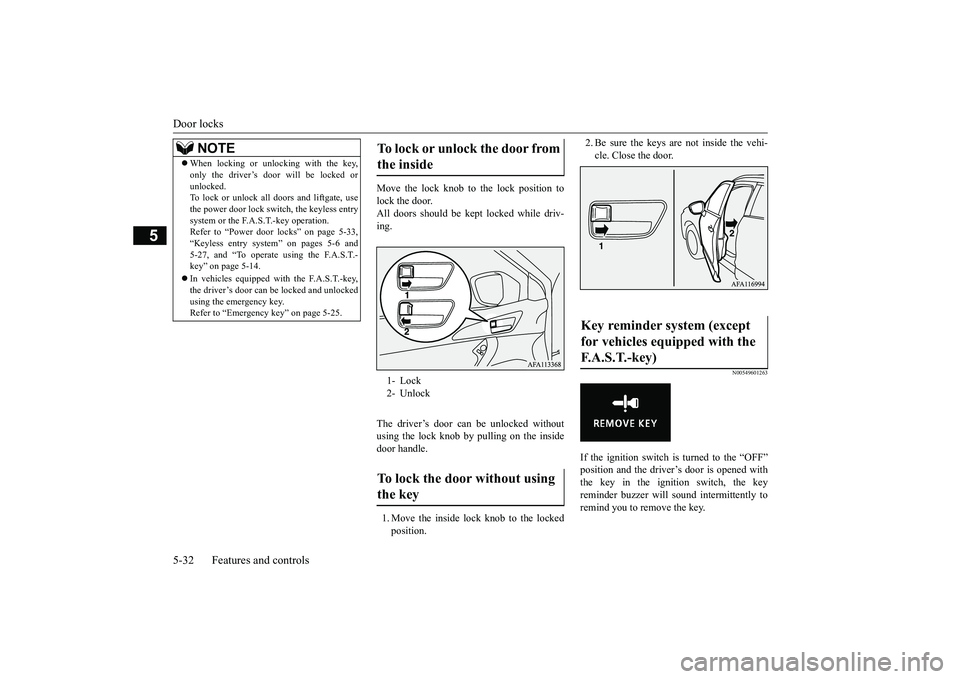

Door locks 5-32 Features and controls
5
Move the lock knob to the lock position to lock the door.All doors should be kept locked while driv- ing. The driver’s door can be unlocked without using the lock knob by pulling on the inside door handle. 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehi- cle. Close the door.
N00549601263
If the ignition switch is
turned to the “OFF”
position and the driver’s door is opened with the key in the ignition switch, the keyreminder buzzer will sound intermittently to remind you to remove the key.
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked or unlocked. To lock or unlock all doors and liftgate, use the power door lock switch, the keyless entrysystem or the F.A.S.T.-key operation. Refer to “Power door locks” on page 5-33, “Keyless entry system” on pages 5-6 and5-27, and “To operate using the F.A.S.T.- key” on page 5-14.  In vehicles equipped with the F.A.S.T.-key, the driver’s door can be locked and unlocked using the emergency key.Refer to “Emergency key” on page 5-25.
To lock or unlock the door from the inside 1- Lock 2- UnlockTo lock the door without using the key
Key reminder system (except for vehicles equipped with the F. A . S . T. - k e y )
BK0266800US.bo
ok 32 ページ ２０１８年６月２７日　水曜日　午後５時６分

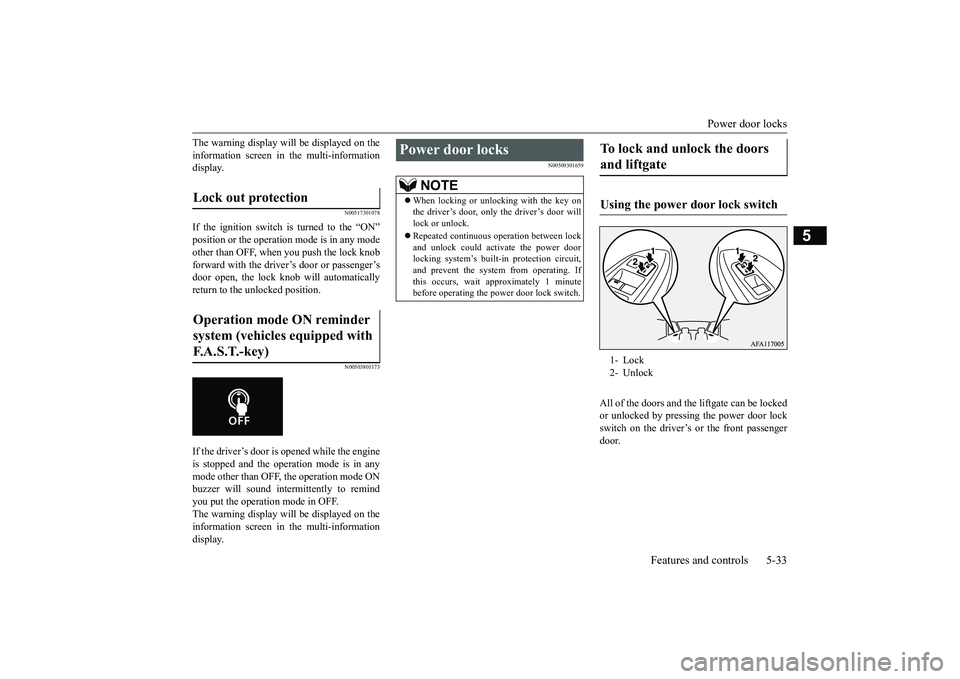

Power door locks
Features and controls 5-33
5
The warning display will be displayed on the information screen in the multi-information display.
N00517301078
If the ignition switch is turned to the “ON”position or the operation mode is in any mode other than OFF, when you push the lock knobforward with the driver’s door or passenger’sdoor open, the lock knob will automatically return to the unlocked position.
N00503801173
If the driver’s door is opened while the engine is stopped and the operation mode is in any mode other than OFF, the operation mode ON buzzer will sound intermittently to remindyou put the operation mode in OFF. The warning display will be displayed on the information screen in the multi-informationdisplay.
N00509301659
All of the doors and the
liftgate can be locked
or unlocked by pressing the power door lock switch on the driver’s or the front passengerdoor.
Lock out protection Operation mode ON reminder system (vehicles equipped with F. A . S . T. - k e y )
Power door locks
NOTE
 When locking or unlocking with the key on the driver’s door, only the driver’s door will lock or unlock.  Repeated continuous operation between lock and unlock could activate the power door locking system’s built-in protection circuit,and prevent the system from operating. If this occurs, wait approximately 1 minute before operating the power door lock switch.
To lock and unlock the doors and liftgate Using the power door lock switch 1- Lock 2- Unlock
BK0266800US.bo
ok 33 ページ ２０１８年６月２７日　水曜日　午後５時６分

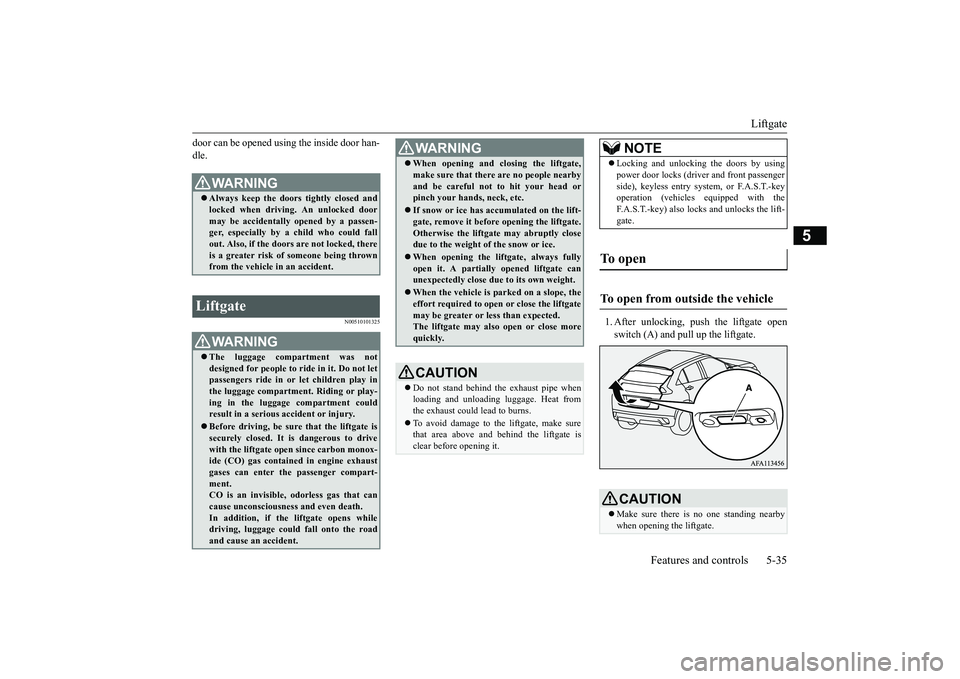

Liftgate
Features and controls 5-35
5
door can be opened using the inside door han- dle.
N00510101325
1. After unlocking, push the liftgate open switch (A) and pull up the liftgate.
WA R N I N G Always keep the doors tightly closed and locked when driving. An unlocked door may be accidentally opened by a passen-ger, especially by a child who could fall out. Also, if the doors are not locked, there is a greater risk of someone being thrownfrom the vehicle in an accident.
Liftgate
WA R N I N G The luggage compartment was not designed for people to ride in it. Do not letpassengers ride in or
let children play in
the luggage compartment. Riding or play- ing in the luggage compartment couldresult in a serious accident or injury. Before driving, be sure that the liftgate is securely closed. It is dangerous to drive with the liftgate open
since carbon monox-
ide (CO) gas contained in engine exhaust gases can enter the passenger compart- ment.CO is an invisible, odorless gas that can cause unconsciousness and even death. In addition, if the liftgate opens whiledriving, luggage could fall onto the road and cause an accident.
 When opening and closing the liftgate, make sure that there are no people nearby and be careful not to hit your head or pinch your hands, neck, etc. If snow or ice has accumulated on the lift- gate, remove it before opening the liftgate. Otherwise the liftgate may abruptly closedue to the weight of the snow or ice. When opening the liftgate, always fully open it. A partially opened liftgate can unexpectedly close due to its own weight. When the vehicle is pa
rked on a slope, the
effort required to open or close the liftgate may be greater or less than expected.The liftgate may also open or close more quickly.CAUTION Do not stand behind the exhaust pipe when loading and unloading luggage. Heat fromthe exhaust could lead to burns. To avoid damage to the liftgate, make sure that area above and behind the liftgate is clear before opening it.WA R N I N G
NOTE
 Locking and unlocking the doors by using power door locks (driver and front passenger side), keyless entry system, or F.A.S.T.-key operation (vehicles equipped with the F.A.S.T.-key) also locks and unlocks the lift-gate.
To open To open from outside the vehicle
CAUTION Make sure there is no one standing nearby when opening the liftgate.
BK0266800US.bo
ok 35 ページ ２０１８年６月２７日　水曜日　午後５時６分

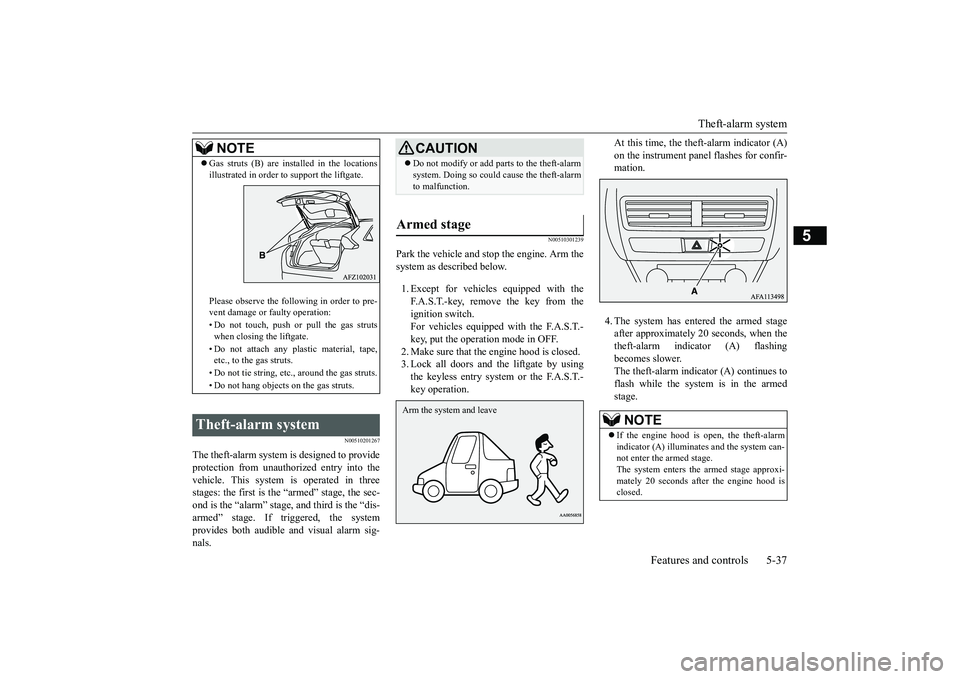

Theft-alarm system
Features and controls 5-37
5
N00510201267
The theft-alarm system is designed to provide protection from unauthorized entry into thevehicle. This system is operated in three stages: the first is the “armed” stage, the sec- ond is the “alarm” stage,
and third is the “dis-
armed” stage. If triggered, the system provides both audible and visual alarm sig- nals.
N00510301239
Park the vehicle and stop the engine. Arm thesystem as described below. 1. Except for vehicles equipped with the F.A.S.T.-key, remove the key from the ignition switch. For vehicles equipped with the F.A.S.T.-key, put the operation mode in OFF. 2. Make sure that the engine hood is closed. 3. Lock all doors and the liftgate by usingthe keyless entry system or the F.A.S.T.- key operation.
At this time, the theft-alarm indicator (A) on the instrument panel flashes for confir- mation. 4. The system has entered the armed stage after approximately 20 seconds, when thetheft-alarm indicator (A) flashing becomes slower. The theft-alarm indicator (A) continues toflash while the system is in the armedstage.
NOTE
 Gas struts (B) are installed in the locations illustrated in order to support the liftgate. Please observe the following in order to pre- vent damage or faulty operation: • Do not touch, push or pull the gas struts when closing the liftgate. • Do not attach any plastic material, tape, etc., to the gas struts. • Do not tie string, etc., around the gas struts. • Do not hang objects
on the gas struts.
Theft-alarm system
CAUTIONDo not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarm to malfunction.
Armed stage Arm the system and leave
NOTE
 If the engine hood is open, the theft-alarm indicator (A) illuminates and the system can- not enter the armed stage.The system enters the armed stage approxi- mately 20 seconds after the engine hood is closed.
BK0266800US.bo
ok 37 ページ ２０１８年６月２７日　水曜日　午後５時６分

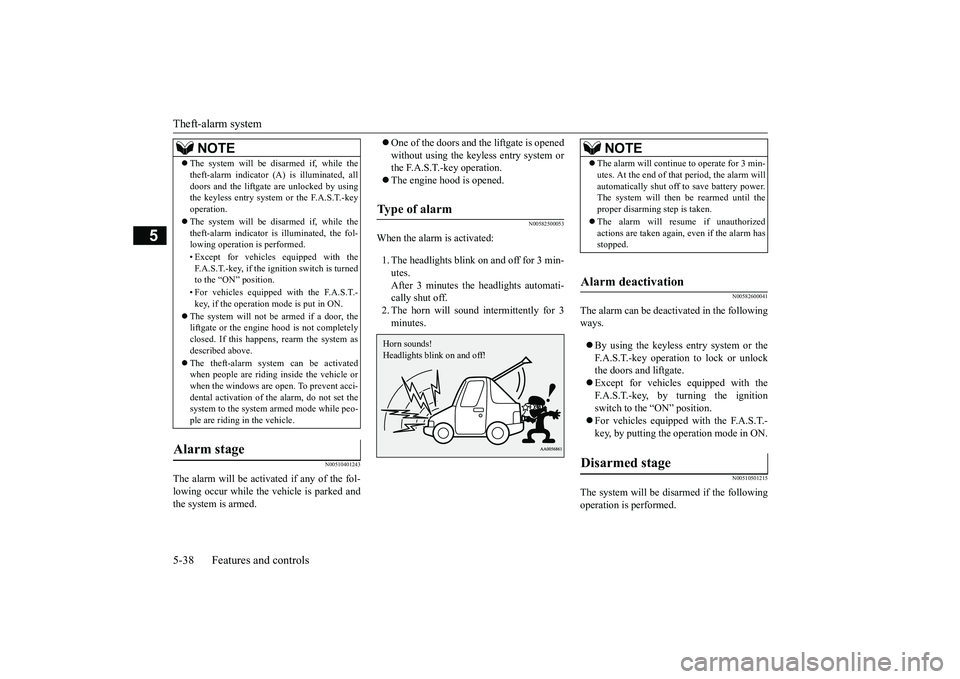

Theft-alarm system 5-38 Features and controls
5
N00510401243
The alarm will be activated if any of the fol- lowing occur while the vehicle is parked and the system is armed.
 One of the doors and the liftgate is opened without using the keyless entry system or the F.A.S.T.-key operation.  The engine hood is opened.
N00582500053
When the alarm is activated: 1. The headlights blink on and off for 3 min- utes.After 3 minutes the headlights automati-cally shut off. 2. The horn will sound intermittently for 3 minutes.
N00582600041
The alarm can be deactivated in the followingways.  By using the keyless entry system or the F.A.S.T.-key operation to lock or unlock the doors and liftgate.  Except for vehicles equipped with the F.A.S.T.-key, by turning the ignition switch to the “ON” position.  For vehicles equipped with the F.A.S.T.- key, by putting the operation mode in ON.
N00510501215
The system will be disarmed if the followingoperation is performed.
 The system will be disarmed if, while the theft-alarm indicator (A) is illuminated, all doors and the liftgate are unlocked by using the keyless entry system or the F.A.S.T.-key operation.  The system will be disarmed if, while the theft-alarm indicator is illuminated, the fol-lowing operation is performed. • Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position. • For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.
 The system will not be armed if a door, the liftgate or the engine hood is not completely closed. If this happens, rearm the system asdescribed above.  The theft-alarm system can be activated when people are riding inside the vehicle or when the windows are open. To prevent acci- dental activation of the alarm, do not set thesystem to the system armed mode while peo- ple are riding in the vehicle.
Alarm stage
NOTE
Type of alarm Horn sounds! Headlights blink on and off!
NOTE
 The alarm will continue to operate for 3 min- utes. At the end of that period, the alarm will automatically shut off to save battery power. The system will then
be rearmed until the
proper disarming step is taken.  The alarm will resume if unauthorized actions are taken again, even if the alarm hasstopped.
Alarm deactivation Disarmed stage
BK0266800US.bo
ok 38 ページ ２０１８年６月２７日　水曜日　午後５時６分

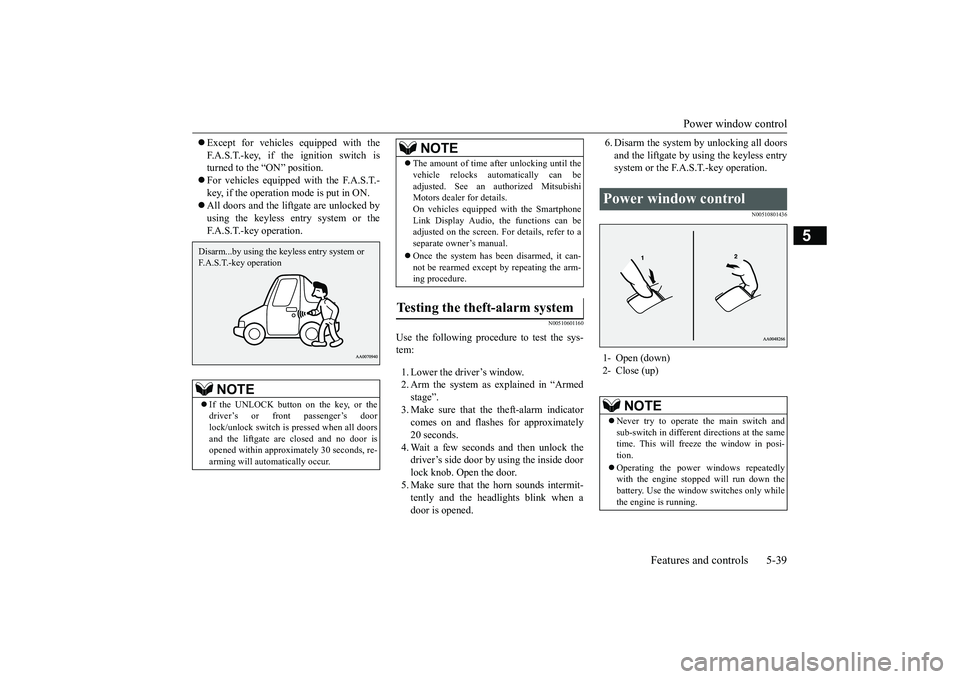

Power window control
Features and controls 5-39
5
 Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position.  For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.  All doors and the liftgate are unlocked by using the keyless entry system or theF.A.S.T.-key operation.
N00510601160
Use the following procedure to test the sys- tem: 1. Lower the driver’s window. 2. Arm the system as explained in “Armedstage”. 3. Make sure that the theft-alarm indicator comes on and flashes for approximately20 seconds. 4. Wait a few seconds and then unlock the driver’s side door by using the inside doorlock knob. Open the door. 5. Make sure that the horn sounds intermit- tently and the headlights blink when adoor is opened.
6. Disarm the system by unlocking all doors and the liftgate by using the keyless entry system or the F.A.S.T.-key operation.
N00510801436
NOTE
 If the UNLOCK button on the key, or the driver’s or front passenger’s doorlock/unlock switch is pressed when all doors and the liftgate are closed and no door is opened within approximately 30 seconds, re-arming will automatically occur.Disarm...by using the keyless entry system or F.A.S.T.-key operation
 The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an authorized Mitsubishi Motors dealer for details. On vehicles equipped with the SmartphoneLink Display Audio, the functions can be adjusted on the screen. For details, refer to a separate owner’s manual.  Once the system has been disarmed, it can- not be rearmed except by repeating the arm-ing procedure.
Testing the theft-alarm system
NOTE
Power window control 1- Open (down) 2- Close (up)
NOTE
 Never try to operate the main switch and sub-switch in different directions at the same time. This will freeze the window in posi- tion.  Operating the power windows repeatedly with the engine stopped will run down thebattery. Use the window switches only while the engine is running.
BK0266800US.bo
ok 39 ページ ２０１８年６月２７日　水曜日　午後５時６分

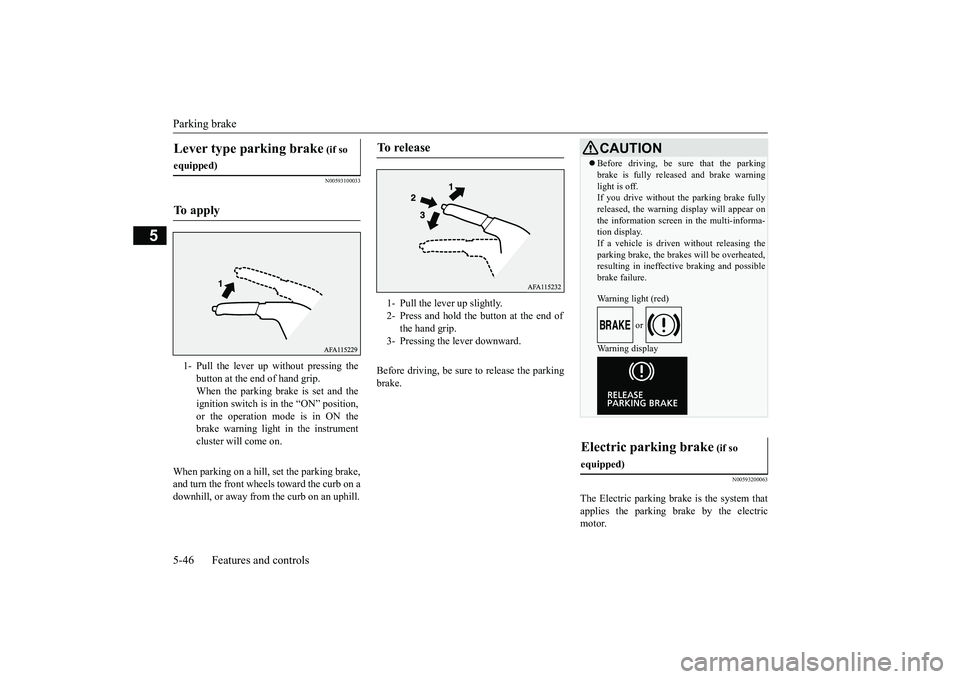

Parking brake 5-46 Features and controls
5
N00593100033
When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from the curb on an uphill.
Before driving, be sure to release the parking brake.
N00593200063
The Electric parking brak
e is the system that
applies the parking brake by the electric motor.
Lever type parking brake
(if so
equipped)To apply

1- Pull the lever up without pressing the
button at the end of hand grip.When the parking brake is set and the ignition switch is in the “ON” position, or the operation mode is in ON thebrake warning light in the instrument cluster will come on.
To release

1- Pull the lever up slightly. 2- Press and hold the button at the end of
the hand grip.
3- Pressing the lever downward.
CAUTION Before driving, be sure that the parking brake is fully released and brake warning light is off. If you drive without the parking brake fully released, the warning display will appear onthe information screen in the multi-informa- tion display. If a vehicle is driven without releasing theparking brake, the brakes will be overheated, resulting in ineffective braking and possible brake failure. Warning light (red)
or
Wa r n i n g d i s p l a y
Electric parking brake
(if so
equipped)
BK0266800US.bo
ok 46 ページ ２０１８年６月２７日　水曜日　午後５時６分

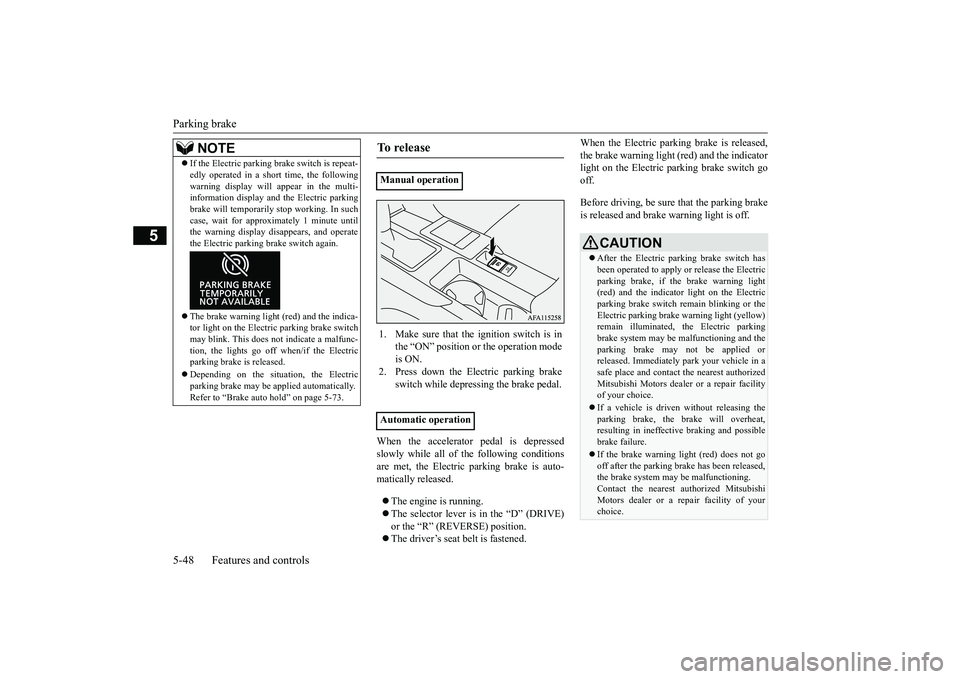

Parking brake 5-48 Features and controls
5
When the accelerator pedal is depressed slowly while all of the following conditionsare met, the Electric parking brake is auto- matically released.  The engine is running.  The selector lever is in the “D” (DRIVE) or the “R” (REVERSE) position.  The driver’s seat belt is fastened.
When the Electric parking brake is released, the brake warning light (red) and the indicator light on the Electric parking brake switch go off. Before driving, be sure that the parking brake is released and brake warning light is off.
 If the Electric parking brake switch is repeat- edly operated in a short time, the following warning display will appear in the multi- information display and the Electric parking brake will temporarily stop working. In suchcase, wait for approximately 1 minute until the warning display disappears, and operate the Electric parking brake switch again.  The brake warning light (red) and the indica- tor light on the Electric parking brake switch may blink. This does not indicate a malfunc-tion, the lights go off when/if the Electric parking brake is released.  Depending on the situation, the Electric parking brake may be applied automatically. Refer to “Brake auto hold” on page 5-73.NOTE
To release

Manual operation 1. Make sure that the ignition switch is in
the “ON” position or the operation mode is ON.
2. Press down the Electric parking brake
switch while depressing the brake pedal.
Automatic operation
CAUTION After the Electric parking brake switch has been operated to apply or release the Electric parking brake, if the brake warning light(red) and the indicator light on the Electric parking brake switch remain blinking or the Electric parking brake warning light (yellow)remain illuminated, the Electric parking brake system may be malfunctioning and the parking brake may not be applied orreleased. Immediately park your vehicle in a safe place and contact the nearest authorized Mitsubishi Motors dealer or a repair facilityof your choice. If a vehicle is driven without releasing the parking brake, the brake will overheat, resulting in ineffective braking and possible brake failure. If the brake warning li
ght (red) does not go
off after the parking brake has been released, the brake system may be malfunctioning. Contact the nearest authorized MitsubishiMotors dealer or a repair facility of your choice.
