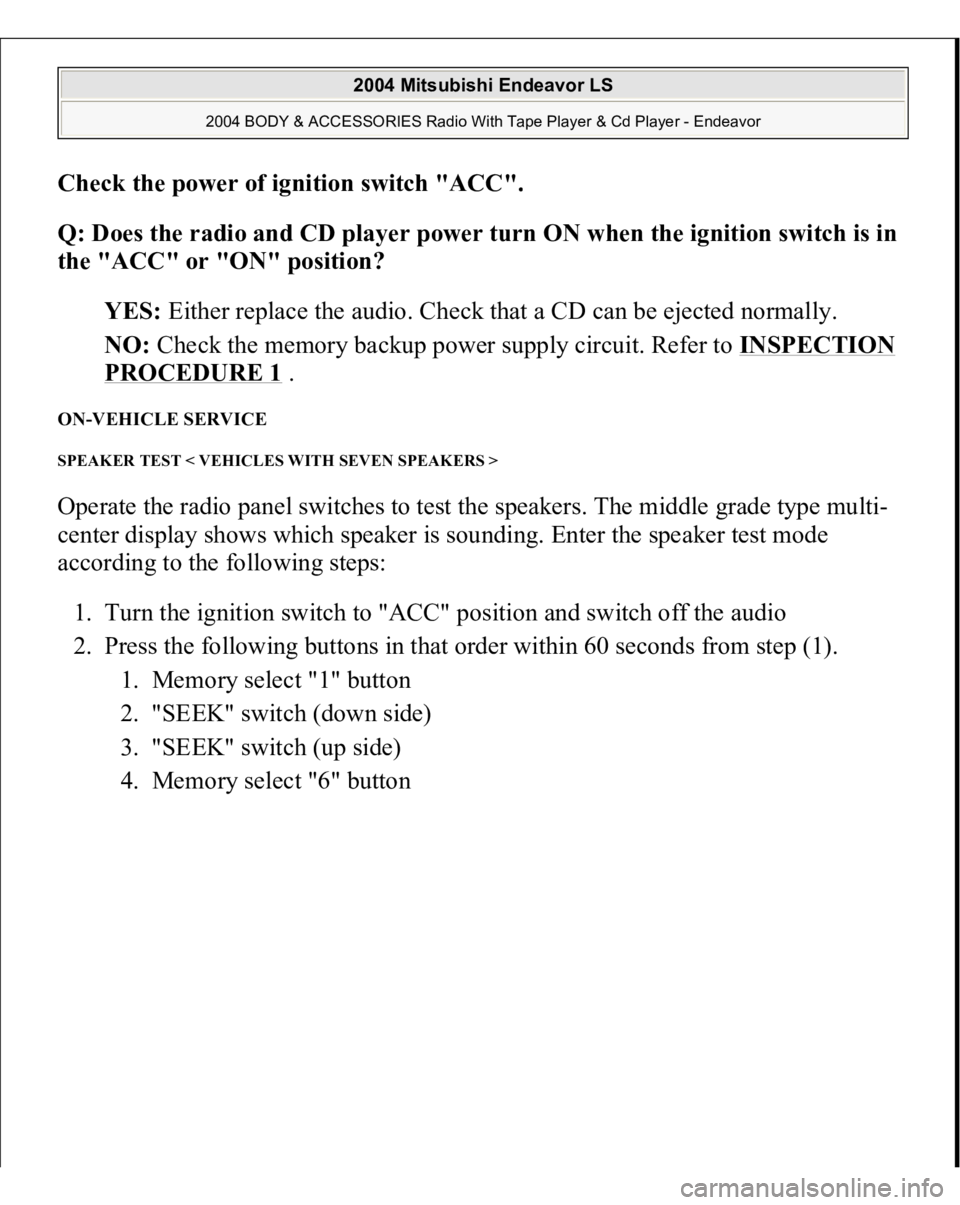

Check the power of ignition switch "ACC"
.
Q: Does the radio and CD player power turn ON when the ignition switch is in
the "ACC" or "ON" position?
YES: Either replace the audio. Check that a CD can be ejected normally.
NO: Check the memory backup power supply circuit. Refer to INSPECTION
PROCEDURE 1
.
ON-VEHICLE SERVICE SPEAKER TEST < VEHICLES WITH SEVEN SPEAKERS > Operate the radio panel switches to test the speakers. The middle grade type multi-
center display shows which speaker is sounding. Enter the speaker test mode
according to the following steps:
1. Turn the ignition switch to "ACC" position and switch off the audio
2. Press the following buttons in that order within 60 seconds from step (1).
1. Memory select "1" button
2. "SEEK" switch (down side)
3. "SEEK" switch (up side)
4. Memor
y select "6" button
