Interrupt Displays 2-2
Interrupt Displays
While the MMCS is operating, the display
can be interrupted with different information
according to the vehicle condition or the
settings of the various functions.Priority Display Contents
1 Door Sensor Interrupt
2 Tone Adjustment Interrupt
3 Alarm Interrupt
4 Audio Full Screen Interrupt
4 Audio Volume Partial Interrupt
4 Audio Partial Interrupt (Navi Screen)
4 Air Conditioner Full Screen Interrupt
4Air Conditioner Partial Interrupt (Navi
Screen)
5 Maintenance Message Interrupt ScreenNOTE The lower the priority number, the higher the
display priority.
 When different interrupt information is received
at the same time, the item with the higher
priority is displayed, and the item with the lower
priority is not displayed.
 If the information has the same priority, the last
item to be generated is displayed.
Door Sensor InterruptDisplayed when a door is open.
eng_243
The display goes off a short time after all doors
are closed.Tone Adjustment InterruptDisplayed when the audio tone is adjusted.
eng_264
The display goes off automatically after a short
time.NOTE Not displayed when “Audio” of “Audio and A/C
Displays” in
“Screen” (2-13)
has been set to [Off].
Alarm InterruptDisplayed when the alarm
(2-15)
is set to “ON”,
and the set time has arrived or the driving time
has been exceeded.
eng_319
Touch [Back] to turn off the screen.Audio Full Screen InterruptDisplayed when certain audio operations are
performed.
eng_538
The display goes off automatically after a short
time.NOTE Not displayed when “Audio” of “Audio and A/C
Displays” in
“Screen” (2-13)
has been set to [Off].

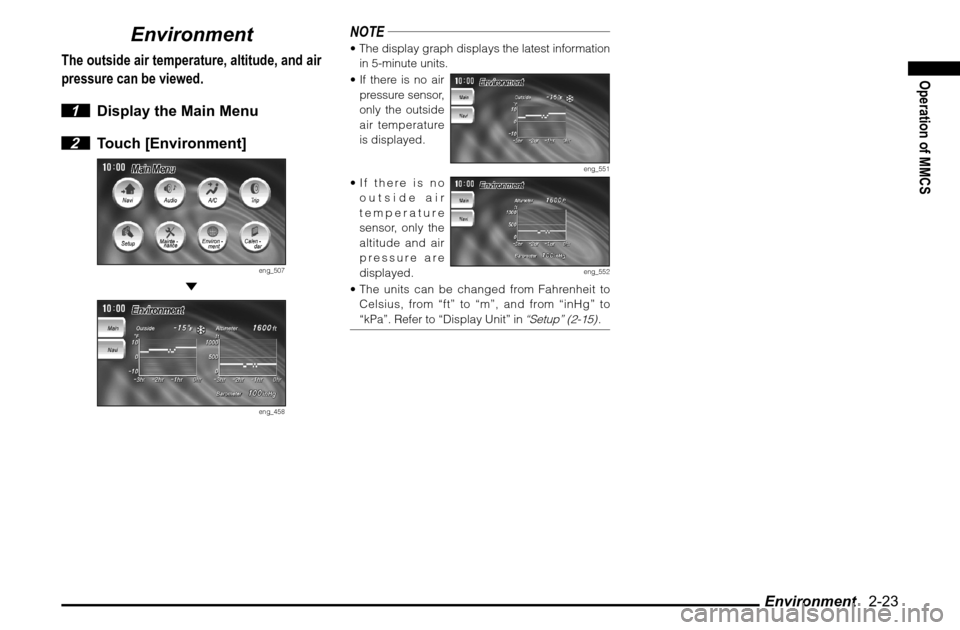

Environment 2-23
Operation of MMCS
Environment
The outside air temperature, altitude, and air
pressure can be viewed.
1 Display the Main Menu
2 Touch [Environment]
eng_507

eng_458
NOTE The display graph displays the latest information
in 5-minute units.
 If there is no air
pressure sensor,
only the outside
air temperature
is displayed.
eng_551
 If there is no
outside air
temperature
sensor, only the
altitude and air
pressure are
displayed.
eng_552
 The units can be changed from Fahrenheit to
Celsius, from “ft” to “m”, and from “inHg” to
“kPa”. Refer to “Display Unit” in
“Setup” (2-15)
.
