Table of Contents 1-2
Table of Contents
Introduction
Table of Contents ---------------------------- 1-2
Outline of the System ----------------------- 1-4
Map Disc ---------------------------------------- 1-5Supported Areas ------------------------------------- 1-5
Map Disc Loading and Removal ---------------- 1-5GPS Measurement --------------------------- 1-6
Error in the Current Location ------------ 1-8
Route Calculation -------------------------- 1-10
Operation of MMCS
Starting the MMCS Screen ---------------- 2-1
Interrupt Displays ---------------------------- 2-2
Main Menu -------------------------------------- 2-4
Audio --------------------------------------------- 2-6Radio --------------------------------------------------- 2-6
CD Changer ------------------------------------------ 2-6
Satellite Radio (SIRIUS
TM) ------------------------ 2-7
Air Conditioner -------------------------------- 2-8
Trip ------------------------------------------------ 2-9Reset Mode ----------------------------------------- 2-10
Driving Distance and Time ---------------------- 2-10
Lap Time ---------------------------------------------- 2-11
Setup ------------------------------------------- 2-12Picture Quality ------------------------------------- 2-12
Screen ----------------------------------------------- 2-12
System ----------------------------------------------- 2-14
Alarm ------------------------------------------------- 2-15
Equipment ------------------------------------------- 2-17
Clearing the Screen ------------------------------ 2-19Maintenance --------------------------------- 2-20Setting the Maintenance Timing --------------- 2-20
Updating All Information ------------------------- 2-21
Deleting All Information -------------------------- 2-21
Updating by Item ---------------------------------- 2-21
Deleting by Item ----------------------------------- 2-22Environment --------------------------------- 2-23
Calendar --------------------------------------- 2-24Setting the Schedule ----------------------------- 2-24
Editing the Schedule ----------------------------- 2-26
Deleting the Schedule ---------------------------- 2-26
Basic Operation
Displaying the Navi Screen --------------- 3-1Starting the Navi ------------------------------------- 3-1
Returning to the Main Menu ---------------------- 3-1Menu Screens (Four Menus) ------------- 3-2Current Location Menu ---------------------------- 3-2
Scroll Menu ------------------------------------------- 3-2
Navi Menu --------------------------------------------- 3-3
Route Menu ------------------------------------------- 3-3
Explanation of Common Buttons ---------------- 3-4
Map Screen ------------------------------------- 3-5Current Location Screen -------------------------- 3-5Changing the Map Display ---------------- 3-6Changing the Scale --------------------------------- 3-6
Changing the Map Orientation ------------------- 3-7
Changing to a Two Maps Display --------------- 3-7
Changing Day or Night ----------------------------- 3-8Scrolling the Map ---------------------------- 3-9Scrolling to a Certain Location ------------------- 3-9
Destination Setting for Scrolled Position ---- 3-10
Viewing the Car Location ------------------------ 3-10Intersection Guidance -------------------- 3-11Guidance Map -------------------------------------- 3-11
Turn List ---------------------------------------------- 3-11
Arrow Guide ---------------------------------------- 3-12Listening to the Voice Guide ----------- 3-13Changing the Voice Volume -------------------- 3-13How to Enter Text -------------------------- 3-14Entering a Letter ----------------------------------- 3-14
Entering a Symbol -------------------------------- 3-14
Deleting Text ---------------------------------------- 3-14
Switching between
Upper Case and Lower Case --------- 3-15
Completing the Input ----------------------------- 3-15
Page 7 of 101
Outline of the System 1-4
Outline of the System
System Male or female voice guidance is available in 3
languages.
(English, French, Spanish)
Trip information such as average speed,
average mileage, and current mileage can be
viewed.
(2-9)
An alarm can be set for the driving time.
(2-15)
Detailed settings can be made for vehicle
equipment.
(2-17)
The vehicle maintenance timing can be
managed with the maintenance function.
(2-20)
Environmental information such as the outside
air temperature, altitude, and air pressure can
be viewed.
(2-23)
The schedule can be managed with the
calendar function.
(2-24)
Easy Operation Setting The touch panel enables easy operation.
Time zone and daylight saving time settings are
available.
(2-14)
Destination Setting Addresses and nearby POIs can be easily
searched for and set as the destination.
(4-2)
A route can be set for returning home.
(4-2)
A new destination can be set from the 20
destinations that have been previously set.
(4-7)
Display Guidance The background can be set to any of 4 images. (2-12) POI icons can be displayed on the map. There
are 43 POI icon types.
(7-4)
The menu and map colors can be changed.
(7-5)
Markings can be displayed on the road on
which the vehicle is being driven.
(7-5)
Routing Detour routes can be set with specified
distances or streets to avoid.
(5-3)
A route can be selected from 3 routes that have
different calculation conditions.
(5-5)
Areas to avoid can be set.
(7-10)
Voice Guidance Guidance is given for the required information
at the optimum time.
(3-13)
A male or female voice can be selected.
(7-1)
Page 15 of 101

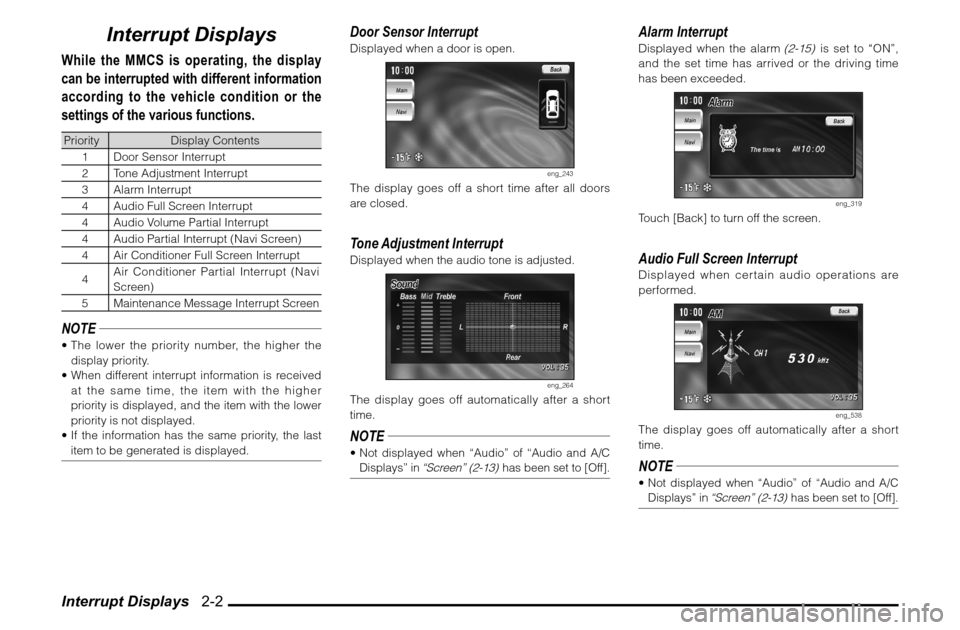

Interrupt Displays 2-2
Interrupt Displays
While the MMCS is operating, the display
can be interrupted with different information
according to the vehicle condition or the
settings of the various functions.Priority Display Contents
1 Door Sensor Interrupt
2 Tone Adjustment Interrupt
3 Alarm Interrupt
4 Audio Full Screen Interrupt
4 Audio Volume Partial Interrupt
4 Audio Partial Interrupt (Navi Screen)
4 Air Conditioner Full Screen Interrupt
4Air Conditioner Partial Interrupt (Navi
Screen)
5 Maintenance Message Interrupt ScreenNOTE The lower the priority number, the higher the
display priority.
When different interrupt information is received
at the same time, the item with the higher
priority is displayed, and the item with the lower
priority is not displayed.
If the information has the same priority, the last
item to be generated is displayed.
Door Sensor InterruptDisplayed when a door is open.
eng_243
The display goes off a short time after all doors
are closed.Tone Adjustment InterruptDisplayed when the audio tone is adjusted.
eng_264
The display goes off automatically after a short
time.NOTE Not displayed when “Audio” of “Audio and A/C
Displays” in
“Screen” (2-13)
has been set to [Off].
Alarm InterruptDisplayed when the alarm
(2-15)
is set to “ON”,
and the set time has arrived or the driving time
has been exceeded.
eng_319
Touch [Back] to turn off the screen.Audio Full Screen InterruptDisplayed when certain audio operations are
performed.
eng_538
The display goes off automatically after a short
time.NOTE Not displayed when “Audio” of “Audio and A/C
Displays” in
“Screen” (2-13)
has been set to [Off].
Page 28 of 101
Setup 2-15
Operation of MMCS
Display UnitTouch [ ] or [ ] to set the units used by the
system.Trip
miles, mph, mpg Distance miles
Speed mph
Mileage mpg
Altitude ft
Air pressure inHg
km, km/h, km/L Distance km
Speed km/h
Mileage km/L
Altitude m
Air pressure kPa
km, km/h,
L/100kmDistance km
Speed km/h
Mileage L/100km
Altitude m
Air pressure kPaNOTE This item can also be set from the navi menu.
>>>“Unit Distance”(7-1)Temperature
Fahrenheit Set to Fahrenheit (°F).
Celsius Set to Celsius (°C).Operation SoundThe operation sound can be set to on or off.
[On] The operation sound is on.
[Off] The operation sound is off.
Touch PanelThe touch panel can be adjusted.
Touch [Adjust], and then set by following the
instructions on the screen.
eng_347
Alarm
The alarm can be set with the clock or
the driving time.
1 Display the Main Menu and
touch [Setup]
eng_507
2 Touch [Alarm]
eng_363
Continued on the Next Page
Page 29 of 101
Setup 2-16 3 Touch [Alarm Set] or [Driving
Time]
eng_554
The “Alarm Set” screen or “Driving Time” screen
is displayed. 4 Touch [Input] of “Time”
eng_343
5 Input the time
eng_339
NOTE An [AM] or [PM] input is required for “Alarm Set”. The minimum setting time for “Driving Time” is 1
minute, and the maximum is 19 hours, 59 minutes. When a “Driving Time” to be set in this screen is
shorter than the “Driving Time”
(2-10)
from when
the ignition switch is turned “ON”, alarm does not
sound and the “Time” is displayed in green.
Touch [Back] to return to the alarm setting
screen without setting the time. 6 Touch [Set]
The screen returns to the alarm setting screen. 7 Touch [Back]
The alarm settings are completed.Turning OFF the Interrupt DisplayTurning off the interrupt display for an alarm
setting that has been set. 1
Display the “Alarm Set” screen
or “Driving Time” screen
(2-16)
2 Touch [Off] of “Alarm”
eng_342
3 Touch [Back]
The OFF setting for the interrupt display is
completed.Deleting the Setting
1
Display the “Alarm Set” screen
or “Driving Time” screen
(2-16)
2 Touch [Clear]
eng_343
The set contents are deleted. 3 Touch [Back]
The setting deletion is completed.
