window MITSUBISHI ENDEAVOR 2011 1.G Owners Manual
[x] Cancel search | Manufacturer: MITSUBISHI, Model Year: 2011, Model line: ENDEAVOR, Model: MITSUBISHI ENDEAVOR 2011 1.GPages: 514, PDF Size: 111.98 MB
Page 6 of 514
Overview
Interior (Front area)
N00100300987
Sunglasses holder
(if so equipped)
P. 3 - 2 0 7
Hands-free Bluetooth
®
cellular phone interface
system with voice rec-
ognition (if so equipped)
P. 3 - 1 6 4 Dome light (front)
P.3-200,
7-46, 7-55
Seat belts
P. 2 - 1 5 Adjustable seat belt
shoulder anchor
(for front seats) P.2-21
Head restraints
P.2-12 Power window switch P.3-23Outside rearview mirror switch P.3-32
Inside day/night rearview mirror
P. 3 - 3 0
Sun visors P.3-194
Vanity mirror P.3-195
Glove compartment
P. 3 - 2 0 4
Front seats P.2-3
Supplemental restraint system-side air bag
(for front seats) P.2-51 Reading lights
P.3-200, 7-55Sunroof switch
(if so equipped)
P. 3 - 2 6
BK0121600US.book 4 ページ 2010年4月12日 月曜日 午前10時39分
Page 10 of 514
Overview
Outside (Rear)
N00100600948
Sunroof (if so equipped) P.3-26
Rear window wiper and
washer P.3-161
Rear-view camera
(if so equipped) P.3-74
License plate lights
P.3-153, 7-45, 7-53Tail and stop and rear
side-marker lights
P.3-153, 7-45, 7-51
Back-up lights
P.7-45, 7-51
Rear turn signal lights
P.3-157, 7-45, 7-51
Tire inflation pressures P.7-24
Changing tires P.6-12
Tire rotation P.7-27
Tire chains P.7-29
Tire pressure monitoring sys-
tem P.3-69 High-mounted stop light
P. 7 - 4 5
BK0121600US.book 8 ページ 2010年4月12日 月曜日 午前10時39分
Page 16 of 514
Quick index
5
Metallic squeal when you press the
brake pedal while driving.“Brake pad wear alarm”
The brake pads are worn down to the serviceable limit.
Have the brake pads replaced at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.P.3-54
Tone when the ignition key is turned to
the “ON” position.“Seat belt reminder buzzer”
When the ignition key is turned to the “ON” position, the tone will sound for
about 6 seconds. If the driver’s seat belt remains unfastened 1 minute later, the
tone will sound intermittently (12 times) when the vehicle is driven. If the
driver’s seat belt subsequently remains unfastened while the vehicle is being
driven, the tone will sound as a warning each time the vehicle stops and starts.
When the driver’s seat belt is fastened, the tone will stop.P.2-19
Tone when the vehicle is moving at
more than 5 mph (8 km/h).“Door-ajar warning buzzer”
Door, liftgate is not properly shut.
If you shut the door, liftgate the tone will stop.P.3-85
Wind buffeting when driving with one
or both rear door windows opened.“What to do if you hear wind buffeting when driving”
Open the front door windows as well as the rear door windows.P.3-25
When the headlights have flashed for
three minutes, the horn will sound inter-
mittently for three minutes.“Theft-alarm system”
The theft-alarm system is operating. To stop the alarm, turn the key in the
driver’s door toward the front of the vehicle (the lock direction) or toward the
rear of the vehicle (the unlock direction). Alternatively, use the keyless-entry
transmitter to lock or unlock the doors, liftgate.P.3-20
Sound
Do this
Ref. page
BK0121600US.book 5 ページ 2010年4月12日 月曜日 午前10時39分
Page 17 of 514
6 Quick index
If this problem occurs...
N00200900795
Problem
Do this
Ref. Page
Cannot turn the key.
From “LOCK” to “ACC”
Turn the key while jogging the steering wheel in either direction.
From “ACC” to “LOCK”
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.P.3-35,
3-36
Cannot shift the selector lever
from the “P” (PARK) position.Shift the selector lever while pressing the brake pedal.
Check that the ignition key is in the “ON” position.P.3-39
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-12,
5-23
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
7-16BK0121600US.book 6 ページ 2010年4月12日 月曜日 午前10時39分

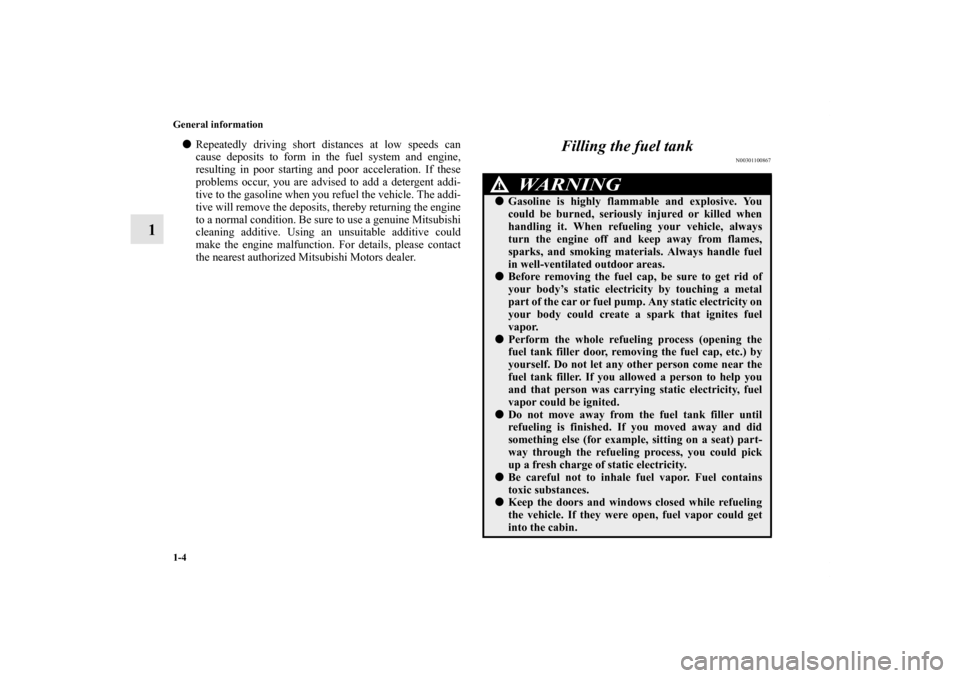

Page 23 of 514
1-4 General information
1
Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in poor starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a genuine Mitsubishi
cleaning additive. Using an unsuitable additive could
make the engine malfunction. For details, please contact
the nearest authorized Mitsubishi Motors dealer.
Filling the fuel tank
N00301100867
WA R N I N G
!Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.Before removing the fuel cap, be sure to get rid of
your body’s static electricity by touching a metal
part of the car or fuel pump. Any static electricity on
your body could create a spark that ignites fuel
vapor.Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself. Do not let any other person come near the
fuel tank filler. If you allowed a person to help you
and that person was carrying static electricity, fuel
vapor could be ignited.Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.Be careful not to inhale fuel vapor. Fuel contains
toxic substances.Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
BK0121600US.book 4 ページ 2010年4月12日 月曜日 午前10時39分
Page 90 of 514
3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 15
“Child safety locks” for rear door . . . . . . . . . . . . .3- 15
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Inside liftgate release . . . . . . . . . . . . . . . . . . . . . . .3- 18
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . .3- 20
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 23
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . .3- 26
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 28
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 29
Inside day/night rearview mirror . . . . . . . . . . . . . .3- 30
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 32
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 34
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 36
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 37
Engine block heater (if so equipped) . . . . . . . . . . .3- 38
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 39
Full-time all-wheel drive (if so equipped) . . . . . . .3- 47
All-wheel drive operation . . . . . . . . . . . . . . . . . . .3- 48
Inspection and maintenance following rough
road operation . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 50
Cautions on the handling of all-wheel drive
vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 51
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 54
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 57
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 58
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63Tire pressure monitoring system . . . . . . . . . . . . . . 3- 69
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 74
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Indicator and warning light package . . . . . . . . . . . 3- 82
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 83
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 83
Multi center display (if so equipped) . . . . . . . . . . 3- 86
Combination headlights and dimmer switch . . . . . 3- 153
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 157
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 158
Front fog light switch (if so equipped) . . . . . . . . . 3- 158
Instrument panel light dimmer control . . . . . . . . . 3- 159
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 159
Electric rear window defogger switch. . . . . . . . . . 3- 163
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 194
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 195
Power outlet (if so equipped) . . . . . . . . . . . . . . . . 3- 195
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 3- 197
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 197
Accessory boxes . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 203
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 204
Floor console box/Tissue holder . . . . . . . . . . . . . . 3- 204
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 206
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 207
Sunglasses holder (if so equipped) . . . . . . . . . . . . 3- 207
Tonneau cover (if so equipped) . . . . . . . . . . . . . . . 3- 208
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 209
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
BK0121600US.book 1 ページ 2010年4月12日 月曜日 午前10時39分
Page 111 of 514
3-22 Features and controls
3
Disarmed stage
N00510500117
The system will be disarmed when either of the following steps
are taken:
1. All doors or the liftgate is unlocked by the remote control
transmitter.
2. The ignition key is turned to the “ACC” or “ON” position.
3. If the UNLOCK button is pressed when all doors and the
liftgate are closed and no door is opened within approxi-
mately 30 seconds, re-arming will automatically occur.NOTEOnce the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.
Testing the theft-alarm system
N00510600075
Use the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flash in approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and opening the door.
5. Check to be sure that the horn sounds intermittently and
the headlights blink on and off when the door is opened.
6. Disarm the system by unlocking all doors or the liftgate
by the remote control transmitter or using the key.NOTETo make sure the alarm sounds when the engine hood is
opened, open the engine hood by using the engine hood
release lever when the system is in the “armed” stage.

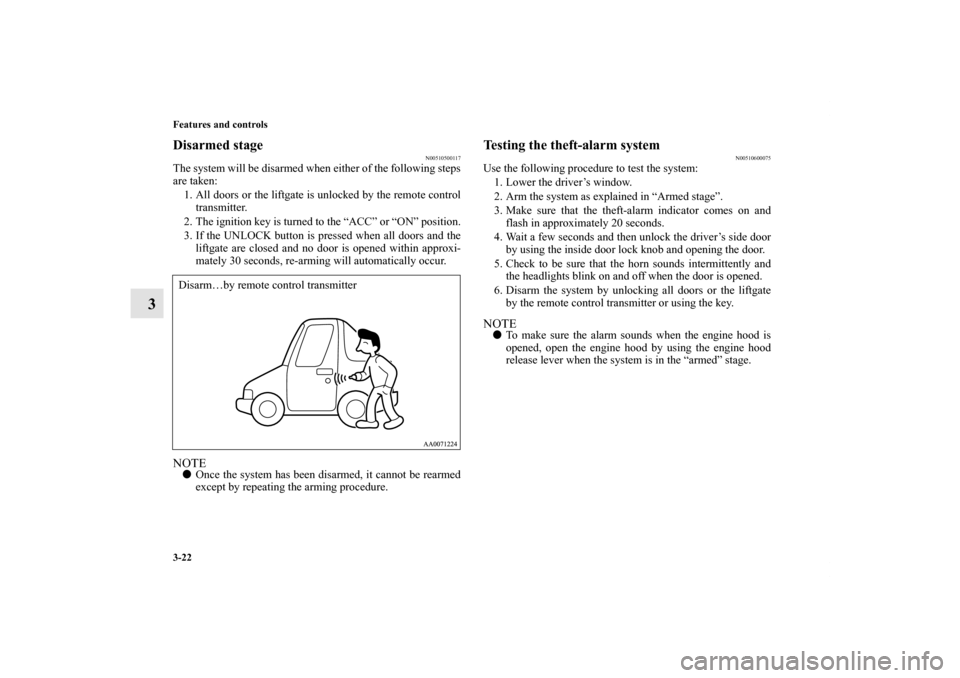

Disarm…by remote control transmitterBK0121600US.book 22 ページ 2010年4月12日 月曜日 午前10時39分
Page 112 of 514
Features and controls
3-23
3 Power windows
N00510800309
NOTENever try to operate the main switch and sub switch in dif-
ferent directions at the same time. This will freeze the
window in position.
Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window

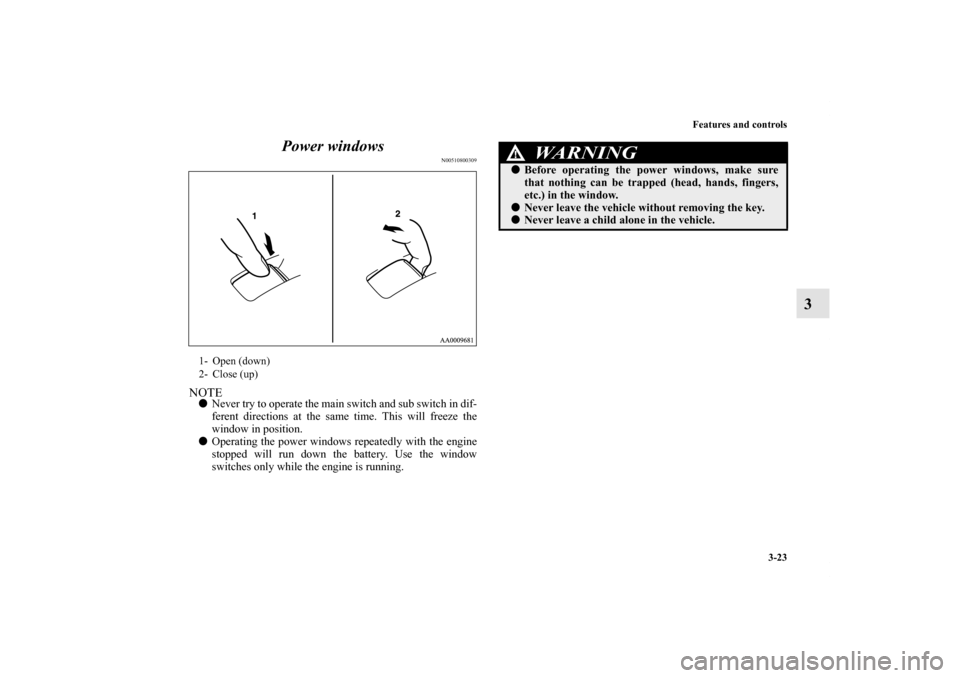

switches only while the engine is running. 1- Open (down)
2- Close (up)
WA R N I N G
!Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window. Never leave the vehicle without removing the key. Never leave a child alone in the vehicle.
BK0121600US.book 23 ページ 2010年4月12日 月曜日 午前10時39分
Page 113 of 514
3-24 Features and controls
3
Main switchThe main switch located on the driver’s door can be used to
operate all the door windows.
The windows will move while the switch is pressed and stop
when the switch is released.
Sub switchEach sub switch can be used for its own passenger door win-
dow, unless the driver’s window lock switch is activated. NOTEThe rear door windows open only half-way.Timer functionThe power windows can be run up or down when the ignition
key is in the “ON” position.
The door windows can be opened or closed for a 30 seconds
period after the ignition key is turned to the “ACC” or
“LOCK” position. However, once the driver’s door or the front
passenger’s door is opened, the power windows cannot be
operated.

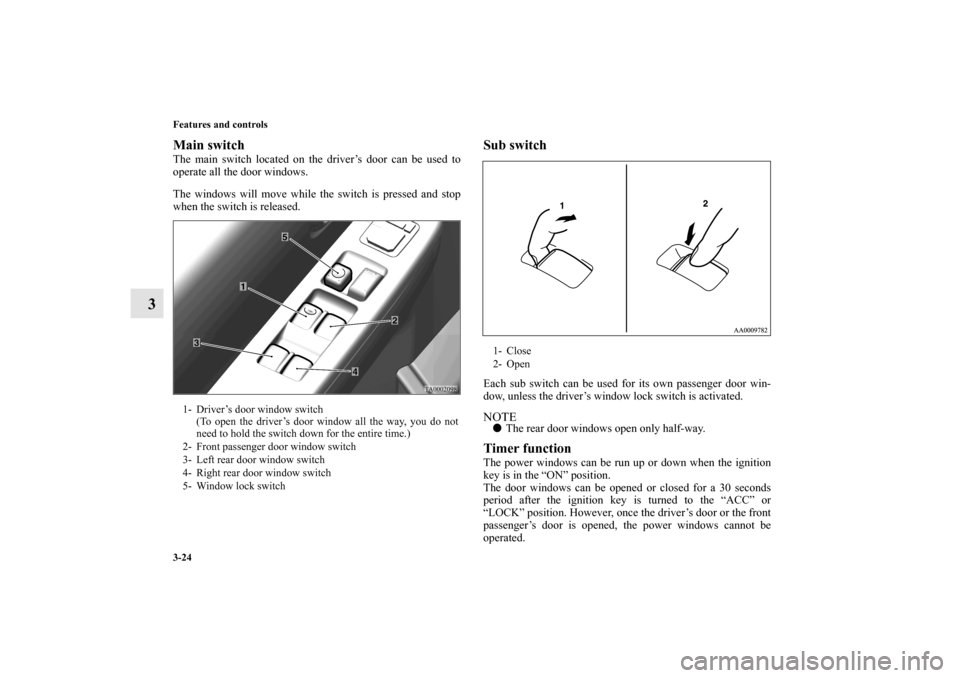

1- Driver’s door window switch
(To open the driver’s door window all the way, you do not
need to hold the switch down for the entire time.)
2- Front passenger door window switch
3- Left rear door window switch
4- Right rear door window switch
5- Window lock switch
1- Close
2- Open
BK0121600US.book 24 ページ 2010年4月12日 月曜日 午前10時39分
Page 114 of 514
Features and controls
3-25
3
Lock switch
N00549000039
When this switch is in the lock mode, the passenger door
switches cannot be used to open or close the door windows,
and the main switch will open or close only the driver’s door
window. To unlock the switch, press it again.
What to do if you hear wind buffeting when driv-
ing
N00551400014
Wind buffeting can be described as the perception of pressure
on the ears or a booming or rumbling sound. Your vehicle may
exhibit wind buffeting when driving with one or both rear door
windows down or partially opened. This is a normal occur-
rence that can be minimized. If the buffeting occurs with the
rear door windows open, open the front door windows as well
as the rear door windows to minimize the condition.

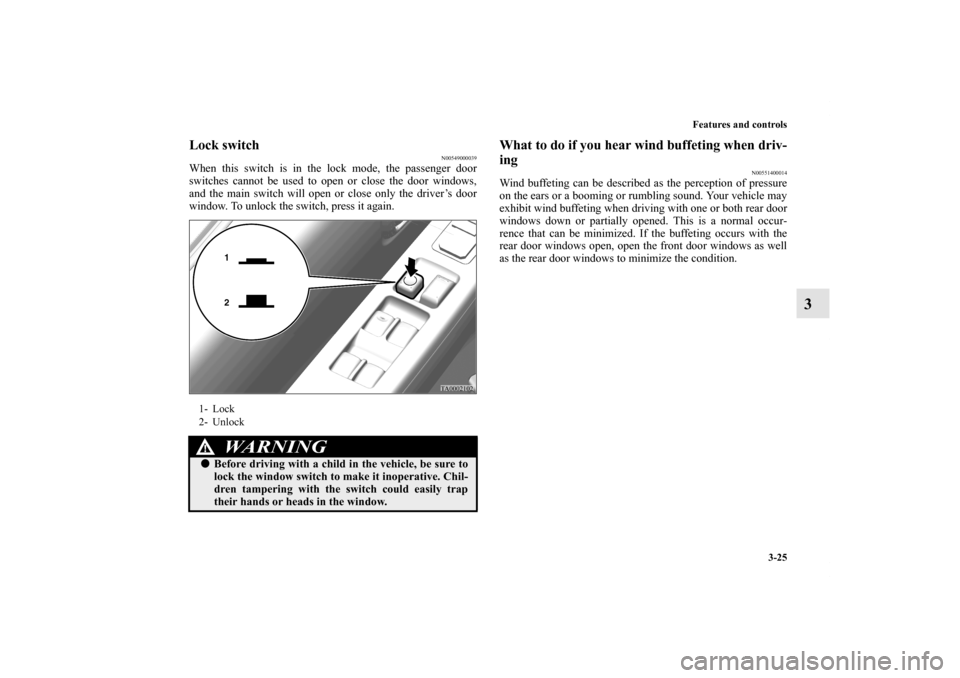

1- Lock
2- Unlock
WA R N I N G
!Before driving with a child in the vehicle, be sure to
lock the window switch to make it inoperative. Chil-
dren tampering with the switch could easily trap
their hands or heads in the window.
BK0121600US.book 25 ページ 2010年4月12日 月曜日 午前10時39分
