MITSUBISHI GALANT 2005 Service Repair Manual

Manufacturer: MITSUBISHI, Model Year: 2005, Model line: GALANT, Model: MITSUBISHI GALANT 2005
Pages: 1000, PDF Size: 83.05 MB

Trending: steering, ABS, wiring diagram, belt, relay, oil, door lock

Load previous 10 pages

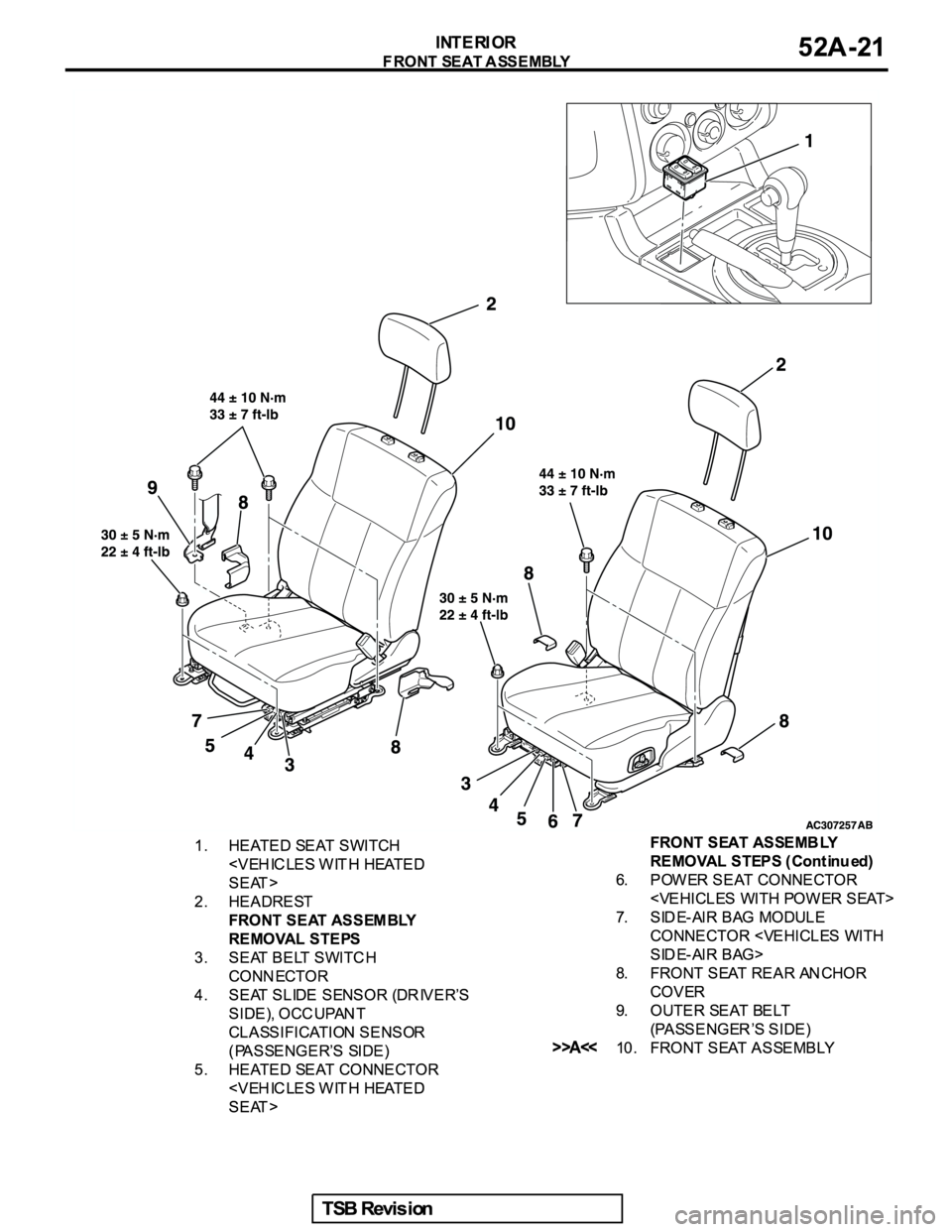

Page 581 of 1000

MITSUBISHI GALANT 2005 Service Repair Manual

Page 582 of 1000

MITSUBISHI GALANT 2005 Service Repair Manual HEATED SEAT SWITCH CONNECTOR

Page 583 of 1000

MITSUBISHI GALANT 2005 Service Repair Manual HEATED SEAT RELAY
JUNCTION BLOCK
1 4
3
2

Page 584 of 1000

MITSUBISHI GALANT 2005 Service Repair Manual POWER SEAT SWITCH CONNECTOR
RECLINING
MOTOR
CONNECTOR SLIDE MOTOR
CONNECTOR FRONT HEIGHT
MOTOR CONNECTORREAR HEIGHT
MOTOR CONNECTOR

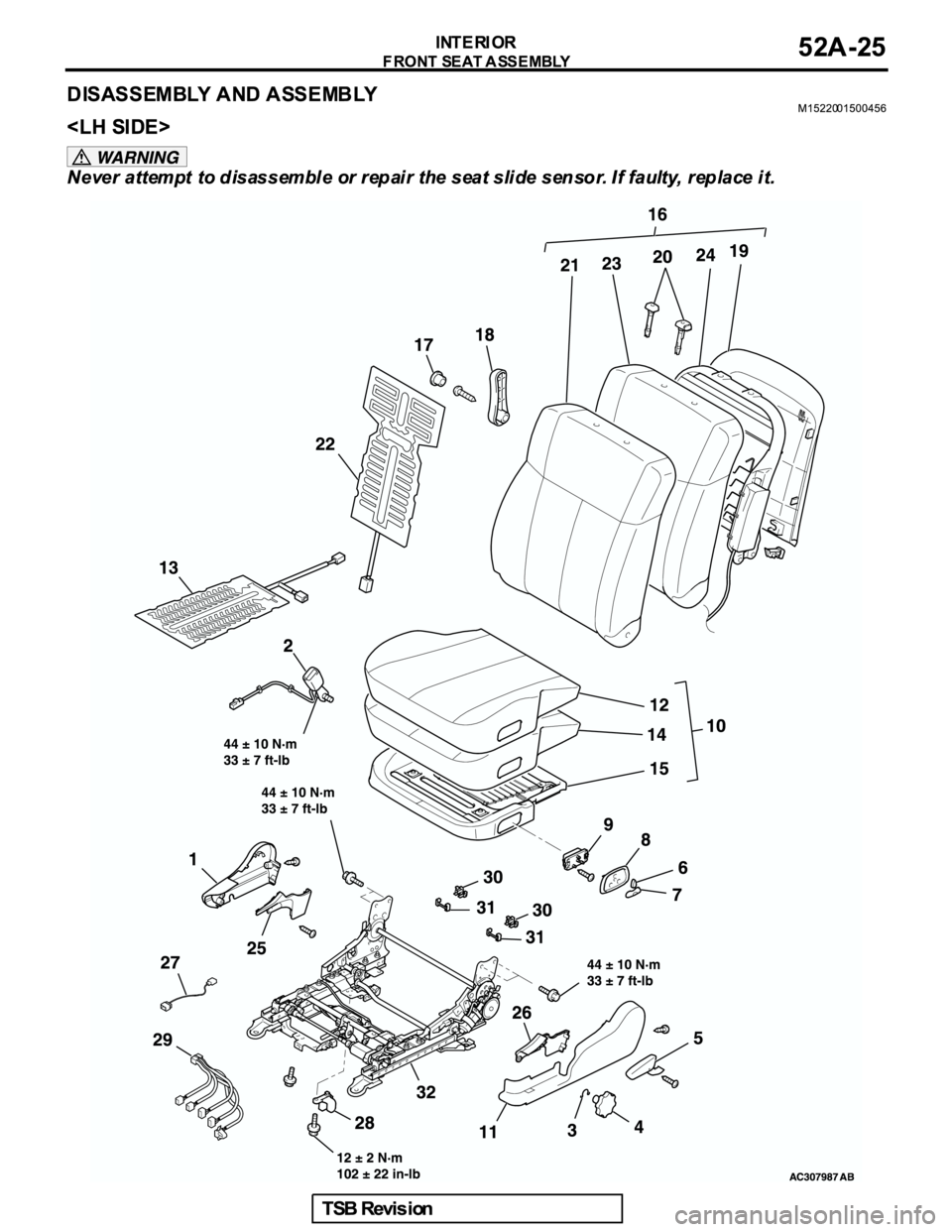

Page 585 of 1000

Page 586 of 1000

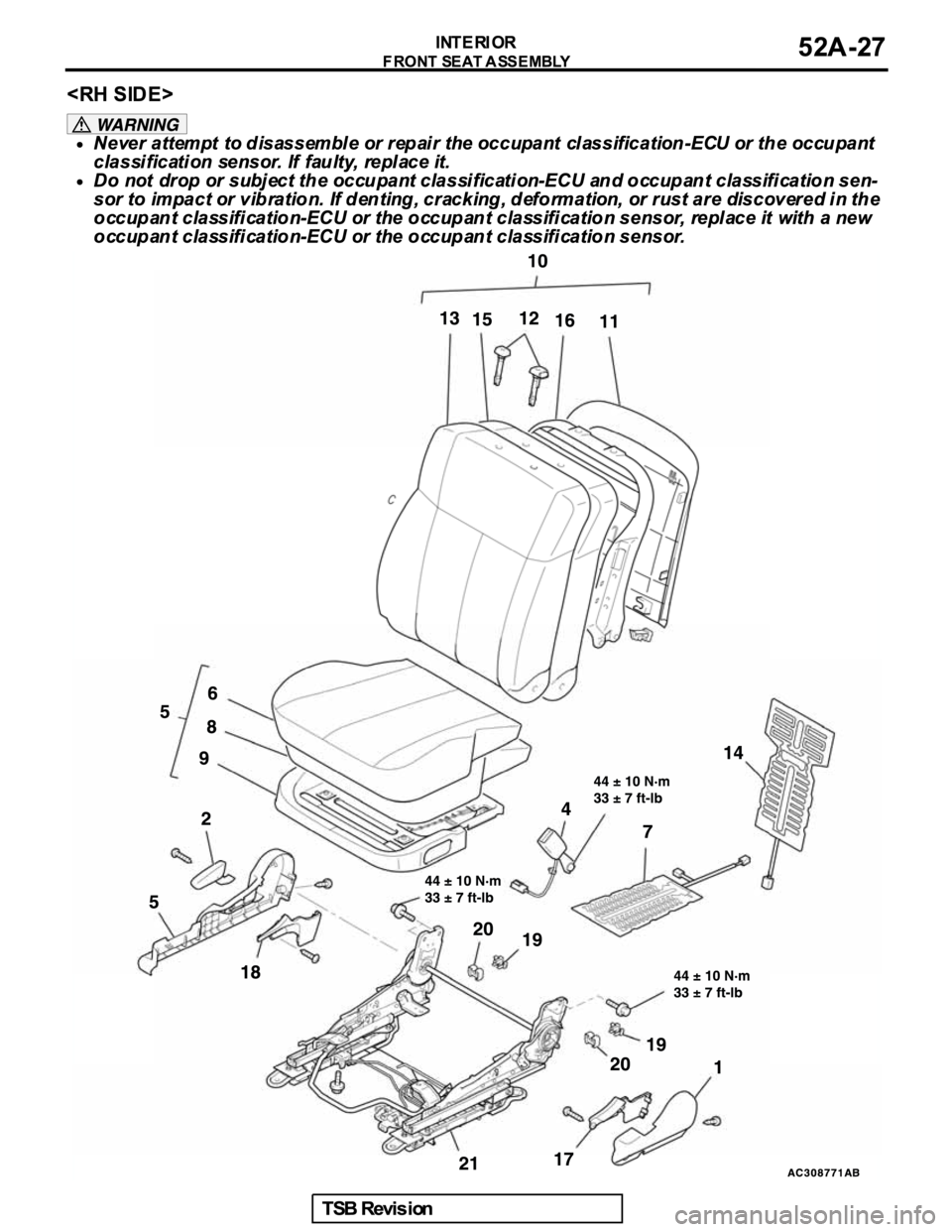

Page 587 of 1000

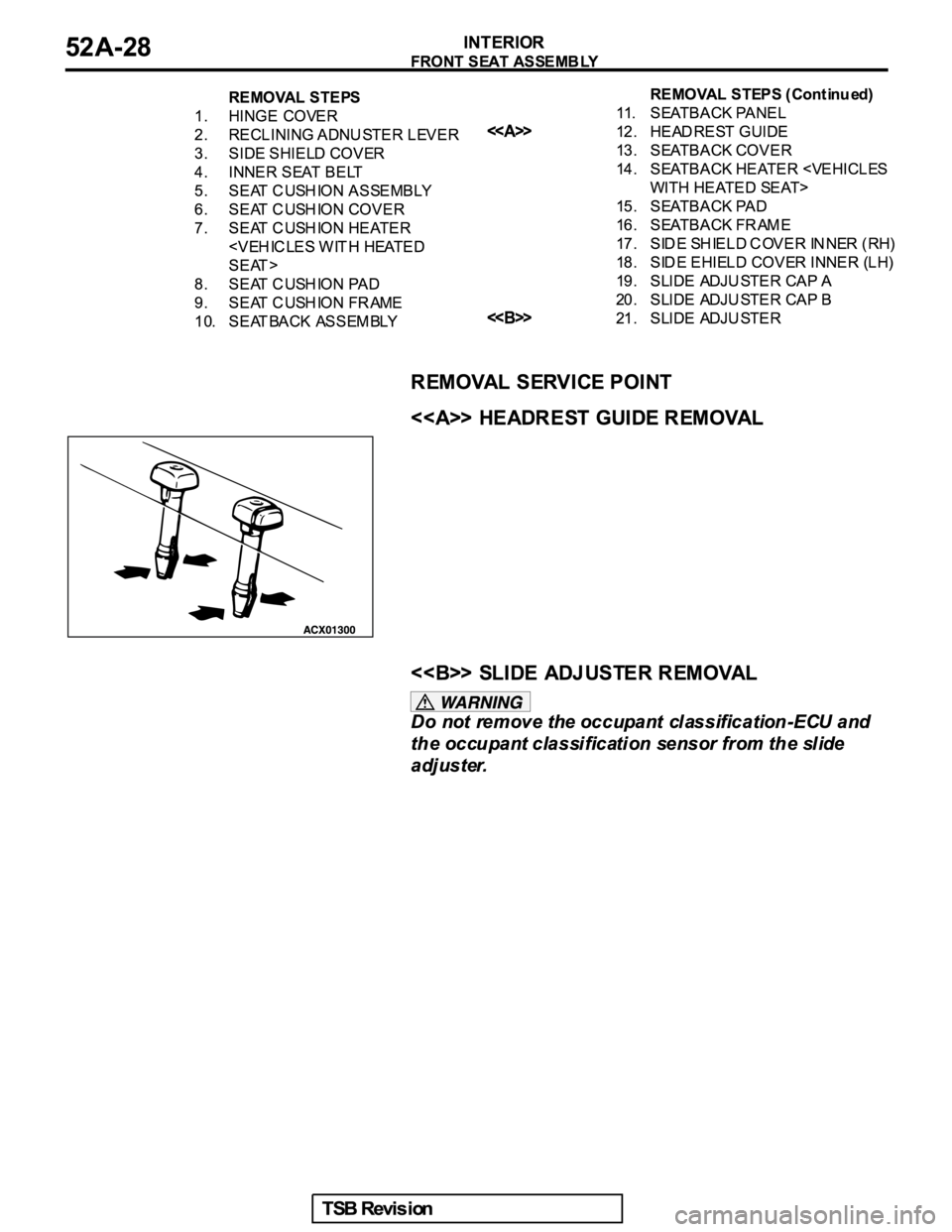

Page 588 of 1000

Page 589 of 1000

MITSUBISHI GALANT 2005 Service Repair Manual HOOK REAR
SEATBACK
ASSEMBLY
ATTACHMENT
WIRE

Page 590 of 1000

MITSUBISHI GALANT 2005 Service Repair Manual REAR SEAT CUSHIONBRACKET
REAR SEAT
HOOK REAR SEAT
CUSHION
ASSEMBLY
