MITSUBISHI GALANT 2011 9.G Owners Manual

7-56 Vehicle care and maintenance
7

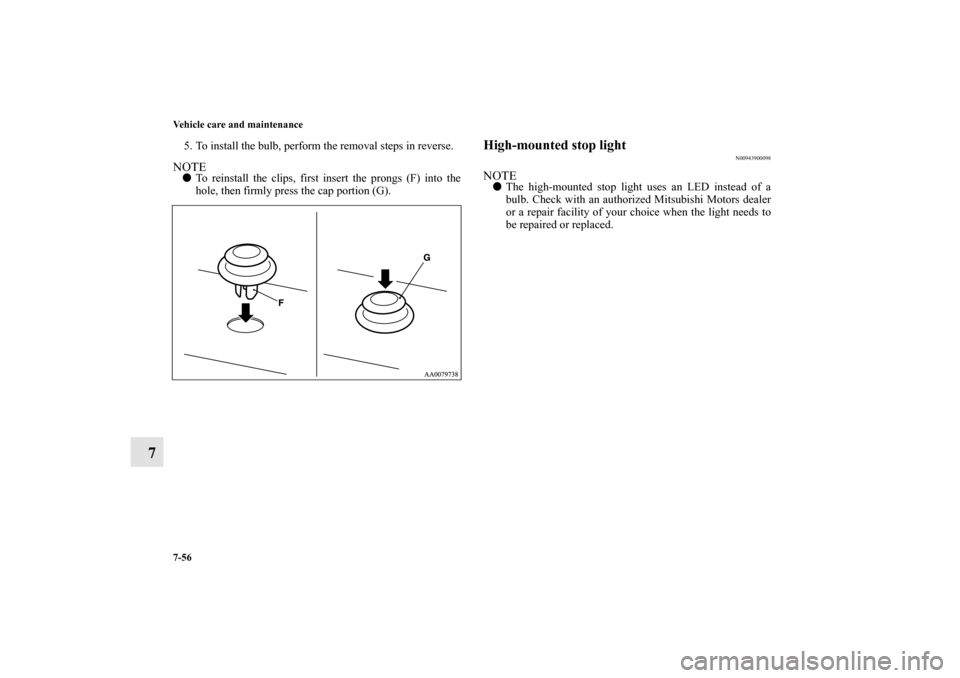

5. To install the bulb, perform the removal steps in reverse.NOTE
To reinstall the clips, first insert the prongs (F) into the
hole, then firmly press the cap portion (G).
High-mounted stop light
N00943900098
NOTE
The high-mounted stop light uses an LED instead of a
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
BK0121200US.book 56 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-57
7

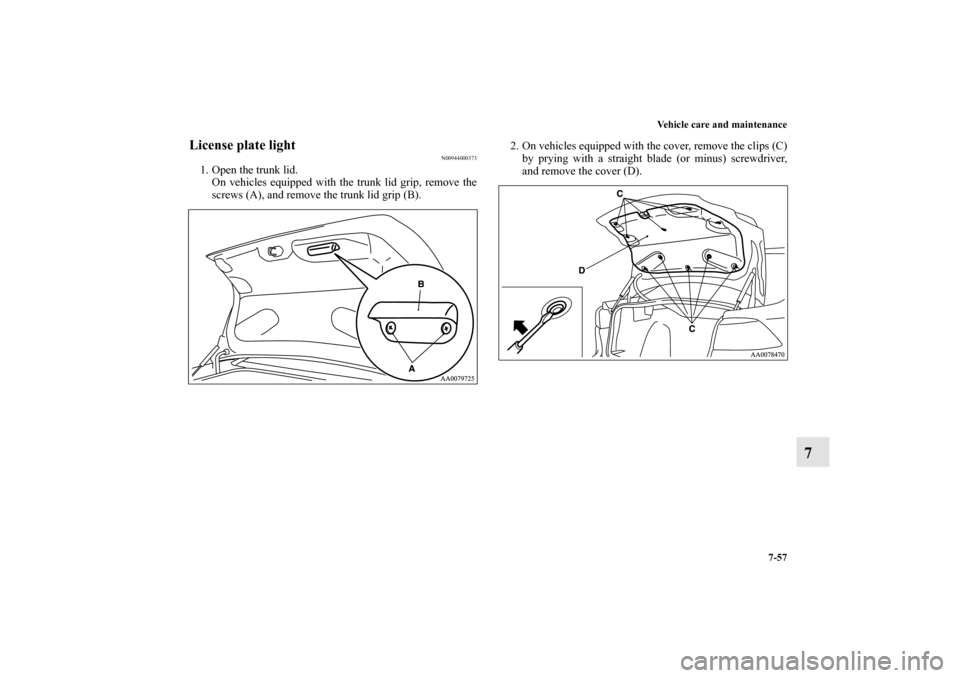

License plate light
N00944000373
1. Open the trunk lid.
On vehicles equipped with the trunk lid grip, remove the
screws (A), and remove the trunk lid grip (B).2. On vehicles equipped with the cover, remove the clips (C)
by prying with a straight blade (or minus) screwdriver,
and remove the cover (D).
BK0121200US.book 57 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-58 Vehicle care and maintenance
7

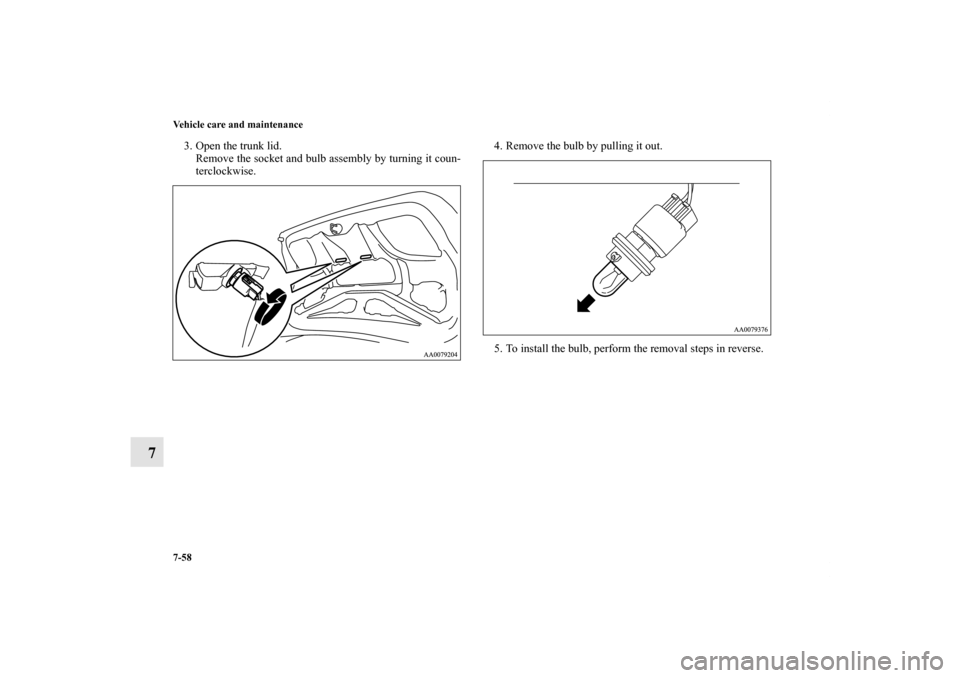

3. Open the trunk lid.
Remove the socket and bulb assembly by turning it coun-
terclockwise.4. Remove the bulb by pulling it out.
5. To install the bulb, perform the removal steps in reverse.
BK0121200US.book 58 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

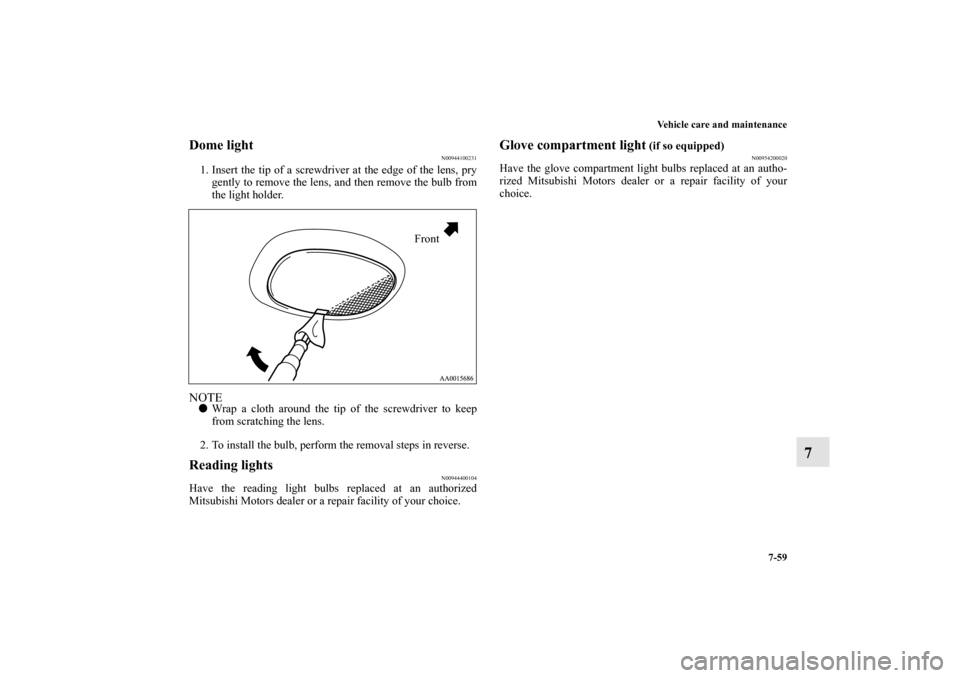

Vehicle care and maintenance
7-59
7
Dome light
N00944100231
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.Reading lights
N00944400104
Have the reading light bulbs replaced at an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
Glove compartment light
(if so equipped)
N00954200020
Have the glove compartment light bulbs replaced at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice.
Front
BK0121200US.book 59 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

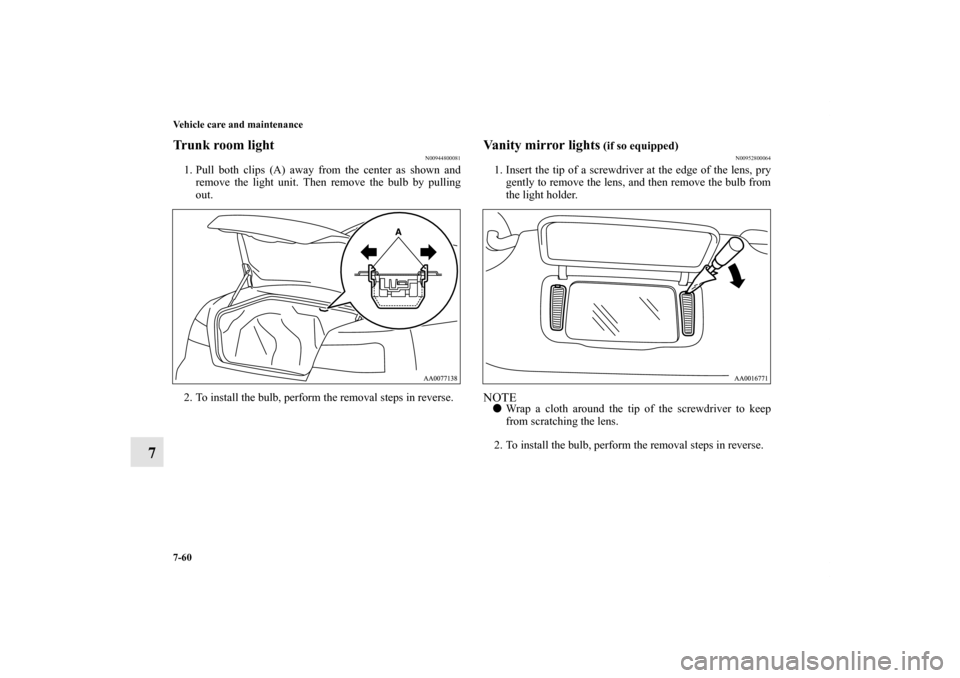

7-60 Vehicle care and maintenance
7
Trunk room light
N00944800081
1. Pull both clips (A) away from the center as shown and
remove the light unit. Then remove the bulb by pulling
out.
2. To install the bulb, perform the removal steps in reverse.
Vanity mirror lights
(if so equipped)
N00952800064
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
BK0121200US.book 60 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-61

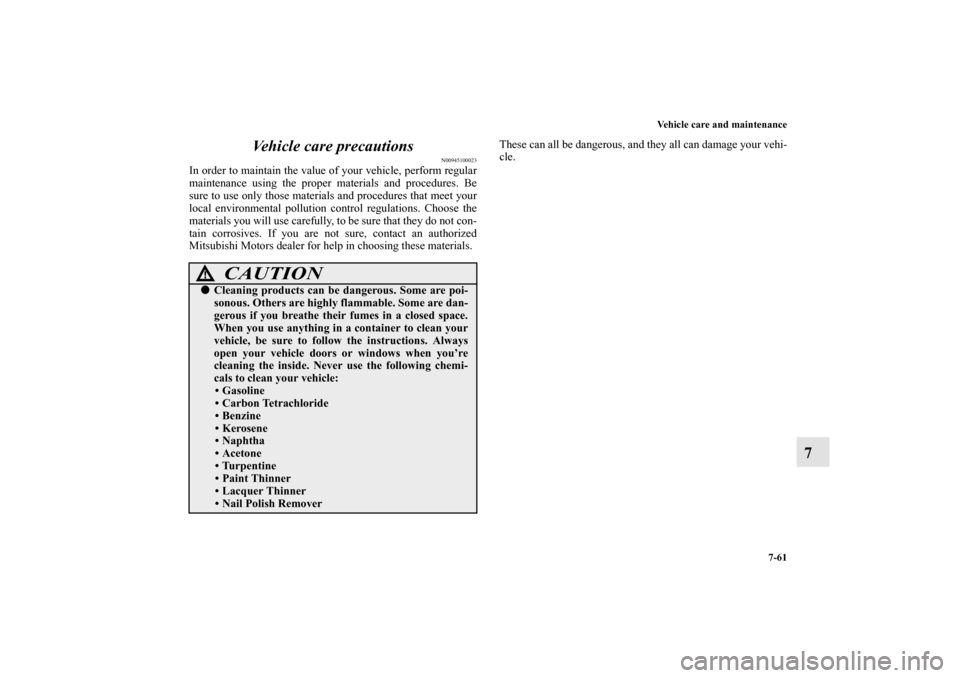

7 Vehicle care precautions
N00945100023
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized
Mitsubishi Motors dealer for help in choosing these materials. These can all be dangerous, and they all can damage your vehi-
cle.
CAUTION
!
Cleaning products can be dangerous. Some are poi-
sonous. Others are highly flammable. Some are dan-
gerous if you breathe their fumes in a closed space.
When you use anything in a container to clean your
vehicle, be sure to follow the instructions. Always
open your vehicle doors or windows when you’re
cleaning the inside. Never use the following chemi-
cals to clean your vehicle:
• Gasoline
• Carbon Tetrachloride
• Benzine
• Kerosene
• Naphtha
• Acetone
• Turpentine
• Paint Thinner
• Lacquer Thinner
• Nail Polish Remover
BK0121200US.book 61 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-62 Vehicle care and maintenance

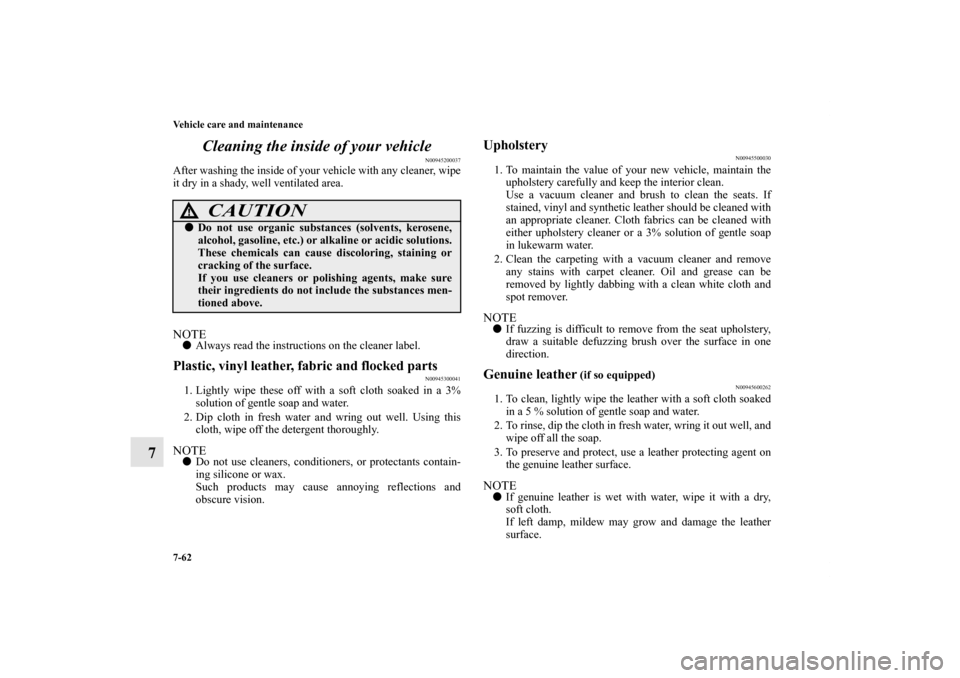

7Cleaning the inside of your vehicle
N00945200037
After washing the inside of your vehicle with any cleaner, wipe
it dry in a shady, well ventilated area. NOTE
Always read the instructions on the cleaner label.Plastic, vinyl leather, fabric and flocked parts
N00945300041
1. Lightly wipe these off with a soft cloth soaked in a 3%
solution of gentle soap and water.
2. Dip cloth in fresh water and wring out well. Using this
cloth, wipe off the detergent thoroughly.NOTE
Do not use cleaners, conditioners, or protectants contain-
ing silicone or wax.
Such products may cause annoying reflections and
obscure vision.
Upholstery
N00945500030
1. To maintain the value of your new vehicle, maintain the
upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean the seats. If
stained, vinyl and synthetic leather should be cleaned with
an appropriate cleaner. Cloth fabrics can be cleaned with
either upholstery cleaner or a 3% solution of gentle soap
in lukewarm water.
2. Clean the carpeting with a vacuum cleaner and remove
any stains with carpet cleaner. Oil and grease can be
removed by lightly dabbing with a clean white cloth and
spot remover. NOTE
If fuzzing is difficult to remove from the seat upholstery,
draw a suitable defuzzing brush over the surface in one
direction.Genuine leather
(if so equipped)
N00945600262
1. To clean, lightly wipe the leather with a soft cloth soaked
in a 5 % solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
3. To preserve and protect, use a leather protecting agent on
the genuine leather surface. NOTE
If genuine leather is wet with water, wipe it with a dry,
soft cloth.
If left damp, mildew may grow and damage the leather
surface.
CAUTION
!
Do not use organic substances (solvents, kerosene,
alcohol, gasoline, etc.) or alkaline or acidic solutions.
These chemicals can cause discoloring, staining or
cracking of the surface.
If you use cleaners or polishing agents, make sure
their ingredients do not include the substances men-
tioned above.
BK0121200US.book 62 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-63
7

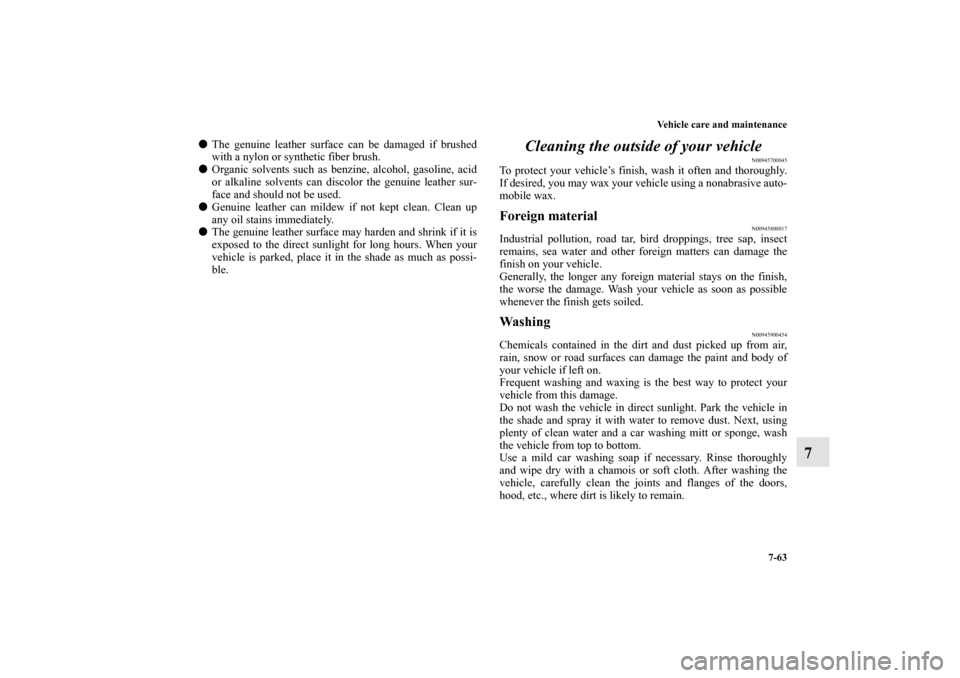

The genuine leather surface can be damaged if brushed
with a nylon or synthetic fiber brush.

Organic solvents such as benzine, alcohol, gasoline, acid
or alkaline solvents can discolor the genuine leather sur-
face and should not be used.

Genuine leather can mildew if not kept clean. Clean up
any oil stains immediately.

The genuine leather surface may harden and shrink if it is
exposed to the direct sunlight for long hours. When your
vehicle is parked, place it in the shade as much as possi-
ble.
Cleaning the outside of your vehicle
N00945700045
To protect your vehicle’s finish, wash it often and thoroughly.
If desired, you may wax your vehicle using a nonabrasive auto-
mobile wax. Foreign material
N00945800017
Industrial pollution, road tar, bird droppings, tree sap, insect
remains, sea water and other foreign matters can damage the
finish on your vehicle.
Generally, the longer any foreign material stays on the finish,
the worse the damage. Wash your vehicle as soon as possible
whenever the finish gets soiled.Wa s h i n g
N00945900454
Chemicals contained in the dirt and dust picked up from air,
rain, snow or road surfaces can damage the paint and body of
your vehicle if left on.
Frequent washing and waxing is the best way to protect your
vehicle from this damage.
Do not wash the vehicle in direct sunlight. Park the vehicle in
the shade and spray it with water to remove dust. Next, using
plenty of clean water and a car washing mitt or sponge, wash
the vehicle from top to bottom.
Use a mild car washing soap if necessary. Rinse thoroughly
and wipe dry with a chamois or soft cloth. After washing the
vehicle, carefully clean the joints and flanges of the doors,
hood, etc., where dirt is likely to remain.
BK0121200US.book 63 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-64 Vehicle care and maintenance
7

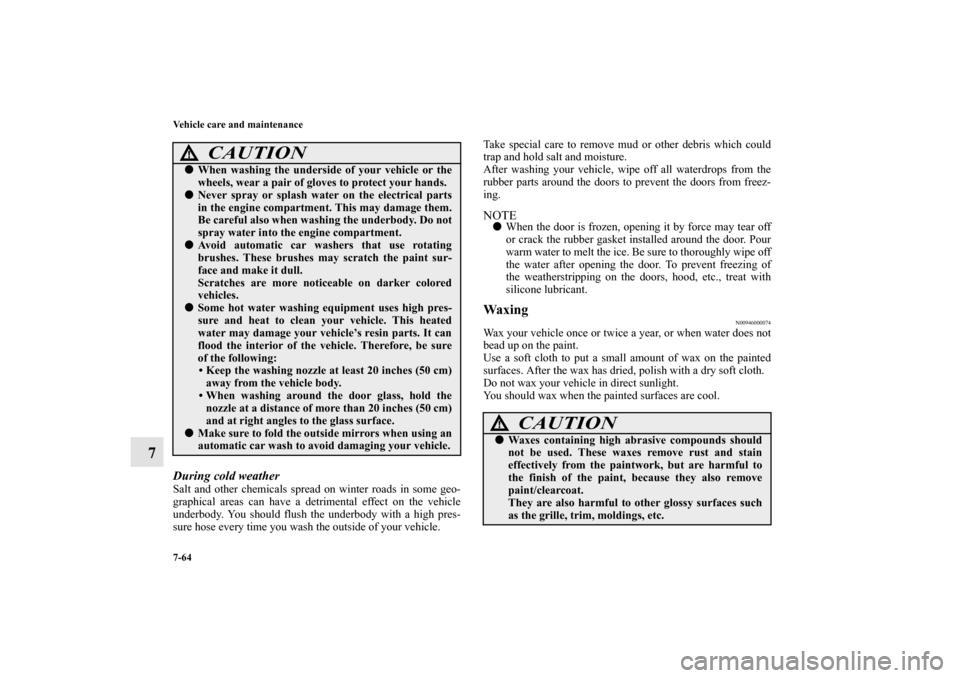

During cold weather Salt and other chemicals spread on winter roads in some geo-
graphical areas can have a detrimental effect on the vehicle
underbody. You should flush the underbody with a high pres-
sure hose every time you wash the outside of your vehicle.Take special care to remove mud or other debris which could
trap and hold salt and moisture.
After washing your vehicle, wipe off all waterdrops from the
rubber parts around the doors to prevent the doors from freez-
ing.
NOTE
When the door is frozen, opening it by force may tear off
or crack the rubber gasket installed around the door. Pour
warm water to melt the ice. Be sure to thoroughly wipe off
the water after opening the door. To prevent freezing of
the weatherstripping on the doors, hood, etc., treat with
silicone lubricant.Waxing
N00946000074
Wax your vehicle once or twice a year, or when water does not
bead up on the paint.
Use a soft cloth to put a small amount of wax on the painted
surfaces. After the wax has dried, polish with a dry soft cloth.
Do not wax your vehicle in direct sunlight.
You should wax when the painted surfaces are cool.
CAUTION
!
When washing the underside of your vehicle or the
wheels, wear a pair of gloves to protect your hands.
Never spray or splash water on the electrical parts
in the engine compartment. This may damage them.
Be careful also when washing the underbody. Do not
spray water into the engine compartment.
Avoid automatic car washers that use rotating
brushes. These brushes may scratch the paint sur-
face and make it dull.
Scratches are more noticeable on darker colored
vehicles.
Some hot water washing equipment uses high pres-
sure and heat to clean your vehicle. This heated
water may damage your vehicle’s resin parts. It can
flood the interior of the vehicle. Therefore, be sure
of the following:
• Keep the washing nozzle at least 20 inches (50 cm)
away from the vehicle body.
• When washing around the door glass, hold the
nozzle at a distance of more than 20 inches (50 cm)
and at right angles to the glass surface.

Make sure to fold the outside mirrors when using an
automatic car wash to avoid damaging your vehicle.
CAUTION
!
Waxes containing high abrasive compounds should
not be used. These waxes remove rust and stain
effectively from the paintwork, but are harmful to
the finish of the paint, because they also remove
paint/clearcoat.
They are also harmful to other glossy surfaces such
as the grille, trim, moldings, etc.
BK0121200US.book 64 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-65
7

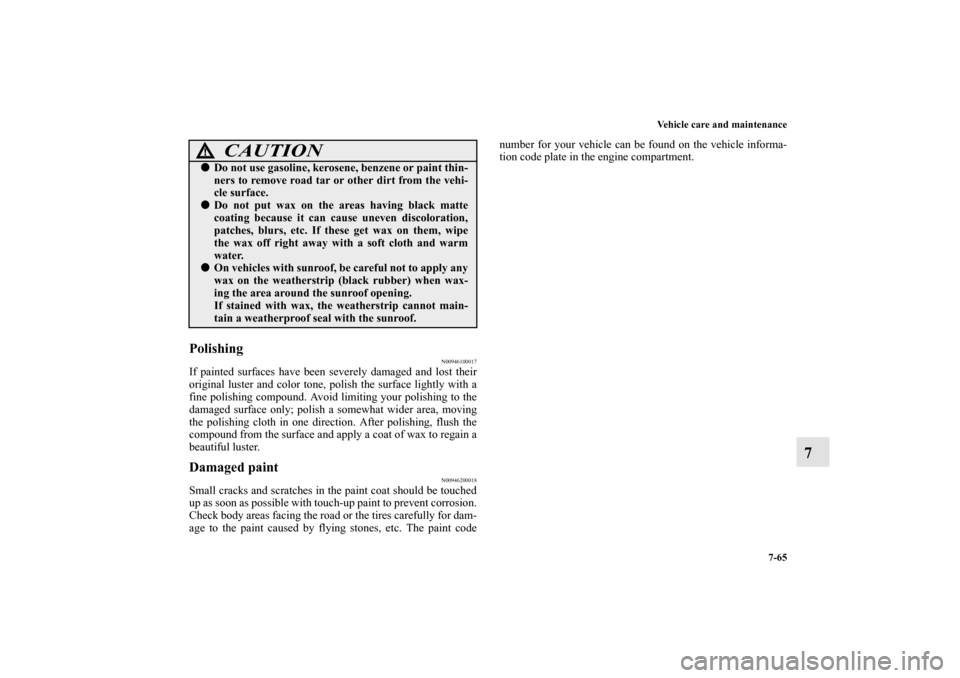

Polishing
N00946100017
If painted surfaces have been severely damaged and lost their
original luster and color tone, polish the surface lightly with a
fine polishing compound. Avoid limiting your polishing to the
damaged surface only; polish a somewhat wider area, moving
the polishing cloth in one direction. After polishing, flush the
compound from the surface and apply a coat of wax to regain a
beautiful luster.Damaged paint
N00946200018
Small cracks and scratches in the paint coat should be touched
up as soon as possible with touch-up paint to prevent corrosion.
Check body areas facing the road or the tires carefully for dam-
age to the paint caused by flying stones, etc. The paint codenumber for your vehicle can be found on the vehicle informa-
tion code plate in the engine compartment.

Do not use gasoline, kerosene, benzene or paint thin-
ners to remove road tar or other dirt from the vehi-
cle surface.
Do not put wax on the areas having black matte
coating because it can cause uneven discoloration,
patches, blurs, etc. If these get wax on them, wipe
the wax off right away with a soft cloth and warm
water.
On vehicles with sunroof, be careful not to apply any
wax on the weatherstrip (black rubber) when wax-
ing the area around the sunroof opening.
If stained with wax, the weatherstrip cannot main-
tain a weatherproof seal with the sunroof.
CAUTION
!
BK0121200US.book 65 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
