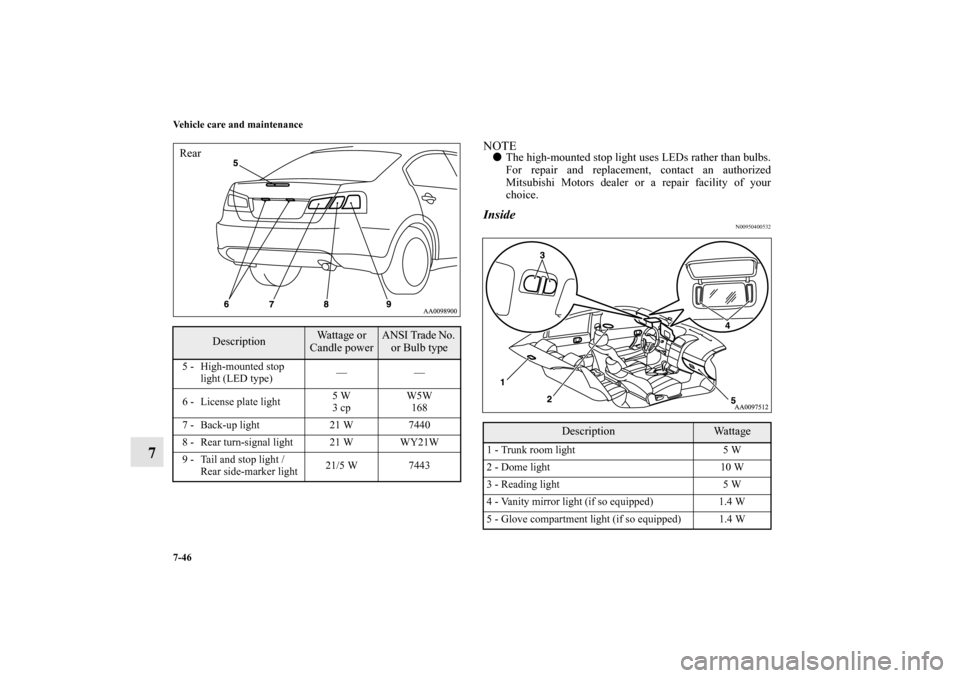

7-46 Vehicle care and maintenance
7
NOTE
The high-mounted stop light uses LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.Inside
N00950400532
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
5 - High-mounted stop
light (LED type)——
6 - License plate light5 W
3 cpW5W
168
7 - Back-up light 21 W 7440
8 - Rear turn-signal light 21 W WY21W
9 - Tail and stop light /
Rear side-marker light21/5 W 7443Rear
Description
Wa t t a g e
1 - Trunk room light 5 W
2 - Dome light 10 W
3 - Reading light 5 W
4 - Vanity mirror light (if so equipped) 1.4 W
5 - Glove compartment light (if so equipped) 1.4 W
BK0121200US.book 46 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-47
7

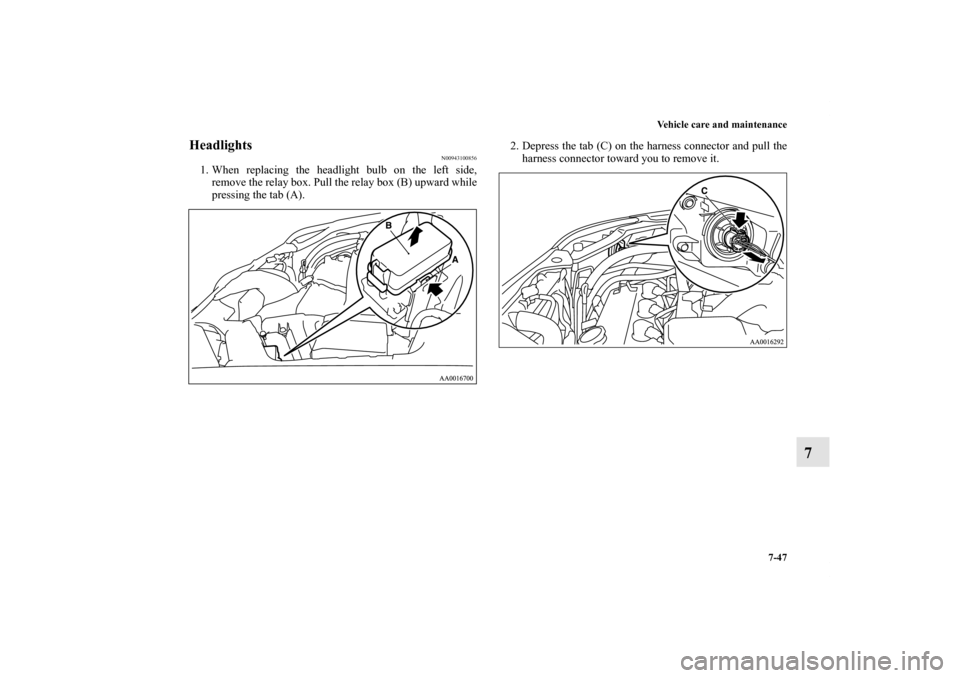

Headlights
N00943100856
1. When replacing the headlight bulb on the left side,
remove the relay box. Pull the relay box (B) upward while
pressing the tab (A).2. Depress the tab (C) on the harness connector and pull the
harness connector toward you to remove it.
BK0121200US.book 47 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-48 Vehicle care and maintenance
7

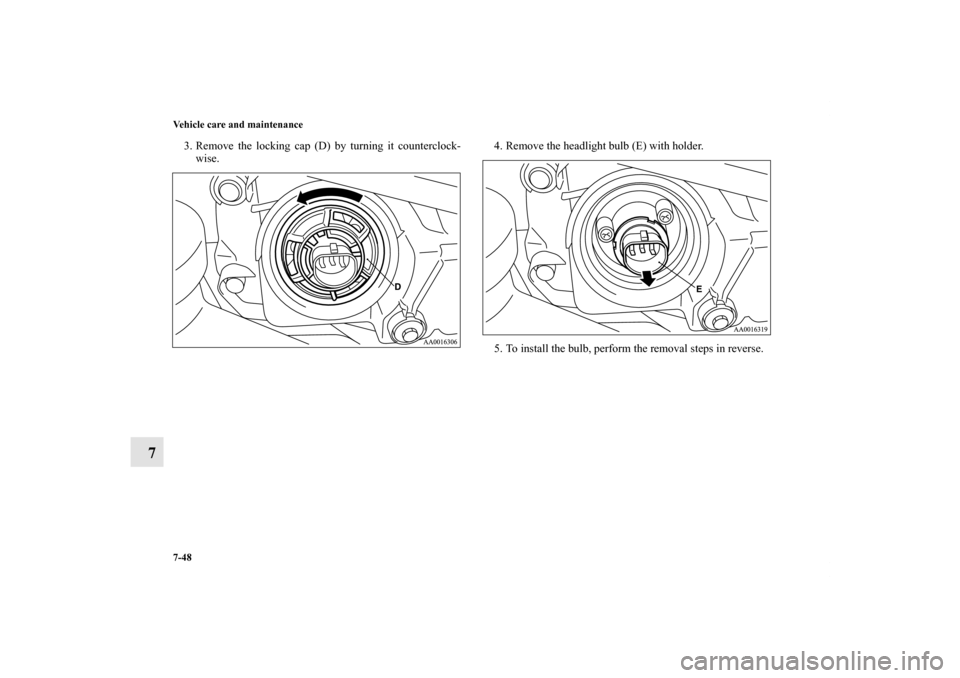

3. Remove the locking cap (D) by turning it counterclock-
wise.4. Remove the headlight bulb (E) with holder.
5. To install the bulb, perform the removal steps in reverse.
BK0121200US.book 48 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-49
7

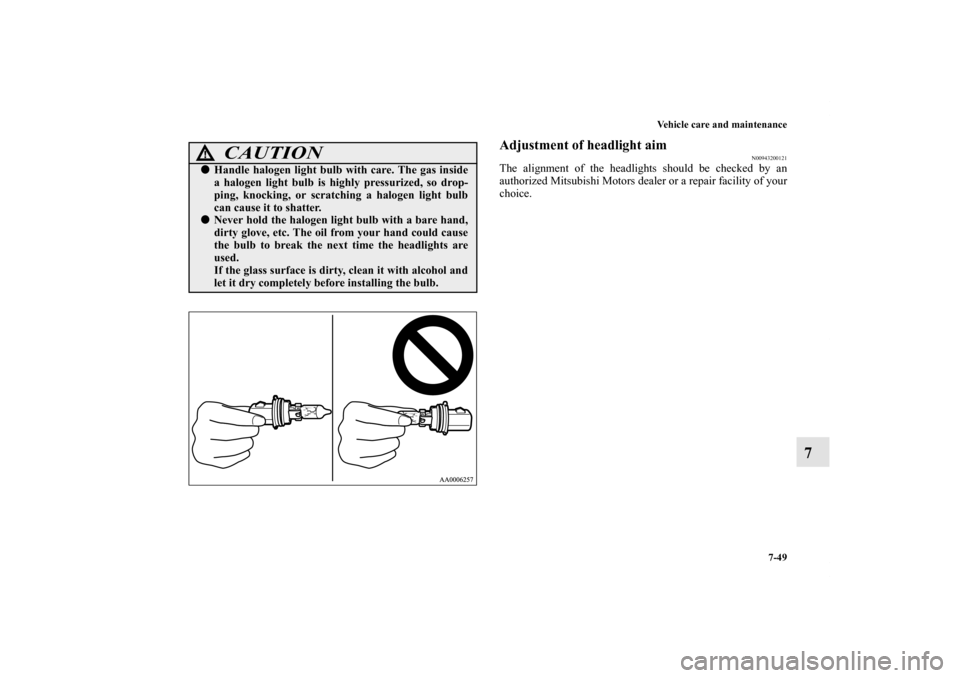

Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the headlights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0121200US.book 49 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-50 Vehicle care and maintenance
7

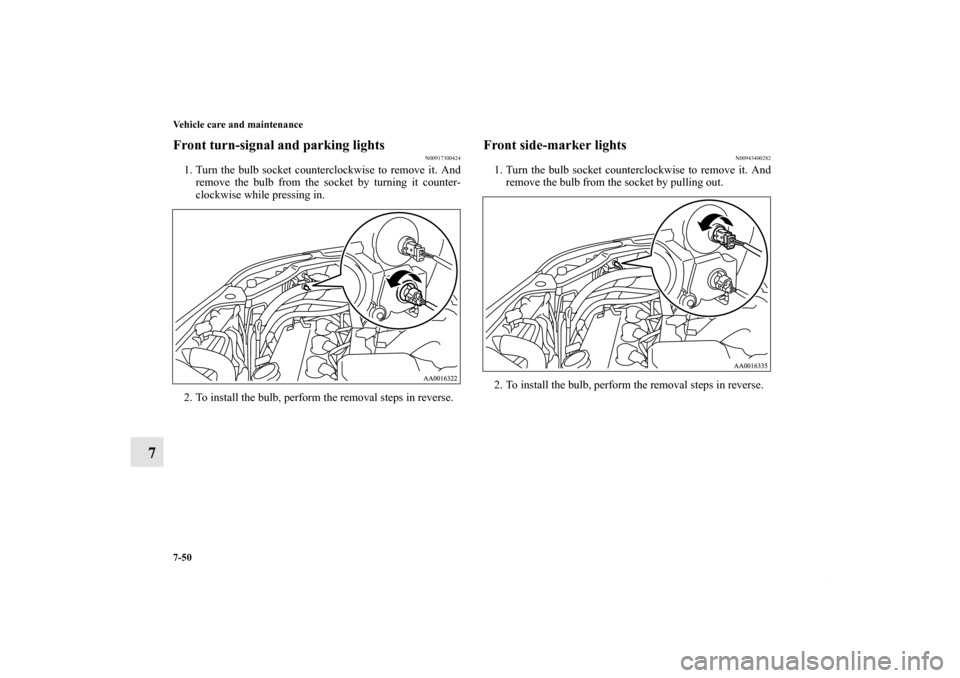

Front turn-signal and parking lights
N00917300424
1. Turn the bulb socket counterclockwise to remove it. And
remove the bulb from the socket by turning it counter-
clockwise while pressing in.
2. To install the bulb, perform the removal steps in reverse.
Front side-marker lights
N00943400282
1. Turn the bulb socket counterclockwise to remove it. And
remove the bulb from the socket by pulling out.
2. To install the bulb, perform the removal steps in reverse.
BK0121200US.book 50 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-51
7

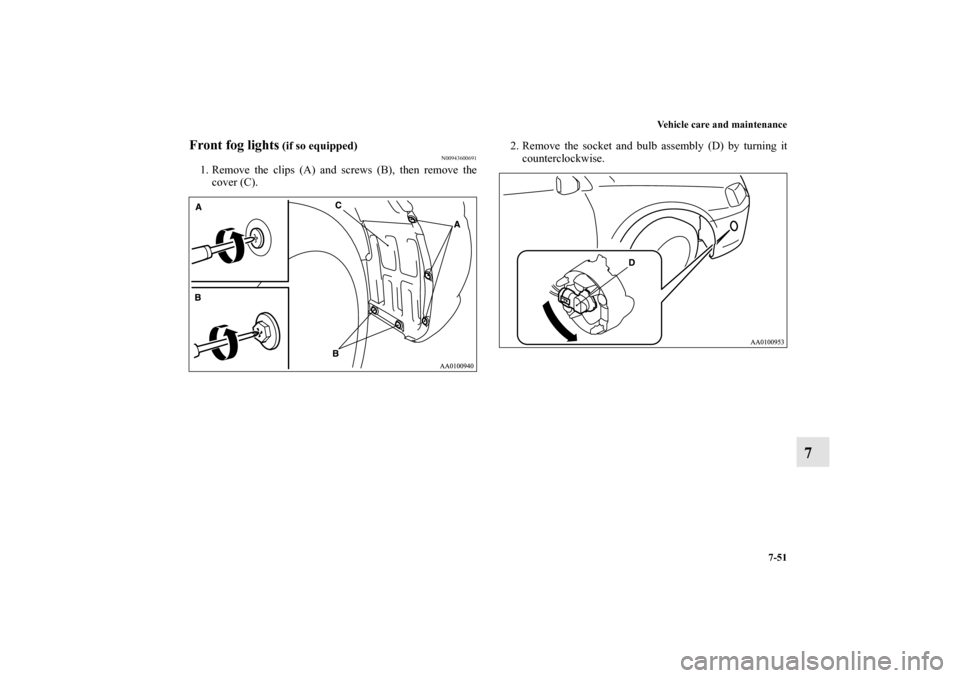

Front fog lights
(if so equipped)
N00943600691
1. Remove the clips (A) and screws (B), then remove the
cover (C).2. Remove the socket and bulb assembly (D) by turning it
counterclockwise.
BK0121200US.book 51 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-52 Vehicle care and maintenance
7

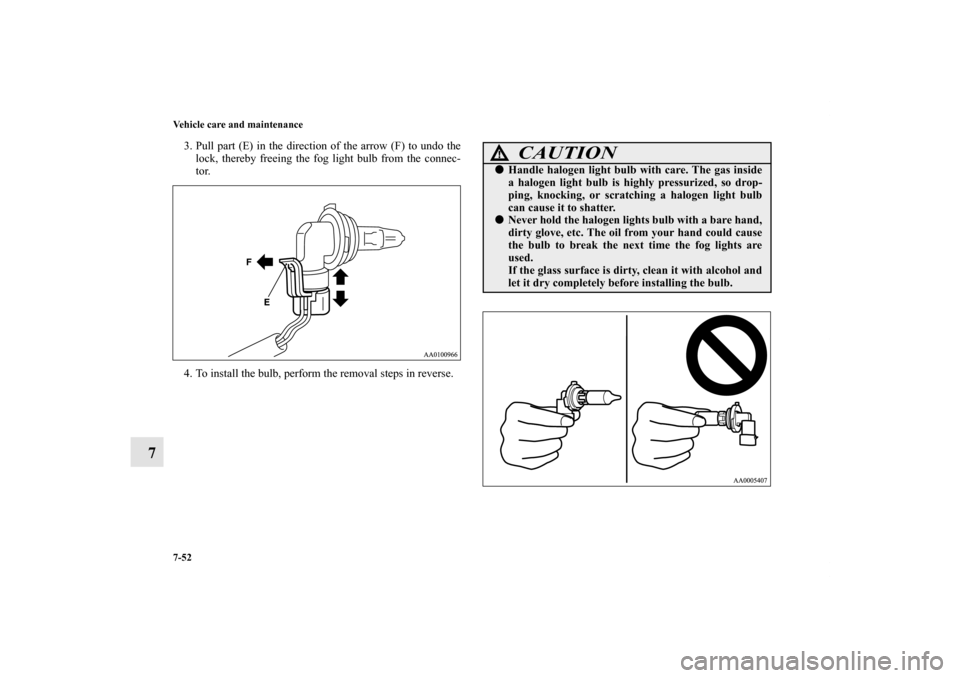

3. Pull part (E) in the direction of the arrow (F) to undo the
lock, thereby freeing the fog light bulb from the connec-
tor.
4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0121200US.book 52 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-53
7

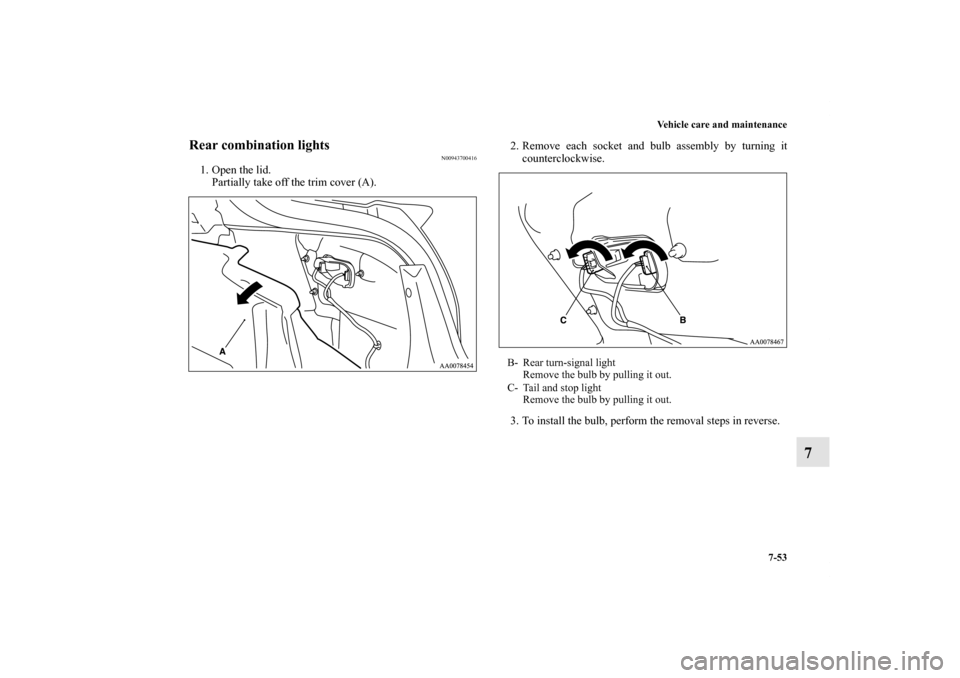

Rear combination lights
N00943700416
1. Open the lid.
Partially take off the trim cover (A).2. Remove each socket and bulb assembly by turning it
counterclockwise.
3. To install the bulb, perform the removal steps in reverse.
B- Rear turn-signal light
Remove the bulb by pulling it out.
C- Tail and stop light
Remove the bulb by pulling it out.
BK0121200US.book 53 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-54 Vehicle care and maintenance
7

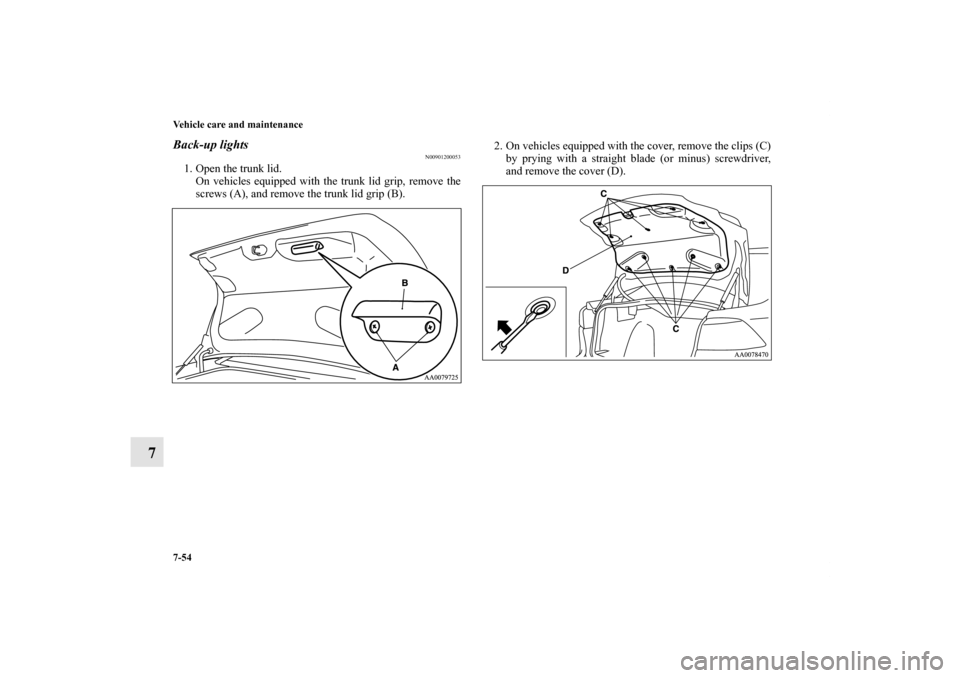

Back-up lights
N00901200053
1. Open the trunk lid.
On vehicles equipped with the trunk lid grip, remove the
screws (A), and remove the trunk lid grip (B).2. On vehicles equipped with the cover, remove the clips (C)
by prying with a straight blade (or minus) screwdriver,
and remove the cover (D).
BK0121200US.book 54 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Vehicle care and maintenance
7-55
7

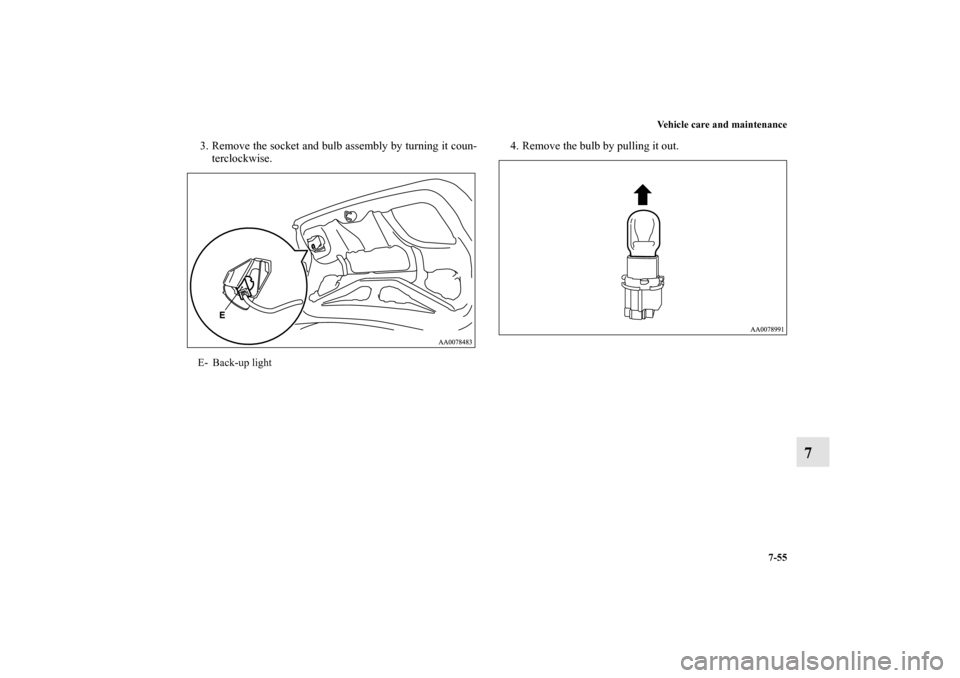

3. Remove the socket and bulb assembly by turning it coun-
terclockwise.4. Remove the bulb by pulling it out.E- Back-up light
