7-36 Vehicle care and maintenance
7
Ty p e A

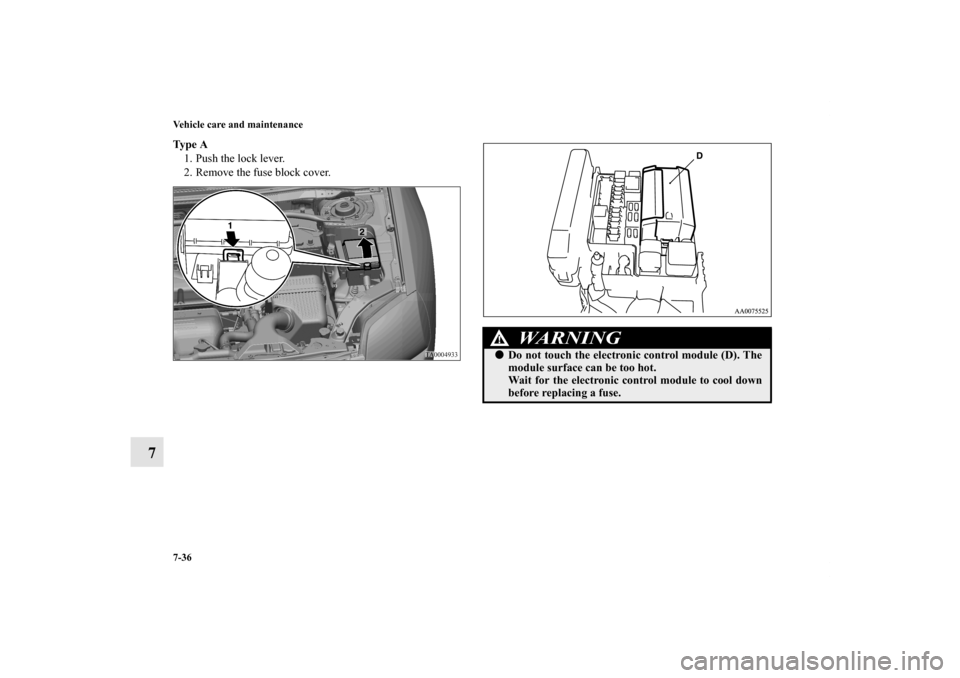

1. Push the lock lever.
2. Remove the fuse block cover.
WA R N I N G
!
Do not touch the electronic control module (D). The
module surface can be too hot.
Wait for the electronic control module to cool down
before replacing a fuse.
BK0139500US.book 36 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Vehicle care and maintenance
7-37
7

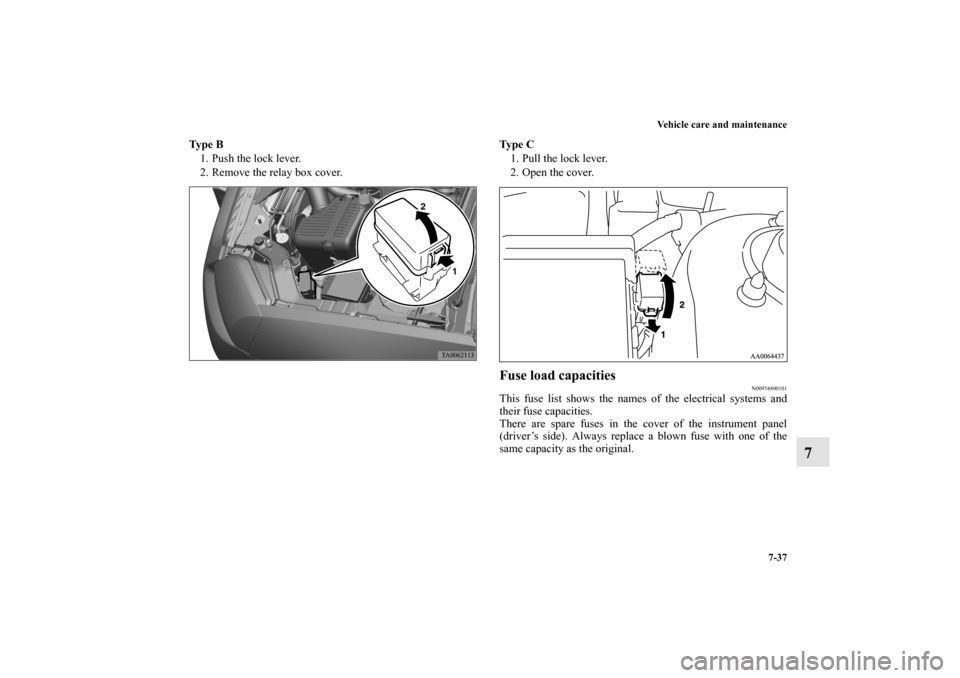

Ty p e B
1. Push the lock lever.
2. Remove the relay box cover.Ty p e C
1. Pull the lock lever.
2. Open the cover.
Fuse load capacities
N00954800101
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the cover of the instrument panel
(driver’s side). Always replace a blown fuse with one of the
same capacity as the original.
BK0139500US.book 37 ページ ２０１１年４月１９日　火曜日　午後１時４８分

7-38 Vehicle care and maintenance
7

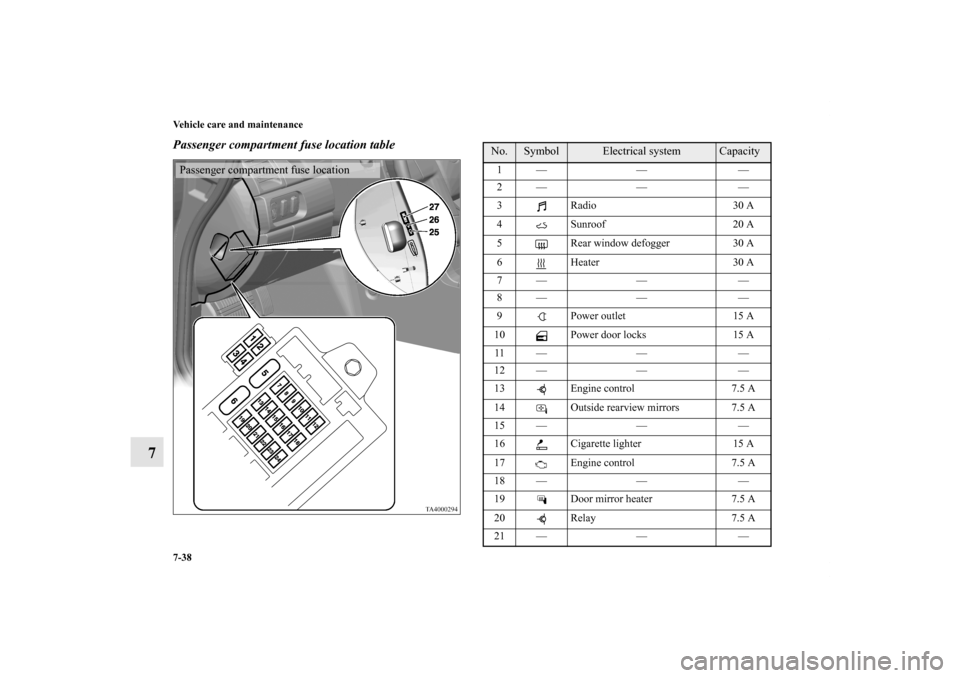

Passenger compartment fuse location tablePassenger compartment fuse location
No.
Symbol
Electrical system
Capacity
1— — —
2— — —
3Radio 30 A
4 Sunroof 20 A
5 Rear window defogger 30 A
6 Heater 30 A
7— — —
8 — — —
9 Power outlet 15 A
10 Power door locks 15 A
11 — — —
12 — — —
13 Engine control 7.5 A
14 Outside rearview mirrors 7.5 A
15 — — —
16 Cigarette lighter 15 A
17 Engine control 7.5 A
18 — — —
19 Door mirror heater 7.5 A
20 Relay 7.5 A
21 — — —
BK0139500US.book 38 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Vehicle care and maintenance
7-39
7

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
The fuse block does not contain spare 7.5 A, 10 A and 15
A fuses. If a fuse of one of these capacities blows, replace
it temporarily by borrowing the one that matches from:
7.5 A: Door mirror heater
10 A: Radio
15 A: Cigarette lighter
Replace the borrowed fuse as soon as possible.
Engine compartment fuse location tableTy p e A

22 Back-up lights 7.5 A
23 Gauge 7.5 A
24 Ignition coil 10 A
25 — Spare fuse 20 A
26 — Spare fuse 30 A
27 — Spare fuse 30 A No.
Symbol
Electrical system
Capacity
No.
Symbol
Electrical system
Capacity
1 Battery 80 A*
2 Radiator fan motor 30 A*
3 Anti-lock braking system 60 A*Engine compartment fuse location
Front
BK0139500US.book 39 ページ ２０１１年４月１９日　火曜日　午後１時４８分

7-40 Vehicle care and maintenance
7
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
4 Ignition switch 40 A*
5 Power window control 30 A*
6Front fog lights/
Daytime running lights15 A
7 Heated seat 20 A
8 Horn 15 A
9 Engine control 20 A
10 Air conditioning 10 A
11 Stop lights 15 A
12 Rear fog light 10 A
13 Alternator 7.5 A
14 Hazard warning flasher 10 A
15 Automatic transaxle 20 A
16 Headlight high beam (right) 10 A
17 Headlight high beam (left) 10 A
18 Headlight low beam (right) 10 A
19 Headlight low beam (left) 10 A
20 Tail light (right) 7.5 A
21 Tail light (left) 7.5 A
22 Dome light 10 A No.
Symbol
Electrical system
Capacity
23 Radio 10 A
24
Fuel pump 15 A
25 Windshield wiper 30 A No.
Symbol
Electrical system
Capacity
BK0139500US.book 40 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Vehicle care and maintenance
7-41
7

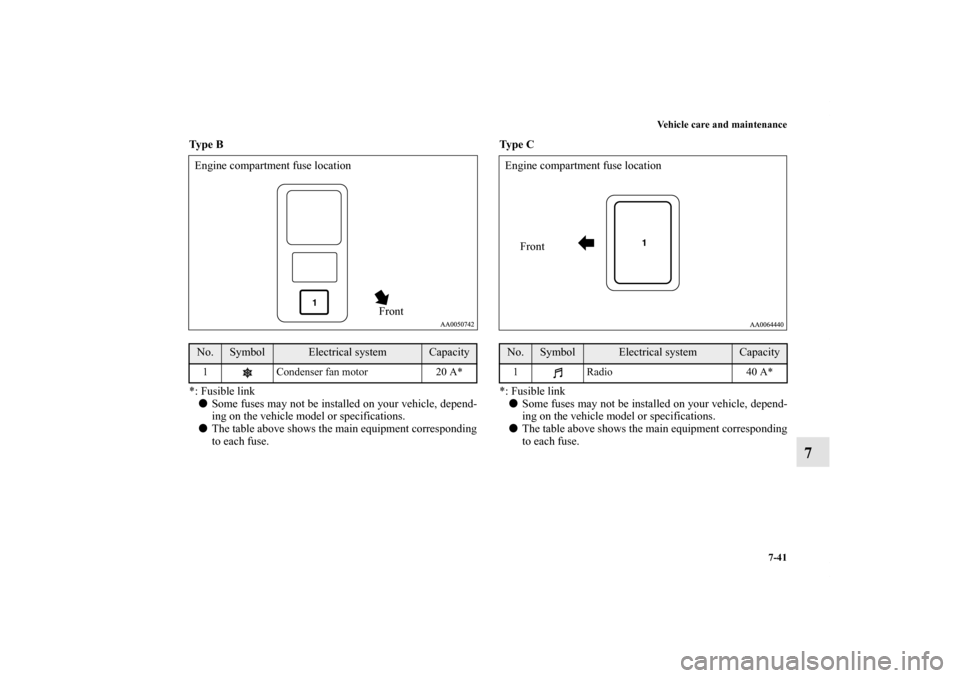

Ty p e B

*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.Ty p e C

*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.No.
Symbol
Electrical system
Capacity
1 Condenser fan motor 20 A*Engine compartment fuse location
Front
No.
Symbol
Electrical system
Capacity
1 Radio 40 A*Engine compartment fuse location
Front
BK0139500US.book 41 ページ ２０１１年４月１９日　火曜日　午後１時４８分

7-42 Vehicle care and maintenance
7
Identification of fuse
N00901100065
Fuse replacement
N00954900043
1. Before replacing a fuse, always turn off the electrical item
connected to the fuse and turn the ignition key to the
“LOCK” position.
2. There is a fuse puller in the cover of the instrument panel
(driver’s side).
3. Remove the fuse puller from the cover.
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow (fuse type) / Light blue (fusible link type)
30 A Green (fuse type) / Pink (fusible link type)
40 A Green
60 A Yellow
80 A White
BK0139500US.book 42 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Vehicle care and maintenance
7-43
7

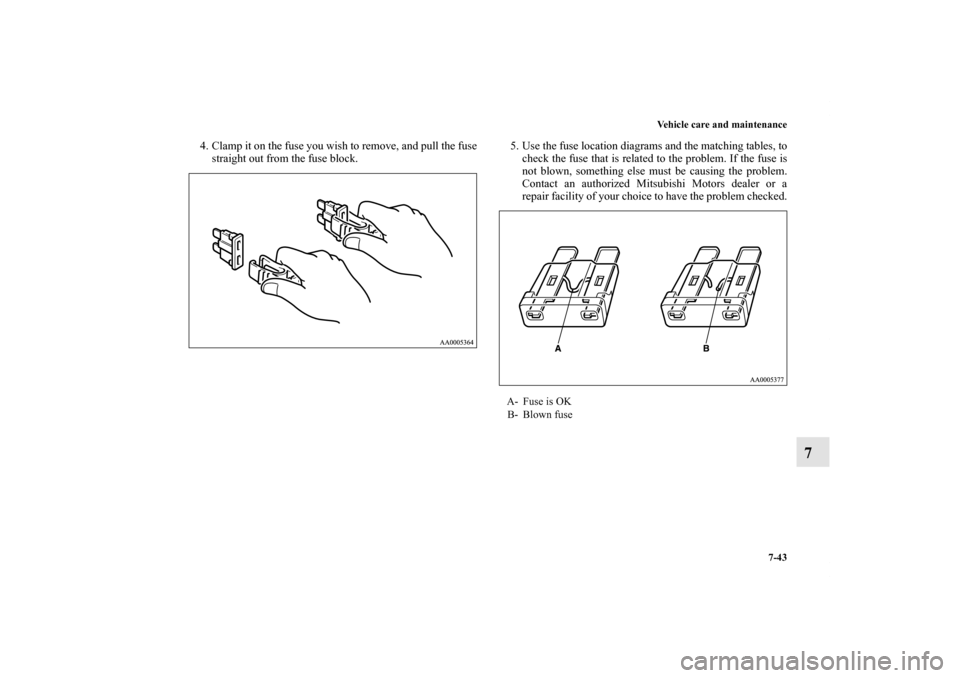

4. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.5. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice to have the problem checked.
A- Fuse is OK
B- Blown fuse
BK0139500US.book 43 ページ ２０１１年４月１９日　火曜日　午後１時４８分

7-44 Vehicle care and maintenance
7

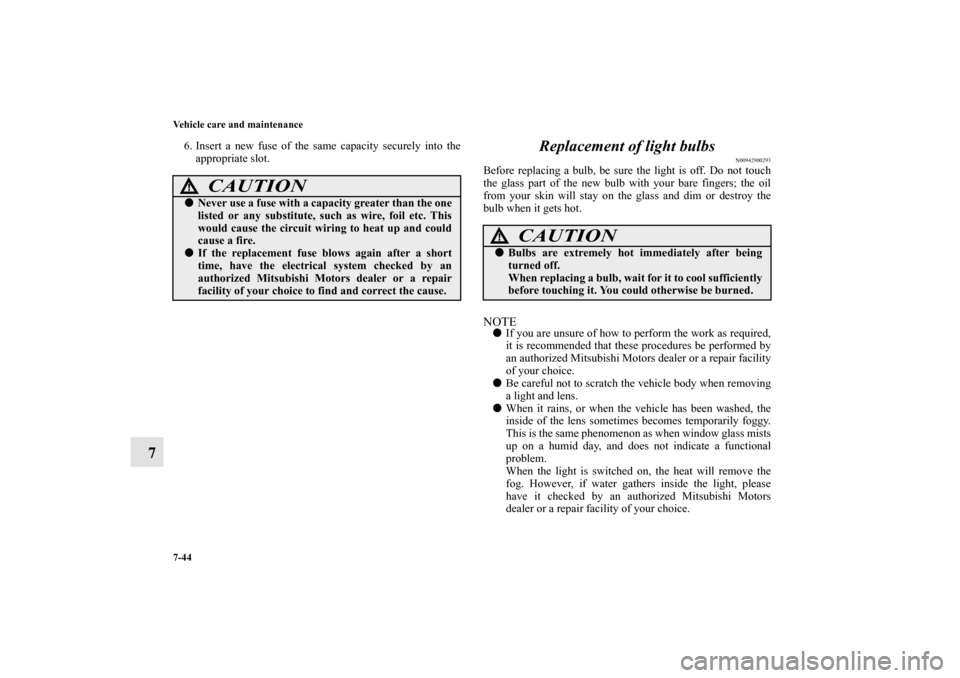

6. Insert a new fuse of the same capacity securely into the
appropriate slot.
Replacement of light bulbs
N00942900293
Before replacing a bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to perform the work as required,
it is recommended that these procedures be performed by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing a bulb, wait for it to cool sufficiently
before touching it. You could otherwise be burned.
BK0139500US.book 44 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Vehicle care and maintenance
7-45
7

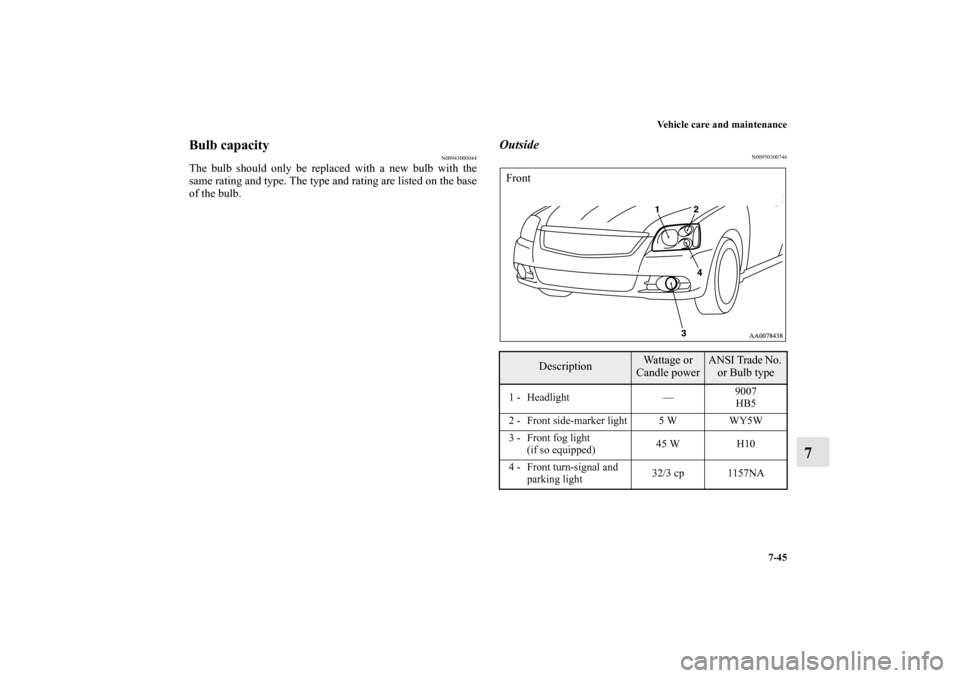

Bulb capacity
N00943000044
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.
Outside
N00950300746
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
1 - Headlight —9007
HB5
2 - Front side-marker light 5 W WY5W
3 - Front fog light
(if so equipped)45 W H10
4 - Front turn-signal and
parking light32/3 cp 1157NA Front
