Features and controls
3-77
3 Indicator and warning light package
N00519800780
1- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-79
2- Cruise control indicator → P.3-58
3- High beam indicator → P.3-78
4- Turn signal indicators/Hazard warning lights → P.3-78
5- Front fog light indicator (if so equipped) → P.3-78
6- Automatic transaxle position indicator → P.3-42
7- Active stability control (ASC) indicator → P. 3 - 5 4
8- Active stability control (ASC) OFF indicator → P.3-54
9- Driver’s seat belt reminder/warning light → P. 2 - 2 0
10- Door-ajar warning light → P. 3 - 8 0
11- Oil pressure warning light → P.3-80
12- Charging system warning light → P.3-80
13- Immobilizer indicator → P. 3 - 314- Tire pressure monitoring system warning light → P.3-65
15- Supplemental Restraint System (SRS) warning light
→ P. 2 - 4 6
16- Anti-lock braking system warning light → P.3-50
17- Brake warning light → P.3-78
18- Low-fuel warning light → P.3-75
BK0139500US.book 77 ページ 2011年4月19日 火曜日 午後1時48分
Page 167 of 424
3-78 Features and controls
3Indicator
N00519900042
Turn signal indicators/Hazard warning lights
N00520000157
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed. NOTEIf the indicator light flashes faster than usual or if the indi-
cator light stays on without flashing, check for a malfunc-
tioning turn signal light bulb or turn signal connection.High beam indicator
N00520100073
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200104
This indicator comes on while the front fog lights are on.
Warning lights
N00520300118
Brake warning light
N00520400252
This light comes on when the ignition key is turned to the
“ON” position (engine off).
When the engine is started, the light should go off.
The light will illuminate under the following conditions:
When the parking brake lever is engaged.
When the brake fluid level in the reservoir falls to a low
level.
When the brake circuit is not operating correctly.
Before driving your vehicle, release the parking brake and
make certain that the brake warning light has gone out.
CAUTION
!Brake performance or your ability to control the
vehicle may be compromised or the vehicle may
become unstable if the brakes are applied suddenly
in the following situations:
• The brake warning light does not illuminate when
the parking brake is applied or does not turn off
when the parking brake is released.
• The brake warning light remains illuminated dur-
ing driving.
• If any of the above situations occur, stop the vehi-
cle in a safe location, avoiding any sudden brake
application, and contact your nearest authorized
Mitsubishi Motors dealer or a repair facility of
your choice.
BK0139500US.book 78 ページ 2011年4月19日 火曜日 午後1時48分
Page 172 of 424
Features and controls
3-83
3
3. The light will automatically turn off after 3 minutes.NOTEWhen the driver’s door is opened, a continuous high-
pitched tone will sound if the key has been removed; a
continuous low-pitched tone will sound if the key is in the
ignition switch.
The tone stops sounding when the driver’s door is closed.Headlight reminder buzzer
N00549800141
If the driver’s door is opened with the key in the “LOCK” or
“ACC” position or removed from the ignition switch while the
lights are on, the tone will sound to remind you to turn off the
lights. The lights will turn off automatically and so will the
tone. Or you can turn the light switch to the “OFF” position to
stop the tone.
Dimmer (high/low beam change)
N00549900126
To change the headlights from high beam to low beam and vice
versa, pull the turn signal lever to fully toward you (1). Switch
the headlights to low beam as a courtesy whenever there are
oncoming vehicles, or when there is traffic moving ahead of
you. An illuminated blue light in the instrument cluster indi-
cates when the headlights are on high beam.
BK0139500US.book 83 ページ 2011年4月19日 火曜日 午後1時48分
Page 173 of 424
3-84 Features and controls
3
Headlight flasher
N00550000169
You can flash the high beams by pulling the lever gently
toward you (2). The lights will go back to normal when you let
go. While the high beam is on, you will see a blue light on the
instrument panel.NOTEYou can flash the high beams by pulling the lever toward
you, even if the light switch is off.
If you turn the lights off with the headlights set to high-
beam illumination, the headlights are automatically
returned to their low-beam setting when the light switch is
next turned to the “ ” position.
Turn signal lever
N00522600434
When changing lanes, or to making a gradual turn, hold the
lever in the “lane change” position (1). It will return to the neu-
tral position when you let go. Use the full position (2) when
making a normal turn. The lever will return to the neutral posi-
tion when the turn is complete. There may be times when the
lever does not return to the neutral position. This usually hap-
pens when the steering wheel is turned only slightly. You can
easily return the lever by hand.
BK0139500US.book 84 ページ 2011年4月19日 火曜日 午後1時48分
Page 175 of 424
3-86 Features and controls
3Fog light switch
(if so equipped)
N00522800364
The fog lights illuminate only when the headlights are on low
beam. Press the switch to illuminate. Press the switch again to
turn the lights off.
The indicator in the instrument cluster will illuminate while the
fog lights are on.NOTEIf the headlights are switched to high beam, the fog lights
will go out; they will illuminate again when the headlights
are switched back to low beam.
If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the light switch back to “ ” position, and
pressing the front fog light switch once again.Do not use fog lamps except in conditions of fog, other-
wise excessive lamp glare may temporarily blind oncom-
ing vehicle drivers.
BK0139500US.book 86 ページ 2011年4月19日 火曜日 午後1時48分
Page 228 of 424
Driving safety
4-5

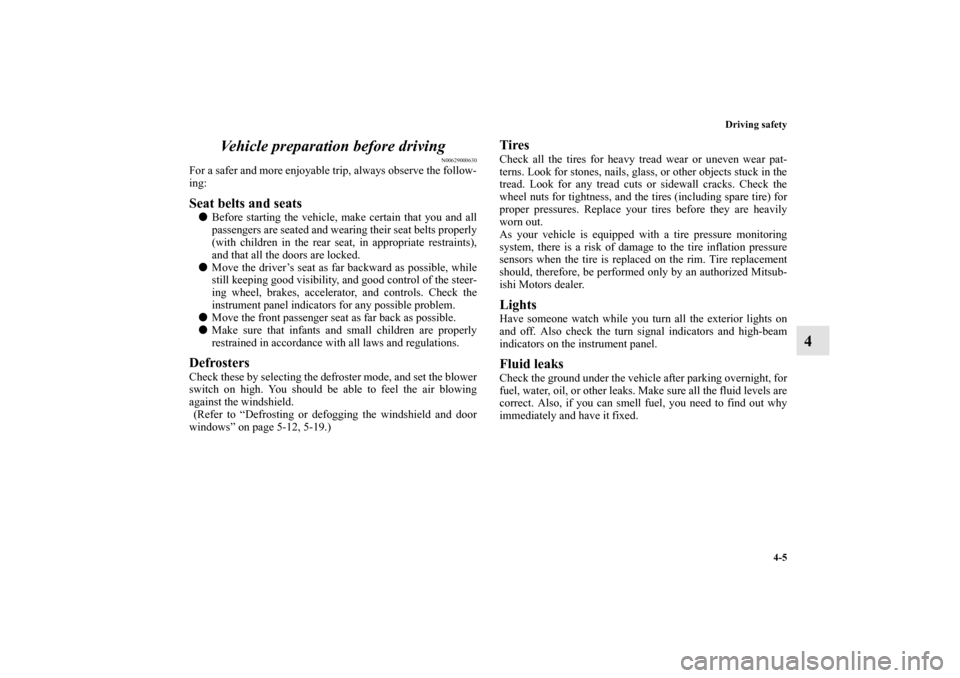

4 Vehicle preparation before driving
N00629000630
For a safer and more enjoyable trip, always observe the follow-
ing: Seat belts and seats Before starting the vehicle, make certain that you and all
passengers are seated and wearing their seat belts properly
(with children in the rear seat, in appropriate restraints),
and that all the doors are locked.
Move the driver’s seat as far backward as possible, while
still keeping good visibility, and good control of the steer-
ing wheel, brakes, accelerator, and controls. Check the
instrument panel indicators for any possible problem.
Move the front passenger seat as far back as possible.
Make sure that infants and small children are properly
restrained in accordance with all laws and regulations.Defrosters Check these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
(Refer to “Defrosting or defogging the windshield and door
windows” on page 5-12, 5-19.)
Tires Check all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressures. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized Mitsub-
ishi Motors dealer.Lights Have someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaks Check the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
BK0139500US.book 5 ページ 2011年4月19日 火曜日 午後1時48分
Page 375 of 424
7-40 Vehicle care and maintenance
7
*: Fusible link
Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
The table above shows the main equipment corresponding
to each fuse.
4 Ignition switch 40 A*
5 Power window control 30 A*
6Front fog lights/
Daytime running lights15 A
7 Heated seat 20 A
8 Horn 15 A
9 Engine control 20 A
10 Air conditioning 10 A
11 Stop lights 15 A
12 Rear fog light 10 A
13 Alternator 7.5 A
14 Hazard warning flasher 10 A
15 Automatic transaxle 20 A
16 Headlight high beam (right) 10 A
17 Headlight high beam (left) 10 A
18 Headlight low beam (right) 10 A
19 Headlight low beam (left) 10 A
20 Tail light (right) 7.5 A
21 Tail light (left) 7.5 A
22 Dome light 10 A No.
Symbol
Electrical system
Capacity
23 Radio 10 A
24
Fuel pump 15 A
25 Windshield wiper 30 A No.
Symbol
Electrical system
Capacity
BK0139500US.book 40 ページ 2011年4月19日 火曜日 午後1時48分
