MITSUBISHI GRANDIS 2010 Owner's Manual (in English)

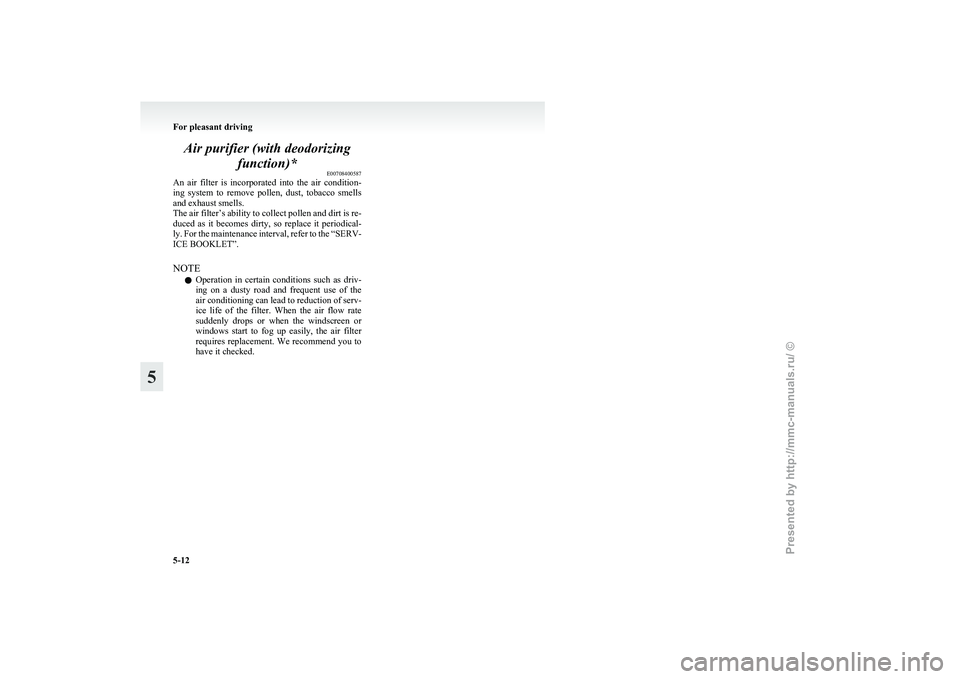

Air purifier (with deodorizing
function)* E00708400587
An
air filter is incorporated into the air condition-
ing system to remove pollen, dust, tobacco smells
and exhaust smells.
The air filter’s ability to collect pollen and dirt is re-
duced as it becomes dirty, so replace it periodical-
ly. For the maintenance interval, refer to the “SERV-
ICE BOOKLET”.
NOTE
l Operation in certain conditions such as driv-
ing on a dusty road and frequent use of the
air conditioning can lead to reduction of serv-
ice life of the filter. When the air flow rate
suddenly drops or when the windscreen or
windows start to fog up easily, the air filter
requires replacement. We recommend you to
have it checked. For pleasant driving
5-12
5
Presented by http://mmc-manuals.ru/ \251

LW/MW/FM electronic tuning radio with CD player*
E00708501891
The audio system can be used when the ignition switch is in the “ON” or “ACC” position. A- Display window
B- Audio system
NOTE l The MITSUBISHI genuine CD autochanger can be connected to this audio system.
The CD autochanger can be operated by the switch of the audio body. Refer to
“To listen to a CD” on page 5-24.
l To listen to the audio system while the engine is stopped, turn the ignition key to the “ACC” position.
l If a cellular phone is used inside the vehicle, it may create noise from the audio equipment. This does not mean that anything is wrong with your audio
equipment. In such a case, use the cellular phone at a place as far away as possible from the audio equipment.
l If foreign objects or water get into the audio equipment, or if smoke or a strange odour comes from it, immediately turn off the audio system and have it
checked. Never try to repair it by yourself. Avoid continuous usage without inspection by a qualified person. For pleasant driving
5-13 5
Presented by http://mmc-manuals.ru/ \251

Volume and tone control panel
E007086006511- PWR (On-Off) switch
2-
VOL (Volume control) knob
3- AUDIO button 4- Memory select buttons
5-
Audio adjust button
6- Display For pleasant driving
5-14
5
Presented by http://mmc-manuals.ru/ \251

To adjust the volume
E00708700069
VOL (Volume control)
Turn
the VOL knob (2) clockwise to increase the
volume; anticlockwise to decrease the volume. The
status will be displayed in the display (6).
To adjust the tone E00708800640
Press the AUDIO button (3) to select BASS TRE FADE BAL Audio adjust mode off.
The status will be displayed in the display (6).
BASS (Bass tone control)
Press

the audio adjust button (5) either or
to select the desired bass tone quality.
TRE (Treble tone control)
Press

the audio adjust button (5) either or
to select the desired treble tone quality.
FADE (Front/Rear balance control)
Press

the audio adjust button (5) either or
to balance the volume of sound from the front and
the rear speakers.
BAL (Left/Right balance control)
Press

the audio adjust button (5) either or
to balance the volume of sound from the left and
the right speakers. NOTE
l Audio

adjust mode will be cancelled when ra-
dio or CD operation is performed or no ad-
justment is performed for more than 7 seconds. To enter audio tone settings into the memory
It
is possible to enter the audio adjustment condi-
tion (BASS, TRE, FADE, BAL) into the memory. 1. Make the desired adjustments in the audio ad-just mode. Refer to “To adjust the tone” on
page 5-15.
2. In the audio adjust mode, press and hold one of the memory select buttons (4) [1-6]. When
you hear a bleep, the memorization is com-
plete. The display will show the button num-
ber [SOUND1-SOUND6] for which the set-
tings were memorized.
3. In future, when you gently press the memory select button in the audio adjust mode, the au-
dio adjustment condition memorized for that
button will take effect. For pleasant driving
5-15 5
Presented by http://mmc-manuals.ru/ \251

Radio control panel and display
E007089007131. AM/FM (FM/MW/LW selection) button
2.
TUNE/SEEK (Down-step/Down-seek) button
3. TUNE/SEEK (Up-step/Up-seek) button
4. Memory select buttons
5. PWR (On-Off) switch 6. FM (FM1/FM2/FM3) indicators
7.
ST (Stereo) indicator
8. Preset memory number display
9. Frequency display window For pleasant driving
5-16
5
Presented by http://mmc-manuals.ru/ \251

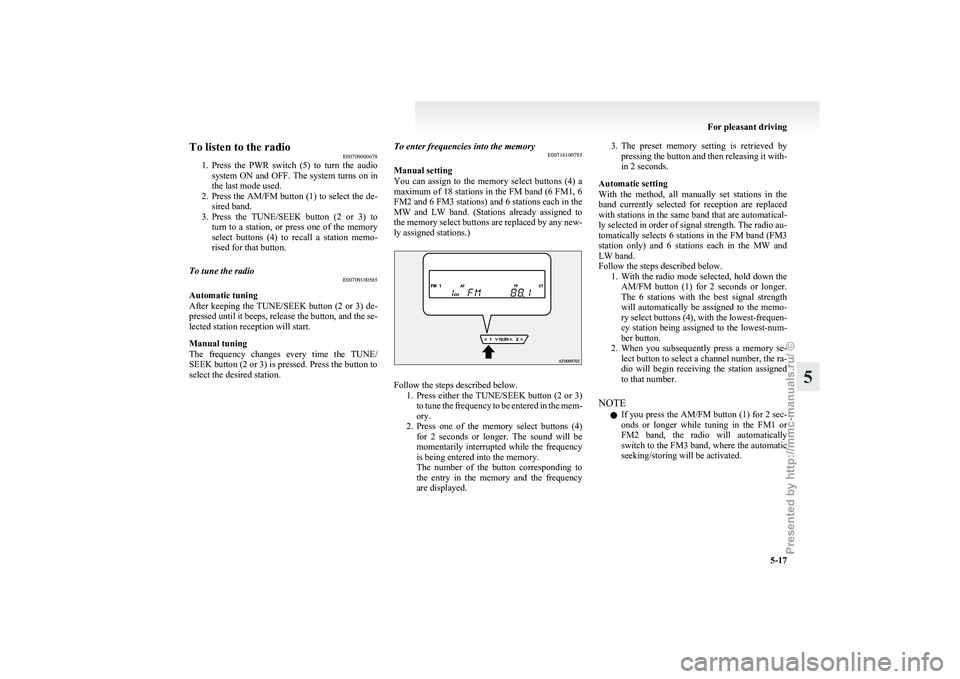

To listen to the radio
E00709000678
1. Press
the PWR switch (5) to turn the audio
system ON and OFF. The system turns on in
the last mode used.
2. Press the AM/FM button (1) to select the de- sired band.
3. Press the TUNE/SEEK button (2 or 3) to turn to a station, or press one of the memory
select buttons (4) to recall a station memo-
rised for that button.
To tune the radio E00709100565
Automatic tuning
After
keeping the TUNE/SEEK button (2 or 3) de-
pressed until it beeps, release the button, and the se-
lected station reception will start.
Manual tuning
The frequency changes every time the TUNE/
SEEK button (2 or 3) is pressed. Press the button to
select the desired station. To enter frequencies into the memory
E00716100785
Manual setting
You

can assign to the memory select buttons (4) a
maximum of 18 stations in the FM band (6 FM1, 6
FM2 and 6 FM3 stations) and 6 stations each in the
MW and LW band. (Stations already assigned to
the memory select buttons are replaced by any new-
ly assigned stations.) Follow the steps described below.
1. Press
either the TUNE/SEEK button (2 or 3)
to tune the frequency to be entered in the mem-
ory.
2. Press one of the memory select buttons (4) for 2 seconds or longer. The sound will be
momentarily interrupted while the frequency
is being entered into the memory.
The number of the button corresponding to
the entry in the memory and the frequency
are displayed. 3. The
preset memory setting is retrieved by
pressing the button and then releasing it with-
in 2 seconds.
Automatic setting
With the method, all manually set stations in the
band currently selected for reception are replaced
with stations in the same band that are automatical-
ly selected in order of signal strength. The radio au-
tomatically selects 6 stations in the FM band (FM3
station only) and 6 stations each in the MW and
LW band.
Follow the steps described below. 1. With the radio mode selected, hold down theAM/FM button (1) for 2 seconds or longer.
The 6 stations with the best signal strength
will automatically be assigned to the memo-
ry select buttons (4), with the lowest-frequen-
cy station being assigned to the lowest-num-
ber button.
2. When you subsequently press a memory se- lect button to select a channel number, the ra-
dio will begin receiving the station assigned
to that number.
NOTE l If you press the AM/FM button (1) for 2 sec-
onds or longer while tuning in the FM1 or
FM2 band, the radio will automatically
switch to the FM3 band, where the automatic
seeking/storing will be activated. For pleasant driving
5-17 5
Presented by http://mmc-manuals.ru/ \251

Radio data system (RDS)
E007092002471- AM/FM (FM/MW/LW selection) button
2-
Menu button
3- Memory select buttons
4- PWR (On-Off) switch
5- TUNE/SEEK (Down-step/Down-seek) button
6- TUNE/SEEK (Up-step/Up-seek) button
7- TP (Traffic program) button
8- PTY (Program type) button 9- AF (Alternative frequencies) indicator
10- RDS (Radio data system) indicator
11- REG (Regional program) indicator
12- TP (Traffic program identification) indicator
13- PTY (Program type) indicator
14- CT (Clock time) indicator
15- Frequency display window
RDS uses PI (program identification) signal and AF (alternative frequency) list transmitted in addition to the normal FM broadcasting programs, and picks up the
FM
stations that are transmitting the same program from the EON (enhanced other network) and automatically tunes to the station with the strongest signal intensity.
Therefore, you can continue listening to one program in, for example, a long distance driving without retuning to the other station transmitting the same program
when you are leaving the service area of the currently receiving station.
The RDS radio also features the limited reception of the program types, the break-in reception of the traffic announcement and emergency broadcast, and the limited/
unlimited reception of the regional programs. For pleasant driving
5-18
5
Presented by http://mmc-manuals.ru/ \251

AF (Alternative Frequencies) function
E00720900016
The
AF function finds a station broadcasting the
same program and selects the station with the stron-
gest signal of AF lists.
The AF function is turned on (with the AF indica-
tor (9) shown on the display) at all times unless
you manually switch it off.

The AF function can be turned ON and OFF.
Refer to “Function setup mode” on page 5-21.
CT (Clock Time) function E00721000014
The clock can be set automatically by using the sig-
nal

from the local RDS stations. Refer to “Digital
clock” on page 3-10.
REG (Regional) function E00721100015
REG function limits to receive the stations broad-
casting regional programs.
Regional

programming and regional networks are
organized differently depending on the country or
area (they may be changed according to the hour,
state, or broadcast area), so if you don’t want to re-
ceive the regional programs automatically, you can
set up REG ON not to receive regional programs.

The REG function can be turned ON and OFF.
Refer to “Function setup mode” on page 5-21.
PI (Program Identification) search function E00721200016
When travelling long distance and the recalled pre-
set

station is weak, the radio searches another fre-
quency broadcasting the same programming with
the same PI code in AF list. If there are no frequencies broadcasting the same
programming,

the radio searches a frequency broad-
casting the regional programming. The radio suc-
ceeds in searching the regional programming, then
the display shows the REG indicator (11).
If the radio does not succeed in searching the re-
gional programming, the radio returns to the recal-
led preset station.
PTY (Program type) E00721300192
RDS broadcasts are classified according to pro-
gram

type (PTY) as follows. Use the TUNE/SEEK
button (5 or 6) to select your desired PTY. 1. NEWS
2. AFFAIRS (Current affairs)
3. INFO (Information)
4. SPORT
5. EDUCATE (Education)
6. DRAMA
7. CULTURE
8. SCIENCE
9. VARIED
10. POP M (Pop music)
11. ROCK M (Rock music)
12. EASY M (Easy music)
13. LIGHT M (Light classics)
14. CLASSICS
15. OTHER M (Other music)
16. WEATHER (Weather information)
17. FINANCE
18. CHILDREN
19. SOCIAL
20. RELIGION
21. PHONE IN
22. TRAVEL
23. LEISURE
24. JAZZ
25. COUNTRY
26. NATION M (National music) 27. OLDIES
28.

FOLK M (Folk music)
29. DOCUMENT
To search for a broadcast of desired program type: 1. Press the PTY button (8).
2. Press the TUNE/SEEK button (5 or 6) forless than 1 second at a time to select your de-
sired PTY.
3. Two seconds after a desired PTY has been se- lected, the radio will begin to search for a
broadcast of your selected PTY. During
search, the selected PTY on the display
blinks and the radio will begin to search for a
broadcast of your selected PTY.
4. When the radio picks up a station with your desired PTY, the display will show the name
of the station. NOTE
l If

the TUNE/SEEK button (5 or 6) is pressed
for more than 1 second, the radio will try to
find out another broadcast of the same pro-
gram type as currently selected. For pleasant driving
5-19 5
Presented by http://mmc-manuals.ru/ \251

l
If no station is found with your desired PTY,
the display will show “EMPTY” for about 5
seconds and the radio will return to the previ-
ous station.
How to enter PTYs in the memory E00721400122
As many as 6 PTYs can be entered in the memory.
Follow the steps described below.
1. Press

either the TUNE/SEEK button (5 or 6)
to tune the PTY to be entered in the memory.
2. Press one of the memory select buttons (3) for 2 seconds or longer. The sound will be
momentarily interrupted while the PTY is be-
ing entered into the memory. The number of
the button corresponding to the entry into the
memory and the PTY are displayed.
3. The preset memory setting is retrieved by pressing the button and then releasing it with-
in about 2 seconds.
To change the language of PTY display E00721500181
You can select your favourite language among Eng-
lish,

French, German, Swedish, Spanish and Italian.
1. Press the “MENU” button (A) to select the language of PTY display mode.
Refer to “Function setup mode” on page
5-21.
2. Press the audio adjust button (B) to select a language.
NOTE l After selecting a mode, you can leave the func-
tion setup mode by taking either of the fol-
lowing steps: • Press
the “MENU” button for at least 2
seconds.
• Make no entry for 7 seconds. Traffic information
E00721600179
The radio will automatically tune in to traffic infor-
mation

broadcasts while receiving FM broadcasts
or playing compact discs.
To select this function, follow the instructions below. 1. Press
the TP button (7). The display will
show “TP” (12). If the RDS data can be read,
the display will show “RDS” (10). If not, the
display will show “NO RDS” for about 5 sec-
onds.
2. If the radio detects traffic information on ei- ther the station currently selected or another
station, the display will show “TRAF INF”
for 5 seconds followed by a 2-second indica-
tion of the frequency. Then, it will show the
name of the station broadcasting the traffic in-
formation to which you will listen. The vol-
ume level is set separately for listening to nor-
mal audio programs and for listening to traf-
fic information. The volume level will there-
fore change automatically to that set when
traffic information was last received. When
the traffic information broadcast is over, the
radio will return to the previously received
program and to the corresponding volume lev-
el.
3. Press the TP button (7) to return to the previ- ous condition.
NOTE l While “TP” is illuminated, the radio stops on-
ly at TP stations even if the TUNE/SEEK but-
ton (5 or 6) is pressed. For pleasant driving
5-20
5
Presented by http://mmc-manuals.ru/ \251

TP (Traffic information Program) search function
E00721800012
The traffic information program standby function
is
turned on (with the TP indicator (12) shown on
the display) and after about 45 seconds since the
RDS indicator (10) turns off due to weak signal or
the tuning station is changed over from a TP sta-
tion to a station which does not broadcast traffic in-
formation, the sound will beep 5 times and seeks
out a TP station in all frequencies automatically. The TP search function can be turned ON and OFF.
Refer to “Function setup mode” on page

5-21.
Emergency broadcasts E00721700011 If an emergency broadcast is caught while receiv-
ing

a FM broadcast or playing back a compact disc
with the ignition switch in “ACC” or “ON” posi-
tion, the display will show “ALARM” and the emer-
gency broadcast will interrupt the current program.
The volume level is set separately for listening to
normal audio programs and for listening to emer-
gency broadcasts. The volume level will therefore
change automatically to that set when an emergen-
cy broadcast or traffic information broadcast was
last received. When the emergency broadcast is
over, the radio will return to the previously re-
ceived program and to the corresponding volume
level.
Function setup mode E00722500175
It is possible to change the following functions: l
AF
l CT
l REG
l TP-S
l Language of PTY display
1. Press

the “MENU” button to select the func-
tion setup mode. For pleasant driving
5-21 5
Presented by http://mmc-manuals.ru/ \251
