MITSUBISHI GRANDIS 2010 Owner's Manual (in English)

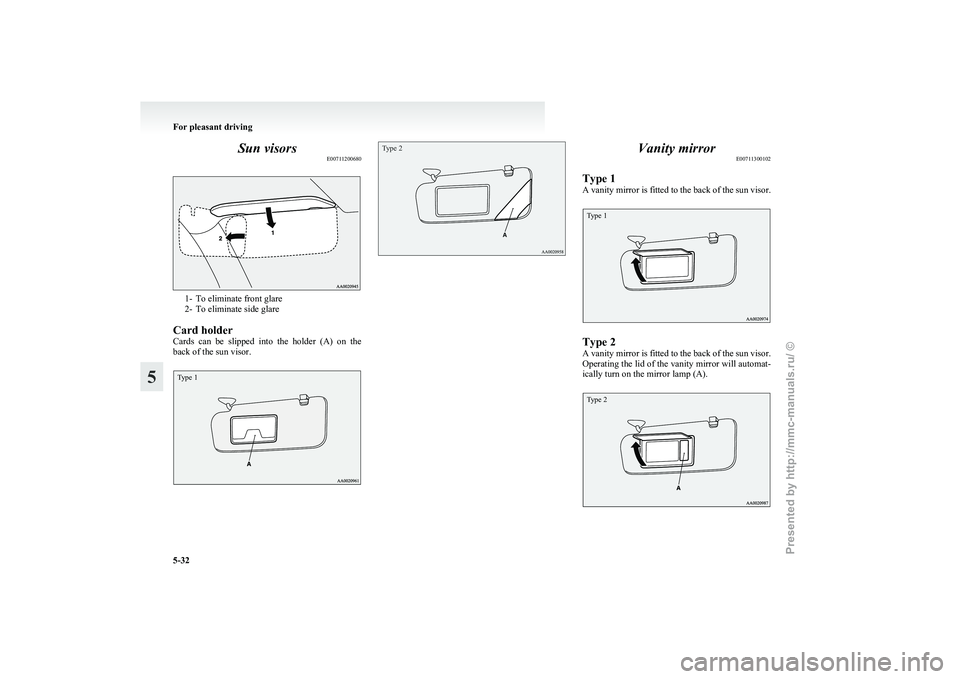

Sun visors
E007112006801- To eliminate front glare
2-
To eliminate side glare
Card holder
Cards can be slipped into the holder (A) on the
back of the sun visor.
Type 1
Type 2 Vanity mirror
E00711300102
Type 1
A
vanity mirror is fitted to the back of the sun visor.
Type 1 Type 2
A

vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will automat-
ically turn on the mirror lamp (A).
Type 2 For pleasant driving
5-32
5
Presented by http://mmc-manuals.ru/ \251

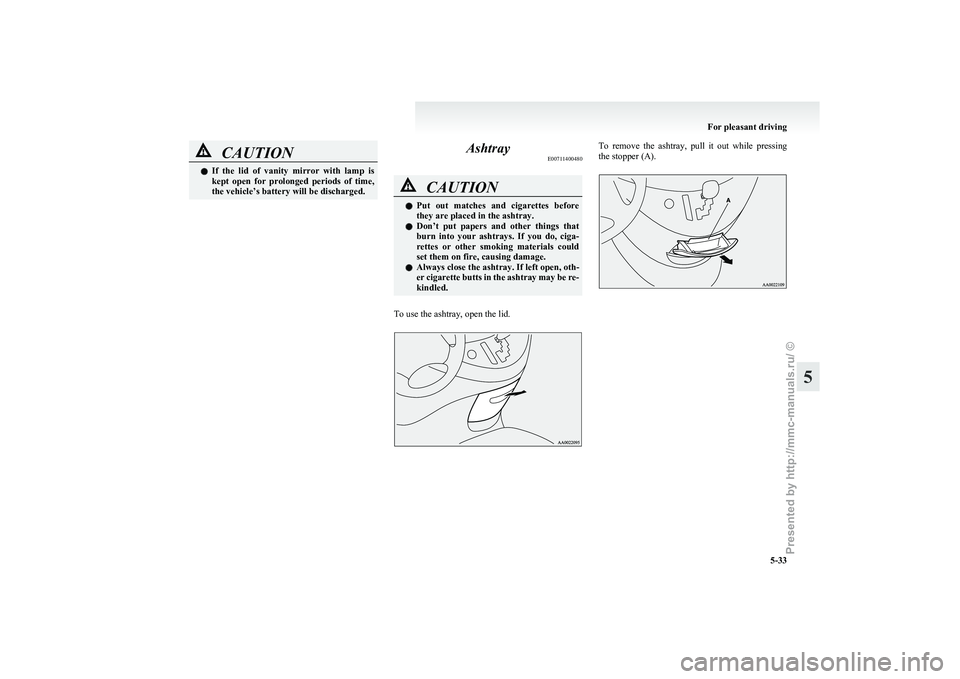

CAUTION
l
If the lid of vanity mirror with lamp is
kept open for prolonged periods of time,
the vehicle’s battery will be discharged. Ashtray
E00711400480 CAUTION
l
Put
out matches and cigarettes before
they are placed in the ashtray.
l Don’t put papers and other things that
burn into your ashtrays. If you do, ciga-
rettes or other smoking materials could
set them on fire, causing damage.
l Always close the ashtray. If left open, oth-
er cigarette butts in the ashtray may be re-
kindled.
To use the ashtray, open the lid. To remove the ashtray, pull it out while pressing
the stopper (A). For pleasant driving
5-33 5
Presented by http://mmc-manuals.ru/ \251

Cigarette lighter*
E00711500869
The
cigarette lighter can be used while the ignition
switch is in the “ON” or “ACC” position. 1- Push all the way in.
The
lighter will automatically return to its original
position with a “click” when ready. Pull it out for
use.
After use, insert the lighter to its original position
in the socket. NOTE
l Do

not leave the cigarette lighter removed
from its socket, because the socket might be-
come clogged by foreign material and be
short-circuited. CAUTION
l
Do
not touch the heating element or the
lighter housing, hold the knob only to pre-
vent burns.
l Do not allow children to operate or play
with the cigarette lighter as burns may oc-
cur.
l Something is wrong with the cigarette
lighter if it does not pop back out within
approximately 30 seconds of being push-
ed in.
Leaving the cigarette lighter pushed in
for an extended period could cause fire. If
it does not pop out by itself, we recom-
mend you to have it checked.
l Do not leave the cigarette lighter pushed
in or insert the cigarette lighter from an-
other vehicle. Otherwise, the lighter may
overheat and cause fire.
l It is recommended that only the lighter
be inserted in its socket.
Use of “plug-in” type accessories may
damage the socket and result in poor re-
tention of the lighter. CAUTION
l
When
the cigarette lighter socket is used
as a power source for an electric appli-
ance, be sure that the electric appliance
operates at 12 V and has an electric ca-
pacity of 120 W or less. In addition, long
use of the electric appliance without run-
ning the engine may run down the battery. For pleasant driving
5-34
5LHD RHD
Presented by http://mmc-manuals.ru/ \251

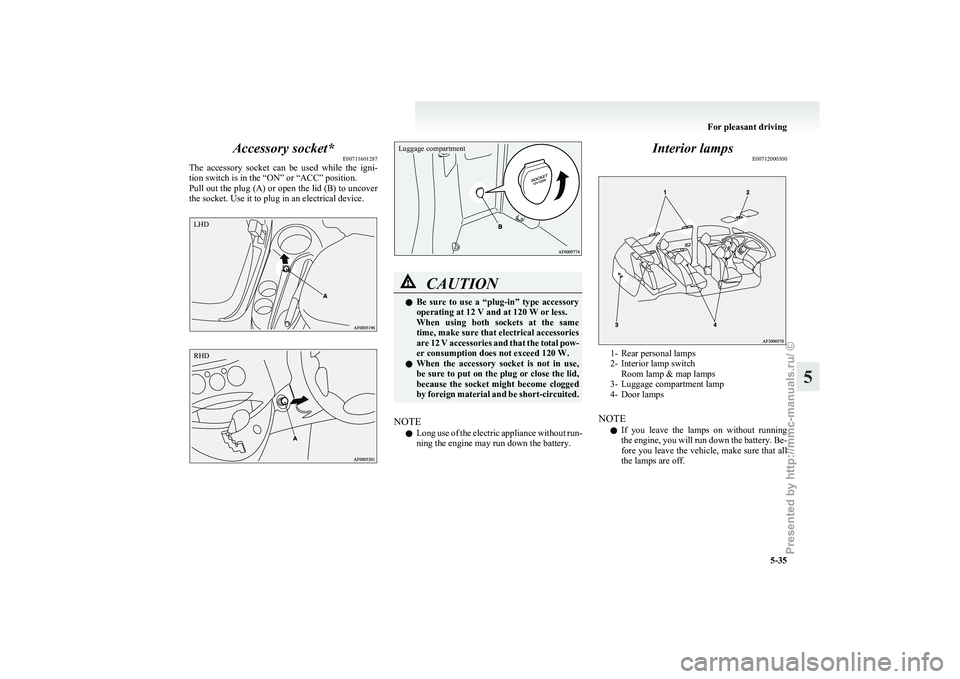

Accessory socket*
E00711601287
The
accessory socket can be used while the igni-
tion switch is in the “ON” or “ACC” position.
Pull out the plug (A) or open the lid (B) to uncover
the socket. Use it to plug in an electrical device.Luggage compartment CAUTION
l
Be
sure to use a “plug-in” type accessory
operating at 12 V and at 120 W or less.
When using both sockets at the same
time, make sure that electrical accessories
are 12 V accessories and that the total pow-
er consumption does not exceed 120 W.
l When the accessory socket is not in use,
be sure to put on the plug or close the lid,
because the socket might become clogged
by foreign material and be short-circuited.
NOTE l Long

use of the electric appliance without run-
ning the engine may run down the battery. Interior lamps
E00712000500 1- Rear personal lamps
2-

Interior lamp switchRoom lamp & map lamps
3- Luggage compartment lamp
4- Door lamps
NOTE l If you leave the lamps on without running
the engine, you will run down the battery. Be-
fore you leave the vehicle, make sure that all
the lamps are off. For pleasant driving
5-35 5LHD RHD
Presented by http://mmc-manuals.ru/ \251

Interior lamp switch
E00717300263
The
interior lamp switch can be used to turn the
room & map lamps and rear personal lamps on and
off. 1 ( ) -
The room lamp & map lamps and
rear

personal lamps are off regard-
less of opening and closing of the
doors and tailgate.
NOTE l When

the room lamp & map lamp switch is
in the “ON” position, the interior lamp
switch cannot be used to turn off the room
lamp & map lamps. 2 (DOOR) - The room lamp & map lamps and
rear
personal lamps go on when a
door or the tailgate is opened. When
all doors and tailgate are closed, the
room lamp & map lamps and rear per-
sonal lamps are illuminated and dim-
med gradually for 15 seconds and
then go out.
However, the lamp goes out immedi-
ately without being dimmed in the
following cases:
l The doors and tailgate are
closed and the ignition switch
is turned to the “ON” position.
l All doors and tailgate are
locked using the key mecha-
nism of the driver’s door, the
lock knob of the driver’s door,
or the remote control switch of
the keyless entry system (if so
equipped).
NOTE l On

vehicles with keyless entry system, if the
ignition key is removed with the doors and
tailgate closed, the room lamp & map lamps
and rear personal lamps are dimmed gradual-
ly for 15 seconds and then go out.
The dimming period is also adjustable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Author-
ized Service Point.
On a vehicle equipped with a Multi Display
Station (MDS), the functions can be adjusted
on the screen. Refer to the separate operation
manual for details. l
When
the room lamp & map lamp switch is
in the “ON” position, closing the doors and
tailgate does not cause the room lamp & map
lamps to go off.
3 ( ) -
The room lamp & map lamps and
rear personal lamps are on regardless
of opening and closing of the doors
and tailgate.
Room lamp & map lamps E00717400020
With the doors and tailgate closed and the interior
lamp

switch in the “DOOR” position, pressing the
lens (A) makes the room lamp & map lamps come
on and pressing the lens again makes them go off.
If any of the doors or the tailgate is opened, the
room lamp & map lamps come on. When it is sub-
sequently closed, the lamps gradually dim for 15
seconds and then go off. For pleasant driving
5-36
5
Presented by http://mmc-manuals.ru/ \251

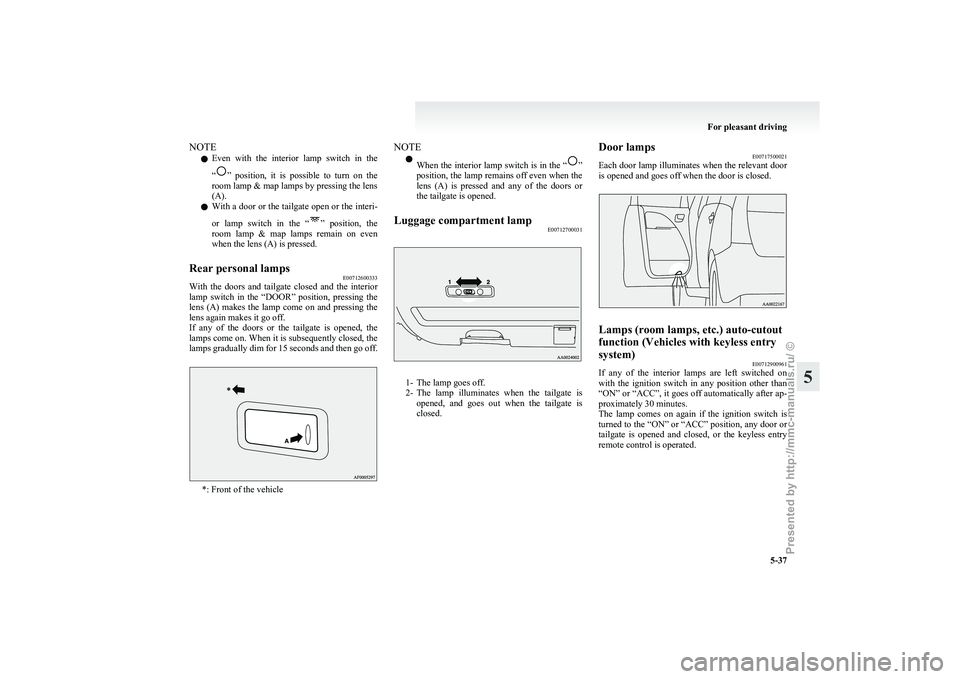

NOTE
l Even
with the interior lamp switch in the
“ ”
position, it is possible to turn on the
room lamp & map lamps by pressing the lens
(A).
l With a door or the tailgate open or the interi-
or lamp switch in the “ ”
position, the
room lamp & map lamps remain on even
when the lens (A) is pressed.
Rear personal lamps E00712600333
With the doors and tailgate closed and the interior
lamp

switch in the “DOOR” position, pressing the
lens (A) makes the lamp come on and pressing the
lens again makes it go off.
If any of the doors or the tailgate is opened, the
lamps come on. When it is subsequently closed, the
lamps gradually dim for 15 seconds and then go off. *: Front of the vehicle NOTE
l When

the interior lamp switch is in the “ ”
position,

the lamp remains off even when the
lens (A) is pressed and any of the doors or
the tailgate is opened.
Luggage compartment lamp E00712700031 1- The lamp goes off.
2- The

lamp illuminates when the tailgate is
opened, and goes out when the tailgate is
closed. Door lamps
E00717500021
Each

door lamp illuminates when the relevant door
is opened and goes off when the door is closed. Lamps (room lamps, etc.) auto-cutout
function (Vehicles with keyless entry
system)
E00712900961
If any of the interior lamps are left switched on
with

the ignition switch in any position other than
“ON” or “ACC”, it goes off automatically after ap-
proximately 30 minutes.
The lamp comes on again if the ignition switch is
turned to the “ON” or “ACC” position, any door or
tailgate is opened and closed, or the keyless entry
remote control is operated. For pleasant driving
5-37 5
Presented by http://mmc-manuals.ru/ \251

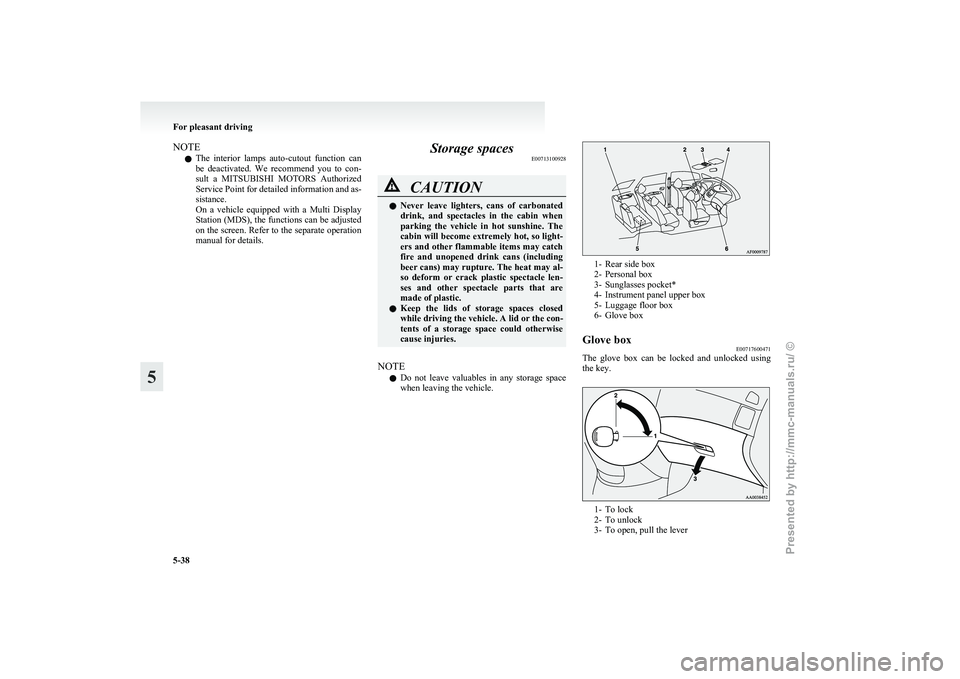

NOTE
l The
interior lamps auto-cutout function can
be deactivated. We recommend you to con-
sult a MITSUBISHI MOTORS Authorized
Service Point for detailed information and as-
sistance.
On a vehicle equipped with a Multi Display
Station (MDS), the functions can be adjusted
on the screen. Refer to the separate operation
manual for details. Storage spaces
E00713100928 CAUTION
l
Never
leave lighters, cans of carbonated
drink, and spectacles in the cabin when
parking the vehicle in hot sunshine. The
cabin will become extremely hot, so light-
ers and other flammable items may catch
fire and unopened drink cans (including
beer cans) may rupture. The heat may al-
so deform or crack plastic spectacle len-
ses and other spectacle parts that are
made of plastic.
l Keep the lids of storage spaces closed
while driving the vehicle. A lid or the con-
tents of a storage space could otherwise
cause injuries.
NOTE l Do

not leave valuables in any storage space
when leaving the vehicle. 1- Rear side box
2-

Personal box
3- Sunglasses pocket*
4- Instrument panel upper box
5- Luggage floor box
6- Glove box
Glove box E00717600471
The glove box can be locked and unlocked using
the key. 1- To lock
2-

To unlock
3- To open, pull the lever For pleasant driving
5-38
5
Presented by http://mmc-manuals.ru/ \251

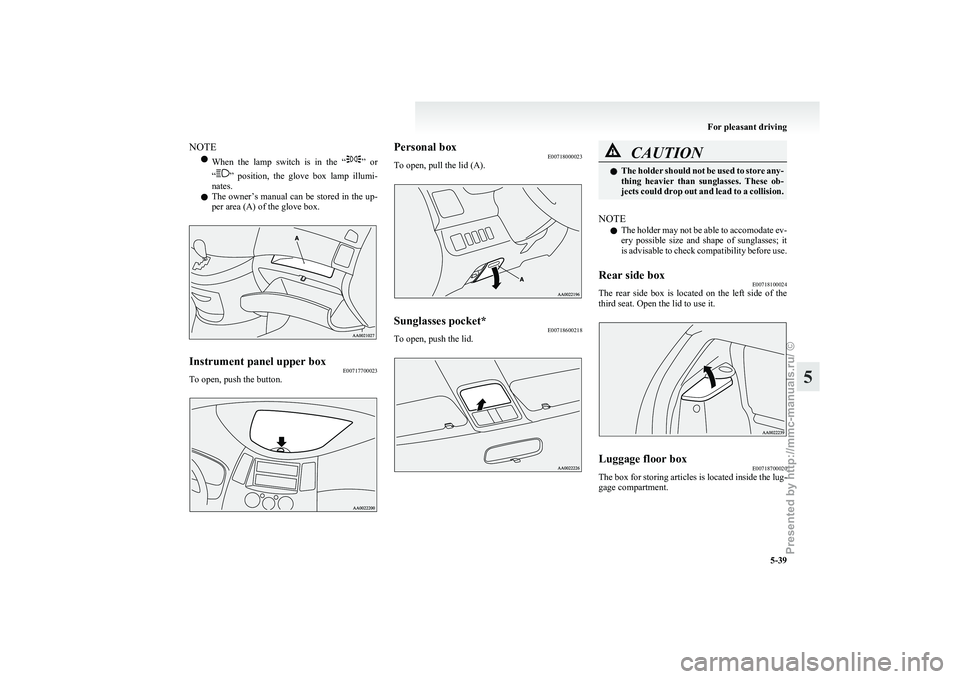

NOTE
l When
the lamp switch is in the “ ”
or
“ ”
position, the glove box lamp illumi-
nates.
l The owner’s manual can be stored in the up-
per area (A) of the glove box. Instrument panel upper box
E00717700023
To open, push the button. Personal box
E00718000023
To open, pull the lid (A). Sunglasses pocket*
E00718600218
To open, push the lid. CAUTION
l
The holder should not be used to store any-
thing heavier than sunglasses. These ob-
jects could drop out and lead to a collision.
NOTE l The

holder may not be able to accomodate ev-
ery possible size and shape of sunglasses; it
is advisable to check compatibility before use.
Rear side box E00718100024
The rear side box is located on the left side of the
third seat. Open the lid to use it. Luggage floor box
E00718700020
The box for storing articles is located inside the lug-
gage compartment. For pleasant driving
5-39 5
Presented by http://mmc-manuals.ru/ \251

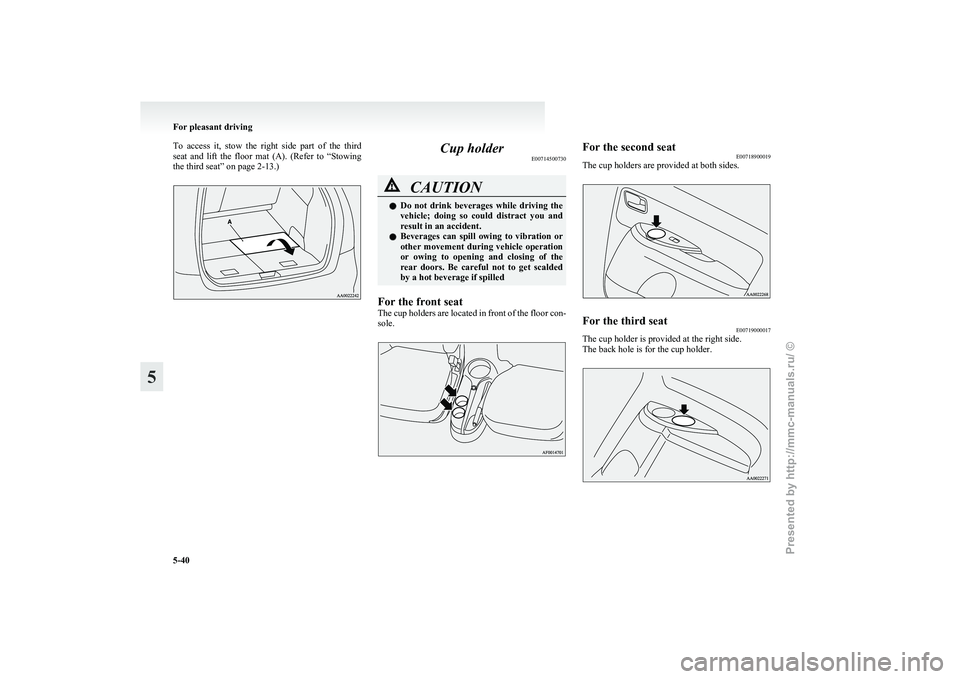

To access it, stow the right side part of the third
seat
and lift the floor mat (A). (Refer to “Stowing
the third seat” on page 2-13.) Cup holder
E00714500730 CAUTION
l
Do
not drink beverages while driving the
vehicle; doing so could distract you and
result in an accident.
l Beverages can spill owing to vibration or
other movement during vehicle operation
or owing to opening and closing of the
rear doors. Be careful not to get scalded
by a hot beverage if spilled
For the front seat
The
cup holders are located in front of the floor con-
sole. For the second seat
E00718900019
The cup holders are provided at both sides. For the third seat
E00719000017
The cup holder is provided at the right side.
The back hole is for the cup holder. For pleasant driving
5-40
5
Presented by http://mmc-manuals.ru/ \251

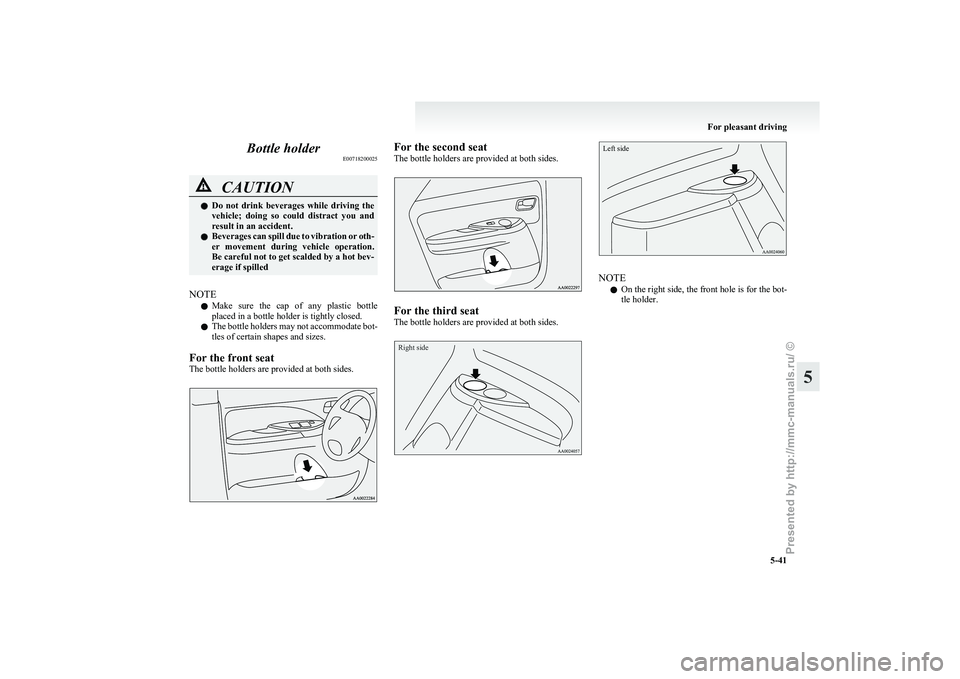

Bottle holder
E00718200025CAUTION
l
Do not drink beverages while driving the
vehicle; doing so could distract you and
result in an accident.
l Beverages can spill due to vibration or oth-
er movement during vehicle operation.
Be careful not to get scalded by a hot bev-
erage if spilled
NOTE l Make

sure the cap of any plastic bottle
placed in a bottle holder is tightly closed.
l The bottle holders may not accommodate bot-
tles of certain shapes and sizes.
For the front seat
The bottle holders are provided at both sides. For the second seat
The bottle holders are provided at both sides.
For the third seat
The bottle holders are provided at both sides.
Right side
Left side NOTE
l On

the right side, the front hole is for the bot-
tle holder. For pleasant driving
5-41 5
Presented by http://mmc-manuals.ru/ \251
