• When the key contacts or is close to other
immobilizing keys (including keys of oth-
er vehicles) (Type C)

In cases like these, remove the object or
additional key from the vehicle key and
turn the key back to the “ACC” or
“LOCK” position. Then try again to start
the electric motor unit. If the electric mo-
tor unit does not start, we recommend
you to contact your MITSUBISHI
MOTORS Authorized Service Point. l
Two keys are provided.
If
you lose one of them, order a key from
your MITSUBISHI MOTORS Authorized
Service Point as soon as possible.
To obtain a replacement or extra spare key,
take your vehicle and any remaining key to
your MITSUBISHI MOTORS Authorized
Service Point. All the keys have to be regis-
tered in the immobilizer computer unit. The
immobilizer can register up to 8 different keys. CAUTION
l
Don’t
make any alterations or additions
to the immobilizer system; alterations or
additions could cause failure of the immo-
bilizer. Keyless entry system
E00300302434
Press

the remote control switch, and all doors and
the tailgate will be locked or unlocked as desired. 1- LOCK switch
2-

UNLOCK switch
3- Indication lamp
To lock
Press the LOCK switch (1), and all doors and the
tailgate will be locked. When they are locked with
the room lamp at the middle (•) position or at the
“DOOR” position, the room lamp and the turn-sig-
nal lamps blink once.
To unlock
Press the UNLOCK switch (2), and all doors and
the tailgate will be unlocked. When unlocked with
the room lamp at the (•) position or at the “DOOR”
position, the room lamp will be turned on for ap-
proximately 15 seconds and the turn-signal lamps
will blink twice. Locking and unlocking
2-03 2
Presented by http://mmc-manuals.ru/ \251

NOTE
l The
indication lamp (3) comes on each time
a switch is pressed.
l If the UNLOCK switch (2) is pressed and
any of the doors or the tailgate is not opened
within approximately 30 seconds, relocking
will automatically occur.
l It is possible to modify functions as follows:
For further information, please contact your
MITSUBISHI MOTORS Authorized Service
Point.
• The time for automatic relocking can bechanged.
• The confirmation function (flashing of the turn-signal lamps) can be set to oper-
ate only when the doors and the tailgate
are locked or only when the doors and
the tailgate are unlocked.
• The confirmation function (this indicates locking or unlocking of the doors and the
tailgate with the flash of the turn-signal
lamps) can be deactivated.
• The number of times the turn-signal lamps are flashed by the confirmation
function can be changed.
l The keyless entry system does not operate in
the following conditions:
• The key is left in the key cylinder.
• The door or the tailgate is open.
l The remote control switch will operate with-
in approximately 4 m from the vehicle. How-
ever, the operating range of the remote con-
trol switch may change if the vehicle is loca-
ted near a power station, or radio/TV broad-
casting station.
l If either of the following problems occurs,
the battery may be exhausted. • The remote control switch is operated at
the correct distance from the vehicle, but
the doors and the tailgate are not locked/
unlocked in response.
• The indication lamp (3) is dim or does not come on.

For further information, please contact
your MITSUBISHI MOTORS Author-
ized Service Point.
If you replace the battery yourself, refer
to “Procedure for replacing the remote
control switch battery” on page 2-04.
l If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.
l If you wish to add a remote control switch,
we recommend you to contact a
MITSUBISHI MOTORS Authorized Service
Point.
A maximum of 4 remote control switches are
available for your vehicle.
Operation of the outside rear-view mir-
rors E00310800119
To fold
Within
30 seconds of locking the doors and the tail-
gate using the LOCK switch (1), press the LOCK
switch twice rapidly to fold the outside rear-view
mirrors.
To extend
Within 30 seconds of unlocking the doors and the
tailgate using the UNLOCK switch (2), press the
UNLOCK switch twice rapidly to return the out-
side rear-view mirrors to their extended positions. Procedure for replacing the remote
control switch battery
E00309500129
1. Before

replacing the battery, remove static
electricity from your body by touching a met-
al part such as doorknob of the room.
2. Remove the screw (A) from the remote con- trol switch. 3. With
the MITSUBISHI mark facing you, in-
sert the clothcovered tip of a straight blade
(or minus) screwdriver into the notch in the
remote control switch case and use it to open
the case. Locking and unlocking
2-04
2
Presented by http://mmc-manuals.ru/ \251

NOTE
l Be
sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the remote control switch case, the
switches may come out.
4. Remove the remote control transmitter from the remote control switch case. Then, open
the remote control transmitter using the meth-
od described in step 2. 5. Remove the old battery. 6. Install a new battery with the + side (B) down.
Coin type battery
CR1616
- side
+ side 7. Close the remote control transmitter firmly.
8.

Place the remote control transmitter in the re-mote control switch case, then securely close
the remote control switch case.
9. Attach the screw (A) removed in step 1.
10. Check the keyless entry system to see that it works.
NOTE l You may purchase a replacement battery at
an electric appliance store.
l A MITSUBISHI MOTORS Authorized Serv-
ice Point can replace the battery for you if
you prefer. CAUTION
l
When
the remote control switch case is
opened, be careful to keep water, dust,
etc. out. Also, do not touch the internal
components. Doors
E00300402187 CAUTION
l
Make
sure the doors are closed: driving
with doors not completely closed is dan-
gerous.
l Never leave children in the vehicle unat-
tended.
l Be careful not to lock the doors while the
key is inside the vehicle.
NOTE l To

prevent the key from being locked inside
the vehicle, neither the lock knob on the driv-
er’s door nor the key can be used to lock the
driver’s door when it is open.
To lock or unlock with the key 1- Lock
2-

Unlock Locking and unlocking
2-05 2
Presented by http://mmc-manuals.ru/ \251

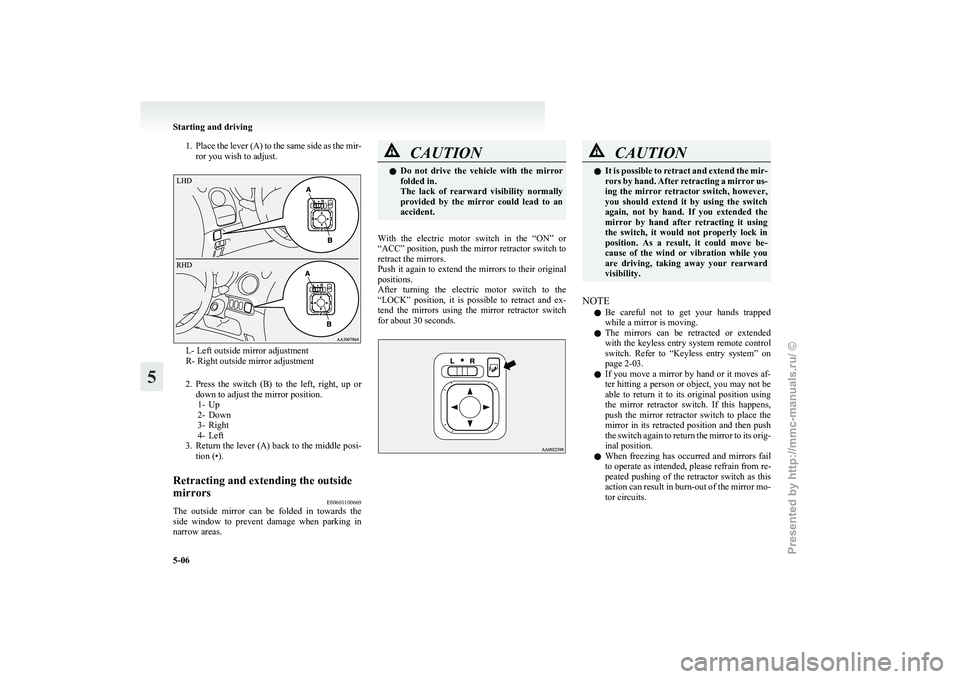

1. Place the lever (A) to the same side as the mir-
ror you wish to adjust. L- Left outside mirror adjustment
R- Right outside mirror adjustment
2. Press

the switch (B) to the left, right, up or
down to adjust the mirror position. 1- Up
2- Down
3- Right
4- Left
3. Return the lever (A) back to the middle posi- tion (•).
Retracting and extending the outside
mirrors E00601100669
The outside mirror can be folded in towards the
side

window to prevent damage when parking in
narrow areas. CAUTION
l
Do
not drive the vehicle with the mirror
folded in.
The lack of rearward visibility normally
provided by the mirror could lead to an
accident.
With the electric motor switch in the “ON” or
“ACC”
position, push the mirror retractor switch to
retract the mirrors.
Push it again to extend the mirrors to their original
positions.
After turning the electric motor switch to the
“LOCK” position, it is possible to retract and ex-
tend the mirrors using the mirror retractor switch
for about 30 seconds. CAUTION
l
It
is possible to retract and extend the mir-
rors by hand. After retracting a mirror us-
ing the mirror retractor switch, however,
you should extend it by using the switch
again, not by hand. If you extended the
mirror by hand after retracting it using
the switch, it would not properly lock in
position. As a result, it could move be-
cause of the wind or vibration while you
are driving, taking away your rearward
visibility.
NOTE l Be

careful not to get your hands trapped
while a mirror is moving.
l The mirrors can be retracted or extended
with the keyless entry system remote control
switch. Refer to “Keyless entry system” on
page 2-03.
l If you move a mirror by hand or it moves af-
ter hitting a person or object, you may not be
able to return it to its original position using
the mirror retractor switch. If this happens,
push the mirror retractor switch to place the
mirror in its retracted position and then push
the switch again to return the mirror to its orig-
inal position.
l When freezing has occurred and mirrors fail
to operate as intended, please refrain from re-
peated pushing of the retractor switch as this
action can result in burn-out of the mirror mo-
tor circuits. Starting and driving
5-06
5
Presented by http://mmc-manuals.ru/ \251

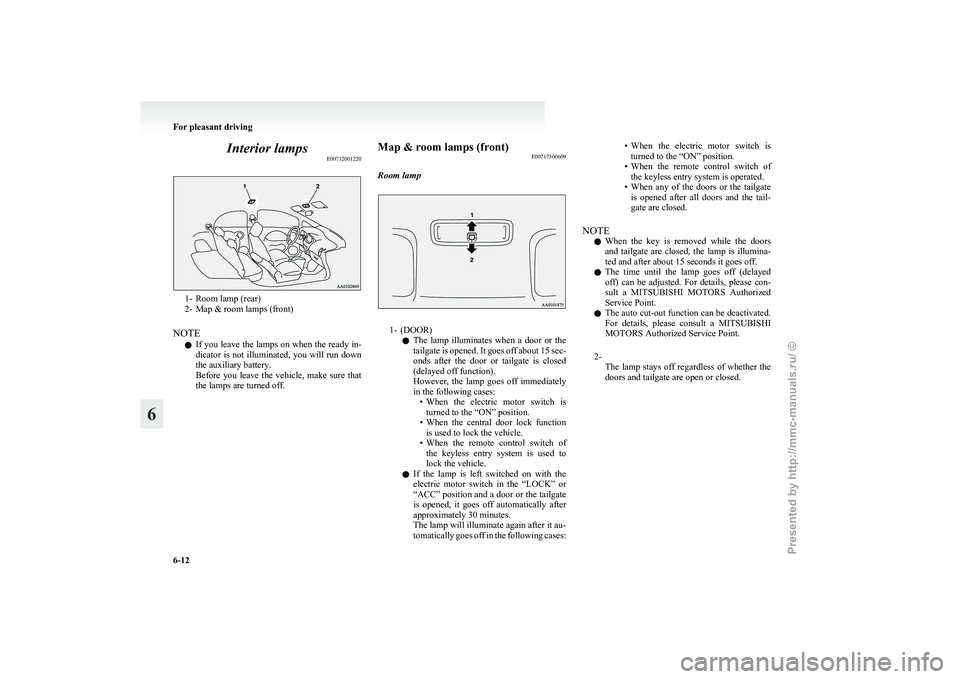

Interior lamps
E007120012201- Room lamp (rear)
2-
Map & room lamps (front)
NOTE l If you leave the lamps on when the ready in-
dicator is not illuminated, you will run down
the auxiliary battery.
Before you leave the vehicle, make sure that
the lamps are turned off. Map & room lamps (front)
E00717300609
Room lamp 1- (DOOR)
lThe

lamp illuminates when a door or the
tailgate is opened. It goes off about 15 sec-
onds after the door or tailgate is closed
(delayed off function).
However, the lamp goes off immediately
in the following cases: • When the electric motor switch isturned to the “ON” position.
• When the central door lock function is used to lock the vehicle.
• When the remote control switch of the keyless entry system is used to
lock the vehicle.
l If the lamp is left switched on with the
electric motor switch in the “LOCK” or
“ACC” position and a door or the tailgate
is opened, it goes off automatically after
approximately 30 minutes.
The lamp will illuminate again after it au-
tomatically goes off in the following cases: • When
the electric motor switch is
turned to the “ON” position.
• When the remote control switch of the keyless entry system is operated.
• When any of the doors or the tailgate is opened after all doors and the tail-
gate are closed.
NOTE l When the key is removed while the doors
and tailgate are closed, the lamp is illumina-
ted and after about 15 seconds it goes off.
l The time until the lamp goes off (delayed
off) can be adjusted. For details, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.
l The auto cut-out function can be deactivated.
For details, please consult a MITSUBISHI
MOTORS Authorized Service Point.
2- The lamp stays off regardless of whether the
doors and tailgate are open or closed. For pleasant driving
6-12
6
Presented by http://mmc-manuals.ru/ \251

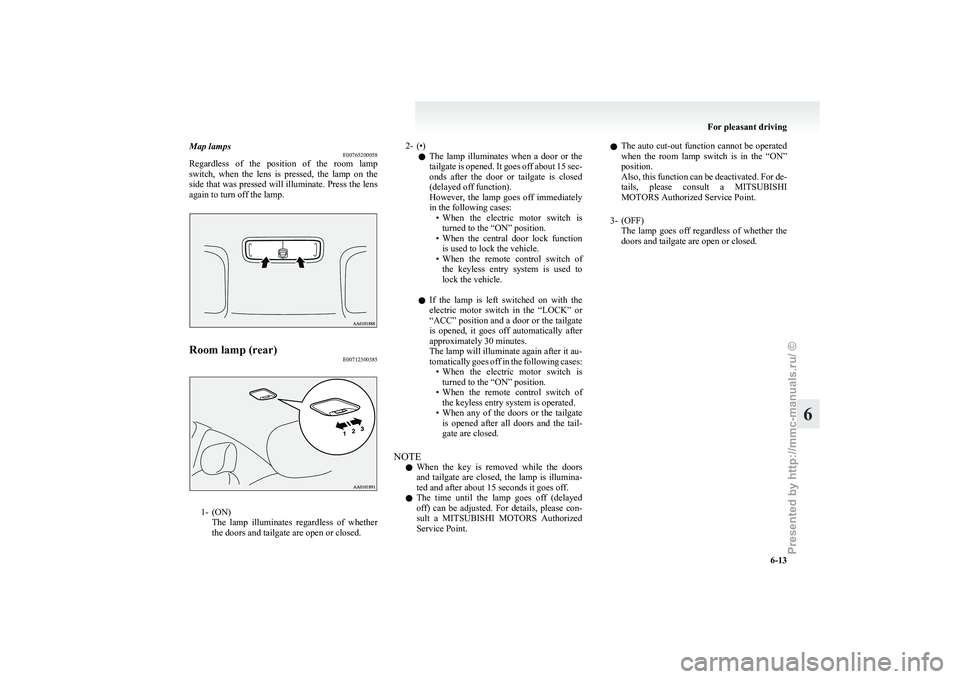

Map lamps
E00765200058
Regardless
of the position of the room lamp
switch, when the lens is pressed, the lamp on the
side that was pressed will illuminate. Press the lens
again to turn off the lamp. Room lamp (rear)
E007123003851- (ON)
The
lamp illuminates regardless of whether
the doors and tailgate are open or closed.
2- (•)
lThe

lamp illuminates when a door or the
tailgate is opened. It goes off about 15 sec-
onds after the door or tailgate is closed
(delayed off function).
However, the lamp goes off immediately
in the following cases: • When the electric motor switch isturned to the “ON” position.
• When the central door lock function is used to lock the vehicle.
• When the remote control switch of the keyless entry system is used to
lock the vehicle.

l If the lamp is left switched on with the
electric motor switch in the “LOCK” or
“ACC” position and a door or the tailgate
is opened, it goes off automatically after
approximately 30 minutes.
The lamp will illuminate again after it au-
tomatically goes off in the following cases:
• When the electric motor switch isturned to the “ON” position.
• When the remote control switch of the keyless entry system is operated.
• When any of the doors or the tailgate is opened after all doors and the tail-
gate are closed.
NOTE l When the key is removed while the doors
and tailgate are closed, the lamp is illumina-
ted and after about 15 seconds it goes off.
l The time until the lamp goes off (delayed
off) can be adjusted. For details, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point. l
The auto cut-out function cannot be operated
when the room lamp switch is in the “ON”
position.
Also, this function can be deactivated. For de-
tails, please consult a MITSUBISHI
MOTORS Authorized Service Point.
3- (OFF) The lamp goes off regardless of whether the
doors and tailgate are open or closed. For pleasant driving
6-13 6
Presented by http://mmc-manuals.ru/ \251
