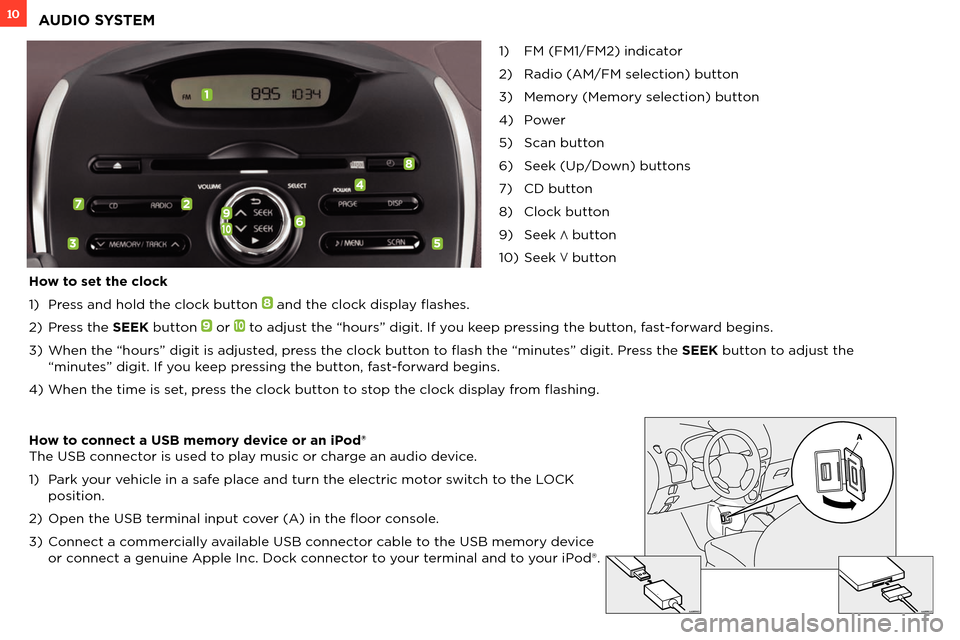

10AUDIO SYSTEM
1) FM (FM1/FM2) indicator
2) Radio (AM/FM selection) button
3) Memory (Memory selection) button
4) Power
5) Scan button
6) Seek (Up/Down) buttons
7) CD button
8) Clock button
9) Seek ∧ button
10) Seek ∨ button
How to connect a USB memory device or an iPod®
The USB connector is used to play music or charge an audio device.
1) Park your vehicle in a safe place and turn the electric motor switch to the LOCK
position.
2) Open the USB terminal input cover (A) in the floor console.
3) Connect a commercially available USB connector cable to the USB memory device
or connect a genuine Apple Inc. Dock connector to your terminal and to your iPod®.
How to set the clock
1) Press and hold the clock button 8 and the clock display flashes.
2) Press the SEEK button 9 or 10 to adjust the “hours” digit. If you keep pressing the button, fast-forward begins.
3) When the “hours” digit is adjusted, press the clock button to flash the “minutes” digit. Press the SEEK button to adjust the
“minutes” digit. If you keep pressing the button, fast-forward begins.
4) When the time is set, press the clock button to stop the clock display from flashing.
4
1
6
8
29
10
7
53

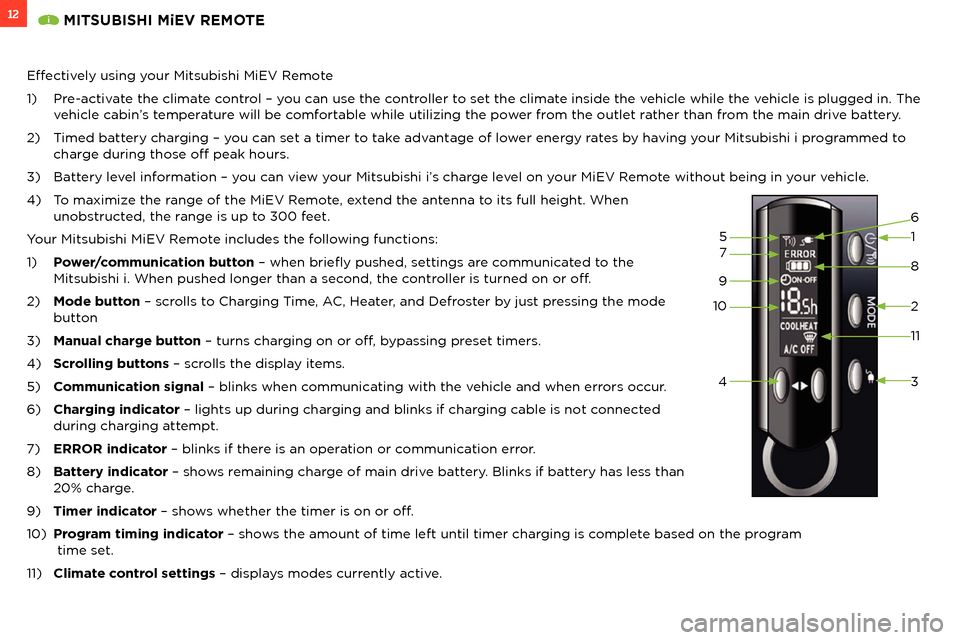

12MITSUBISHI MiEV REMOTE
Effectively using your Mitsubishi MiEV Remote
1) Pre-activate the climate control – you can use the controller to set the climate inside the vehicle while the vehicle is plugged in. The
vehicle cabin’s temperature will be comfortable while utilizing the power from the outlet rather than from the main drive battery.
2) Timed battery charging – you can set a timer to take advantage of lower energy rates by having your Mitsubishi i programmed to
charge during those off peak hours.
3) Battery level information – you can view your Mitsubishi i’s charge level on your MiEV Remote without being in your vehicle.
4) To maximize the range of the MiEV Remote, extend the antenna to its full height. When
unobstructed, the range is up to 300 feet.
Your Mitsubishi MiEV Remote includes the following functions:
1) Power/communication button – when briefly pushed, settings are communicated to the
Mitsubishi i. When pushed longer than a second, the controller is turned on or off.
2) Mode button – scrolls to Charging Time, AC, Heater, and Defroster by just pressing the mode
button
3) Manual charge button – turns charging on or off, bypassing preset timers.
4) Scrolling buttons – scrolls the display items.
5) Communication signal – blinks when communicating with the vehicle and when errors occur.
6) Charging indicator – lights up during charging and blinks if charging cable is not connected
during charging attempt.
7) ERROR indicator – blinks if there is an operation or communication error.
8) Battery indicator – shows remaining charge of main drive battery. Blinks if battery has less than
20% charge.
9) Timer indicator – shows whether the timer is on or off.
10) Program timing indicator – shows the amount of time left until timer charging is complete based on the program
time set.
11) Climate control settings – displays modes currently active.
6
1
8
2
11
3
5
7
9
10
4
