MITSUBISHI iMiEV 2012 1.G Owners Manual

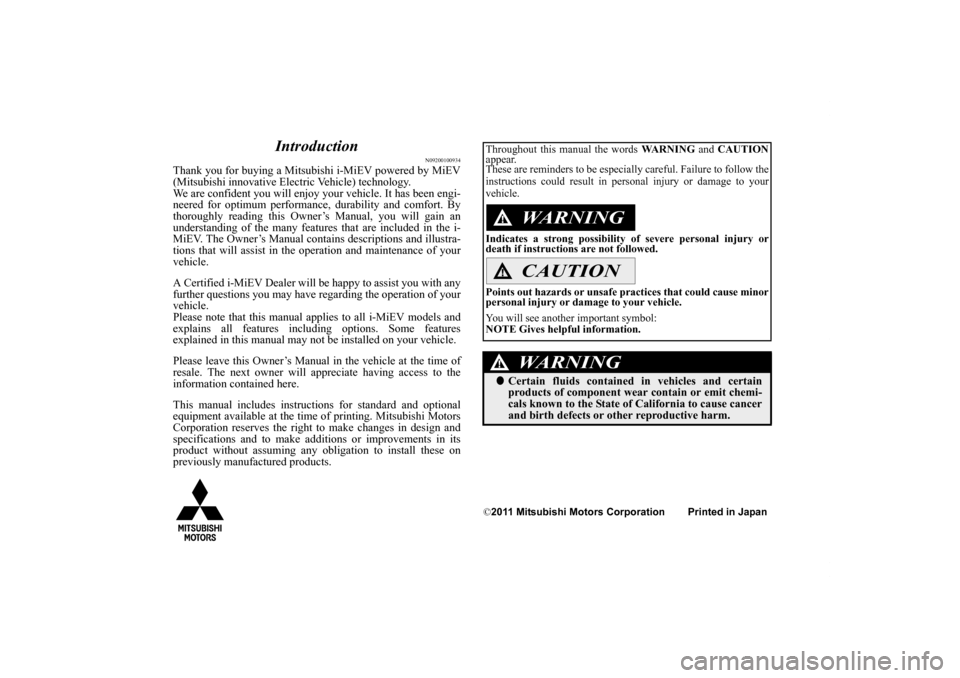

Introduction
N09200100934
Thank you for buying a Mitsubishi i-MiEV powered by MiEV
(Mitsubishi innovative Electric Vehicle) technology.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the i-
MiEV. The Owner’s Manual contains descriptions and illustra-
tions that will assist in the operation and maintenance of your
vehicle.
A Certified i-MiEV Dealer will be happy to assist you with any
further questions you may have regarding the operation of your
vehicle.
Please note that this manual applies to all i-MiEV models and
explains all features including options. Some features
explained in this manual may not be installed on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WA R N I N G and CAUTION
appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
WA R N I N G
!

Certain fluids contained in vehicles and certain
products of component wear contain or emit chemi-
cals known to the State of California to cause cancer
and birth defects or other reproductive harm.
©2011 Mitsubishi Motors Corporation Printed in Japan
12TQ-MiEV(NAS)_Cover2.fm 1 ページ ２０１１年７月２６日　火曜日　午前７時４７分

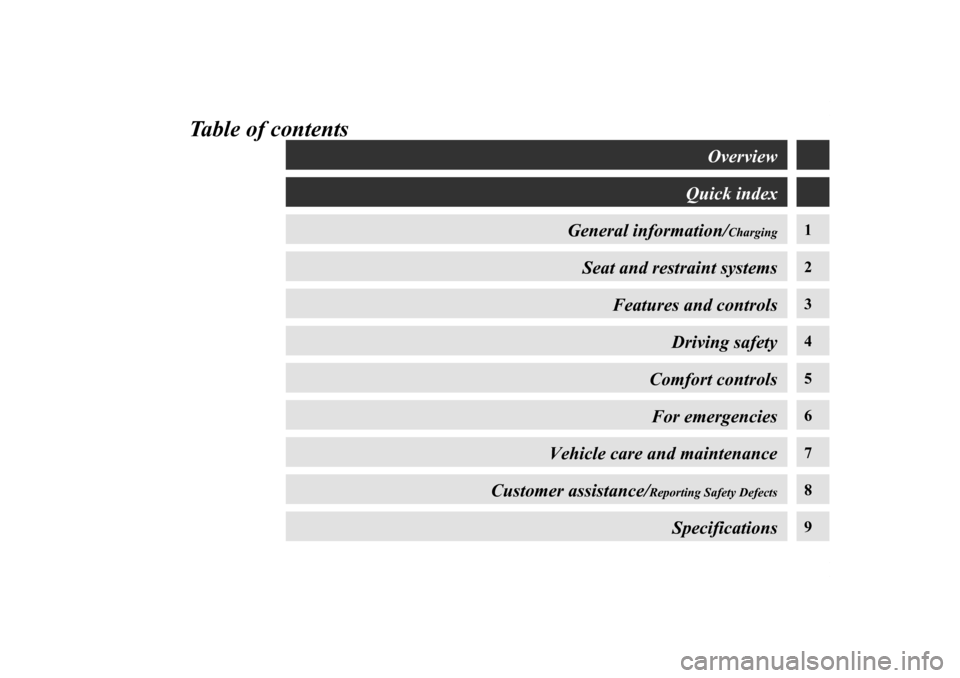

Table of contents
1
2
3
4
5
6
7
8
9
Overview
Quick index
General information/
Charging
Seat and restraint systems
Features and controls
Driving safety
Comfort controls
For emergencies
Vehicle care and maintenance
Customer assistance/
Reporting Safety Defects
Specifications
BK0140800US.book 1 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Overview

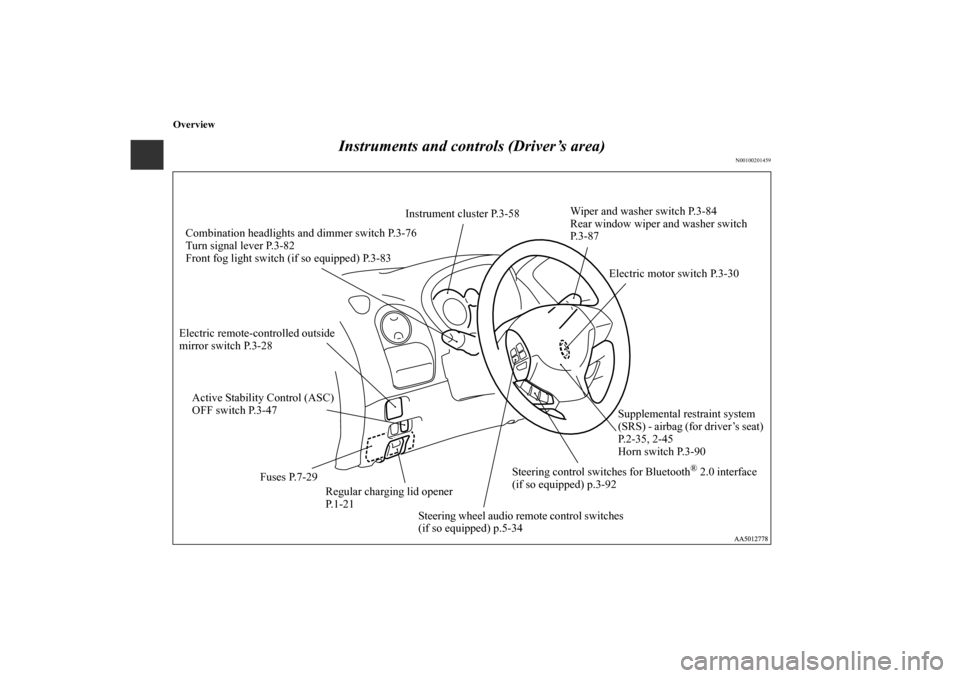

Instruments and controls (Driver’s area)
N00100201459
Combination headlights and dimmer switch P.3-76
Turn signal lever P.3-82
Front fog light switch (if so equipped) P.3-83Wiper and washer switch P.3-84
Rear window wiper and washer switch
P. 3 - 8 7
Supplemental restraint system
(SRS) - airbag (for driver’s seat)
P.2-35, 2-45
Horn switch P.3-90 Electric motor switch P.3-30
Regular charging lid opener
P.1-21 Fuses P.7-29 Electric remote-controlled outside
mirror switch P.3-28
Active Stability Control (ASC)
OFF switch P.3-47Instrument cluster P.3-58
Steering wheel audio remote control switches
(if so equipped) p.5-34Steering control switches for Bluetooth
® 2.0 interface
(if so equipped) p.3-92
BK0140800US.book 1 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Overview

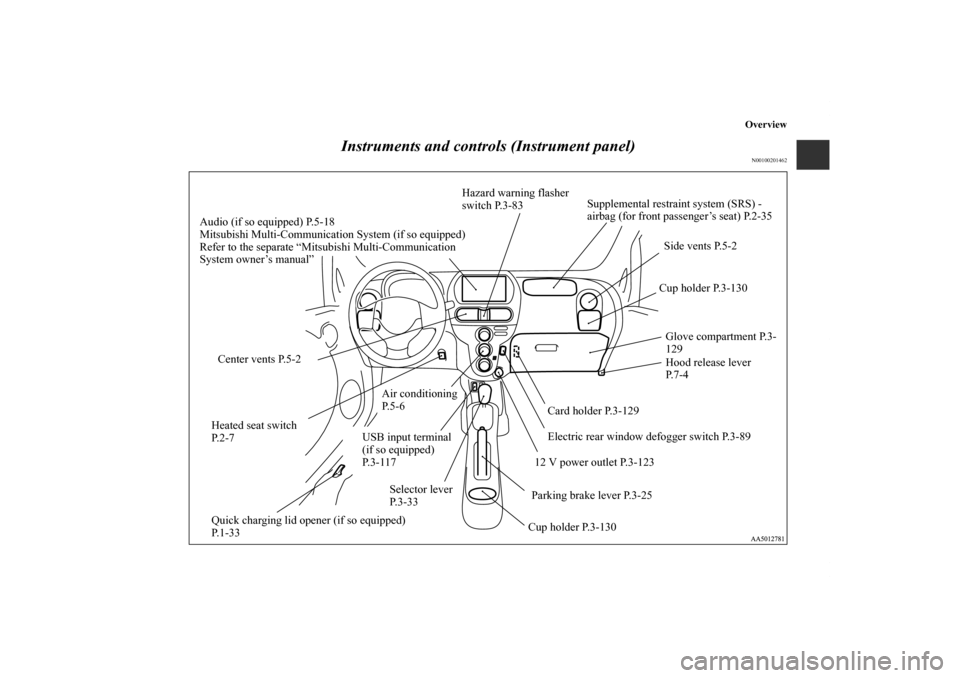

Instruments and controls (Instrument panel)
N00100201462
Supplemental restraint system (SRS) -
airbag (for front passenger’s seat) P.2-35
Side vents P.5-2
Cup holder P.3-130Glove compartment P.3-
129
Selector lever
P.3-33Parking brake lever P.3-25Cup holder P.3-130
Quick charging lid opener (if so equipped)
P.1-3312 V power outlet P.3-123Electric rear window defogger switch P.3-89 Heated seat switch
P. 2 - 7Air conditioning
P. 5 - 6Hazard warning flasher
switch P.3-83
Center vents P.5-2
Hood release lever
P. 7 - 4
Card holder P.3-129 Audio (if so equipped) P.5-18
Mitsubishi Multi-Communication System (if so equipped)
Refer to the separate “Mitsubishi Multi-Communication
System owner’s manual”
USB input terminal
(if so equipped)
P. 3 - 1 1 7
BK0140800US.book 2 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Overview

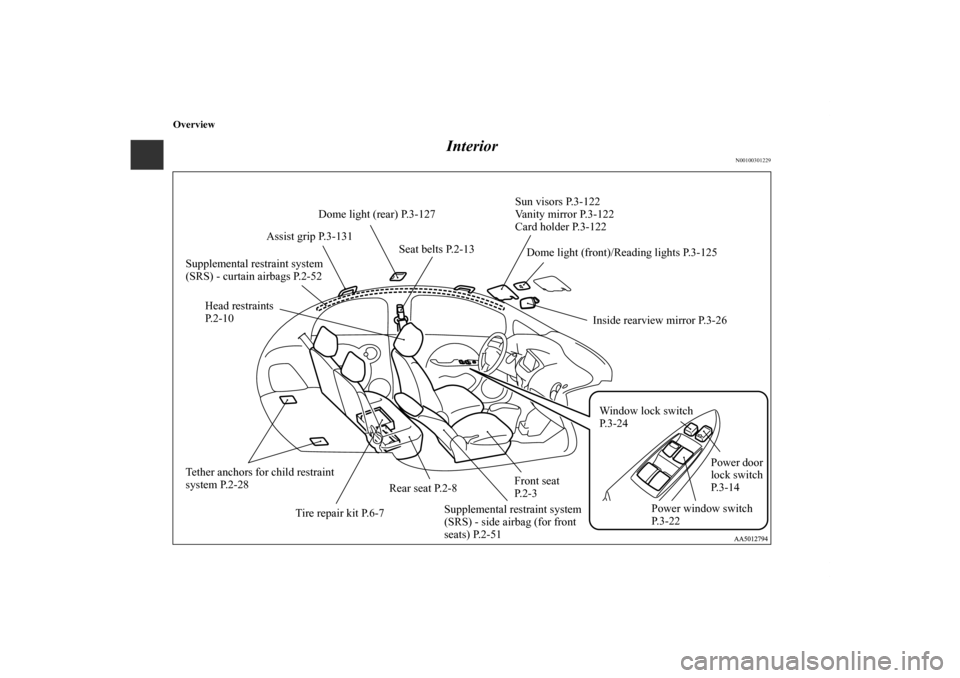

Interior
N00100301229
Sun visors P.3-122
Vanity mirror P.3-122
Card holder P.3-122
Dome light (front)/Reading lights P.3-125
Inside rearview mirror P.3-26 Head restraints
P.2-10Dome light (rear) P.3-127
Seat belts P.2-13 Assist grip P.3-131
Supplemental restraint system
(SRS) - curtain airbags P.2-52
Tether anchors for child restraint
system P.2-28
Tire repair kit P.6-7Rear seat P.2-8
Supplemental restraint system
(SRS) - side airbag (for front
seats) P.2-51Front seat
P. 2 - 3Window lock switch
P.3-24
Power window switch
P. 3 - 2 2Power door
lock switch
P.3-14
BK0140800US.book 3 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Overview

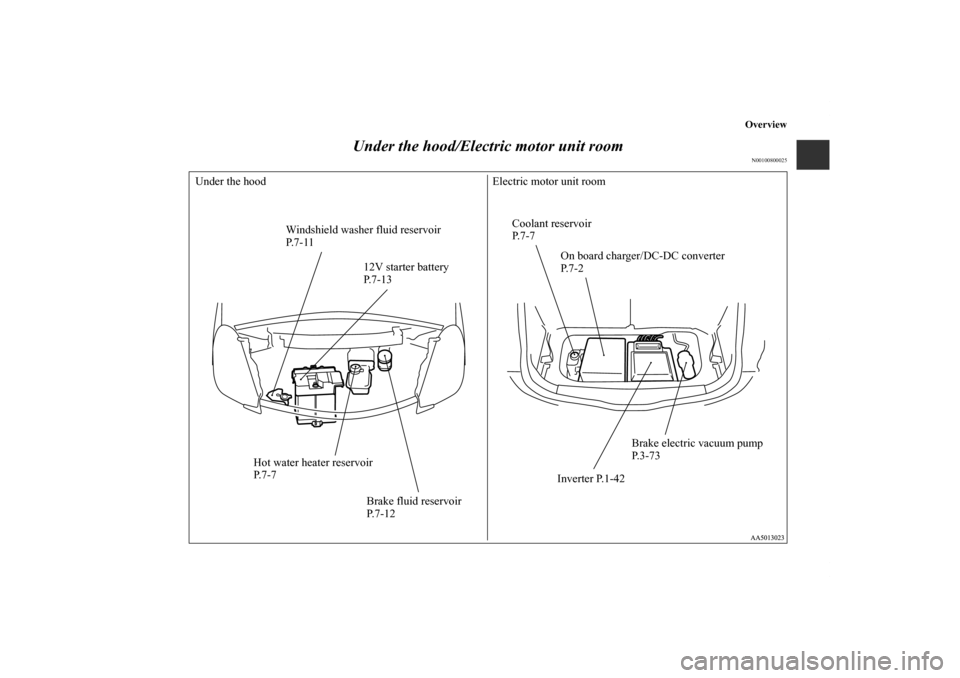

Under the hood/Electric motor unit room
N00100800025
On board charger/DC-DC converter
P. 7 - 2
Inverter P.1-42Brake electric vacuum pump
P.3-73 Coolant reservoir
P. 7 - 7 Windshield washer fluid reservoir
P. 7 - 1 1
12V starter battery
P. 7 - 1 3
Hot water heater reservoir
P. 7 - 7
Brake fluid reservoir
P.7-12 Under the hood Electric motor unit room
BK0140800US.book 4 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Overview

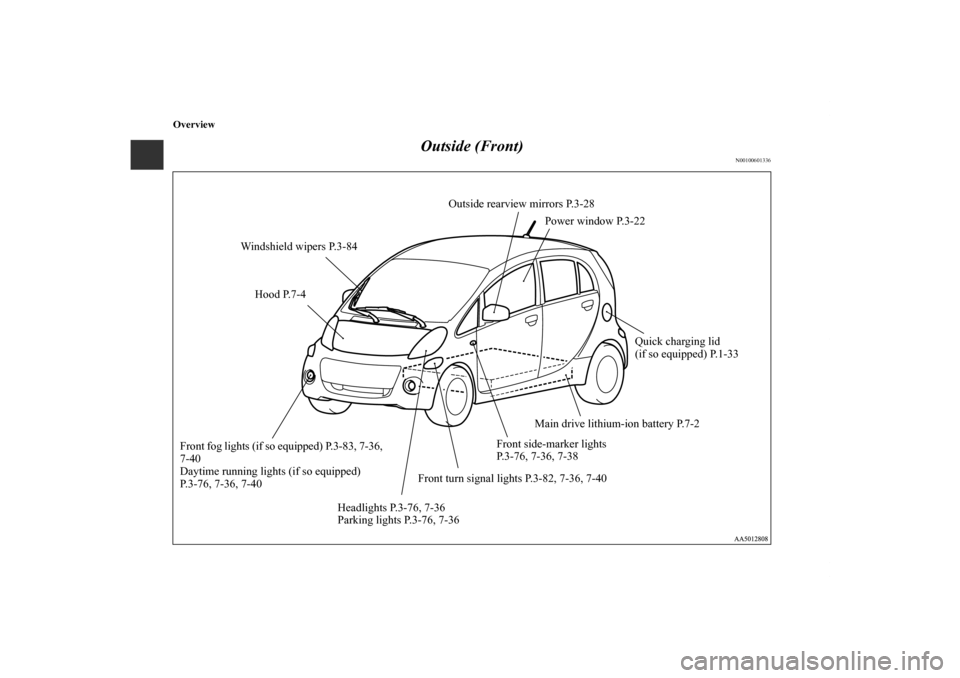

Outside (Front)
N00100601336
Power window P.3-22
Windshield wipers P.3-84
Hood P.7-4
Front fog lights (if so equipped) P.3-83, 7-36,
7-40
Daytime running lights (if so equipped)
P.3-76, 7-36, 7-40
Headlights P.3-76, 7-36
Parking lights P.3-76, 7-36Front side-marker lights
P.3-76, 7-36, 7-38 Outside rearview mirrors P.3-28
Quick charging lid
(if so equipped) P.1-33
Main drive lithium-ion battery P.7-2
Front turn signal lights P.3-82, 7-36, 7-40
BK0140800US.book 5 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Overview
Outside (Rear)
N00100601307
Antenna P.5-40Back-up light P.7-36, 7-42
Tail and stop lights P.3-76, 7-36, 7-42
Rear turn signal lights P.3-82, 7-36, 7-42
Regular charging lid P.1-21
Tire pressure monitoring system P.3-49
Size of tires and wheels P.9-9
Tire inflation pressure P.7-21
Tire rotation P.7-24
Tire chains P.7-24 License plate lights
P.3-76, 7-36, 7-47 Liftgate P.3-16
Rear-view camera
(if so equipped) P.3-55
Rear side-marker lights P.3-76, 7-36,
7-44Keyless entry system
P. 3 - 7
Locking and unlocking
P. 3 - 1 2 High-mounted stop light
P.7-36, 7-45
Rear window wiper
P. 3 - 8 7
BK0140800US.book 6 ページ ２０１１年９月２９日　木曜日　午後３時２８分

BK0140800US.book 7 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Quick index
1

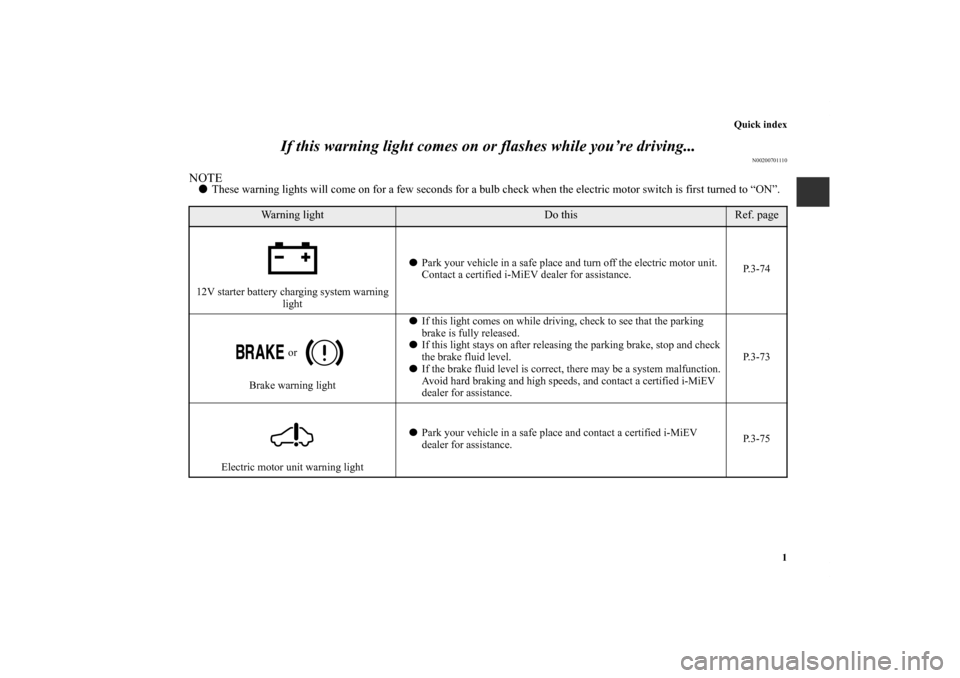

If this warning light comes on or flashes while you’re driving...
