3-72 Features and controls
3Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000232
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200221
This indicator comes on while the front fog lights are on.Position indicator
N00551300039
This indicator turns on while the position lights are on.Ready indicator
N00573200012
This indicator comes on when the electric motor switch is
turned to “START” and driving becomes possible.
Charging indicator
N00573300013
This indicator flashes when the regular charging cable or quick
charging cable is connected.
After that, the light switches to being illuminated when charg-
ing starts and goes out when charging is completed.Regenerative brake system indicator
N00573400014
The indicator comes on when the regenerative brake perfor-
mance may be weakened. In this case, drive the vehicle at a
lower speed.
BK0140800US.book 72 ページ ２０１１年９月２９日　木曜日　午後３時２８分

7-36 Vehicle care and maintenance
7

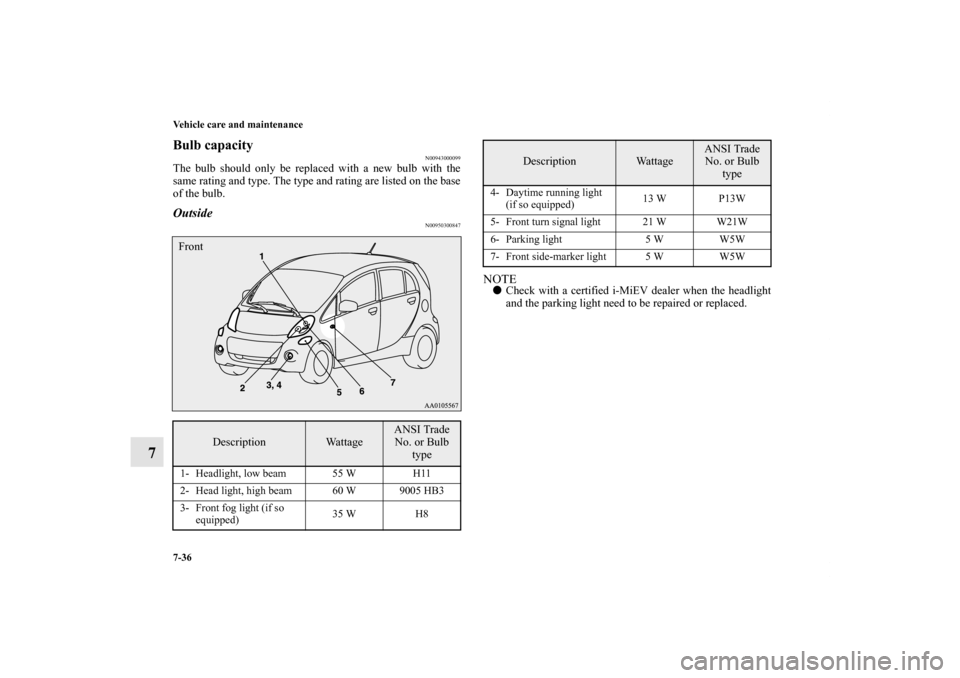

Bulb capacity
N00943000099
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300847
NOTE
Check with a certified i-MiEV dealer when the headlight
and the parking light need to be repaired or replaced.
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
1- Headlight, low beam 55 W H11
2- Head light, high beam 60 W 9005 HB3
3- Front fog light (if so
equipped)35 W H8Front
4- Daytime running light
(if so equipped)13 W P13W
5- Front turn signal light 21 W W21W
6- Parking light 5 W W5W
7- Front side-marker light 5 W W5W

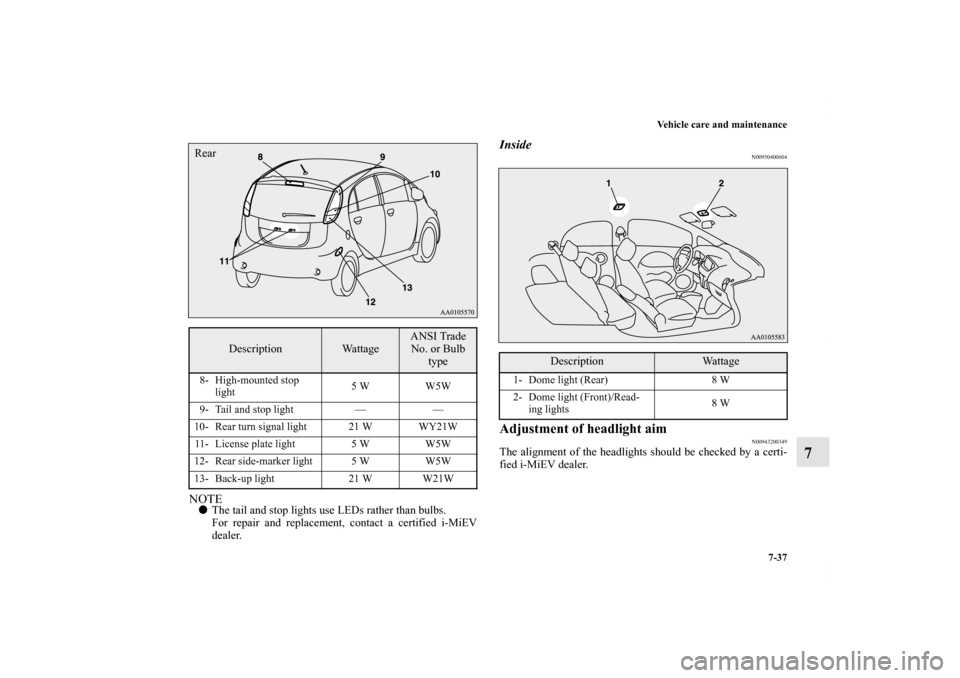

Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
BK0140800US.book 36 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Vehicle care and maintenance
7-37
7
NOTE
The tail and stop lights use LEDs rather than bulbs.
For repair and replacement, contact a certified i-MiEV
dealer.
Inside
N00950400604
Adjustment of headlight aim
N00943200349
The alignment of the headlights should be checked by a certi-
fied i-MiEV dealer.
Description
Wattage
ANSI Trade
No. or Bulb
type
8- High-mounted stop
light5 W W5W
9- Tail and stop light — —
10- Rear turn signal light 21 W WY21W
11- License plate light 5 W W5W
12- Rear side-marker light 5 W W5W
13- Back-up light 21 W W21WRear
Description
Wattage
1- Dome light (Rear) 8 W
2- Dome light (Front)/Read-
ing lights8 W
BK0140800US.book 37 ページ ２０１１年９月２９日　木曜日　午後３時２８分
