MITSUBISHI iMiEV 2014 1.G Owners Manual

N09200102068
Thank you for buying a Mitsubishi i-MiEV powered by MiEV (Mitsubishi innovative Elec
tric Vehicle) technology.
We are confident you will enjoy your
vehicle. It has
been engineered
for optimum performance, durability and comfort. By thoroughly reading this Owner’s Manual, you w
ill gain an understanding of the
many features that are included in the i-MiEV. The Owner’s Manualcontains descriptions a
nd illustrations that will
assist in the operation
and maintenance of your vehicle. A Certified i-MiEV
Dealer will be happy to a
ssist you with any further
questions you may have regardin
g the operation of your vehicle.
Please note that this manual applies to all i-MiEV models and explains all features including options. Some
features explained in this manual
may not be installed on your vehicle. Please leave this Owner’s Manual in the vehicle at the time of resale. The next owner will appreciate ha
ving access to the information con-
tained here. This manual includes instructions fo
r standard and optional equipment
available at the time of printing. Mitsubishi Motors Corporation reserves the right to make changes
in design and specifications and to
make additions or improvements in
its product without assuming any
obligation to install these on pr
eviously manufac
tured products.
Introduction
Throughout this manual the words
WARNING
and
CAUTION
appear. These are reminders to be especially careful. Failure to follow the instructions could result in persona
l injury or damage to your vehi-
cle. Indicates a strong possibility of se
vere personal injury or death if
instructions are not followed. Points out hazards or unsafe practices that could cause minor personal injury
or damage to your vehicle.
You will see another important symbol: NOTE Gives helpful information.
WA R N I N G Certain fluids contained in vehicl
es and certain pr
oducts of compo-
nent wear contain or emit chemic
als known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm.
©2014 Mitsubishi Motors Corporatio
n Printed in Japan
BK0209800US.book 1 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Table of contents
123456789101112
Overview Quick indexGeneral information/
Charging
Seat and restraint systemsFeatures and controlsDriving safetyComfort controlsFor emergenciesVehicle care a
nd maintenance
Customer assistance/
Reporting Safety Defects
SpecificationsAlphabetical index
BK0209800US.book 1 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instruments and controls (Driver’s area) 1-1
1
Overview
N00100202573

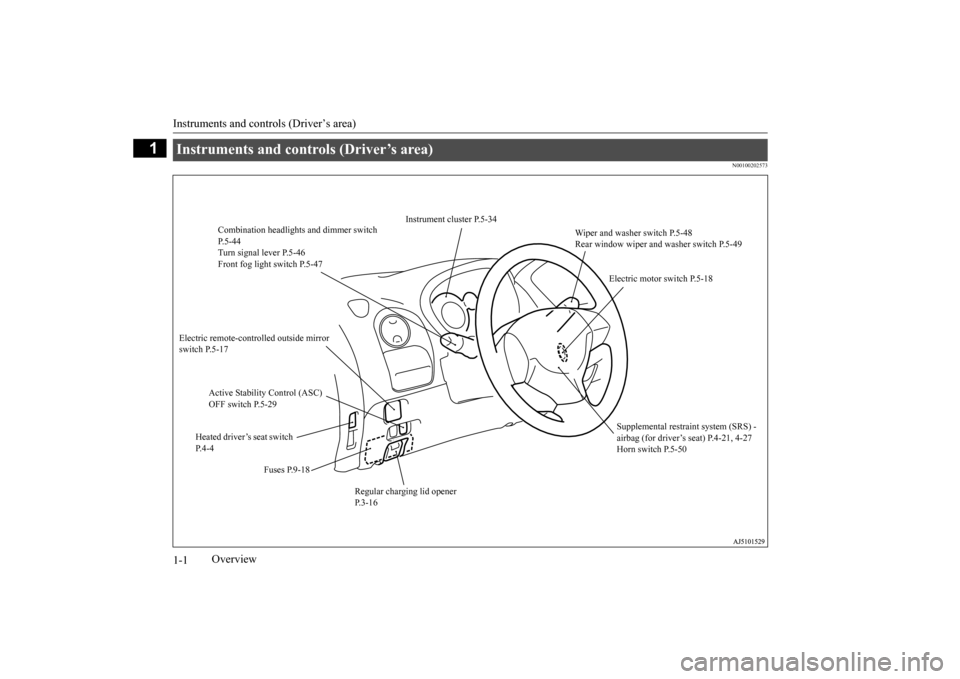

Instruments and controls (Driver’s area)
Wiper and washer switch P.5-48 Rear window wiper and washer switch P.5-49
Instrument cluster P.5-34
Combination headlight
s and dimmer switch
P.5-44 Turn signal lever P.5-46Front fog light switch P.5-47
Electric motor switch P.5-18
Electric remote-controlled outside mirror switch P.5-17
Active Stability Control (ASC) OFF switch P.5-29
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-21, 4-27Horn switch P.5-50
Heated driver’s seat switch P. 4 - 4
Fuses P.9-18
Regular charging lid opener P.3-16
BK0209800US.book 1 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instruments and controls (Instrument panel)
Overview 1-2
1
N00100202586

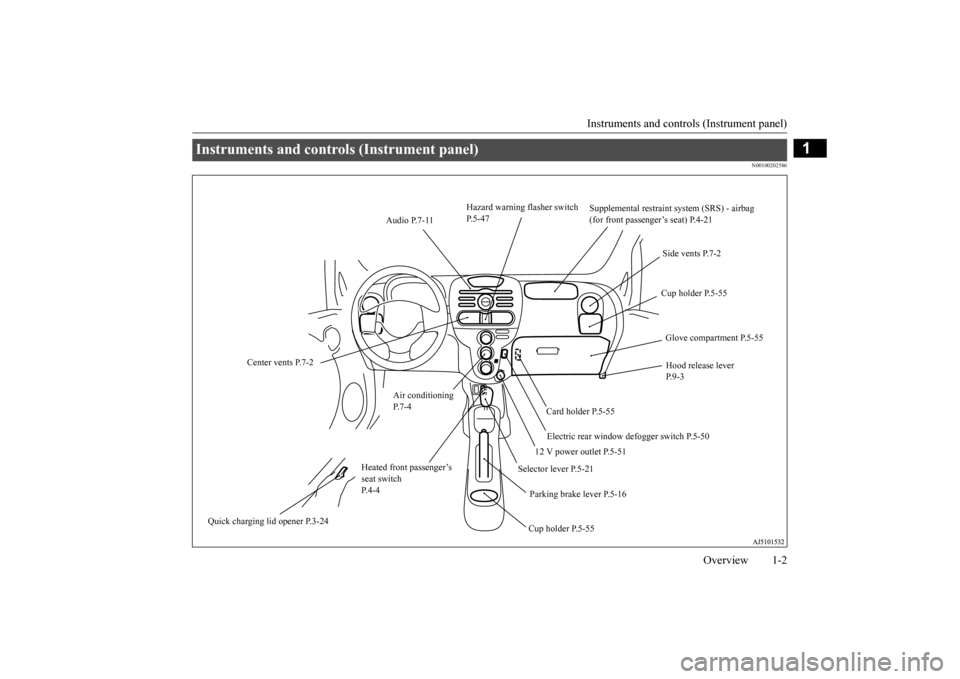

Instruments and controls (Instrument panel)
Hazard warning flasher switch P.5-47
Supplemental restraint system (SRS) - airbag (for front passenger’s seat) P.4-21
Audio P.7-11
Side vents P.7-2 Cup holder P.5-55 Glove compartment P.5-55
Center vents P.7-2
Hood release lever P. 9 - 3
Air conditioning P. 7 - 4
Card holder P.5-55 Electric rear window defogger switch P.5-50
12 V power outlet P.5-51
Selector lever P.5-21
Heated front passenger’s seat switchP. 4 - 4
Parking brake lever P.5-16
Quick charging lid opener P.3-24
Cup holder P.5-55
BK0209800US.book 2 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Interior 1-3 Overview
1
N00100302301

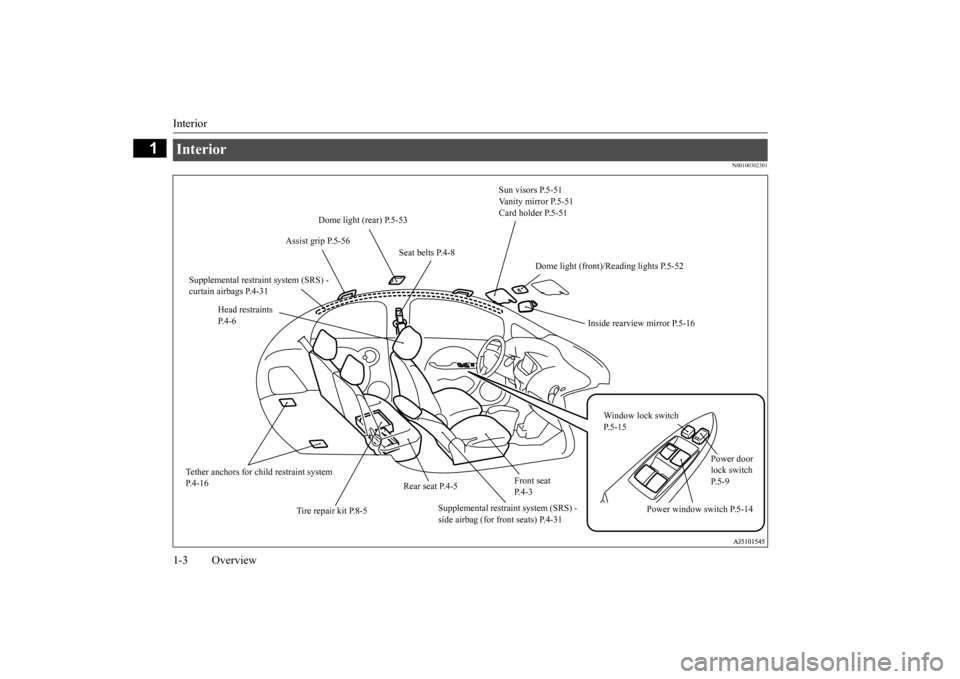

Interior
Sun visors P.5-51 Vanity mirror P.5-51 Card holder P.5-51
Dome light (rear) P.5-53
Assist grip P.5-56
Seat belts P.4-8
Supplemental restraint system (SRS) - curtain airbags P.4-31
Dome light (front)/Reading lights P.5-52
Head restraints P. 4 - 6
Inside rearview mirror P.5-16
Window lock switch P.5-15
Power door lock switch P. 5 - 9
Tether anchors for ch
ild restraint system
P.4-16
Front seat P. 4 - 3
Rear seat P.4-5
Power window switch P.5-14
Supplemental restraint system (SRS) - side airbag (for front seats) P.4-31
Tire repair kit P.8-5
BK0209800US.book 3 ページ ２０１４年１月１４日　火曜日　午前９時２６分

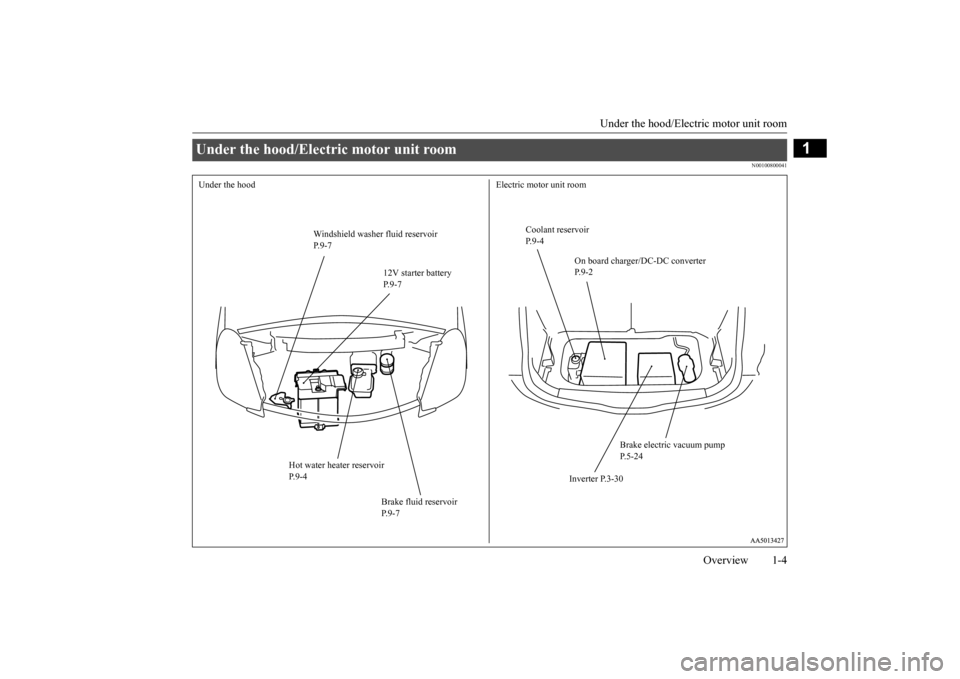

Under the hood/Electric motor unit room
Overview 1-4
1
N00100800041
Under the hood/Electric motor unit room Under the hood Electric motor unit room
Coolant reservoir P. 9 - 4
Windshield washer fluid reservoir P. 9 - 7
On board charger/DC-DC converter P. 9 - 2
12V starter battery P. 9 - 7
Brake electric vacuum pump P.5-24
Hot water heater reservoir P. 9 - 4
Inverter P.3-30
Brake fluid reservoir P. 9 - 7
BK0209800US.book 4 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Outside (Front) 1-5 Overview
1
N00100602450

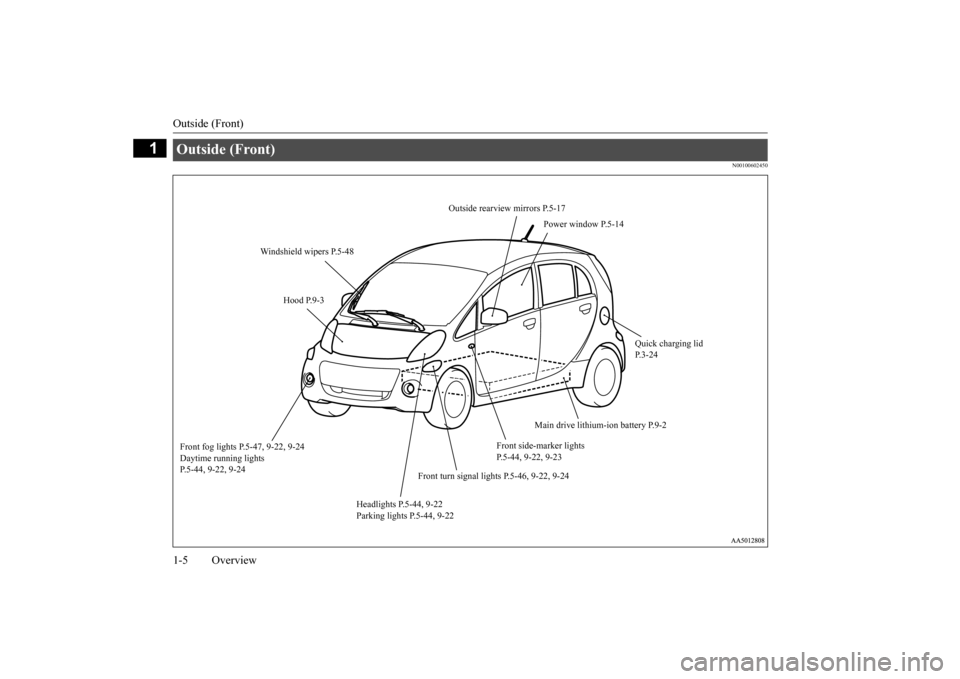

Outside (Front)
Outside rearview mirrors P.5-17
Power window P.5-14
Windshield wipers P.5-48
Hood P.9-3
Quick charging lid P.3-24
Main drive lithium-ion battery P.9-2
Front side-marker lights P.5-44, 9-22, 9-23
Front fog lights P.5-47, 9-22, 9-24 Daytime running lights P.5-44, 9-22, 9-24
Front turn signal lights P.5-46, 9-22, 9-24
Headlights P.5-44, 9-22 Parking lights P.5-44, 9-22
BK0209800US.book 5 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Outside (Rear)
Overview 1-6
1
N00100602463

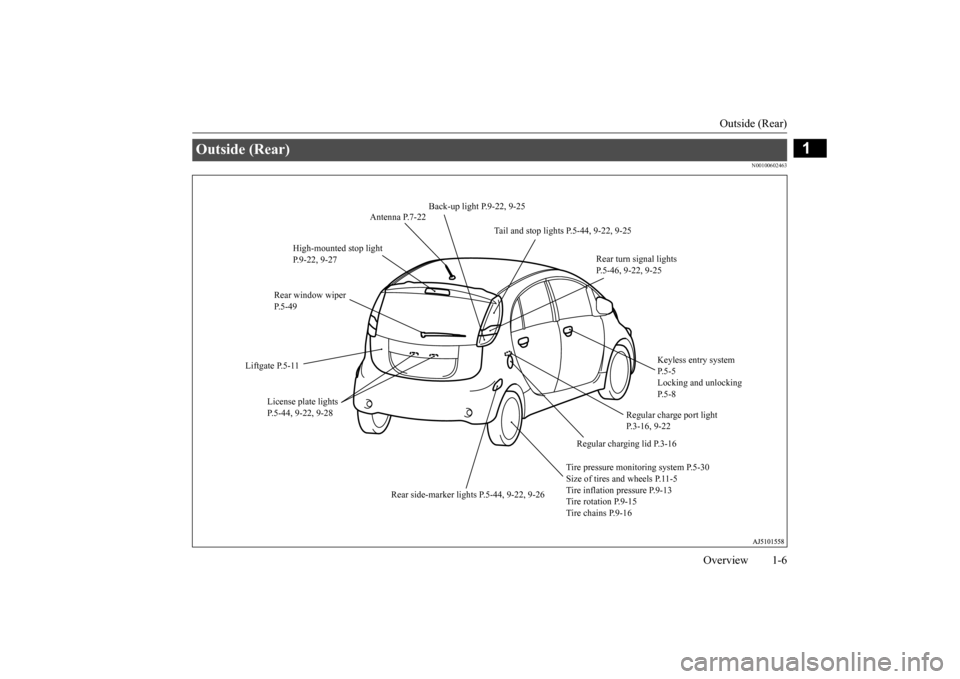

Outside (Rear)
Back-up light P.9-22, 9-25
Antenna P.7-22
Tail and stop lights P.5-44, 9-22, 9-25
High-mounted stop light P.9-22, 9-27
Rear turn signal lights P.5-46, 9-22, 9-25
Rear window wiper P.5-49
Keyless entry system P. 5 - 5Locking and unlocking P. 5 - 8
Liftgate P.5-11
License plate lights P.5-44, 9-22, 9-28
Regular charge port light P.3-16, 9-22
Regular charging lid P.3-16 Tire pressure monitoring system P.5-30 Size of tires and wheels P.11-5 Tire inflation pressure P.9-13 Tire rotation P.9-15Tire chains P.9-16
Rear side-marker lights P.5-44, 9-22, 9-26
BK0209800US.book 6 ページ ２０１４年１月１４日　火曜日　午前９時２６分

BK0209800US.book 7 ページ ２０１４年１月１４日　火曜日　午前９時２６分

2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702188

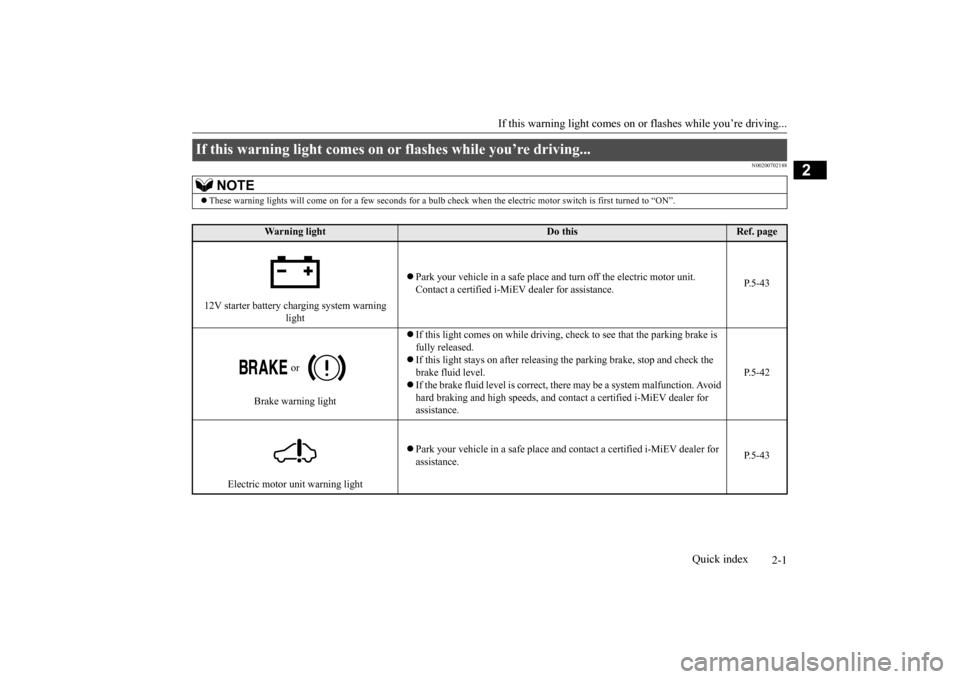

If this warning light comes on
or flashes while you’re driving...
NOTE
These warning lights will come on for a few se
conds for a bulb check when the electric
motor switch is first turned to “ON”.
Warning light
Do this
Ref. page
12V starter battery charging system warning
light
 Park your vehicle in a safe place a
nd turn off the electric motor unit.
Contact a certified i-MiEV dealer for assistance.
P.5-43
or
Brake warning light
 If this light comes on while driving, ch
eck to see that the parking brake is
fully released.  If this light stays on after releasing
the parking brake, stop and check the
brake fluid level.  If the brake fluid level is correct, ther
e may be a system
malfunction. Avoid
hard braking and high speeds, and cont
act a certified i-MiEV dealer for
assistance.
P.5-42
Electric motor unit warning light
 Park your vehicle in a safe place and
contact a certified
i-MiEV dealer for
assistance.
P.5-43
BK0209800US.book 1 ページ ２０１４年１月１４日　火曜日　午前９時２６分
