MITSUBISHI iMiEV 2014 1.G Owners Manual

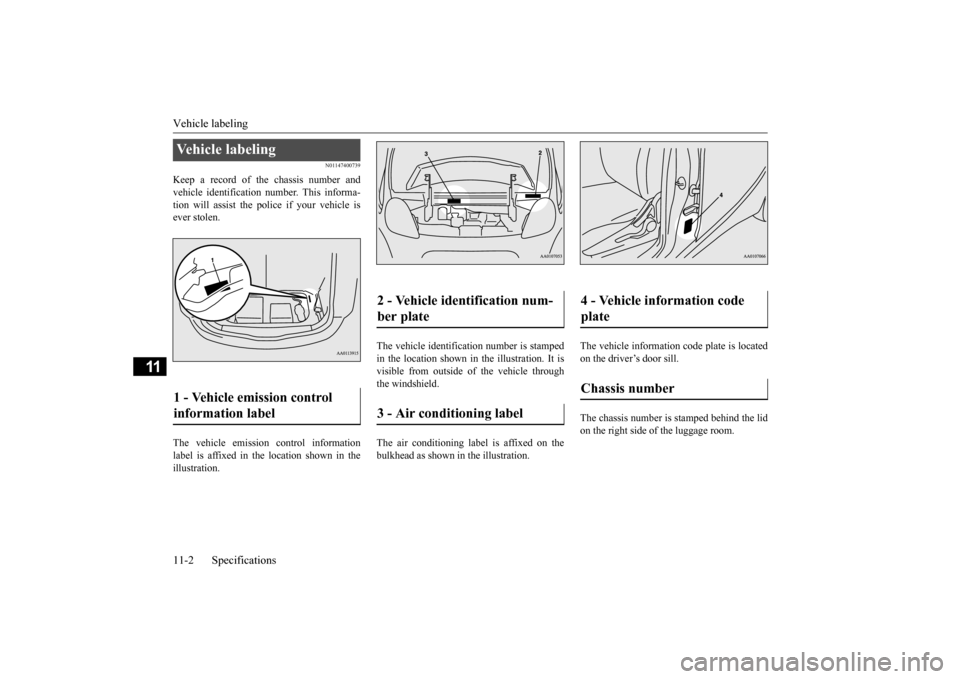

Vehicle labeling 11-2 Specifications
11
N01147400739
Keep a record of the chassis number and vehicle identification
number. This informa-
tion will assist the pol
ice if your vehicle is
ever stolen. The vehicle emission control information label is affixed in th
e location shown in the
illustration.
The vehicle identificati
on number is stamped
in the location shown in the illustration. It is visible from outside of the vehicle throughthe windshield. The air conditioning label is affixed on the bulkhead as shown in the illustration.
The vehicle information
code plate is located
on the driver’s door sill. The chassis number is stamped behind the lid on the right side of the luggage room.
Vehicle labeling 1 - Vehicle emission control information label
2 - Vehicle identification num- ber plate 3 - Air conditioning label
4 - Vehicle information code plate Chassis number
BK0209800US.book 2 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Vehicle dimensions
Specifications 11-3
11
The electric motor number is stamped on the cylinder block as shown
in the illustration.
N01148100599
The tire and loading information placard is located on the driver’s door sill.
N01148200239
The certification label is located on the driver’s door sill.
N01147500538 N01147600861
Electric motor number * - Front of the vehicle
Tire and loading information placard
Certification label Vehicle dimensions Overall length 144.8 in (3,675 mm) Overall width 62.4 in (1,585 mm) Overall height 63.6 in (1,615 mm)Wheel base 100.4 in (2,550 mm)Vehicle weights Gross vehicle weight rating (GVWR)
3,329 lb (1,510 kg)
BK0209800US.book 3 ページ ２０１４年１月１４日　火曜日　午前９時２６分

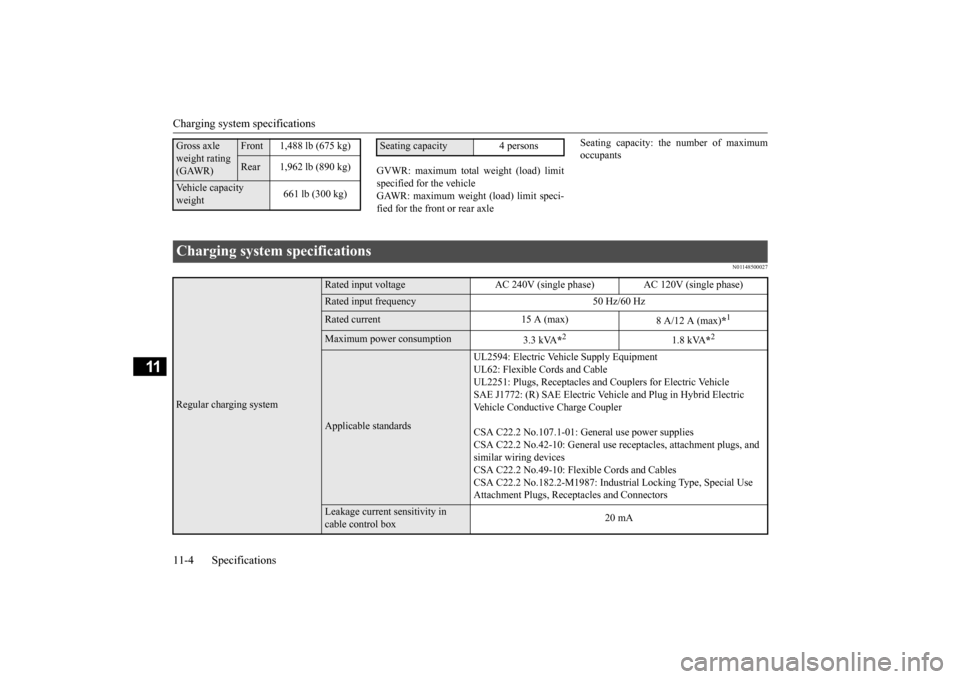

Charging system specifications 11-4 Specifications
11
GVWR: maximum total we
ight (load) limit
specified for the vehicle GAWR: maximum weight (load) limit speci- fied for the front or rear axle
Seating capacity: the number of maximum occupants
N01148500027
Gross axle weight rating (GAWR)
Front 1,488 lb (675 kg)Rear 1,962 lb (890 kg)
Vehicle capacity weight
661 lb (300 kg)
Seating capacity 4 persons
Charging system specifications Regular charging system
Rated input voltage AC 240V (si
ngle phase) AC 120V (single phase)
Rated input frequency 50 Hz/60 HzRated current 15 A (max)
8 A/12 A (max)
*1
Maximum power consumption
3.3 kVA
*2
1.8 kVA
*2
Applicable standards
UL2594: Electric Vehicle Supply Equipment UL62: Flexible Cords and Cable UL2251: Plugs, Recept
acles and Couplers fo
r Electric Vehicle
SAE J1772: (R) SAE Electric Vehicl
e and Plug in Hybrid Electric
Vehicle Conductive Charge Coupler CSA C22.2 No.107.1-01: Ge
neral use power supplies
CSA C22.2 No.42-10: General use rece
ptacles, attachment plugs, and
similar wiring devicesCSA C22.2 No.49-10: Flexible Cords and Cables CSA C22.2 No.182.2-M1987: Industr
ial Locking Type, Special Use
Attachment Plugs, Rece
ptacles and
Connectors
Leakage current sensitivity in cable control box
20 mA
BK0209800US.book 4 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Electric motor specifications
Specifications 11-5
11
*1: When using a genuine charging cable with control box *2: When using a home or public charging device
(EVSE: Electric Vehicles Supply Equipment)
N01147300028
N01147800270
Battery is a 12 volt type.
N01147900734
PCD: Pitch Circle
Diameter (ins
tallation holes)
Quick charging system
Applicable standards CHAdeMOMaximum input current 125 A
Regular charging/ Quick charging system
Enclosure type
Charge connector: Type 3s Control box (CCID): Type 3
Electric motor specifications Electric motor model Y51Maximum output 49 kW
Maximum torque 196 N•m12V starter battery
34B19L(S)
Tires and wheels
Item
Front
Rear
Tire 145/65R15 72H 175/60R15 81HWheel
Size 15x4J 15x5JPCD 3.93 in (100 mm)Offset 1.37 in (35 mm)
NOTE
 Contact a certifie
d i-MiEV dealer for de
tails on the combination used on your vehicle.
BK0209800US.book 5 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Refill capacities 11-6 Specifications
11
N01148001003
* : similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrate and non-borate
coolant with long life hybrid
organic acid tech-
nology These tires satisfy vehicle loading condit
ions described in th
is owner’s manual.
Refill capacities No.
Item
Capacity
Lubricants
1
Windshield washer fluid 2.0 qt (1.9 L) —
2
Brake As required Conforming to Brake fluid DOT 3 or DOT 4
3
Hot water heater fluid [Includes .42 qt (0.4 L) in reservoir]
2.0 qt (1.9 L)
Mitsubishi Motors Genui
ne Super Long Life
Coolant Premium or
an equivalent
*
4
Coolant [Includes 1.2 qt (1.1 L) in reservoir]
5.4 qt (5.1 L)
5
Transmission .79 qt (0.75 L) Mits
ubishi Motors Genuine ATF SP III
6
Refrigerant (air
conditioning)
Refer to the “Air con- ditioning label” on
page 11-2
HFC-134a
NOTE
BK0209800US.book 6 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Alphabetical index
12-1
12
Numerics
12V power outlet
................................
5-51
12V starter battery
................................
9-7
Specification
..................................
11-5
12V starter battery charging system warning light
.................................................
5-43
A
Accessory (installation)
.........................
3-6
Acoustic vehicle alerting system (AVAS)
....
5-23 Active stability control
........................
5-28
ASC indicator
.................................
5-30
ASC OFF indicator
.........................
5-30
ASC OFF switch
............................
5-29
Skid control function
.......................
5-29
Traction control function
.................
5-29
Air conditioning
...................................
7-4
Important air condi
tioning operating tips
..
7-10
Air purifier
.........................................
7-11
Aluminum wheels
...............................
9-32
Antenna
.............................................
7-22
Anti-lock braking system
.....................
5-25
Warning light
........................
5-26
, 5-27
ASC
..................................................
5-28
ASC indicator
.....................................
5-30
ASC OFF indicator
.............................
5-30
ASC OFF switch
................................
5-29
Assist grip
.........................................
5-56
Audio
AM/FM electronicall
y tuned radio with
CD player
....................................
7-11
Error codes
....................................
7-19
Handling of compact discs
..............
7-20
B
Back up lights
Bulb capacity
.................................
9-22
Replacement
..................................
9-25
Ball joint, steering li
nkage seals and drive
shaft boots
.......................................
9-17
Battery
12V starter battery charging system warn- ing light
.......................................
5-43
Disconnection and connection
...........
9-9
During cold weather
.........................
9-9
Main drive lithium-ion battery
...........
3-3
Brake
Anti-lock braking system
................
5-25
Braking
...........................................
6-5
Fluid
.......................................
9-7
, 11-6
Hose
.............................................
9-17
Parking brake
.................................
5-16
Parking brake lever stroke
...............
9-16
Pedal
.............................................
5-24
Pedal free play
...............................
9-16
Power brakes
..................................
5-24
Service brake
..................................
5-24
Warning light
.................................
5-42
Brake assist system
.............................
5-25
Break-in recommendations
....................
5-2
Bulb capacity
......................................
9-22
C
California Perchl
orate Materials
Requirements
.....................................
3-7
Capacities
..........................................
11-6
Card holder
...............................
5-51
, 5-55
Cargo loads
........................................
6-10
Certification label
...............................
11-3
Charging
Quick charging
...............................
3-24
Regular charging
...................
3-15
, 3-24
Charging indicator
..............................
5-42
Charging Timer
..................................
3-36
Charging troubleshooting guide
............
3-28
Chassis number
...................................
11-2
Child restraint
.....................................
4-13
Child safety locks for rear door
............
5-10
Cleaning
Inside of your vehicle
......................
9-29
Outside of your vehicle
...................
9-30
Clock
.................................................
7-22
BK0209800US.book 1 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Alphabetical index 12-2
12
Cold
Cautions and actions to
deal with intense
cold
...............................................
3-9
Combination headlights and dimmer switch
..
5-44 Consumer information
........................
10-2
Coolant
.......................................
9-4
, 11-6
Cruising range
......................................
3-4
Cruising range indicator
.............
5-35
, 5-38
Cup holder
.........................................
5-55
D
Dash lights brightness indicator
..5-35
, 5-38
Daytime running lights
Bulb capacity
.................................
9-22
Replacement
..................................
9-24
Defogger (rear window)
......................
5-50
Dimensions
........................................
11-3
Dimmer (high/lo
w beam change)
.........
5-46
Dinghy towing
...................................
6-10
Disc brake pads
..................................
9-17
Dome light (Front
)/Reading lights
Bulb capacity
.................................
9-23
Switch
...........................................
5-52
Dome light (Rear)
Bulb capacity
.................................
9-23
Switch
...........................................
5-53
Door-ajar warning
light and buzzer
.......
5-43
Doors
Lock
...............................................
5-8
Power door locks
.............................
5-9
Driver’s seat belt
reminder/warning light
......
4-10 Driving during cold weather
..................
6-5
Driving, alcohol and drugs
....................
6-2
E
Economical driving
..............................
6-2
Electric motor
Number
..........................................
11-3
Specifications
.................................
11-5
Electric motor switch
...........................
5-18
Electric motor unit warning light
..........
5-43
Electric power steering system (EPS)
....
5-27
Electric rear window
defogger switch
....
5-50
Electronic immobilizer (Anti-theft starting system)
.............................................
5-2
Energy level gauge
..............................
5-40
Energy usage indicator
.........................
5-35
EV charging cable
...............................
3-21
F
Floor mat
.............................................
6-2
Fluid
Brake fluid
..............................
9-7
, 11-6
Coolant
...................................
9-4
, 11-6
Hot water heater fluid
..............
9-4
, 11-6
Washer fluid
...........................
9-7
, 11-6
Fluid capacities and lubricants
.............
11-6
Front fog lights
Bulb capacity
.................................
9-22
Indicator
........................................
5-42
Replacement
..................................
9-24
Switch
...........................................
5-47
Front seats
............................................
4-3
Front side-marker lights
Bulb capacity
.................................
9-22
Replacement
..................................
9-23
Front turn signal lights
Bulb capacity
.................................
9-22
Replacement
..................................
9-24
Fuses
.................................................
9-18
Fusible links
.......................................
9-18
G
Gauges
..............................................
5-34
General maintenance
...........................
9-17
General vehicle data
............................
11-3
Genuine parts
.......................................
3-7
Glove compartment
.............................
5-55
BK0209800US.book 2 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Alphabetical index
12-3
12
H
Hazard warning
flasher switch
.............
5-47
Hazard warning lights
.........................
5-42
Head restraints
......................................
4-6
Headlights
Bulb capacity
.................................
9-22
Dimmer
.........................................
5-46
Headlight flasher
............................
5-46
Reminder buzzer
.............................
5-46
Switch
...........................................
5-44
Heat
Cautions and actions to
deal with intense
heat
...............................................
3-7
High beam indicator
............................
5-42
High-mounted stop light
Bulb capacity
.................................
9-22
Replacement
..................................
9-27
High-Voltage components
...................
3-30
Hood
...................................................
9-3
Hood lock release me
chanism and safety
catch
................................................
9-17
Horn switch
........................................
5-50
Hot water heater fluid
...................
9-4
, 11-6
I
If the vehicle breaks down
.....................
8-2
i-MiEV
................................................
3-2
Cruising range
..................................
3-4
Main drive lithium-ion battery
...........
3-3
Main features
...................................
3-2
Important facts to know in
case of an accident
10-3 Indicator and warning light package
.....
5-41
Indicators
..........................................
5-42
Inside rearview mirror
.........................
5-16
Instrument cluster
...............................
5-34
Intense cold
Cautions and actions
.........................
3-9
Intense heat
Cautions and actions
.........................
3-7
Interior lights
.....................................
5-52
J
Jump-starting
.......................................
8-2
K
Key reminder buzzer
.....................
5-9
, 5-20
Keyless entry system
............................
5-5
Keys
...................................................
5-2
L
Labeling
............................................
11-2
License plate lights
Bulb capacity
.................................
9-22
Replacement
...................................
9-28
Liftgate
..............................................
5-11
Loading information
..............................
6-7
Lubricants
..........................................
11-6
M
Main drive lithium-ion battery
................
3-3
Main Drive Lithium-ion Battery Level Indicator
..........................................
3-45
MiEV Remote System
.........................
3-32
Mirror
Inside rearview mirror
.....................
5-16
Outside rearview mirrors
.................
5-17
Modifications to and
racing of your vehicle
..
3-6
O
Odometer
..................................
5-35
, 5-36
Oil
Transmission oil
.............................
11-6
Operation under adverse driving conditions
..
8-13 Outside rearview mirrors
.....................
5-17
Outside temperature display
........
5-35
, 5-39
P
Parking
................................................
6-6
BK0209800US.book 3 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Alphabetical index 12-4
12
Parking brake
.................................
5-16
Parking brake lever stroke
...............
9-16
Parking lights
Bulb capacity
.................................
9-22
Polishing
............................................
9-31
Power brakes
......................................
5-24
Power door locks
..................................
5-9
Power down warning light
...................
5-43
Power outlet
.......................................
5-51
Power windows
..................................
5-14
Precautions during Charging the Main Drive Lithium-ion Battery
..........................
3-14
Q
Quick charging
...................................
3-24
R
Radio
General information about your radio 7-23
Ready indicator
..................................
5-42
Rear combination lights
Bulb capacity
.................................
9-22
Replacement
..................................
9-25
Rear side-marker lights
Bulb capacity
.................................
9-22
Replacement
..................................
9-26
Rear turn signal lights
Bulb capacity
..................................
9-22
Replacement
...................................
9-25
Rear window defogger switch
..............
5-50
Rearview mirror
Inside
.............................................
5-16
Outside
..........................................
5-17
Refill capacities
..................................
11-6
Regenerative brake system indicator
.....
5-42
Regenerative braking
............................
3-3
Regular charging
........................
3-15
, 3-24
Remote Climate Control
.............
3-43
, 7-11
Replacement of light bulbs
...................
9-22
Replacing tires and wheels
...................
9-14
Reporting Safety Defects
.....................
10-2
Reservoir cap
.......................................
9-6
S
Safe driving techniques
.........................
6-4
Seat
....................................................
4-2
Front seats
.......................................
4-3
Heated seat
......................................
4-4
Rear seats
........................................
4-5
Seats and restraint systems
................
4-2
Seat belt
..............................................
4-8
Adjustable seat be
lt shoulder anchor
.4-11
Child restraint
.................................
4-13
Driver’s seat belt
reminder/warning light
..
4-10
Force limiter
..................................
4-13
Front passenger seat belt warning light
.....
4-11 Maintenance and inspection
.............
4-20
Pre-tensioner
..................................
4-12
Seat belt extender
...........................
4-12
Seat belt
instructions
.........................
4-8
Seat belt use
during pregnancy
.........
4-12
Service brake
......................................
5-24
Service precautions
...............................
9-2
Service reminder
........................
5-35
, 5-36
Skid control function
...........................
5-29
Snow tires
..........................................
9-15
Speedometer
......................................
5-34
Steering
Wheel lock
.....................................
5-20
Stop lights
Bulb capacity
.................................
9-22
Replacement
..................................
9-25
Storage spaces
....................................
5-54
Sun visors
..........................................
5-51
Supplemental Restraint System
............
4-21
How the Supplement
Restraint System
works
..........................................
4-23
Servicing
.......................................
4-34
Warning light
.................................
4-26
T
Tail lights
BK0209800US.book 4 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Alphabetical index
12-5
12
Bulb capacity
.................................
9-22
Replacement
..................................
9-25
Theft-alarm system
.............................
5-12
Tire
Quality grading
...............................
10-2
Tire pressure monitoring system
...........
5-30
Tire repair kit
.......................................
8-5
Tires
..................................................
9-10
Inflation pressure
............................
9-13
Maintenance
...................................
9-15
Replacing tires and wheels
...............
9-14
Rotation
.........................................
9-15
Size (tire and wheel)
.......................
11-5
Snow tires
......................................
9-15
Tire and loading information placard
.6-7
,
11-3Tire chains
.....................................
9-16
Tread wear indicators
......................
9-15
Towing
..............................................
8-12
Traction control function
.....................
5-29
Trailer towing
.....................................
6-10
Transmission
......................................
5-21
Selector lever operation
...................
5-21
Selector lever position indicator
.......
5-21
Selector lever positions
...................
5-22
Trip odometer
............................
5-35
, 5-36
Turn signal lights
Indicators
.......................................
5-42
Lever
.............................................
5-46
V
Vanity mirror
.....................................
5-51
Vehicle care precautions
.....................
9-28
Vehicle dimensions
............................
11-3
Vehicle labeling
.................................
11-2
Vehicle preparation before driving
.........
6-3
Vehicle weights
..................................
11-3
Vents
..................................................
7-2
W
Warning lights
...................................
5-42
Washer
Fluid
.......................................
9-7
, 11-6
Rear window washer
......................
5-49
Switch
...........................................
5-49
Windshield washer
.........................
5-49
Waxing
.............................................
9-31
Weights
.............................................
11-3
Wheel
Specification
..................................
11-5
Wiper
Rear window wiper
........................
5-49
Windshield
....................................
5-48
Wiper blades
..................................
9-16
BK0209800US.book 5 ページ ２０１４年１月１４日　火曜日　午前９時２６分
