Fuses
Vehicle care and maintenance 9-21
9
 Some fuses may not be installed on your vehicle, depending on
the vehicle model
or specifications.  The table above show
s the main equip-
ment corresponding to each fuse.
N00901100078 N00954900115

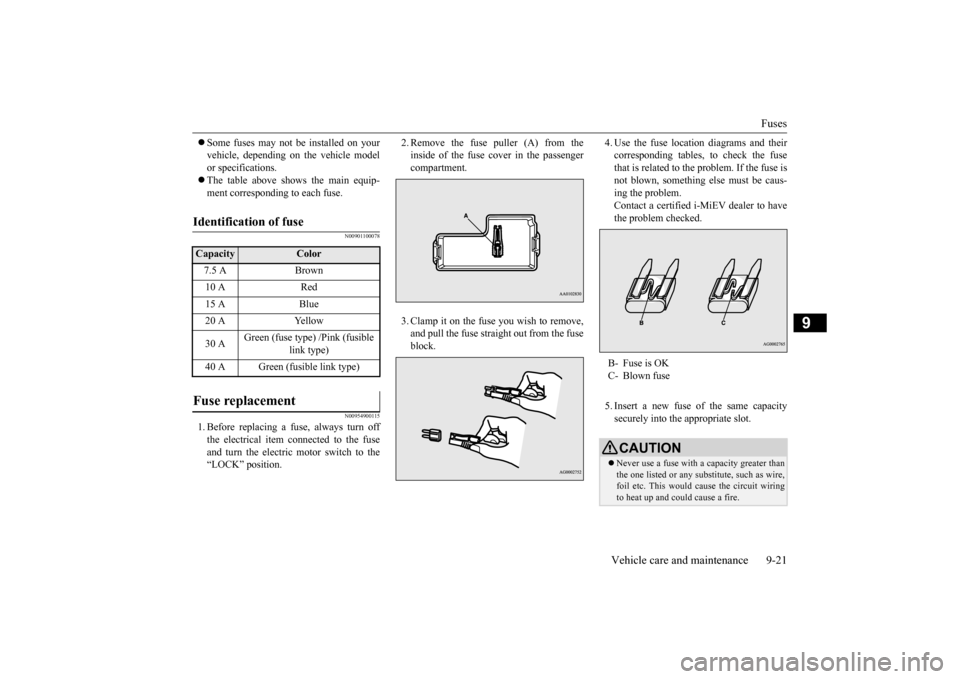

1. Before replacing a fuse, always turn off the electrical item connected to the fuse and turn the electric motor switch to the “LOCK” position.
2. Remove the fuse puller (A) from the inside of the fuse cover in the passengercompartment. 3. Clamp it on the fuse you wish to remove, and pull the fuse straight out from the fuseblock.
4. Use the fuse location diagrams and their corresponding tables, to check the fusethat is related to the problem. If the fuse is not blown, something
else must be caus-
ing the problem.Contact a certified i-
MiEV dealer to have
the problem checked. 5. Insert a new fuse of the same capacity securely into the appropriate slot.
Identification of fuse Capacity
Color
7.5 A Brown 10 A Red 15 A Blue 20 A Yellow 30 A
Green (fuse type) /Pink (fusible
link type)
40 A Green (fusible link type)
Fuse replacement
B- Fuse is OK C- Blown fuseCAUTION Never use a fuse with a capacity greater than the one listed or any substitute, such as wire,foil etc. This would
cause the circuit wiring
to heat up and could cause a fire.
