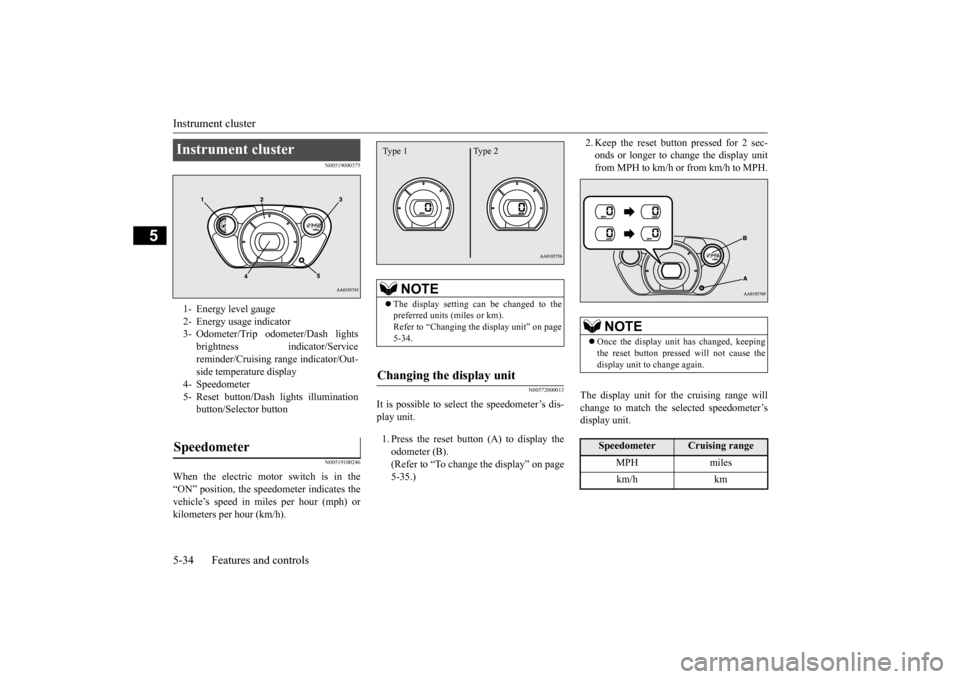

Instrument cluster 1- Energy level gauge2- Energy usage indicator3- Odometer/Trip odom
eter/Dash lights
brightness indi
cator/Service
reminder/Cruising ra
nge indicator/Out-
side temperature display
4- Speedometer 5- Reset button/Dash
lights illumination
button/Select
or button
Speedometer
NOTE
The display setting can be changed to the preferred units (miles or km).Refer to “Changing the
display unit” on page
5-34.
Changing the display unit Type 1 Type 2
NOTE
Once the display unit
has changed, keeping
the reset button pressed will not cause thedisplay unit to change again.Speedometer
Cruising range
MPH miles km/h km
BK0209800US.book 34 ページ 2014年1月14日 火曜日 午前9時26分
Page 140 of 262

Instrument cluster
Features and controls 5-35
5
N00572101037
The power consumption of the electric motor, the air conditioning, and power generation by the regenerative brake are indicated. When the ready indicator comes on, the redneedle will move to th
e neutral point (A) and
then move to the right or left according to the amount of power consumption or power gen-eration. [When the red needle moves to the right of the neutral point] This indicates that the electric motor unitand/or the air conditioning are consuming electric energy from the main drive lithium- ion battery.The more the needle moves to the right, the more electrical energy
is being consumed.
[When the red needle moves to the left of the neutral point]This indicates that electric energy is being generated by the regenerative brake and charged to the main dr
ive lithium-ion battery.
The more the needle moves to the left, the more electric energy is being generated.
N00519501449
Odometer, trip odometer
, dash lights bright-
ness indicator, serv
ice reminder, cruising
range indicator, and outside temperature are displayed.
N00572201025
The display is changed every time the reset button (A) is briefly pressed.
NOTE
Even if speedometer
’s display unit is
changed, the display units for the odometer,trip odometer, and service reminder do notchange.
Energy usage indicator
NOTE
When the main drive lithium-ion battery is at or near full charge, or
the main drive lithium-
ion battery temperature is too high or too low, the needle in the energy usage indicatormay not move to the left of the neutral point, since the main drive lithium-ion battery can- not receive charge.
Odometer/Trip
odometer/Dash
lights brightness indicator/Ser-vice reminder/Cruising range indicator/Outside temperature display To change the display
BK0209800US.book 35 ページ 2014年1月14日 火曜日 午前9時26分
Page 141 of 262

Instrument cluster 5-36 Features and controls
5
N00572300016
The odometer indicates the total distance the vehicle has traveled.
N00572400020
The trip odometer shows the distance traveled since the last time it was reset. There are two trip odometer displays: and
.
Trip odometer can be used to measure the distance traveled since the current trip began. At the same time, Trip odometer can be used to measure the distance from a second location.
To zero the counter, press and hold the reset button for more than 1 second. Only the cur- rently displayed value will be reset. If trip odometer is displayed, for exam-ple, only trip odometer
will be reset.
N00572500021
The service reminder s
hows the driving dis-
tance or number of m
onths remaining until
the next recommended
periodic maintenance
inspection is required. When the next inspection is nearly due, the display shows “------”.

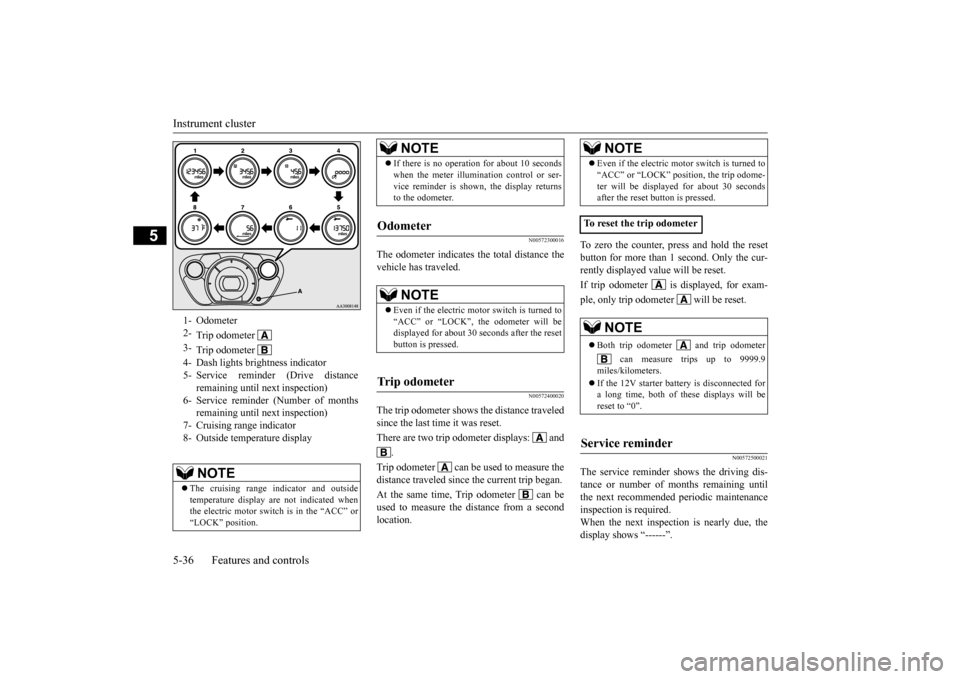

1- Odometer 2-
Trip odometer
3-
Trip odometer
4- Dash lights brightness indicator 5- Service reminder
(Drive distance
remaining until
next inspection)
6- Service reminder
(Number of months
remaining until
next inspection)
7- Cruising range indicator 8- Outside temperature display
NOTE
The cruising range indicator and outside temperature display are not indicated when the electric motor switch is in the “ACC” or “LOCK” position.
If there is no operati
on for about 10 seconds
when the meter illumination control or ser-vice reminder is shown,
the display returns
to the odometer.
Odometer
NOTE
Even if the electric motor switch is turned to “ACC” or “LOCK”, the odometer will be displayed for about 30 se
conds after the reset
button is pressed.
Trip odometer
NOTE
NOTE
Even if the electric mo
tor switch is turned to
“ACC” or “LOCK” position, the trip odome-ter will be displaye
d for about 30 seconds
after the reset button is pressed.
To reset the trip odometer
NOTE
Both trip odometer and trip odometer
can measure trips up to 9999.9
miles/kilometers. If the 12V starter battery is disconnected for a long time, both of th
ese displays will be
reset to “0”.
Service reminder
BK0209800US.book 36 ページ 2014年1月14日 火曜日 午前9時26分
