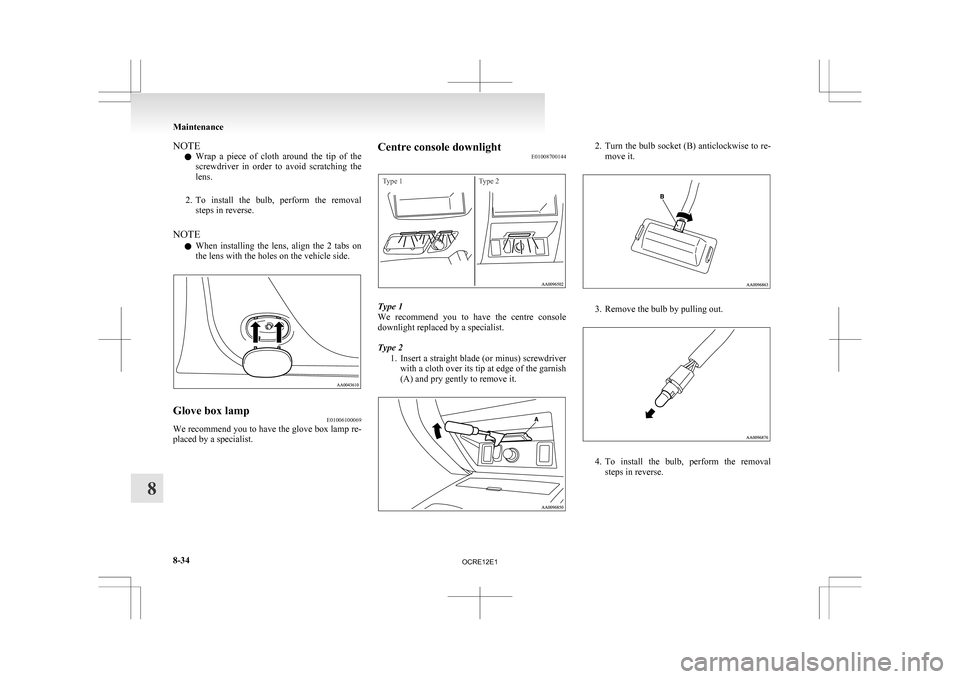

NOTE
l Wrap
a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal steps in reverse.
NOTE l When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side. Glove box lamp
E01006100069
We recommend you to have the glove box lamp re-
placed by a specialist. Centre console downlight
E01008700144
Type 1Type 2 Type 1
We

recommend you to have the centre console
downlight replaced by a specialist.
Type 2
1. Insert a straight blade (or minus) screwdriverwith a cloth over its tip at edge of the garnish
(A) and pry gently to remove it. 2. Turn
the bulb socket (B) anticlockwise to re-
move it. 3. Remove the bulb by pulling out.
4. To
install the bulb, perform the removal
steps in reverse. Maintenance
8-34
8
OCRE12E1

Vehicle labeling
............................................................................ 9-02
Vehicle dimensions....................................................................... 9-03
Vehicle performance.....................................................................9-09
Vehicle weight .............................................................................. 9-10
Engine specifications .................................................................... 9-15
Transmission specifications .......................................................... 9-16
Electrical system ........................................................................... 9-17
Tyres and wheels.......................................................................... 9-18
Other specifications ...................................................................... 9-19
Fuel consumption ......................................................................... 9-20

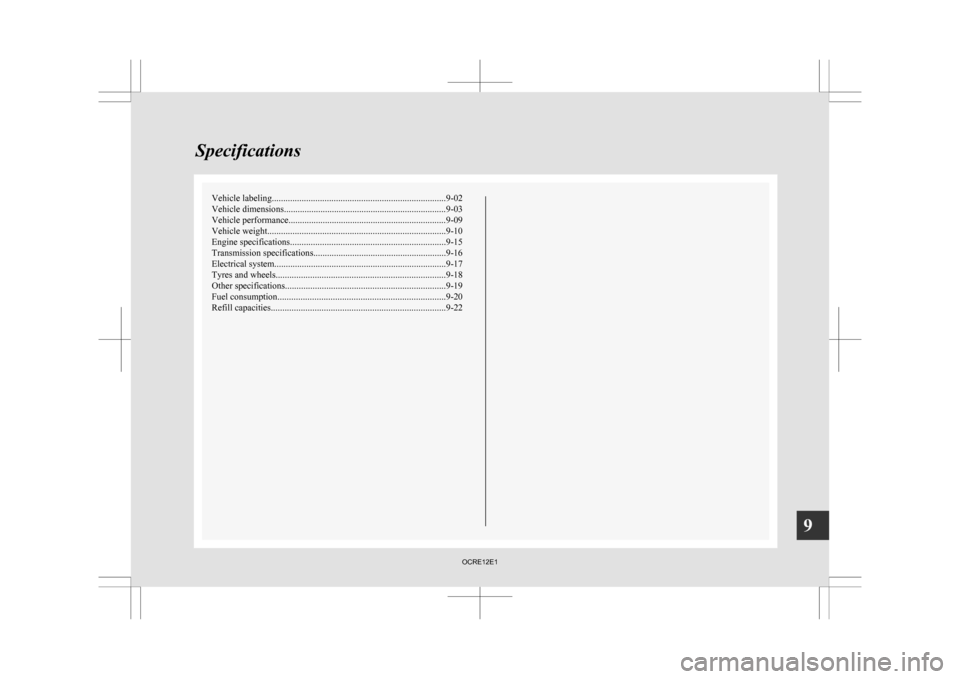

Refill capacities ............................................................................ 9-22Specifications
9
OCRE12E1

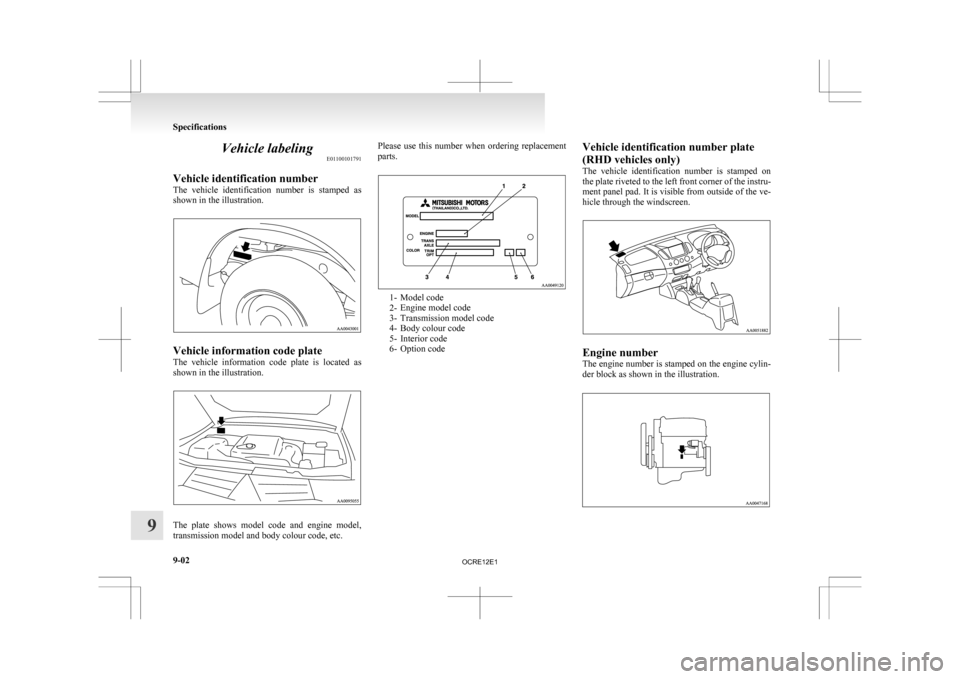

Vehicle labeling
E01100101791
Vehicle identification number
The
vehicle identification number is stamped as
shown in the illustration. Vehicle information code plate
The

vehicle information code plate is located as
shown in the illustration. The plate shows model code and engine model,
transmission model and body colour code, etc. Please use this number when ordering replacement
parts.
1- Model code
2-

Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code Vehicle identification number plate
(RHD vehicles only)
The

vehicle identification number is stamped on
the plate riveted to the left front corner of the instru-
ment panel pad. It is visible from outside of the ve-
hicle through the windscreen. Engine number
The

engine number is stamped on the engine cylin-
der block as shown in the illustration. Specifications
9-02
9
OCRE12E1

Vehicle dimensions

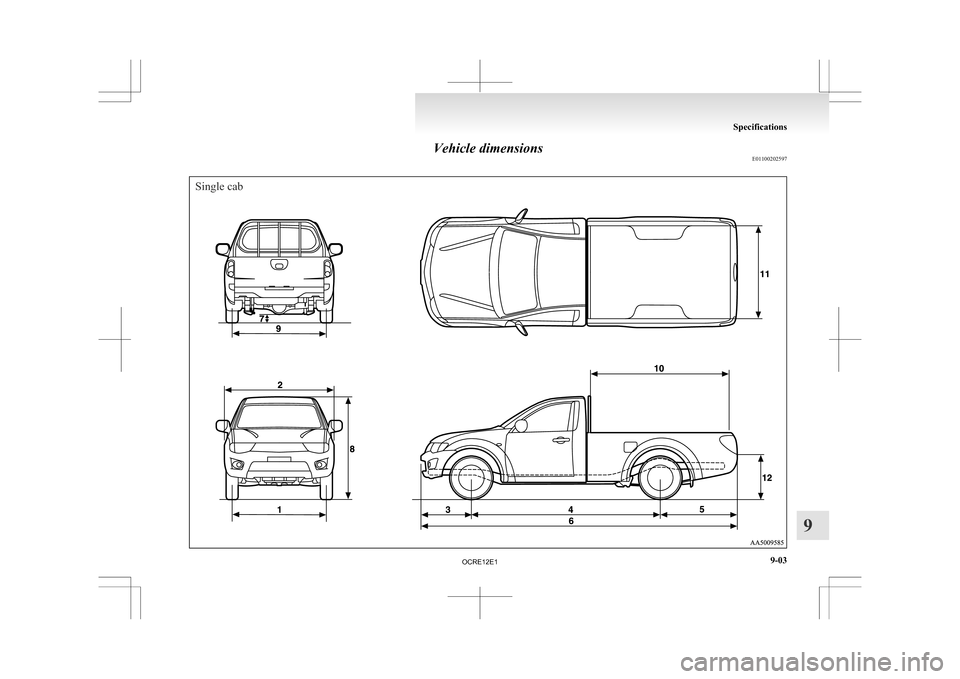

E01100202597Single cab Specifications
9-03 9
OCRE12E1

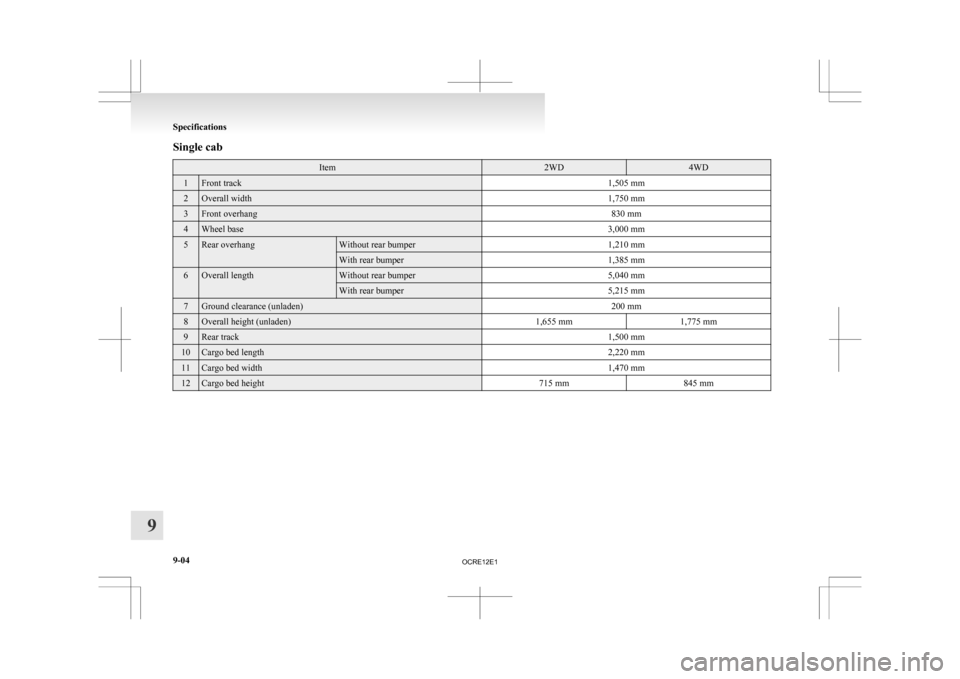

Single cab
Item 2WD 4WD
1 Front track
1,505 mm2 Overall width
1,750 mm3 Front overhang
830 mm4 Wheel base
3,000 mm5 Rear overhang Without rear bumper
1,210 mmWith rear bumper
1,385 mm6 Overall length Without rear bumper
5,040 mmWith rear bumper
5,215 mm7 Ground clearance (unladen)
200 mm8 Overall height (unladen)
1,655 mm1,775 mm9 Rear track
1,500 mm10 Cargo bed length
2,220 mm11 Cargo bed width
1,470 mm12 Cargo bed height
715 mm845 mmSpecifications
9-04
9
OCRE12E1

Club cabSpecifications
9-05 9
OCRE12E1

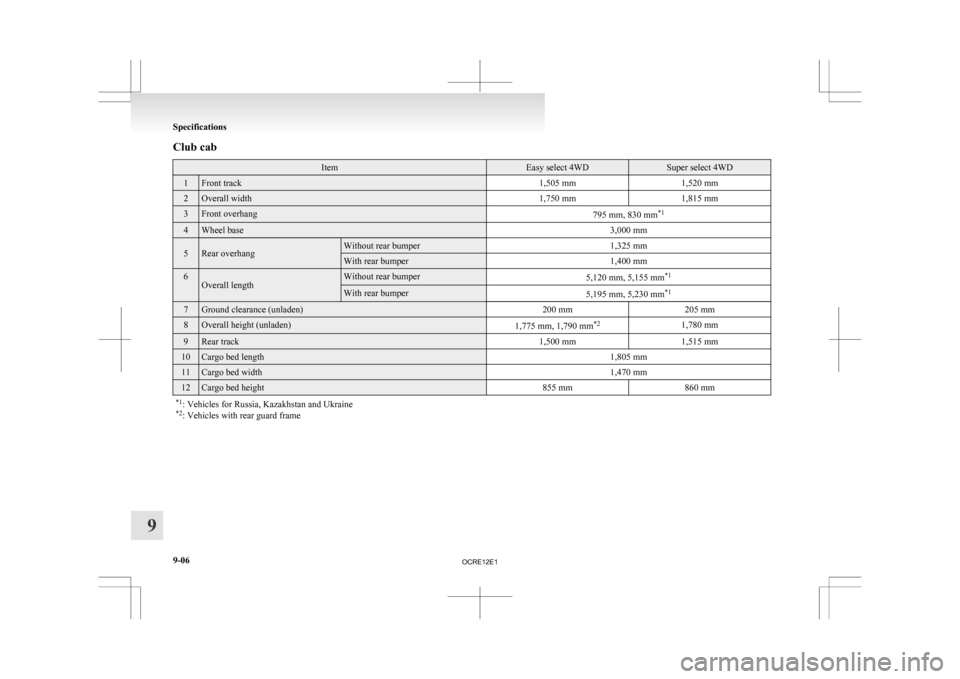

Club cab
Item Easy select 4WD Super select 4WD
1 Front track
1,505 mm1,520 mm2 Overall width
1,750 mm1,815 mm3 Front overhang
795 mm, 830 mm*14 Wheel base
3,000 mm5 Rear overhang Without rear bumper
1,325 mmWith rear bumper
1,400 mm6
Overall length Without rear bumper
5,120 mm, 5,155 mm*1 With rear bumper
5,195 mm, 5,230 mm*17 Ground clearance (unladen)
200 mm205 mm8 Overall height (unladen)
1,775 mm, 1,790 mm*2
1,780 mm9 Rear track
1,500 mm1,515 mm10 Cargo bed length
1,805 mm11 Cargo bed width
1,470 mm12 Cargo bed height
855 mm860 mm
*1 : Vehicles for Russia, Kazakhstan and Ukraine
*2 : Vehicles with rear guard frame Specifications
9-06
9
OCRE12E1

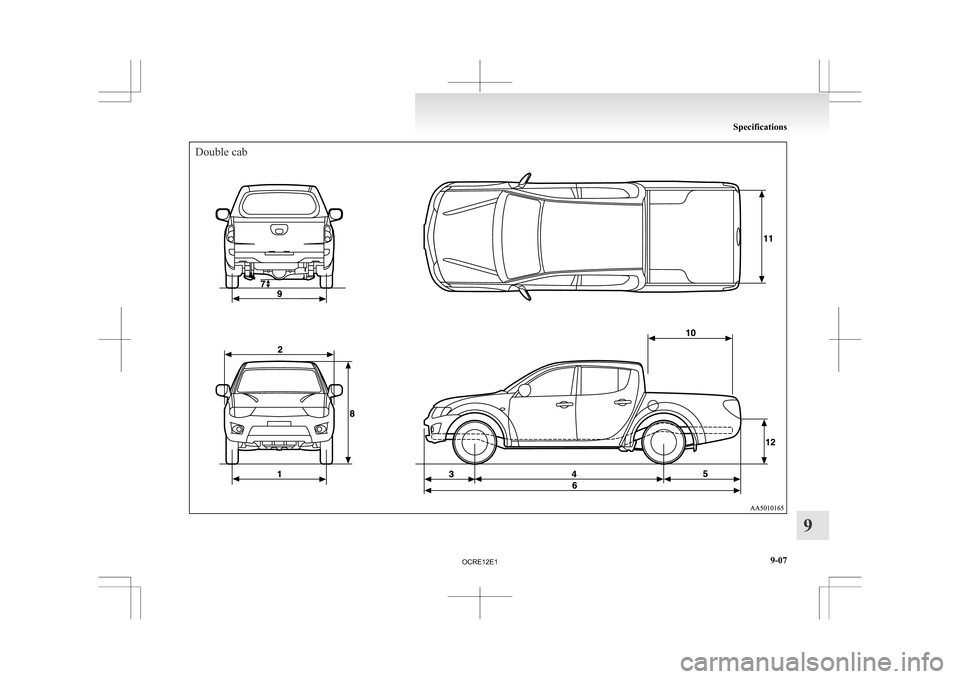

Double cabSpecifications
9-07 9
OCRE12E1

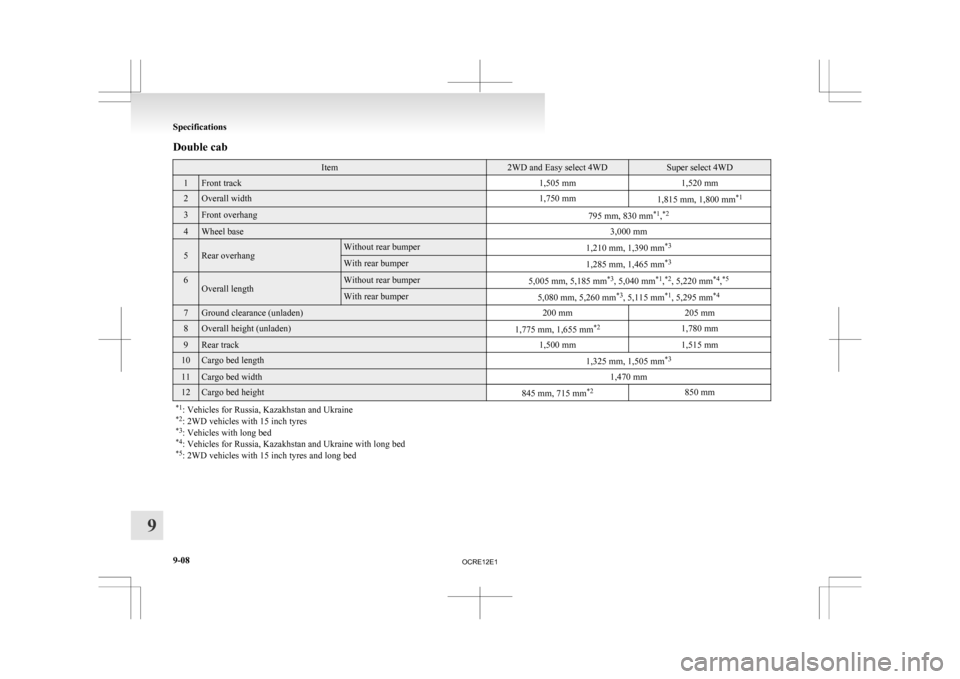

Double cab
Item 2WD and Easy select 4WD Super select 4WD
1 Front track
1,505 mm1,520 mm2 Overall width
1,750 mm
1,815 mm, 1,800 mm*13 Front overhang
795 mm, 830 mm*1
,*2 4 Wheel base
3,000 mm5 Rear overhang Without rear bumper
1,210 mm, 1,390 mm*3 With rear bumper
1,285 mm, 1,465 mm*36
Overall length Without rear bumper
5,005 mm, 5,185 mm*3
, 5,040 mm *1
,*2
, 5,220 mm *4
,*5 With rear bumper
5,080 mm, 5,260 mm*3
, 5,115 mm *1
, 5,295 mm *4 7 Ground clearance (unladen)
200 mm205 mm8 Overall height (unladen)
1,775 mm, 1,655 mm*2
1,780 mm9 Rear track
1,500 mm1,515 mm10 Cargo bed length
1,325 mm, 1,505 mm*311 Cargo bed width
1,470 mm12 Cargo bed height
845 mm, 715 mm*2
850 mm
*1 : Vehicles for Russia, Kazakhstan and Ukraine
*2 : 2WD vehicles with 15 inch tyres
*3 : Vehicles with long bed
*4 : Vehicles for Russia, Kazakhstan and Ukraine with long bed
*5 : 2WD vehicles with 15 inch tyres and long bed Specifications
9-08
9
OCRE12E1

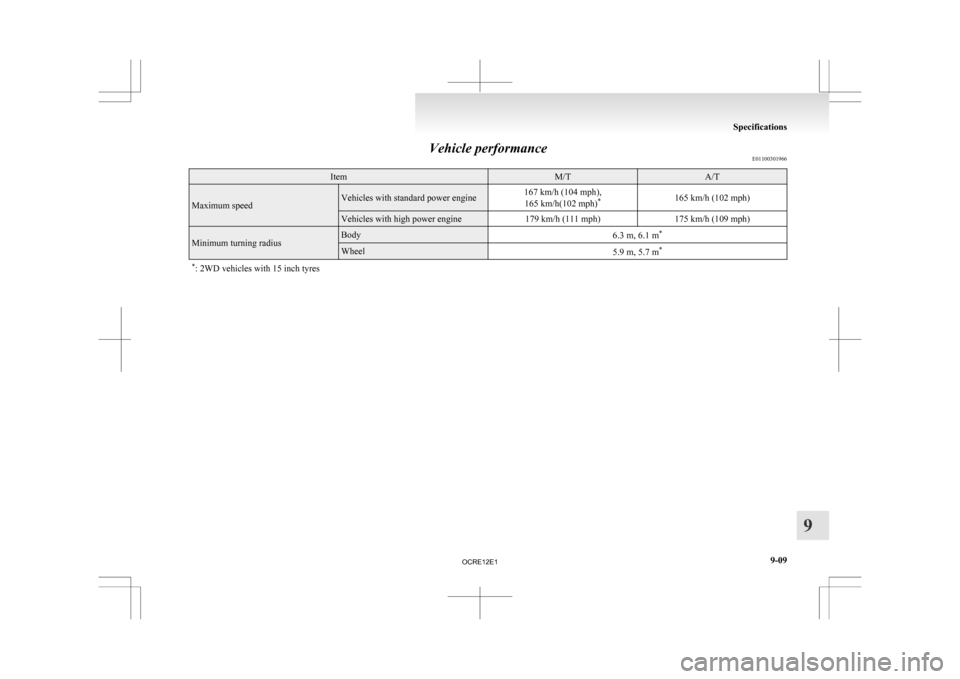

Vehicle performance
E01100301966Item M/T A/T
Maximum speed Vehicles with standard power engine
167 km/h (104 mph),
165 km/h(102 mph) *
165 km/h (102 mph) Vehicles with high power engine
179 km/h (111 mph)175 km/h (109 mph)Minimum turning radius Body
6.3 m, 6.1 m* Wheel
5.9 m, 5.7 m*
* : 2WD vehicles with 15 inch tyres Specifications
9-09 9
