l

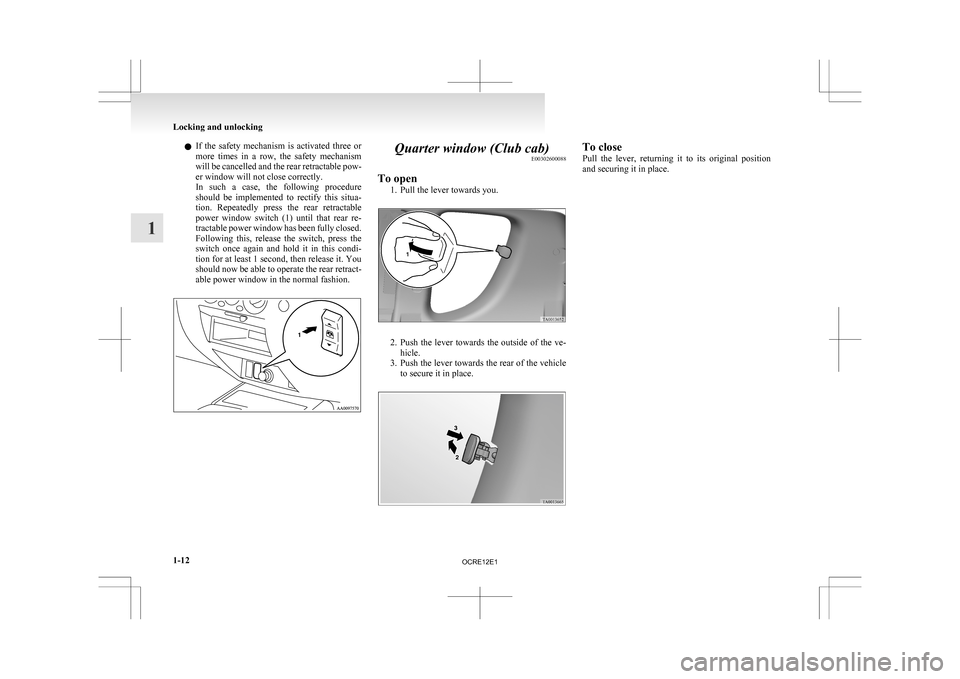

If the safety mechanism is activated three or
more times in a row, the safety mechanism
will be cancelled and the rear retractable pow-
er window will not close correctly.
In such a case, the following procedure
should be implemented to rectify this situa-
tion. Repeatedly press the rear retractable
power window switch (1) until that rear re-
tractable power window has been fully closed.
Following this, release the switch, press the
switch once again and hold it in this condi-
tion for at least 1 second, then release it. You
should now be able to operate the rear retract-
able power window in the normal fashion. Quarter window (Club cab)
E00302600088
To open 1.
Pull the lever towards you. 2. Push
the lever towards the outside of the ve-
hicle.
3. Push the lever towards the rear of the vehicle to secure it in place. To close
Pull
the lever, returning it to its original position
and securing it in place. Locking and unlocking
1-12
1
OCRE12E1
Page 42 of 369

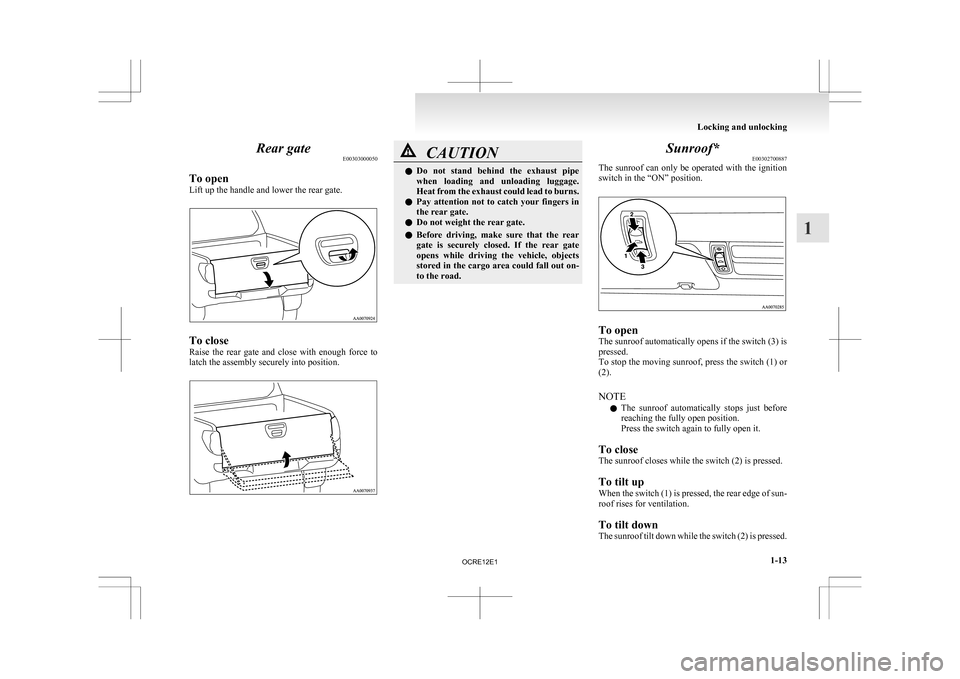

Rear gate
E00303000050
To open
Lift up the handle and lower the rear gate. To close
Raise
the rear gate and close with enough force to
latch the assembly securely into position. CAUTION
l
Do
not stand behind the exhaust pipe
when loading and unloading luggage.
Heat from the exhaust could lead to burns.
l Pay attention not to catch your fingers in
the rear gate.
l Do not weight the rear gate.
l Before driving, make sure that the rear
gate is securely closed. If the rear gate
opens while driving the vehicle, objects
stored in the cargo area could fall out on-
to the road. Sunroof*
E00302700887
The
sunroof can only be operated with the ignition
switch in the “ON” position. To open
The sunroof automatically opens if the switch (3) is
pressed.
To
stop the moving sunroof, press the switch (1) or
(2).
NOTE
l The sunroof automatically stops just before
reaching the fully open position.
Press the switch again to fully open it.
To close
The sunroof closes while the switch (2) is pressed.
To tilt up
When the switch (1) is pressed, the rear edge of sun-
roof rises for ventilation.
To tilt down
The sunroof tilt down while the switch (2) is pressed. Locking and unlocking
1-13 1
OCRE12E1
Page 43 of 369

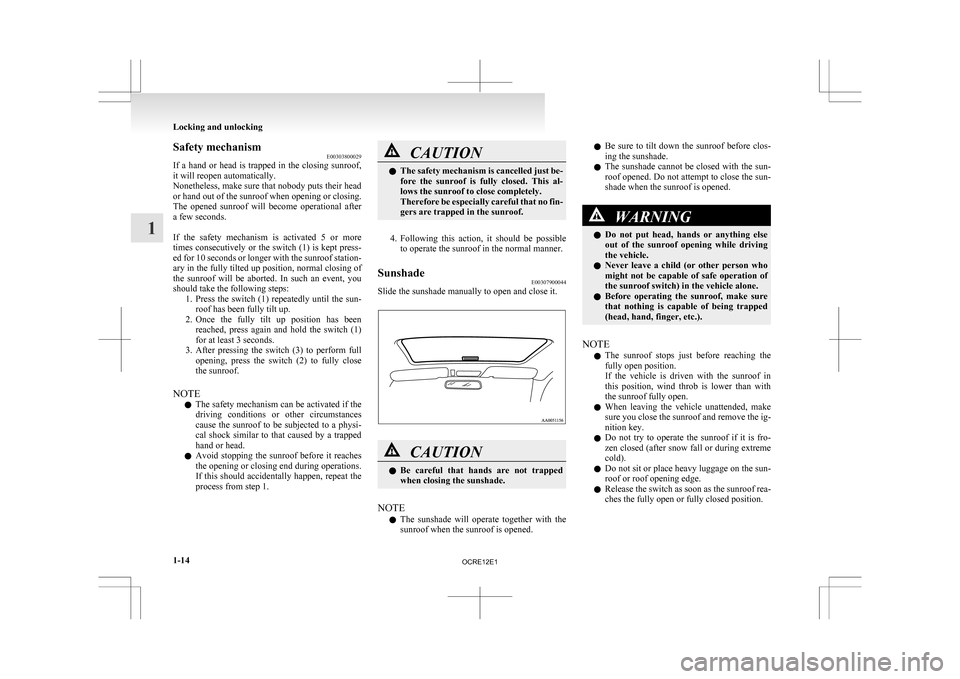

Safety mechanism
E00303800029
If
a hand or head is trapped in the closing sunroof,
it will reopen automatically.
Nonetheless, make sure that nobody puts their head
or hand out of the sunroof when opening or closing.
The opened sunroof will become operational after
a few seconds.
If the safety mechanism is activated 5 or more
times consecutively or the switch (1) is kept press-
ed for 10 seconds or longer with the sunroof station-
ary in the fully tilted up position, normal closing of
the sunroof will be aborted. In such an event, you
should take the following steps: 1. Press the switch (1) repeatedly until the sun-roof has been fully tilt up.
2. Once the fully tilt up position has been reached, press again and hold the switch (1)
for at least 3 seconds.
3. After pressing the switch (3) to perform full opening, press the switch (2) to fully close
the sunroof.
NOTE l The safety mechanism can be activated if the
driving conditions or other circumstances
cause the sunroof to be subjected to a physi-
cal shock similar to that caused by a trapped
hand or head.
l Avoid stopping the sunroof before it reaches
the opening or closing end during operations.
If this should accidentally happen, repeat the
process from step 1. CAUTION
l
The
safety mechanism is cancelled just be-
fore the sunroof is fully closed. This al-
lows the sunroof to close completely.
Therefore be especially careful that no fin-
gers are trapped in the sunroof.
4. Following
this action, it should be possible
to operate the sunroof in the normal manner.
Sunshade E00307900044
Slide the sunshade manually to open and close it. CAUTION
l
Be
careful that hands are not trapped
when closing the sunshade.
NOTE l The
sunshade will operate together with the
sunroof when the sunroof is opened. l
Be
sure to tilt down the sunroof before clos-
ing the sunshade.
l The sunshade cannot be closed with the sun-
roof opened. Do not attempt to close the sun-
shade when the sunroof is opened. WARNING
l Do
not put head, hands or anything else
out of the sunroof opening while driving
the vehicle.
l Never leave a child (or other person who
might not be capable of safe operation of
the sunroof switch) in the vehicle alone.
l Before operating the sunroof, make sure
that nothing is capable of being trapped
(head, hand, finger, etc.).
NOTE l The
sunroof stops just before reaching the
fully open position.
If the vehicle is driven with the sunroof in
this position, wind throb is lower than with
the sunroof fully open.
l When leaving the vehicle unattended, make
sure you close the sunroof and remove the ig-
nition key.
l Do not try to operate the sunroof if it is fro-
zen closed (after snow fall or during extreme
cold).
l Do not sit or place heavy luggage on the sun-
roof or roof opening edge.
l Release the switch as soon as the sunroof rea-
ches the fully open or fully closed position. Locking and unlocking
1-14
1
OCRE12E1
Page 44 of 369

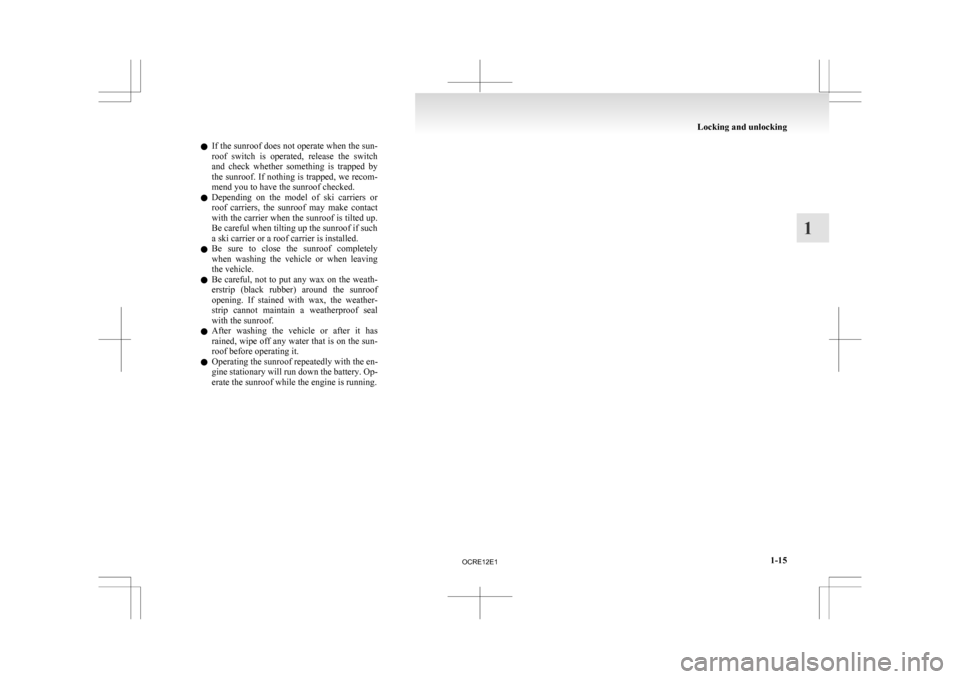

l
If the sunroof does not operate when the sun-
roof switch is operated, release the switch
and check whether something is trapped by
the sunroof. If nothing is trapped, we recom-
mend you to have the sunroof checked.
l Depending on the model of ski carriers or
roof carriers, the sunroof may make contact
with the carrier when the sunroof is tilted up.
Be careful when tilting up the sunroof if such
a ski carrier or a roof carrier is installed.
l Be sure to close the sunroof completely
when washing the vehicle or when leaving
the vehicle.
l Be careful, not to put any wax on the weath-
erstrip (black rubber) around the sunroof
opening. If stained with wax, the weather-
strip cannot maintain a weatherproof seal
with the sunroof.
l After washing the vehicle or after it has
rained, wipe off any water that is on the sun-
roof before operating it.
l Operating the sunroof repeatedly with the en-
gine stationary will run down the battery. Op-
erate the sunroof while the engine is running. Locking and unlocking
1-15 1
OCRE12E1
Page 45 of 369
OCRE12E1
Page 46 of 369

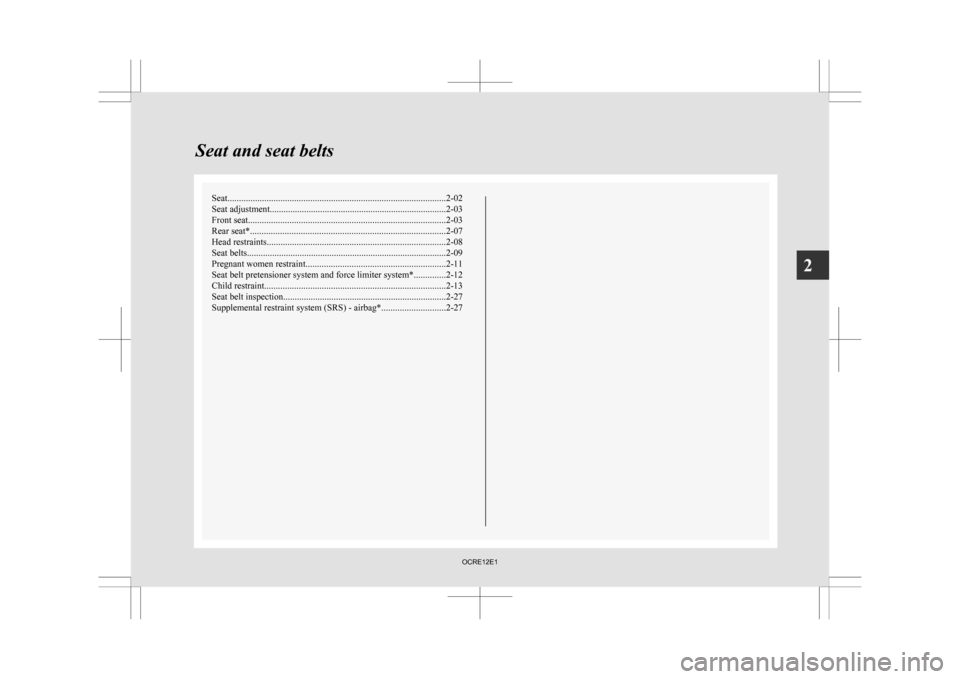

Seat...............................................................................................
2-02
Seat adjustment ............................................................................. 2-03
Front seat...................................................................................... 2-03
Rear seat* ..................................................................................... 2-07
Head restraints .............................................................................. 2-08
Seat belts ....................................................................................... 2-09
Pregnant women restraint ............................................................. 2-11
Seat belt pretensioner system and force limiter system* ..............2-12
Child restraint ............................................................................... 2-13
Seat belt inspection ....................................................................... 2-27
Supplemental restraint system (SRS) - airbag* ............................2-27Seat and seat belts
2
OCRE12E1
Page 47 of 369

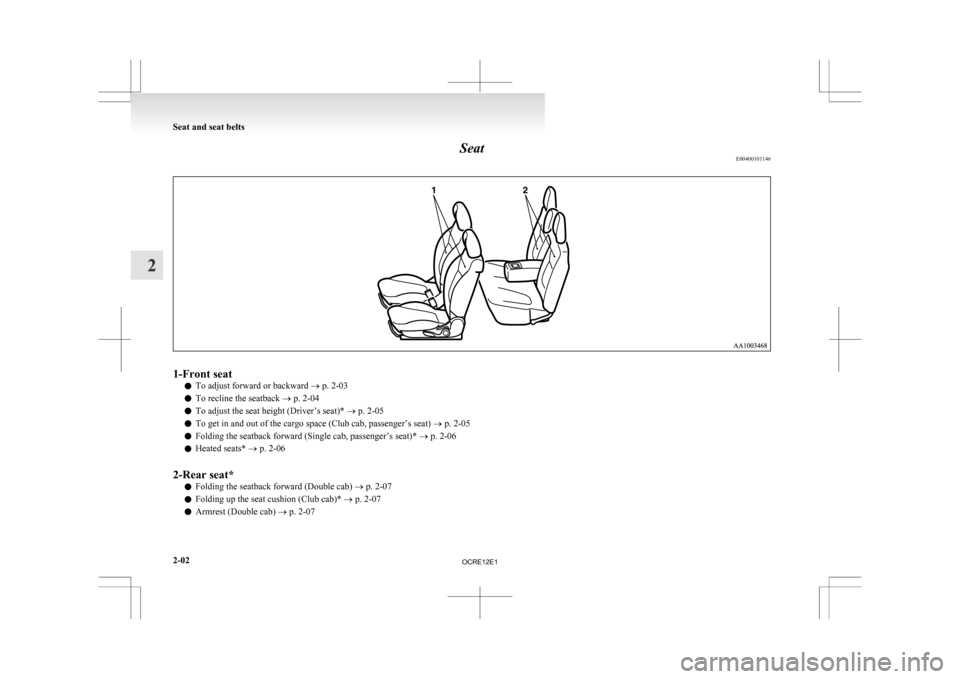

Seat
E004001011461-Front seat
l To adjust forward or backward
® p. 2-03
l To recline the seatback
® p. 2-04
l To adjust the seat height (Driver’s seat)*
® p. 2-05
l To get in and out of the cargo space (Club cab, passenger’s seat)
® p. 2-05
l Folding the seatback forward (Single cab, passenger’s seat)*
® p. 2-06
l Heated seats*
® p. 2-06
2-Rear seat* l Folding the seatback forward (Double cab)
® p. 2-07
l Folding up the seat cushion (Club cab)* ® p. 2-07
l Armrest (Double cab)
® p. 2-07Seat and seat belts
2-02
2
OCRE12E1
Page 48 of 369

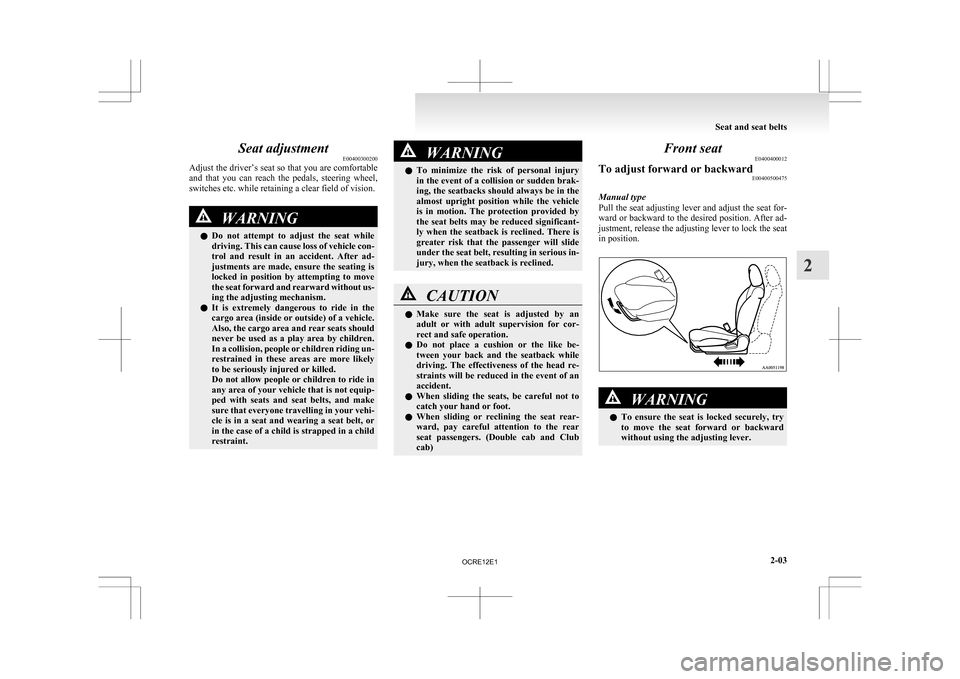

Seat adjustment
E00400300200
Adjust
the driver’s seat so that you are comfortable
and that you can reach the pedals, steering wheel,
switches etc. while retaining a clear field of vision. WARNING
l Do
not attempt to adjust the seat while
driving. This can cause loss of vehicle con-
trol and result in an accident. After ad-
justments are made, ensure the seating is
locked in position by attempting to move
the seat forward and rearward without us-
ing the adjusting mechanism.
l It is extremely dangerous to ride in the
cargo area (inside or outside) of a vehicle.
Also, the cargo area and rear seats should
never be used as a play area by children.
In a collision, people or children riding un-
restrained in these areas are more likely
to be seriously injured or killed.
Do not allow people or children to ride in
any area of your vehicle that is not equip-
ped with seats and seat belts, and make
sure that everyone travelling in your vehi-
cle is in a seat and wearing a seat belt, or
in the case of a child is strapped in a child
restraint. WARNING
l To
minimize the risk of personal injury
in the event of a collision or sudden brak-
ing, the seatbacks should always be in the
almost upright position while the vehicle
is in motion. The protection provided by
the seat belts may be reduced significant-
ly when the seatback is reclined. There is
greater risk that the passenger will slide
under the seat belt, resulting in serious in-
jury, when the seatback is reclined. CAUTION
l
Make
sure the seat is adjusted by an
adult or with adult supervision for cor-
rect and safe operation.
l Do not place a cushion or the like be-
tween your back and the seatback while
driving. The effectiveness of the head re-
straints will be reduced in the event of an
accident.
l When sliding the seats, be careful not to
catch your hand or foot.
l When sliding or reclining the seat rear-
ward, pay careful attention to the rear
seat passengers. (Double cab and Club
cab) Front seat
E0400400012
To adjust forward or backward E00400500475
Manual type
Pull
the seat adjusting lever and adjust the seat for-
ward or backward to the desired position. After ad-
justment, release the adjusting lever to lock the seat
in position. WARNING
l To
ensure the seat is locked securely, try
to move the seat forward or backward
without using the adjusting lever. Seat and seat belts
2-03 2
OCRE12E1
Page 49 of 369

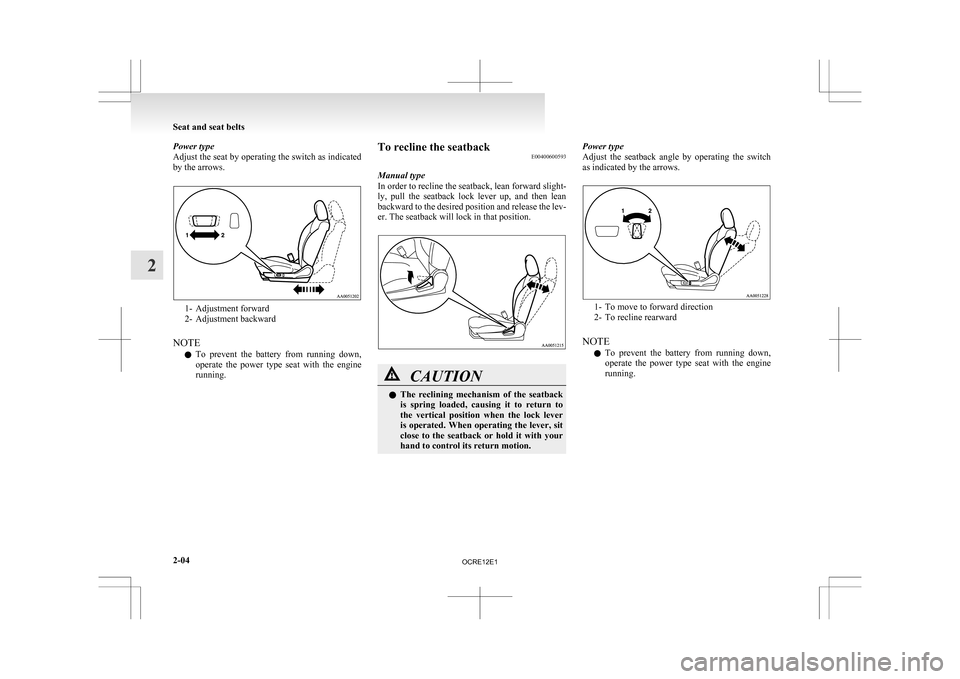

Power type
Adjust
the seat by operating the switch as indicated
by the arrows. 1- Adjustment forward
2-
Adjustment backward
NOTE l To prevent the battery from running down,
operate the power type seat with the engine
running. To recline the seatback
E00400600593
Manual type
In
order to recline the seatback, lean forward slight-
ly, pull the seatback lock lever up, and then lean
backward to the desired position and release the lev-
er. The seatback will lock in that position. CAUTION
l
The
reclining mechanism of the seatback
is spring loaded, causing it to return to
the vertical position when the lock lever
is operated. When operating the lever, sit
close to the seatback or hold it with your
hand to control its return motion. Power type
Adjust
the seatback angle by operating the switch
as indicated by the arrows. 1- To move to forward direction
2-
To recline rearward
NOTE l To prevent the battery from running down,
operate the power type seat with the engine
running. Seat and seat belts
2-04
2
OCRE12E1
Page 50 of 369

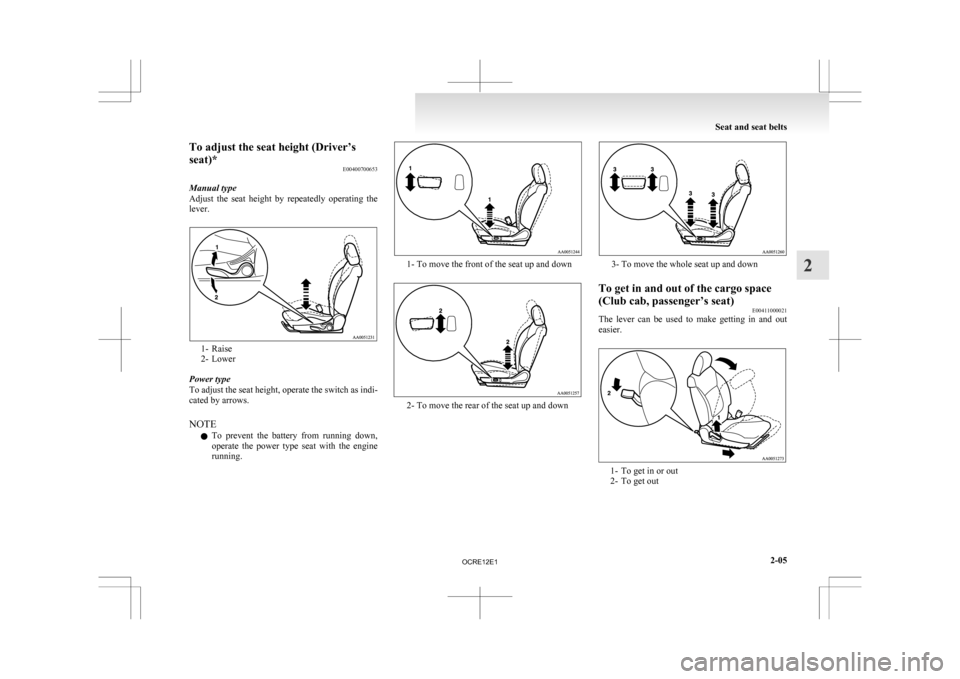

To adjust the seat height (Driver’s
seat)*
E00400700653
Manual type
Adjust
the seat height by repeatedly operating the
lever. 1- Raise
2-
Lower
Power type
To adjust the seat height, operate the switch as indi-
cated by arrows.
NOTE l To prevent the battery from running down,
operate the power type seat with the engine
running. 1- To move the front of the seat up and down
2- To move the rear of the seat up and down 3- To move the whole seat up and down
To get in and out of the cargo space
(Club cab, passenger’s seat) E00411000021
The lever can be used to make getting in and out
easier. 1- To get in or out
2-
To get out Seat and seat belts
2-05 2
OCRE12E1
