Page 61 of 369

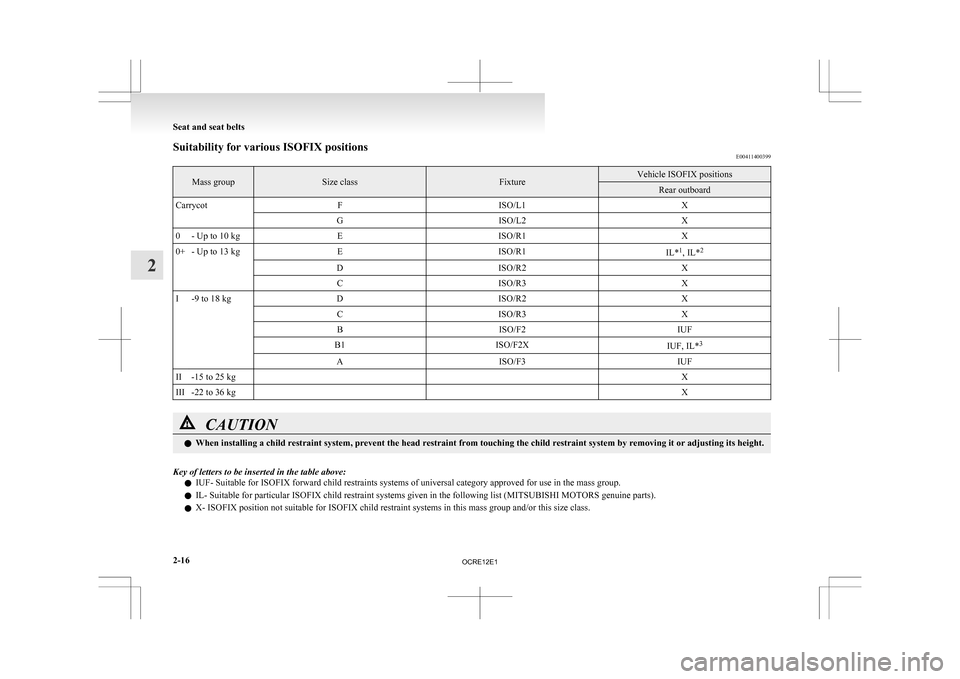

Suitability for various ISOFIX positions
E00411400399Mass group Size class Fixture Vehicle ISOFIX positions
Rear outboard
Carrycot FISO/L1 X
G ISO/L2 X
0 - Up to 10 kg EISO/R1 X
0+ - Up to 13 kg EISO/R1
IL*1
, IL* 2
D ISO/R2 X
C ISO/R3 X
I -9 to 18 kg D ISO/R2 X
C ISO/R3 X
B ISO/F2 IUF
B1 ISO/F2X
IUF, IL*3
A ISO/F3 IUF
II -15 to 25 kg X
III -22 to 36 kg XCAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l IUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems given in the following list (
MITSUBISHI MOTORS genuine parts).
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class. Seat and seat belts
2-16
2
OCRE12E1
Page 62 of 369

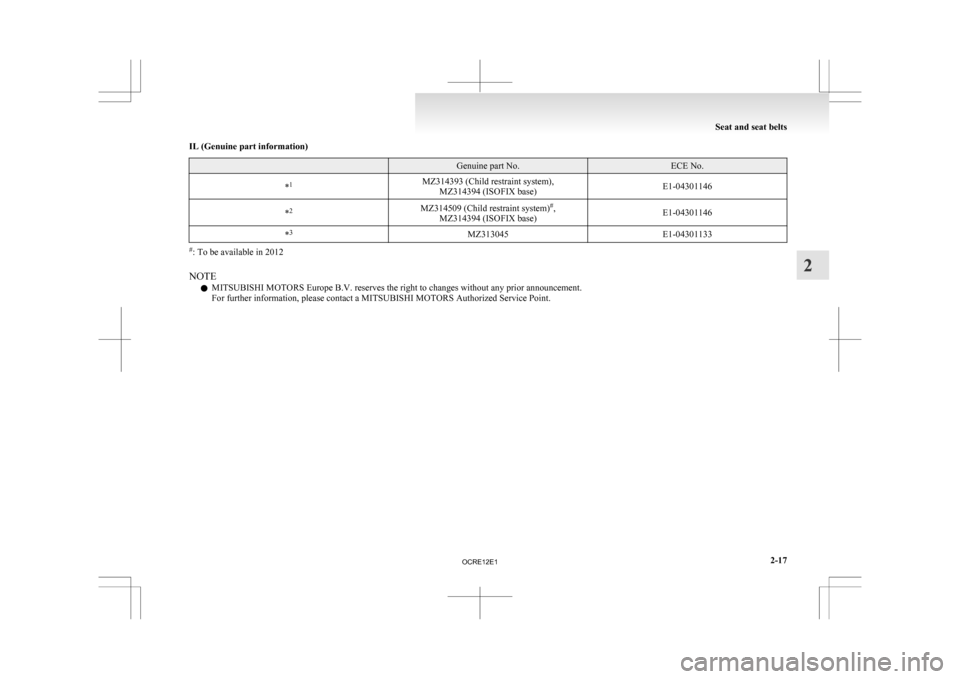

IL (Genuine part information)
Genuine part No. ECE No.
* 1
MZ314393 (Child restraint system),
MZ314394 (ISOFIX base) E1-04301146
* 2
MZ314509 (Child restraint system)#
,
MZ314394 (ISOFIX base) E1-04301146
* 3
MZ313045 E1-04301133#
: To be available in 2012
NOTE l MITSUBISHI MOTORS
Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point. Seat and seat belts
2-17 2
OCRE12E1

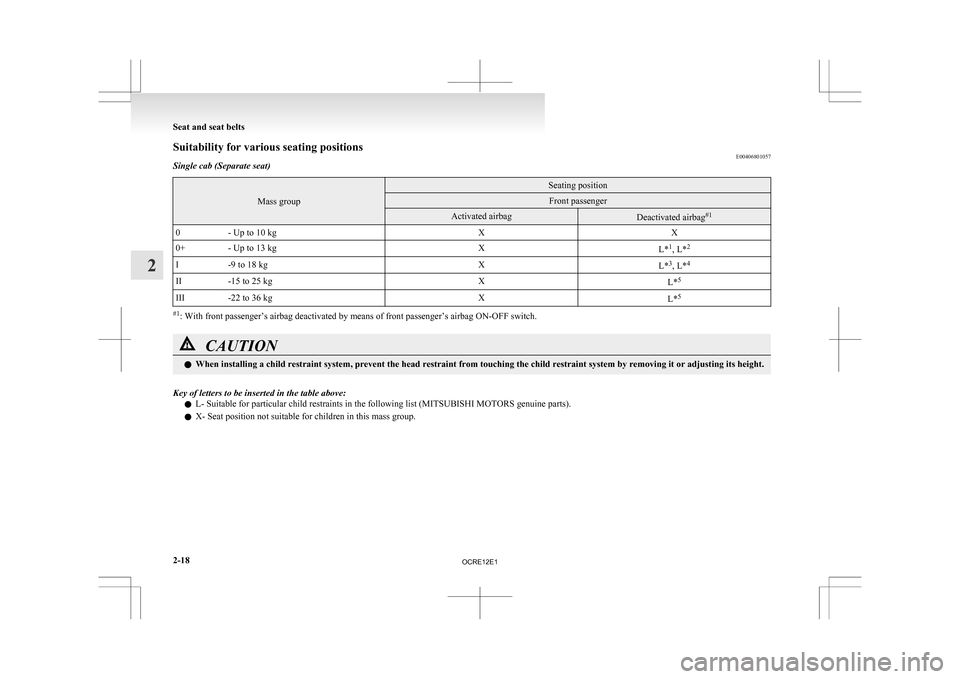

Page 63 of 369
Suitability for various seating positions
E00406801057
Single cab (Separate seat) Mass group Seating position
Front passenger
Activated airbag
Deactivated airbag
#1
0 - Up to 10 kg XX
0+ - Up to 13 kg X
L*1
, L* 2
I -9 to 18 kg X
L*3
, L* 4
II -15 to 25 kg X
L*5
III -22 to 36 kg X
L*5 #1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.CAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l L- Suitable for particular child restraints in the following list (
MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group. Seat and seat belts
2-18
2
OCRE12E1
Page 64 of 369

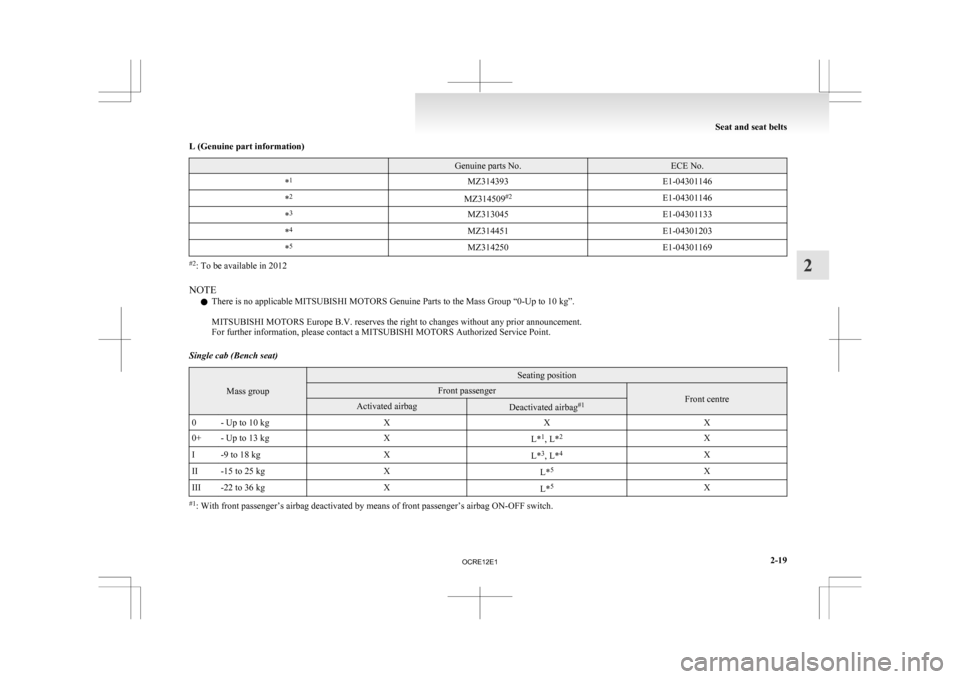

L (Genuine part information)
Genuine parts No. ECE No.
* 1
MZ314393 E1-04301146
* 2
MZ314509#2
E1-04301146
* 3
MZ313045 E1-04301133
* 4
MZ314451 E1-04301203
* 5
MZ314250 E1-04301169#2
: To be available in 2012
NOTE l There is no applicable
MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.
Single cab (Bench seat) Mass group Seating position
Front passenger
Front centre
Activated airbag
Deactivated airbag
#1
0 - Up to 10 kg XXX
0+ - Up to 13 kg X
L*1
, L* 2
X
I -9 to 18 kg X
L*3
, L* 4
X
II -15 to 25 kg X
L*5
X
III -22 to 36 kg X
L*5
X#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag
ON-OFF switch. Seat and seat belts
2-19 2
OCRE12E1

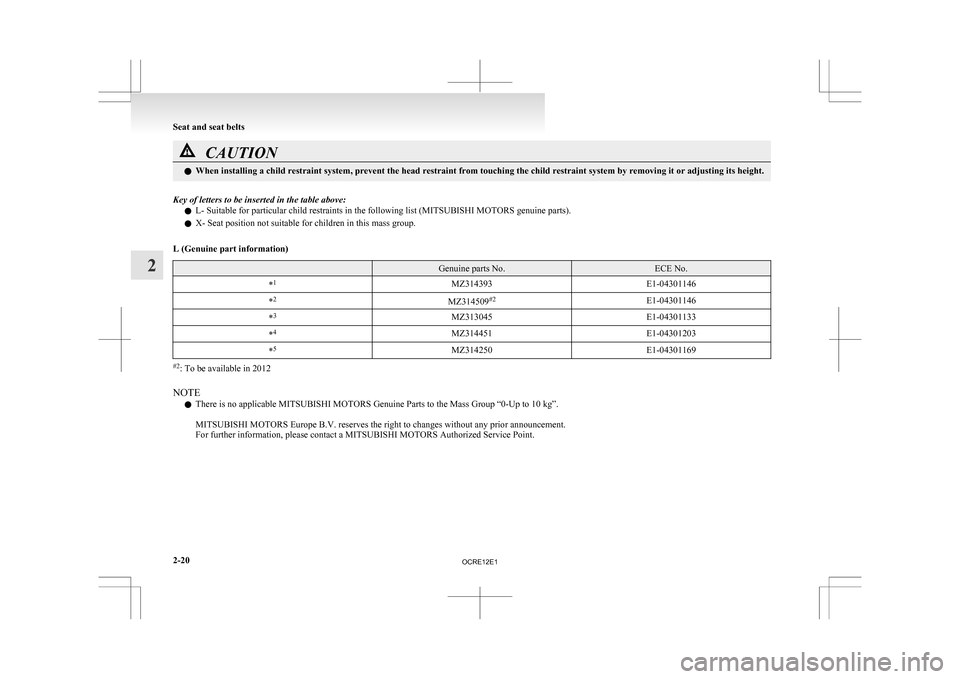

Page 65 of 369
CAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l L- Suitable for particular child restraints in the following list ( MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
L (Genuine part information) Genuine parts No. ECE No.
* 1
MZ314393 E1-04301146
* 2
MZ314509#2
E1-04301146
* 3
MZ313045 E1-04301133
* 4
MZ314451 E1-04301203
* 5
MZ314250 E1-04301169#2
: To be available in 2012
NOTE l There is no applicable
MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point. Seat and seat belts
2-20
2
OCRE12E1
Page 66 of 369

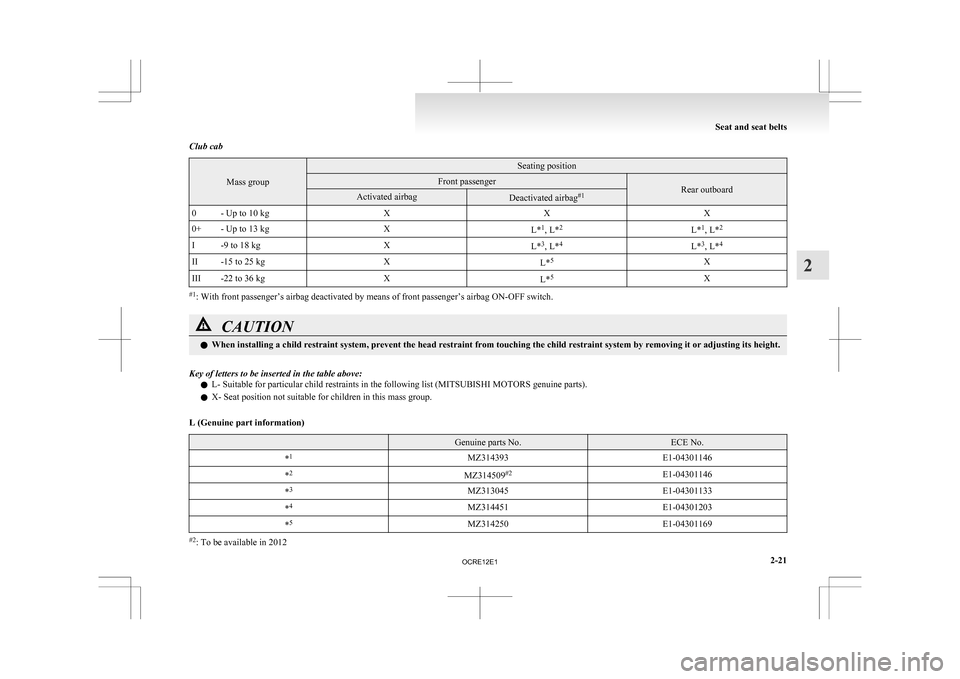

Club cab
Mass group Seating position
Front passenger
Rear outboard
Activated airbag
Deactivated airbag
#1
0 - Up to 10 kg XXX
0+ - Up to 13 kg X
L*1
, L* 2
L*1
, L* 2
I -9 to 18 kg X
L*3
, L* 4
L*3
, L* 4
II -15 to 25 kg X
L*5
X
III -22 to 36 kg X
L*5
X#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.CAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l L- Suitable for particular child restraints in the following list (
MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
L (Genuine part information) Genuine parts No. ECE No.
* 1
MZ314393 E1-04301146
* 2
MZ314509#2
E1-04301146
* 3
MZ313045 E1-04301133
* 4
MZ314451 E1-04301203
* 5
MZ314250 E1-04301169#2
: To be available in 2012 Seat and seat belts
2-21 2
OCRE12E1
Page 67 of 369

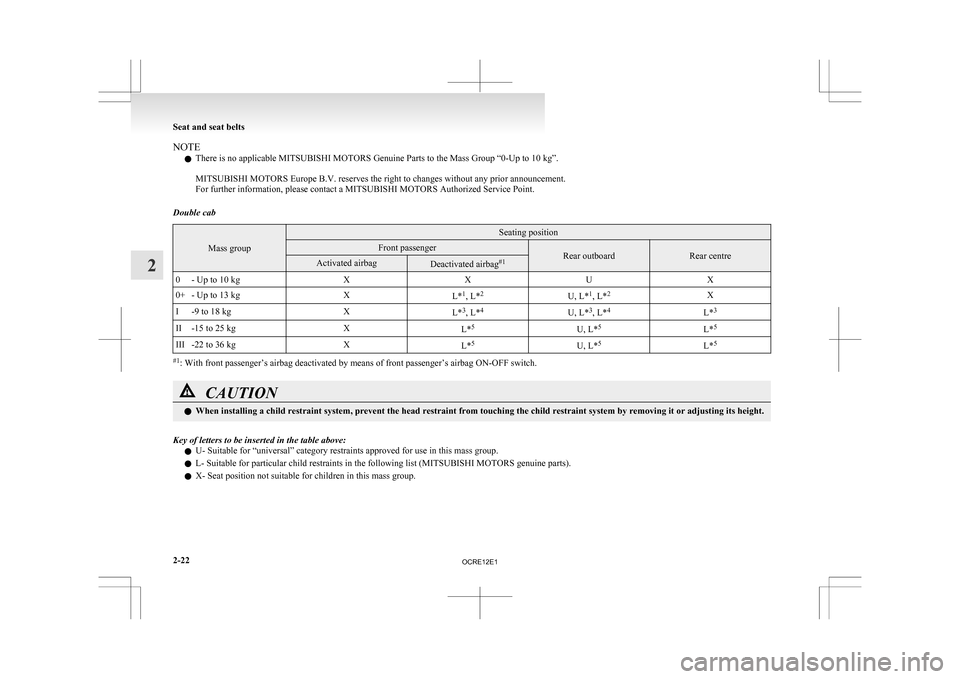

NOTE
l There is no applicable
MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.
Double cab Mass group Seating position
Front passenger
Rear outboard Rear centre
Activated airbag
Deactivated airbag
#1
0 - Up to 10 kg XXUX
0+ - Up to 13 kg X
L*1
, L* 2
U, L*1
, L* 2
X
I -9 to 18 kg X
L*3
, L* 4
U, L*3
, L* 4
L*3
II -15 to 25 kg X
L*5
U, L*5
L*5
III -22 to 36 kg X
L*5
U, L*5
L*5 #1
: With front passenger’s airbag deactivated by means of front passenger’s airbag
ON-OFF switch.CAUTION
l
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.
Key of letters to be inserted in the table above: l U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints in the following list (
MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group. Seat and seat belts
2-22
2
OCRE12E1
Page 68 of 369

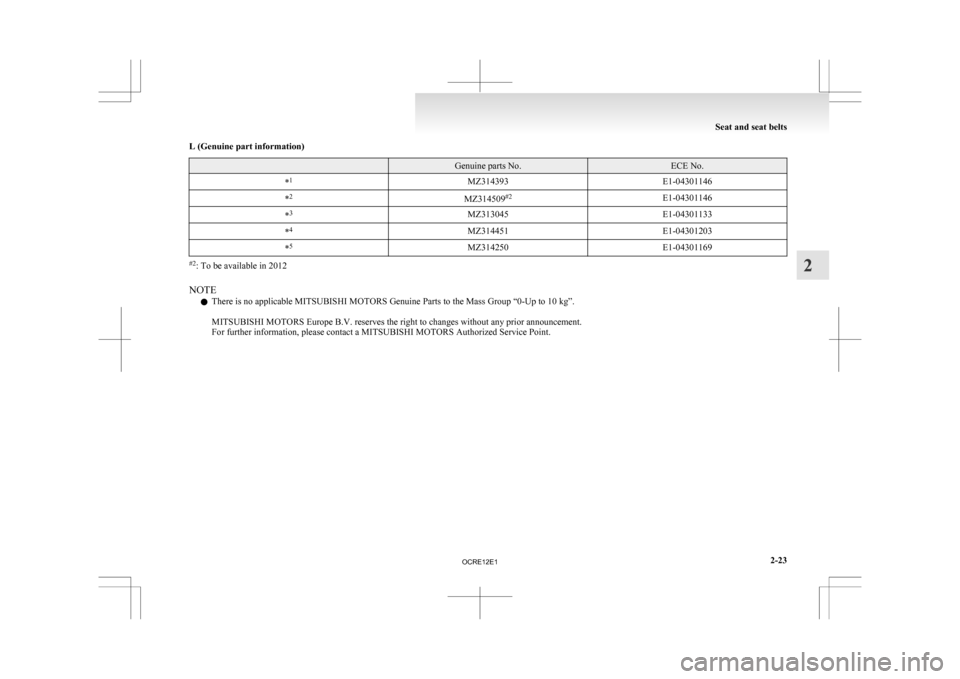

L (Genuine part information)
Genuine parts No. ECE No.
* 1
MZ314393 E1-04301146
* 2
MZ314509#2
E1-04301146
* 3
MZ313045 E1-04301133
* 4
MZ314451 E1-04301203
* 5
MZ314250 E1-04301169#2
: To be available in 2012
NOTE l There is no applicable
MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point. Seat and seat belts
2-23 2
OCRE12E1
Page 69 of 369

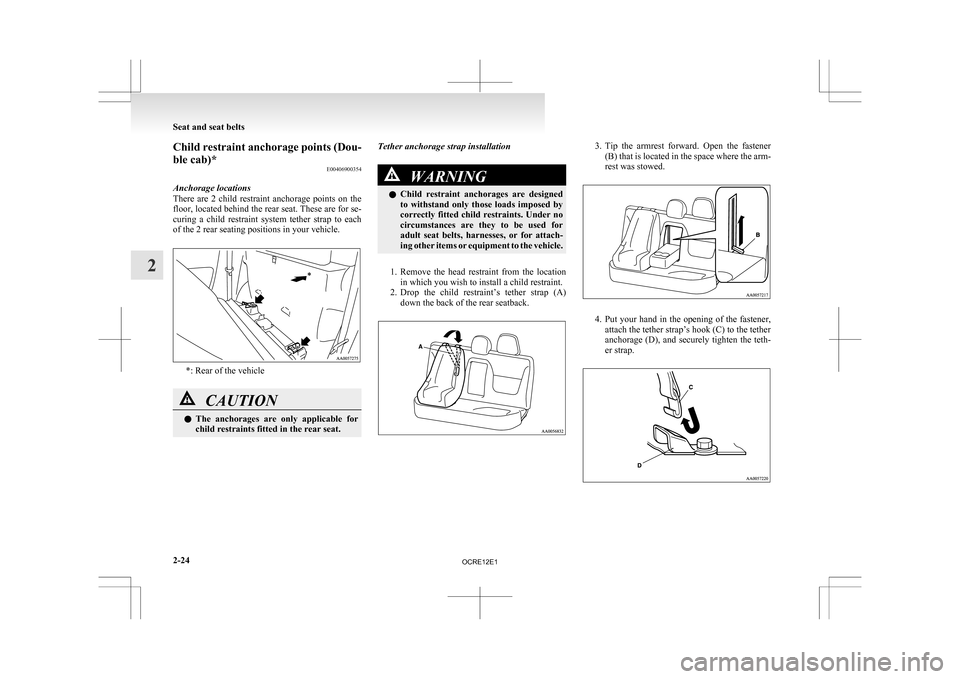

Child restraint anchorage points (Dou-
ble cab)*
E00406900354
Anchorage locations
There
are 2 child restraint anchorage points on the
floor, located behind the rear seat. These are for se-
curing a child restraint system tether strap to each
of the 2 rear seating positions in your vehicle. *: Rear of the vehicle
CAUTION
l
The
anchorages are only applicable for
child restraints fitted in the rear seat. Tether anchorage strap installation WARNING
l Child
restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used for
adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehicle.
1. Remove
the head restraint from the location in which you wish to install a child restraint.
2. Drop the child restraint’s tether strap (A) down the back of the rear seatback. 3. Tip
the armrest forward. Open the fastener
(B) that is located in the space where the arm-
rest was stowed. 4. Put
your hand in the opening of the fastener,
attach the tether strap’s hook (C) to the tether
anchorage (D), and securely tighten the teth-
er strap. Seat and seat belts
2-24
2
OCRE12E1
Page 70 of 369

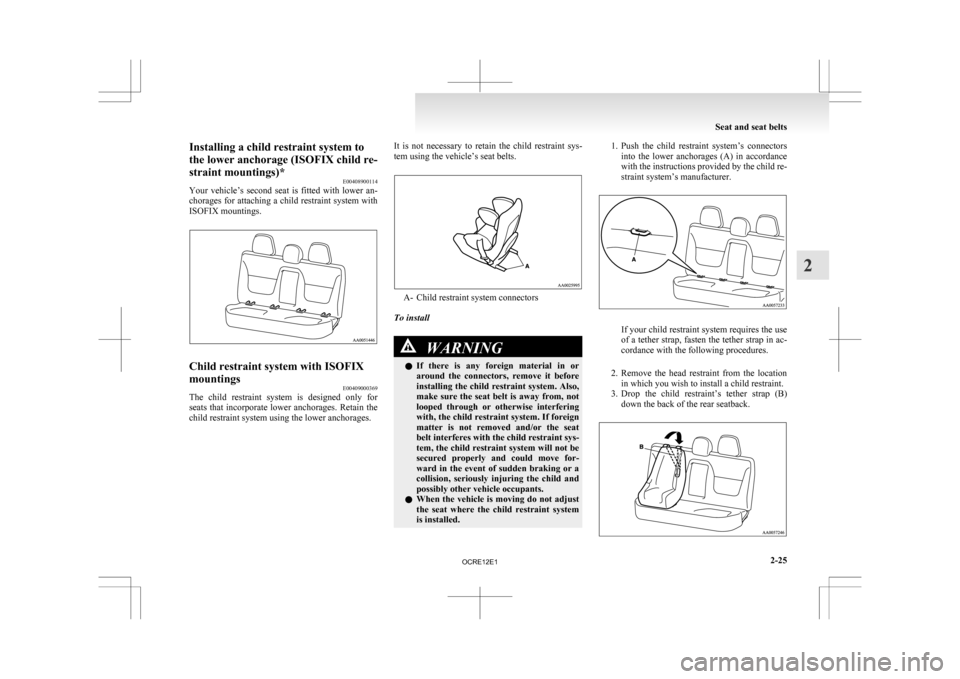

Installing a child restraint system to
the lower anchorage (ISOFIX child re-
straint mountings)*
E00408900114
Your
vehicle’s second seat is fitted with lower an-
chorages for attaching a child restraint system with
ISOFIX mountings. Child restraint system with ISOFIX
mountings
E00409000369
The child restraint system is designed only for
seats
that incorporate lower anchorages. Retain the
child restraint system using the lower anchorages. It is not necessary to retain the child restraint sys-
tem using the vehicle’s seat belts. A- Child restraint system connectors
To install WARNING
l If
there is any foreign material in or
around the connectors, remove it before
installing the child restraint system. Also,
make sure the seat belt is away from, not
looped through or otherwise interfering
with, the child restraint system. If foreign
matter is not removed and/or the seat
belt interferes with the child restraint sys-
tem, the child restraint system will not be
secured properly and could move for-
ward in the event of sudden braking or a
collision, seriously injuring the child and
possibly other vehicle occupants.
l When the vehicle is moving do not adjust
the seat where the child restraint system
is installed. 1. Push
the child restraint system’s connectors
into the lower anchorages (A) in accordance
with the instructions provided by the child re-
straint system’s manufacturer. If your child restraint system requires the use
of
a tether strap, fasten the tether strap in ac-
cordance with the following procedures.
2. Remove the head restraint from the location in which you wish to install a child restraint.
3. Drop the child restraint’s tether strap (B) down the back of the rear seatback. Seat and seat belts
2-25 2
OCRE12E1
